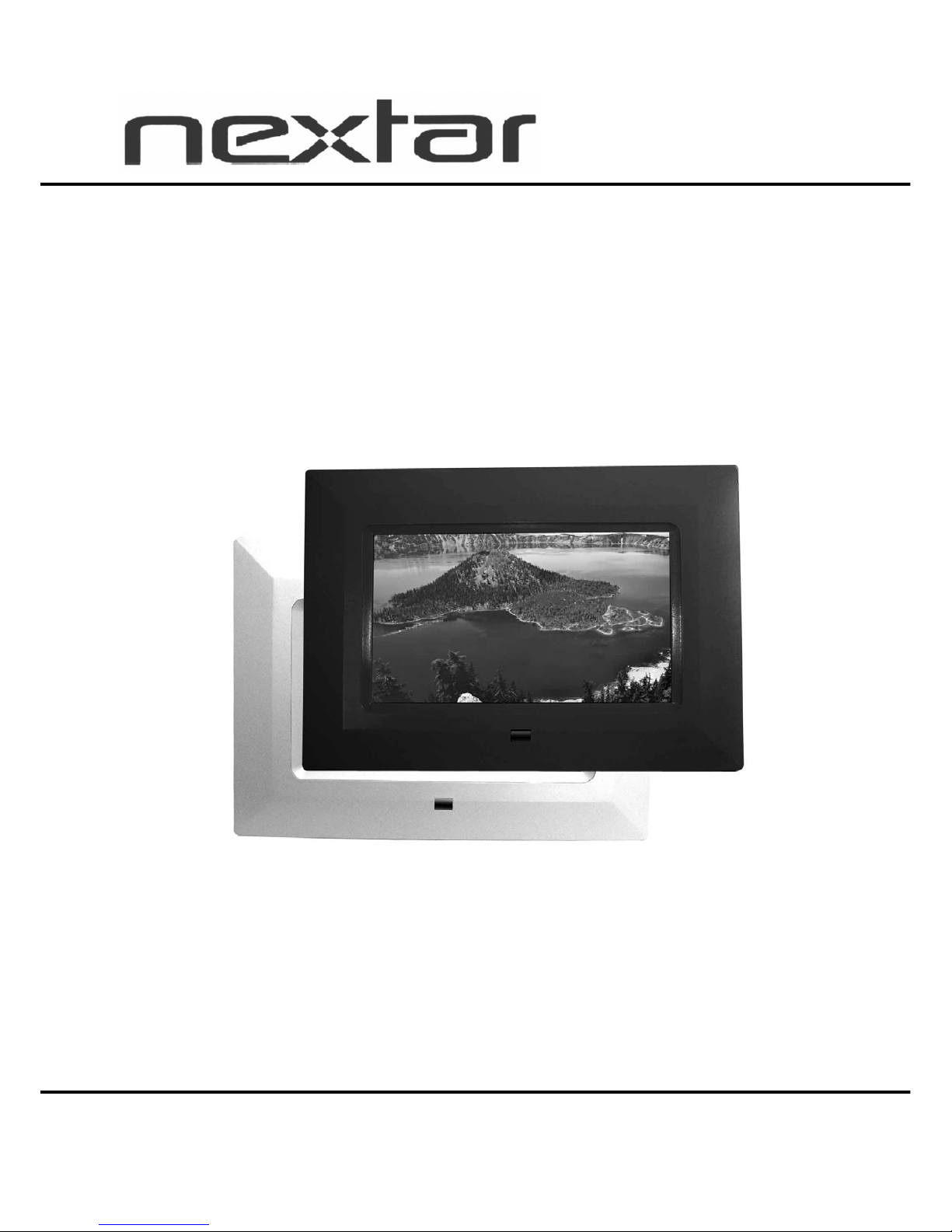

Nextar N7-108 Manuale utente

N7-108

User’s Manual

Digital Photo Frame

Introduction

Thank you very much for choosing our Digital Photo Frame.

Before you begin to use this device, please read this manual thoroughly and keep it

available for future reference. This manual will present you with the exciting features

provided by our Digital Photo Frame, which allows you to enjoy unbelievably amazing

visual & audio experience.

With our Digital Photo Frame, you can easily and quickly view photos directly from

your digital camera’s memory card. You can even create a slideshow with multiple

transition effects. No computer, digital camera, or Internet connection is required.

Our Digital Photo Frame is compatible with the following memory cards and ports: SD,

MultiMedia Card, Memory Stick, and Memory Stick PRO and USB.

Main Features

★ This device can display digital pictures (JPEG) and play MP3 music or supported

video files without connecting a computer (memory card not included).

★ Compatible with Secure Digital Card (SD), MultiMedia Card (MMC), Memory Stick

and Memory Stick Pro.

★ Compatible with USB 2.0

★ The device can play MP3 files with high-quality integrated speakers.

★ The device can instantly play MEPG-1 and AVI* file(s) stored on supported

memory cards.

★ Handy remote control

★ Automatic slide show with multiple transition effects and display times.

★ The device can play a slide show with MP3 background music.

★ User-friendly on-screen display allows you to access all functions easily.

* Video files may not play properly if stored on a low-speed card.

*Not all AVI format video files will be supported.

Safety Precautions and Maintenance

★ For indoor use only.

★ To reduce the risk of fire or electric shock, do not expose this appliance to rain or

moisture.

★ To prevent overheating, never block any vents on the back of the digital photo

frame.

★ Keep your Digital Photo Frame out of direct sunlight. Direct sunlight may cause

damage.

★ Always use the buttons built in to the memory card slots to remove memory cards

from the device.

★ Do not disassemble the Digital Photo Frame, otherwise it may result in electric

shock and void your warranty. No user-serviceable parts inside.

★ Protect the device from condensation, otherwise it may result in device damage.

How to Clean LCD Screen

★ Wipe the screen gently. The screen is made of glass and may be easily scratched

or broken.

★ To clean fingerprints and dust from the LCD screen, a soft, non-abrasive cloth

such as camera lens cleaning cloth is recommended.

★ Do not apply cleaning liquid directly to the LCD screen if using LCD screen

cleaning kits, available at retail outlets. Moisten the cleaning cloth with the

cleansing solution, then wipe the LCD screen with the damp cloth.

Screen Saver

★Without a memory card or USB connection, or when the appliance is in 「STOP」

or 「PAUSE」mode, a screen saver program will automatically start after 10 minutes.

Pressing any button will return the appliance to main functions.

WARNING:

Please STOP the device before you insert or remove any memory card or USB

device. Otherwise, it may cause damage to the card/USB and the device.

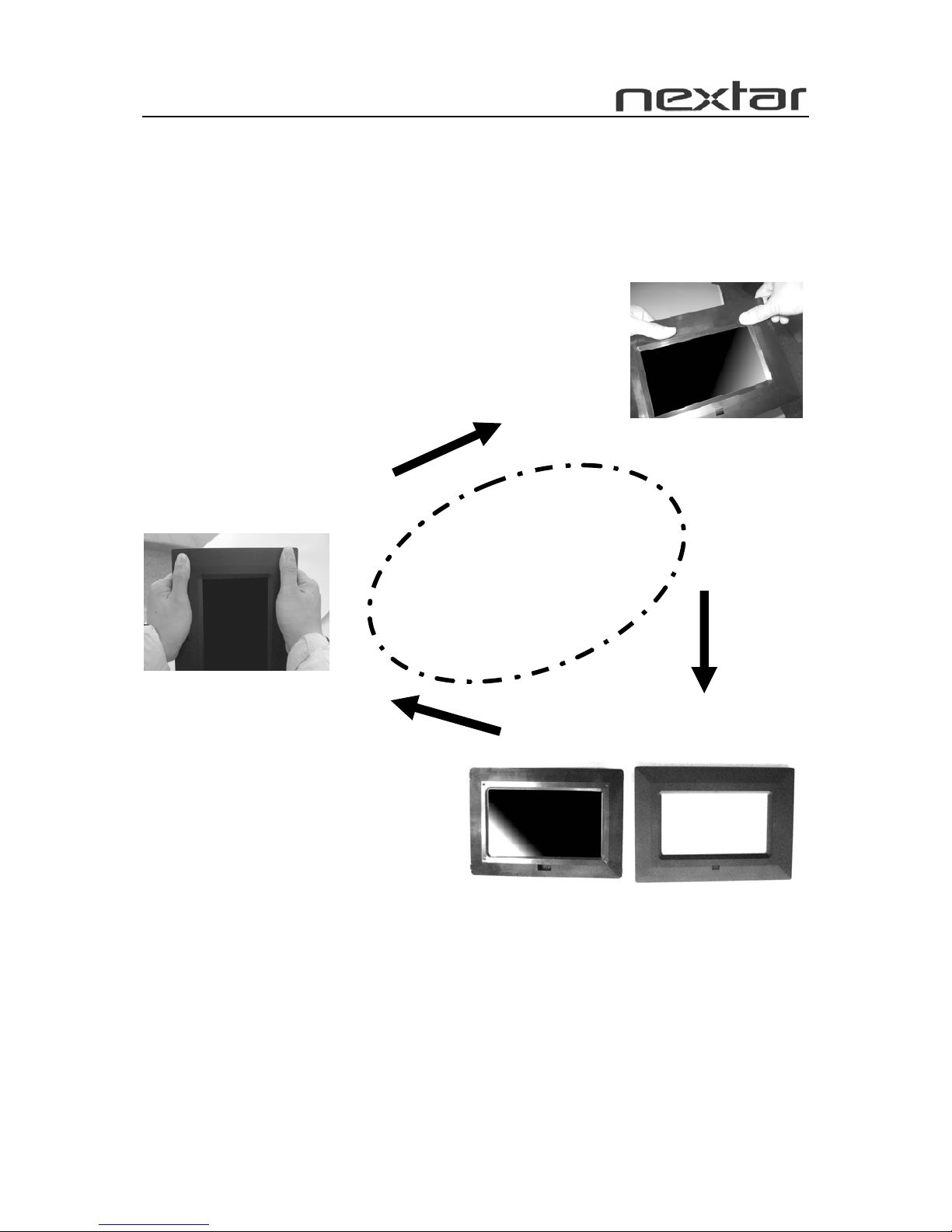

To Remove and Replace the Picture Frame

Color Panel:

To change panel, simply place

the panel over the frame and

press down with thumbs and

index fingers.

With both hands on the picture frame

panel, place thumbs on the upper portion of

the frame and index fingers at the corners.

Lift the corners with the index finger.

Photo 1

Photo 2

Frame will lift off.

Photo 3

Preparation

1. Install the support bracket for

the device. Plug the Digital

Photo Frame power adaptor

into a working electrical outlet.

2. Turn on the main power using the switch

on the back of the Digital Photo Frame. Then press

the「POWER」button on the remote control or

on the top of the Digital Photo Frame.

How to Insert Memory Cards

Your Digital Photo Frame is compatible with the following memory cards:

★ Secure Digital Card (SD)

★ Multimedia Card (MMC)

★ Memory Stick and Memory Stick Pro

Insert the memory card with its label facing up. Do not try to force a memory card

into the slot. If it is difficult to insert the card, you may be inserting the card

incorrectly.

Note: Only JPEG-format

digital image files can be read

by the Digital Photo Frame.

The device may fail to read

image files in other formats.

Key Features and Remote Control

Key Functions:

1. POWER: Turn the device on / off.

2. ENTER: Press this button once to play the selected file. Press the button one

more time, the display will return to the Root Menu.

3. PHOTO: Press this button to select the「PHOTO」Mode available on the

Main Menu.

4. MOVIE: Press this button to enter the 「VIDEO」Mode.

5. MUSIC: Press this button to enter the 「MUSIC」Mode.

6. USB: USB interface to connect to U disc/MP3 Player.

7. SD/MMC/MS CARD: Slots for SD/MMC/MS card insertion

8. DC IN: DC power Input

9. RESET

Remote Control

MOVIE: Press this button to enter

「VIDEO」Mode.

REPEAT: Press this button to activate all

modes of the Repeat feature (chapter

repeat, title repeat, folder repeat, etc.)

16:9/4:3: Press this button to choose the

TFT LCD aspect ratios between 4:3 and

16:9.

ROTATE: Press this button to adjust the

viewing angle of the pictures.

ZOOM: Press this button to enlarge the

picture in increments of 2, 3, 4, 1/2, 1/3,

1/4, OFF.

VIEW: Press this button to turn on the

6-picture-view function, displaying 6

small pictures for navigation.

SETUP: Press this button to display the

device’s setup menu.

MENU: Press this button to display the

main menu.

BACK MUSIC: Press this button to play

background MP3 music while displaying

slide shows or pictures.

SLIDE SHOW: Press this button to view

the pictures one by one automatically.

CLOCK: Press this button to setup the

time and the calendar.

: Press “ ” buttons to select

the menu you want.

(Note: before you use the remote

control, please remove all plastic

strips.)

POWER: Press this button to turn

the device on/off.

MUTE: Press this button to turn the

sound on/off.

PHOTO: Press this button to enter

Slide Show Mode available on the

main menu.

MUSIC: Press this button to enter

the Music Playback Mode.

ENTER: Press “ENTER” for the settings menu.

EXIT: Press ”EXIT” to return to the previous menu.

VOLUME +/-: Press ”VOLUME +/-” to adjust the player’s volume.

: Press this button once to freeze the playback picture.

:Press this button once to halt playback (pre-stop). Press the button again to

terminate playback function and return to the main menu.

: Press “ ”to return to the previous title/chapter/track/picture.

:Press “ ”to skip ahead to the next title/chapter/track/picture.

How to Install and Replace Remote Control Battery

1. Hold the remote control with the buttons facing downward.

2. Hold the remote control cover with one hand and use the other hand to pull the

battery tray out of the remote control cover.

3. Put a “CR2025” lithium battery into the battery tray with the positive “+” side facing

up.

4. Push the battery tray back in.

Main Menu

The screen will display as follows if the memory card has been correctly inserted.

Make sure you have stored a song, photo, or video file on your memory card.

PHOTO Enter the Photo display mode directly

MUSIC Enter the music play mode directly

VIDEO Enter the video play mode directly

SETUP Enter the setup mode directly

CLOCK Enter the clock mode directly

Viewing your Pictures

1. Press the buttons either on the remote control or on the screen to operate the

Digital Photo Frame.

2. Press the arrow keys on the remote control to navigate through the menu items

displayed on the screen and select PHOTO. Press the Enter button to confirm the

selection or simply press the PHOTO button to select the function.

3. Place the cursor on one picture and press the ENTER button to view the picture.

4. Press the SLIDE SHOW button on the remote control to enter Slide Show Mode.

5. Press the VIEW button while reviewing the photo list menu to enter a

6-picture-view and use the arrow keys to choose the picture you would like to see

in a full-screen view.

6. Press the MENU button to return to the main menu and select SETUP to enter the

Setup Mode.

7. Move the cursor to “Video Setup” by pressing the Right arrow Key.

8. Press the Down arrow Key and select “Time”. Press the Right arrow to adjust the

time interval for viewing each picture in the Slide Show, and then press the ENTER

button to confirm the setting. Press the SETUP button again to exit the Setup

Menu.

How to Play MP3 Files

Please ensure that there are MP3 music files on your memory card (please read the

Q&A section for more information).

Note: While pictures are being displayed, press the BACK MUSIC button once to hear

the MP3 files as background music.

1. Press the Right and Left arrow Keys on the remote control to select “Music” and

then press the ENTER or MUSIC button on the remote control.

2. Press the directional keys to select the music file you want. Then press the

ENTER button to confirm your selection.

3. Press the VOL+ or VOL- keys to adjust the volume.

4. Press the FWD and REV keys on the remote control to fast forward or fast reverse

the track.

5. Press the Up arrow key or Down arrow key or PREV/NEXT key to select the

previous or next music file, respectively.

How to Play Video Files

The Digital Photo Frame is compatible with MPEG-1 and AVI*. Make sure these files

are stored in your memory card (please read the Q&Asection for more information).

1. Press the Right and Left arrow keys to select "VIDEO", then press the ENTER

button, or simply press the MOVIE button on the remote control to confirm the

selection.

*Not all AVI format video files will be supported.
