Nextar N3-504 Manuale utente
- 2 -
TABLE OF CONTENTS
Safety precautions...................................................................................................................................2
Introduction..............................................................................................................................................2
1. Features......................................................................................................................................... 4
2. Packaging Check List.................................................................................................................... 4
3. Product Diagram............................................................................................................................ 5
A. Top View................................................................................................................................. 5
B. Front View...............................................................................................................................5
C. Side View............................................................................................................................... 6
D. Bottom View............................................................................................................................6
Using Your Digital Photo Frame............................................................................................................. 7
Technical Notes....................................................................................................................................... 8
Question/Troubleshooting Guide.............................................................................................................9
Specifications...........................................................................................................................................10
FCC Compliance…………………………………………………………………………………………...11
- 3 -
Safety precautions
1) Use only the supplied Input 100-240V, Output 5V adapter.
2) Turn off power before cleaning. Use only a soft cloth to clean the unit. Do not use liquid cleaners.
3) Avoid exposing the unit to extreme heat.
4) Disassembling the Digital Photo Frame may result in electric shock and will void your warranty.
Introduction
Your new Digital Photo Frame is a convenient and innovative way to display your digital photos.
With it, you can easily view digital photos directly from your camera’s memory card; no computer or
printer required.
It supports all of the most popular memory card types on the market, including SD, MMC and MS.
The Digital Photo Frame is light and portable; take it with you anywhere to share photos with family
and friends.
This Digital Photo Frame is a step beyond the traditional photo frame. View and keep on display
tens or even hundreds of digital photos without the need to pay for printing.
- 4 -
1. Features
● Shows sharp photos on a 3.5 inch LCD display
● Supports SD, MMC MS memory card formats
● Displays photos from memory cards
● Renders in a smooth and clear resolution of 320X240 pixels
●Offers a variety of display features, including a slide show mode
2. Packaging Check List
● Digital Photo Frame
● User Manual
● Quick Start Guide
● Power Adaptor
●USB Cable
●Magnetic Stand
- 5 -
3. Product Diagram
A. Top View B. Front View
A. MODE: Press once to start slide show. Press and hold to turn off the screen.
B. DOWN: Moves the cursor down
C. UP: Moves the cursor up.
D. ESC: Return to the previous screen.
E. ENTER: Confirm selection/rotate/zoom
F. LCD Display
F
- 6 -
3. Product Diagram

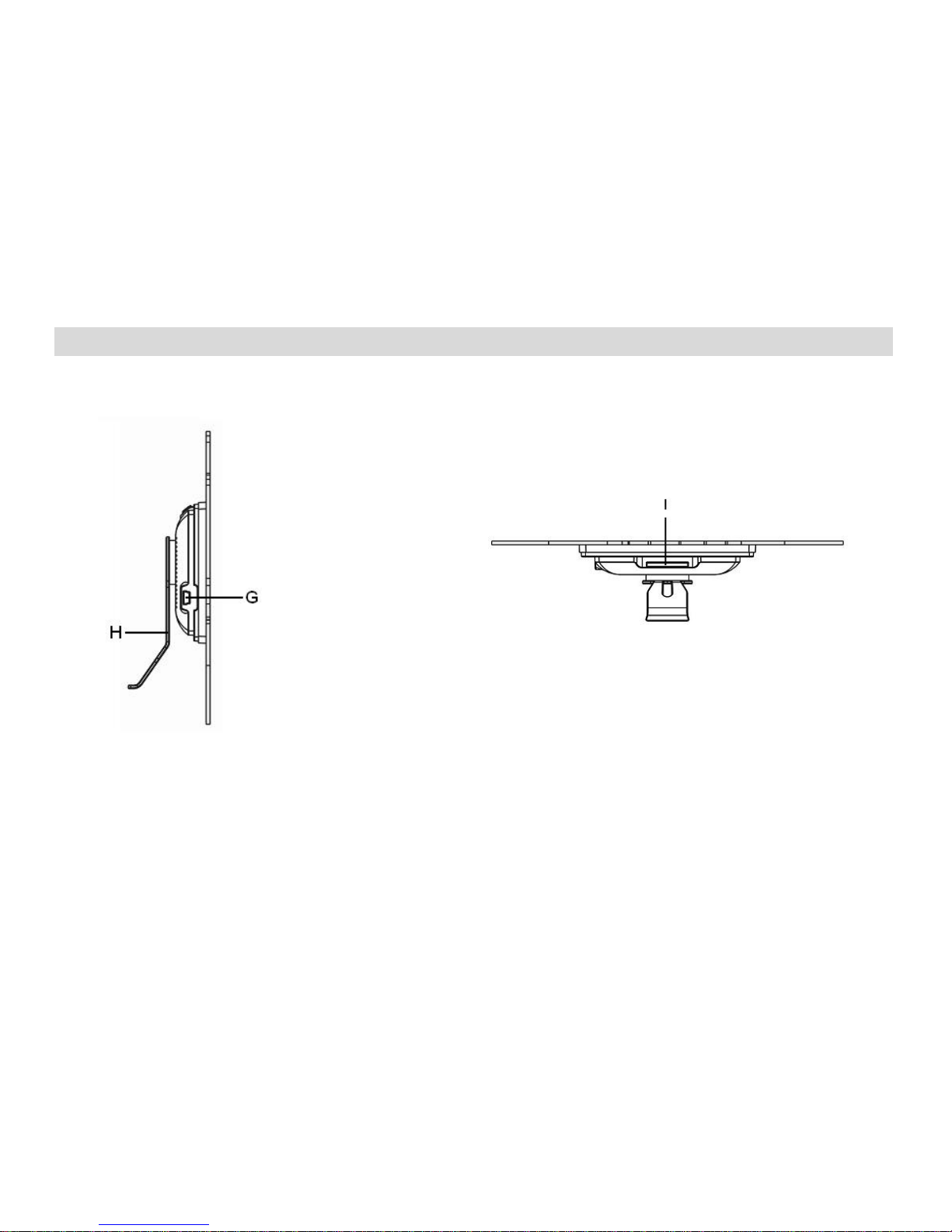

C. Side View D. Bottom View
G. USB Port: Connects to a computer through a USB cable or to an electronic socket
through the power adaptor
H. Magnetic Stand: This adjustable arm supports the unit on a table top or other flat
surface.
I. Memory Card Slot: Used for inserting an SD/MMC/MS card.
- 7 -
Using Your Digital Photo Frame
View photos from memory cards
Step 1: Install the magnetic stand for tabletop display or prepare a mount on the wall.
Step 2: Power on the unit by either:
1: Connecting it to an electronic socket through the provided power adapter.
2: Connecting it to a computer through the provided USB cable.
Step 3: Insert a memory card into the card slot at the bottom of the unit (with the card’s electrical
contacts facing the front of the unit.).
Step 4: Press the UP or DOWN button to select “PHOTO”on the main menu, and press the
ENTER button to enter the photo viewer mode.
Step 5: You will see thumbnails of all of the photos on the card.
Press the MODE,UP, and DOWN buttons to select a thumbnail. Press the ENTER button
to confirm the selection and enlarge the selected photo to fill the screen.
Step 6: In full-screen mode (Single Show Mode):
Press the MODE button to start the automated slide show. In slide show mode, you can
press the MODE button repeatedly to set the time interval between slides. Press the ESC
button to stop slide show and return to the menu.
- 8 -
Using Your Digital Photo Frame
Press the UP and DOWN buttons to display the Previous/Next photo.
Press and hold the ENTER button to rotate the photo 90°counter-clockwise.
Press the ENTER button once to zoom. When the photo is zoomed in, you can roam on the
photo by pressing the UP,DOWN,MODE, and ESC button.
Press the ESC button to return to thumbnail mode.
Press and hold the MODE button to enter power saving mode with the screen off.
Technical Notes
1. Your Digital Photo Frame is a sophisticated electronic unit. Do not drop or subject the unit to
jarring or strong vibrations.
2. Avoid placing the Digital Photo Frame in areas of high humidity or where it might be exposed to
liquids.
3. The panel is made of plastic and is susceptible to damage. Avoid using sharp objects nearby.
4. Use only a soft, dry cloth to clean the screen.
- 9 -
Question/Trouble-shooting Guide
This chapter presents some suggestions to trouble-shoot any problems you may encounter while
using the unit. Even if the following guide fails to solve your problem, please do not disassemble
the unit; just refer the problem to our professional staff. Please see below for contact details.
1. Question: What kind of photos does this unit support?
Answer: The Frame will display digital photos that are stored in the JPEG format, which is the
standard format for nearly all digital cameras. Some cameras allow photos to be stored as TIFF or
RAW files as well as JPEG, but only the JPEG format is compatible with the Frame.
2. Question: What should I do if the system does not respond when the unit is turned on?
Answer: Please make sure the unit is properly connected to a power source. If so, turn the unit off,
reconnect the power and turn it on again.
3. Question: Why is the memory card not recognized?
Answer: The memory card might be inserted improperly or not pushed in all the way. If the card is
inserted in the right direction and is still not recognized, turn off the unit, remove and reinsert the
card, and start again.
- 10 -
Specifications
Panel Size 3.5 inches TFT
Resolution 320 x 240
File Format Type JPEG
Max. Photo Size 16 megapixels
Power Requirement 5V DC
Operating Temperature -10~55 C，14~131 F
。 。
-20~55 C，-4~131 F
。 。
Storage Temperature
This manual was correct and complete at the time of printing. However, specifications and updates can occur at
any time without prior notice. No part of this manual may be copied, republished, reproduced, transmitted, or
distributed in any way without the prior written consent of Nextar, Inc. Any unauthorized distribution of this
manual is expressly forbidden.
