N7-110

User’s Manual

Digital Photo Frame

Introduction

Thank you very much for choosing our Digital Photo Frame.

Before you begin using this device, please read this manual thoroughly and keep it

available for future reference. This manual will present you with the exciting features

provided by our Digital Photo Frame.

With our Digital Photo Frame, you can easily and quickly view photos directly from

your digital camera’s memory card. You can even create a slideshow with multiple

transition effects. No computer, digital camera, or Internet connection is required.

Our Digital Photo Frame is compatible with the following memory cards and ports: SD,

MultiMedia Card, Memory Stick, and Memory Stick PRO.

Main Features

★ This device can display digital pictures (JPEG).

★ Compatible with Secure Digital Card (SD), MultiMedia Card (MMC), Memory Stick

and Memory Stick Pro.

★ Handy remote control

★ Automatic slide show with multiple transition effects and clock display.

★ User-friendly on-screen display allows you to access all functions easily.

Safety Precautions and Maintenance

★ For indoor use only.

★ To reduce the risk of fire or electric shock, do not expose this appliance to rain or

moisture.

★ To prevent overheating, never block any vents on the back of the digital photo

frame.

★ Keep your Digital Photo Frame out of direct sunlight. Direct sunlight may cause

damage.

★ Always use the buttons built in to the memory card slots to remove memory cards

from the device.

★ Do not disassemble the Digital Photo Frame, otherwise it may result in electric

shock and void your warranty. No user-serviceable parts inside.

★ Protect the device from condensation, which could damage your Digital Photo

Frame.

How to Clean LCD Screen

★ Wipe the screen gently. The screen is made of glass and may be easily scratched

or broken.

★ To clean fingerprints and dust from the LCD screen, a soft, non-abrasive cloth

such as a camera lens cleaning cloth is recommended.

★ Do not apply cleaning liquid directly to the LCD screen if using LCD screen

cleaning kits available at retail outlets. Moisten the cleaning cloth with the

cleansing solution, then wipe the LCD screen with the damp cloth.

Screen Saver

★ Without a memory card, or when the appliance is in「STOP」or「PAUSE」mode,

a screen saver program will automatically start after 10 minutes. Pressing any

buttons will return the appliance to the main screen.

To Remove and Replace the Picture Frame Color Panel:

WARNING:

Please STOP the device before you insert or remove any memory card or USB

device. Doing otherwise may cause damage to the card/USB and the device.

Photo 1

Photo 2

Frame will lift off.

To change panel, simply place

the panel over the frame and

press down with thumbs and index

fingers.

With both hands on the picture frame panel, place

thumbs on the upper portion of the frame and

index fingers at the corners. Lift the corners with

the index finger.

Photo 3

Preparation

1. Install the support bracket for

the device. Plug the Digital

Photo Frame power adaptor

into a working electrical outlet.

2. Turn on the main power using the switch

on the back of the Digital Photo Frame. Then press

the「POWER」button on the remote control or

on the top of the Digital Photo Frame.

How to Insert Memory Cards

Your Digital Photo Frame is compatible with the following memory cards:

★ Secure Digital Card (SD)

★ Multimedia Card (MMC)

★ Memory Stick and Memory Stick Pro

Insert the memory card with its label facing up. Do not try to force a memory card

into the slot. If it is difficult to insert the card, you may be inserting the card

incorrectly.

Note: Only JPEG-format

digital image files can be read

by the Digital Photo Frame.

The device may fail to read

image files in other for

Key Features and Remote Control

Key Functions:

Remote Control

POWER: Press this button to turn the device

on/off.

PHOTO: Press this button to enter Slide Show

Mode available on the main menu.

CLOCK: Press this button to set up the time and

the calendar.

SETUP: Press this button to display the device’s

setup menu.

16:9/4:3: Press this button to choose the TFT

LCD aspect ratios between 4:3 and 16:9.

ZOOM: Press this button to enlarge the picture in

increments of 2, 3, 4, 1/2, 1/3, 1/4, OFF.

MENU: Press this button to display the main

menu.

1.MENU 2.ENTER

3.LEFT 4.RIGHT

5.UP 6.DOWN

7.DCIN

8.SD/MMC/MS CARD

Note: before you use the remote

control, please remove all plastic

strips.

123456

Main Menu

The screen will display as follows if the memory card has been correctly inserted.

Make sure you have stored a song, photo, or video file on your memory card.

PHOTO Enter the Photo display

mode directly

SETUP Enter the setup mode directly

CLOCK Enter the clock mode directly

SETUP:

Main menu:

zSYSTEM SETUP Parameter settings

zPHOTOSETUP Picturesettings

zCLOCKSETUP Clocksettings

How to Install and Replace Remote Control Battery

1. Hold the remote control with the buttons facing downward.

2. Hold the remote control cover with one hand and use the other hand to pull the

battery tray out of the remote control cover.

3. Put a “CR2025” lithium battery into the battery tray with the positive “+” side

facing up.

4. Push the battery tray back in.

: Press this button once to freeze the playback

picture.

:Press this button once to halt playback

(pre-stop). Press the button again to terminate

playback function and return to the main menu.

: Press “ ”to return to the previous

title/chapter/track/picture.

:Press “ ”to skip ahead to the next

title/chapter/track/picture.

SLIDE SHOW: Press this button to

view the pictures one by one

automatically.

ROTATE: Press this button to adjust

the viewing angle of the pictures.

: Press “ ” buttons to

select the menu you want.

ENTER: Press “ENTER” for the

settings menu.

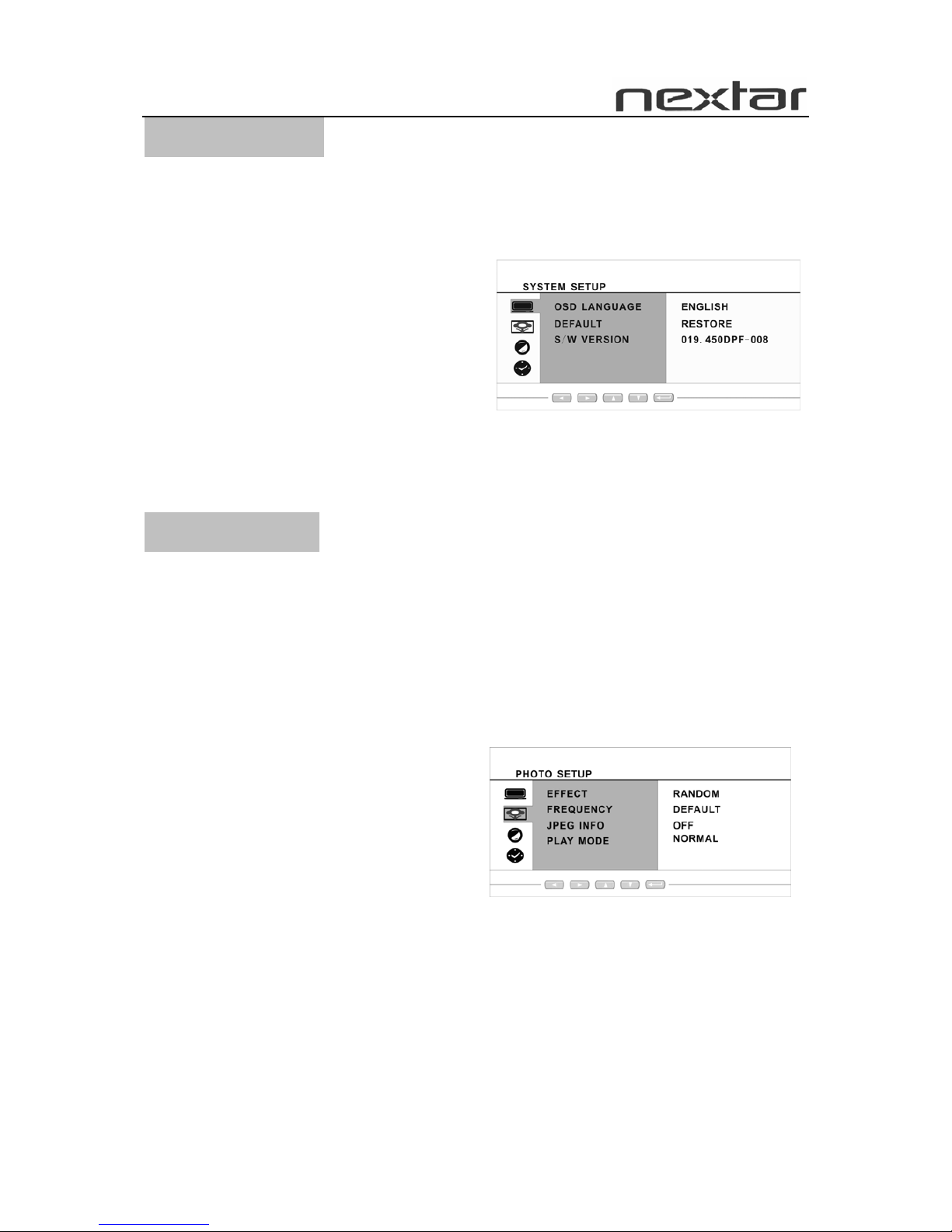

SYSTEM SETUP

Press the Right and Left arrow keys to navigate through the Setup Categories. Press

the Up and Down arrow keys to navigate through setup function items. Press the

Right and Left arrow keys to modify settings, and then press ENTER to confirm the

settings.

Operation:

OSD LANGUAGE: OSD language

settings.

DEFAULT: Restores your Digital Photo

Frame back to the factory default settings.

S/W VERSION: Shows the current version of the software.

PHOTO SETUP:

EFFECT: Allows you to activate or deactivate the photo display effects. Press the

Right or Left arrow keys and the ENTER button to turn OFF or ON (16 effects in

total).

FREQUENCY: Allows you to set the interval frequency with which the display will

change the photos. Press the Right or Left arrow keys and the ENTER button to set

the frame to DEFAULT and the interval: 10SECOND, 30SECOND, 1MINUTE,

30MINUTE, 1HOUR

JPEG INFO：Allows you to adjust

the JPEG photo ON/OFF settings.

Press the Right or Left arrow keys

and the ENTER button to turn

ON or OFF.

PLAY MODE：Allows you to adjust the order the photos will be displayed in. Press the

Right or Left arrow keys and the ENTER button to switch the mode between

NORMAL or RANDOM mode.

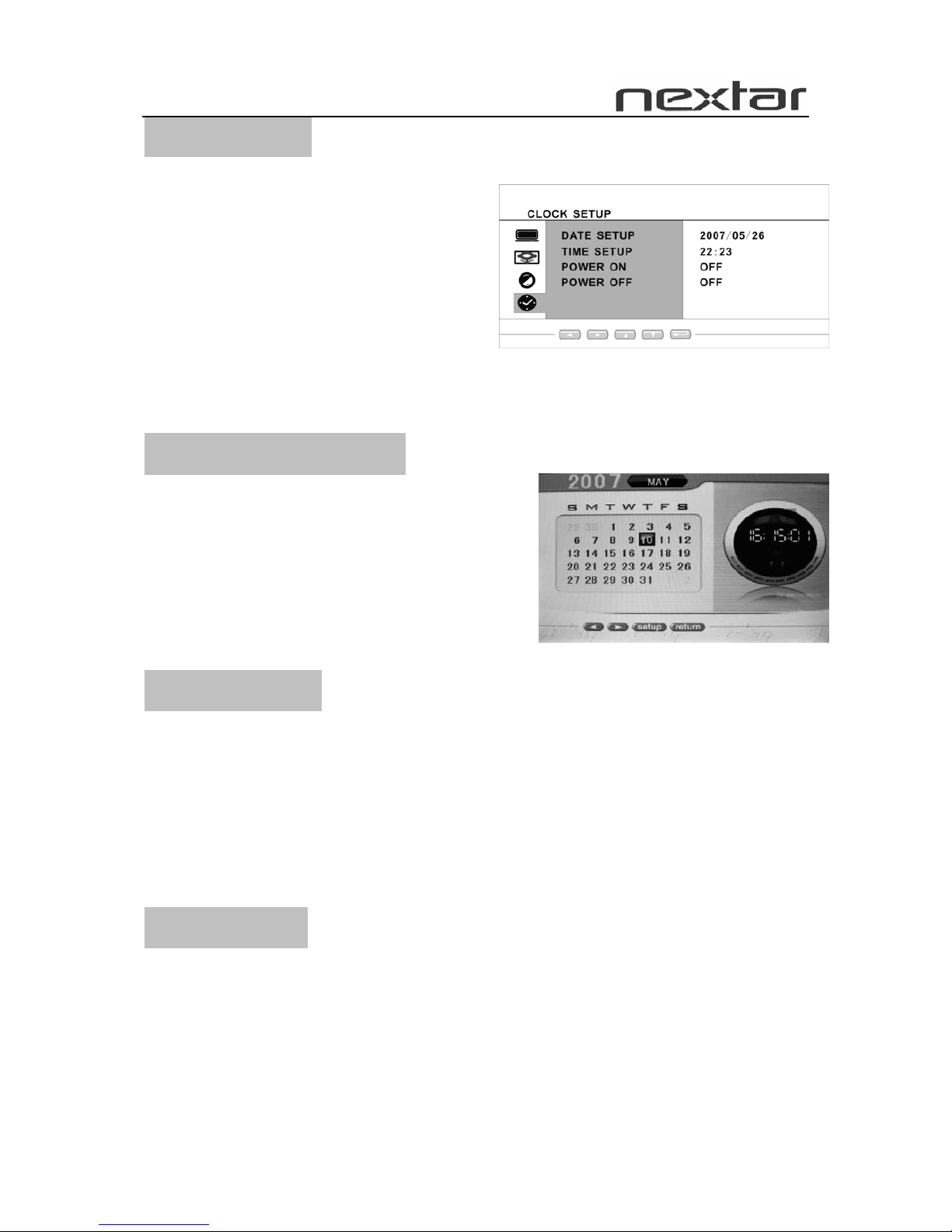

CLOCK SETUP

Function:

DATE SETUP: Press arrow keys

and ENTER button to set the date.

TIME SETUP：Press arrow keys

and ENTER button to set the

time.

POWER ON：Press arrow keys and ENTER to set the time to power on the device.

POWER OFF：Press arrow keys and ENTER to set the time to power off the device.

How to Set the Clock

Set the local time and calendar

Press the Up and Down arrow keys to

select functions.

Press the Right and Left arrow keys to

select desired settings.

Press the ENTER key to confirm settings.

Specifications

Display: 7” TFT LCD 480 X 234 (RGB)

Power: AC Adapter; Input 100-240V; Output 12V 1-1.5A

Environmental Requirements

Operation: 0~35℃, Humidity 0~85%

Storage: -20~60℃, Humidity 10~90%

Accessories:

AV Adapter

Remote Control

Warranty Card

Registration Card

Return Card

Manual
