Advanced Digital Imagery System (ADIS)

Nikon D90 Camera Kit

-Checklist and Operations Manual-

V1.3

October 22, 2010

National Headquarters, Civil Air Patrol

Advanced Technology Group

1.0 Equipment Pre-Mission Check

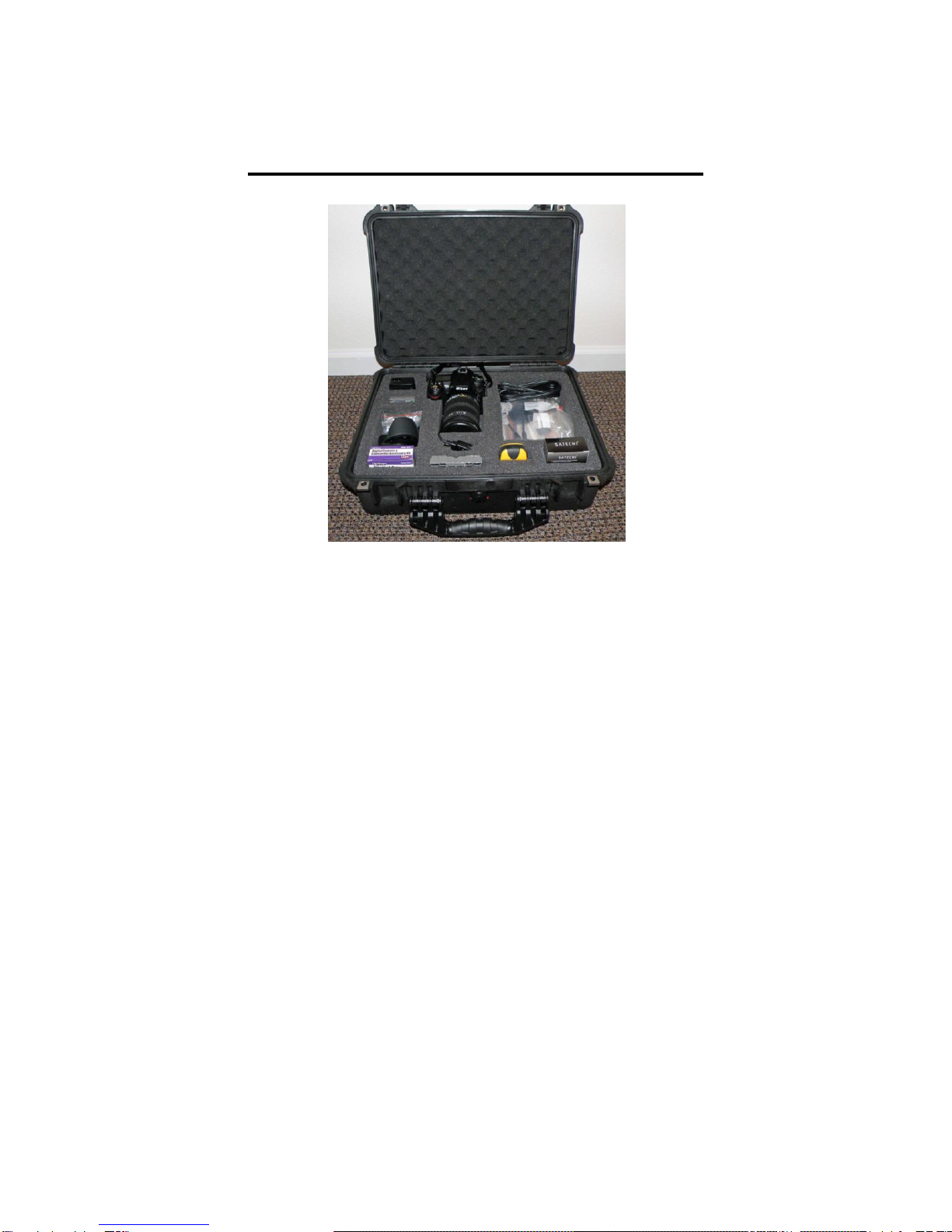

1.1 Open the ruggedized camera case and verify the following items are enclosed:

Nikon D90 camera with attached Sigma 18-200 mm stabilized lens, Nikon MB-

D80 Multi-Power Battery Pack, UV optical filter/lens protector and lens cap.

Sandisk (or equivalent) 8 GB SDHC memory card (may be stored in camera).

Nikon quick charger

2 –Rechargeable camera batteries (one stored in the camera multi-power pack)

6 AA battery fixture for use with the D80 Multi-Power Battery Pack (back-up

camera power module)

Nikon GP-1 GPS

Nikon GP-1 to D90 camera cable (one end plugged into GP-1)

Camera to computer cable

Camera to TV video cable (used to view photos on a television set)

Garmin eTrex H GPS with 2 AA batteries

Cable pair for connecting Garmin eTrex to the Nikon D90 camera

Cable pair for connecting Garmin eTrex to a computer

Satechi TR-M Timer Remote Control with 2 AAA batteries

Instruction manuals for the camera, GP-1 GPS, Garmin eTrex H and TR-M

Remote Control

Spare AA and AAA batteries

A cable is also enclosed that is used to connect the GP-1 GPS to a Nikon D200

camera. This cable is not for use with the D90 system.

Photos on next page help with identification of components

Photos of equipment located in the D90 System Case

D90 camera with attachments Battery pack note: lens shield not used

Photos of equipment located in the D90 System Case

AA batteries Satechi Timer Remote with AAA batteries

An inexpensive tripod or monopod is not included in the D90 Kit provided by

National Headquarters. Local purchase is recommended.

MonoPod (used to support camera during certain types of photo missions)

1.2 Charge Camera Batteries

Plug in each battery pack, one at a time, and bring the batteries to full

charge. The indicator light will flash during charging. When fully

charged, the light will illuminate continuously.

1.3 Check Garmin eTrex GPS for battery condition

The Garmin eTrex H is used to record a mission track log. A track log is required in

order to determine aircraft direction, from which camera direction is determined. The

eTrex also serves as a back-up GPS in the event the Nikon GP-1 GPS proves unable to

remain locked onto the GPS satellite network which might happen when a mission is

flown in mountainous terrain.

The Garmin eTrex GPS requires two AA batteries. Install as follows:

Remove the battery cover located on the back of the eTrex. Battery is replaced by turning

the metal fastener on the back of the unit counter clockwise 90 degrees and then

removing the back cover. Install 2AA batteries. Replace cover.

Turn on the Garmin etrex GPS

[right side second button from top].

Push Page button [top button right

side] until the Menu screen appears.

At the bottom of the screen there is a

battery indicator- it should be grayed

in. If not more than 50% grayed in,

replace battery. When done, push

Power button until the unit turns off.

[right side, second button from top].

1.4 Nikon D90 Camera Pre-mission Initiation

Verify the camera is turned off

Install memory card (card may already be in the camera)

by opening the door located on the right side of the

camera and gentally pushing the card in until it clicks in

place. A light located on the back-right of the camera

will briefly illuminate to confirm the card is seated. The

card can be removed by pushing the card in

and it will pop out. One 8 GB card is

furnished with the system. Local purchase

of additional cards is recommended.

Set the lens autofocus switch to AF

Set the camera autofocus switch to AF

Just to the left of the camera AF switch is the lens optical

stabilizer switch (OS). Place this switch to ON.

Rotate mode switch to “auto-no-flash”. The Mode

switch is located on the top-left side of the camera.

“auto-no-flash” is reached by setting the Mode dial to

“Auto” (green camera symbol) and then moving the

Mode dial one notch counter-clockwise. Auto-no-flash

assures the flash will not automatically pop up and

contact the hot-shoe mounted GP-1 GPS module if a

low light condition is encountered.

Set the focus selector switch to L

Install the garmin GP-1 hot-shoe mounted GPS

If the GP-1 cable is not attached to the GPS, do so

by selecting the smaller of the two connector ends

(the end does not have the words Nikon or CA 90

on it) and pushing it into the side of the GP-1

marked “camera” while lining up the arrows on the

GP-1 and cable. Push it in until it snaps into place.

The arrow on the cable will no longer be visible.

Plug the other end of the cable into the camera

GPS port. The arrow on this cable end should be located so that it is visible from the back

of the camera. This connection does not snap into place; just slide it in all the way.

It is recommended the GP-1 cable be left attached at the GP-1 end while in storage.

Install Camera Batteries

The Nikon MB-D80 Multi-Power Battery Pack is capable of holding two rechargeable

batteries or six AA batteries. The camera will work properly with only one rechargeable

battery installed. Two batteries give extended operation time. The six AA batteries are

only used if the rechargeable batteries are discharged and there is no electrical power

available to operate the charger, or if time is limited to allow for recharge.

The camera battery door is located on the back of the camera at the bottom. Flip out the

latch and rotate it counter clockwise to open the door. Gentally press the white tab to the

outside of the pack and then insert the battery as shown. To remove a battery, press the

associated white tab to the outside of the pack and the battery will pop out.

If the AA battery accessory is used, install the six batteries while observing proper

polarity. The accessory will move the white tabs as required.

Remove Lens Cap

Turn on the camera

Check Batteries

Note: the battery symbol above shows the status of the battery in use. When two batteries

are installed it is better to follow the procedure below to check battery status.

Press the “Info” button to turn on the Monitor.

The following will show on the Monitor. Both batteries are shown;

the active battery (chosen by the camera) and the standby battery.

Reset the Camera

Press the +/- and AF buttons. Hold them pressed for

four seconds. The two buttons have green dots next to

them. The Control Panel Display will flash to confirm

reset has been completed.

Control Panel Display

Clear the memory card

Press the Menu button to bring up the Menu

Display on the Monitor.

The Menu Display is navigated by pressing the

up, down, left and right arrows on the Multi

Selector. The Multi Selector also has an “OK”

button located in its center.

Press the left arrow key on the Multi Selector in order to

navigate the various Menu

screens. Press the up and

down keys to find the “Play

Back” menu. Press the right

key and then the up and/or

down keys to select the

Delete Menu. Press the right

key to select the Delete Page

and then move the up and/or

down keys to select All All. Push the right key and then the up

and/or down key to select “Yes” on the Delete All screen and

then push the OK button. All images on the memory card will

be erased.

Set the sensitivity of the imaging receptor by adjusting it’s ISO value.

Press the Menu Button to bring

up the Menu Screen. Press the

left arrow key on the Multi

Selector in order to navigate the

various Menu screens. Press the

up and down keys to find the

“Shooting Menu”. Press the right

key and then the up and/or down

keys to select ISO sensitivity setting. Press the right key to go to the ISO selection screen.

Press the up and/or down keys to select the ISO value; a setting of 800 is suggested for

aerial photography. Click OK.

Check Camera Settings

Press the Info button to bring up the Monitor Screen. The screen should look similar the

one shown here.

Automatic Mode No Flash

Battery Condition

Large Picture Size

JPEG Setting to JPEG Normal

GPS Active and Locked onto the Network

ISO Set to 800

Memory capable of storing 2100 photos (2.1K)

1.5 Photo Check

The following is best done outside. Take both the

camera and eTrex GPS.

Take a photo of anything; scenery, airplane,

automobile, people, hanger…etc. Hold the shutter

button down half way for a second to allow the lens

to auto-focus. Press the shutter button all the way

down to take the photo.

Check the results.

Press the Playback button.

The picture will appear on the Monitor.

The photo should be sharp and properly exposed.

Push the Multi Selector “up” button to see the shooting

data display. The display shows the f-stop, shutter

speed, ISO value, lens focal length and an icon

confirming the camera is set to the auto mode with no

flash.

Press the Multi Selector “up” button one more time to

view the latitude, longitude, altitude, and time and date.

Presence of this data shows that the GP-1 GPS is working

correctly. Note that altitude is in meters.

Delete the Photo

Press the Delete Button twice to delete the photo just

taken.

1.6 Synchronize the eTrex and Camera Clocks and clear the Track Log

The track log recorded by the eTrex GPS will be coordinated with camera photographs

during post-processing of mission data. The coordination is done by matching photo time

and eTrex GPS time.
