Rogator 1286C
(JIC & Flat Faced O-Ring)
Installation Manual
RG5 & RG7
Printed in Canada
Copyright 2012 by NORAC Systems International Inc.
Reorder P/N: UC4.5-BC-RG5-INST Rev D (Rogator 1286C (JIC & Flat Faced O-Ring))
NOTICE: NORAC Systems International Inc. reserves the right to improve products and their specifications without notice and
without the requirement to update products sold previously. Every effort has been made to ensure the accuracy of the information
contained in this manual. The technical information in this manual was reviewed at the time of approval for publication.
Contents
1Introduction................................................................................................................ 1
2General UC4.5 System Layout................................................................................. 2
3Kit Parts ...................................................................................................................... 3
4Pre-Install Checklist................................................................................................... 8
5Ultrasonic Sensor Installation .................................................................................. 9
6Roll Sensor Installation............................................................................................ 13
7Electrical Installation ............................................................................................... 16
8Hydraulic Installation .............................................................................................. 20
9Software Setup......................................................................................................... 24
10Cable Drawings ........................................................................................................ 25
11Appendix A – Optional Main Lift Sensor Installation .......................................... 31
1
1Introduction
Congratulations on your purchase of the NORAC UC4.5 Spray Height Controller. This system
is manufactured with top quality components and is engineered using the latest technology to
provide operating reliability unmatched for years to come.
When properly used the system can provide protection from sprayer boom damage, improve
sprayer efficiency, and ensure chemicals are applied correctly.
Please take the time to read this manual completely before attempting to install the system. A
thorough understanding of this manual will ensure that you receive the maximum benefit from
the system.
Your input can help make us better! If you find issues or have suggestions regarding the parts
list or the installation procedure, please don’t hesitate to contact us.
Every effort has been made to ensure the accuracy of the information contained in
this manual. All parts supplied are selected to specially fit the sprayer to facilitate
a complete installation. However, NORAC cannot guarantee all parts fit as
intended due to the variations of the sprayer by the manufacturer.
Please read this manual in its entirety before attempting installation.
2
2General UC4.5 System Layout
Figure 1 illustrates the general layout of the UC4.5 system components:
Figure 1: General UC4.5 System Layout
3
3Kit Parts
3.1 Kit Overview
Figure 2: RG5/RG7 System Parts
4
3.2 Hydraulic Plumbing
Figure 3: RG5/RG7 Hydraulic Plumbing
5
3.3 List of Parts
Item Part Number Name Quantity
B05 44706-01 KIT CABLE TIE BLACK 10 PCS 21 IN 150 PCS 7.5 IN 1
B10 44728 MOUNTING BRACKET COMPLETE UC4 BREAKAWAY EXTENDED 2
C03 44656D CABLE VALVE VARIABLE RATE DT 1
C05 43210-20 CABLE UC5 NETWORK 18 AWG 20M 2
C08 43220-03 CABLE UC5 NETWORK 14 AWG 3M 2
C10 44650-50 CABLE UC4.5 POWER GENERIC SELF-PROPELLED 1
C11 44651-50 CABLE UC4.5 EXTENSION VALVE GENERIC 1
C12 44658-24 CABLE UC4 INTERFACE DT06-2X GND2 1
C30 43250-04 CABLE UC5 BATTERY AMP FUSED 1
E01 45100 UC4.5 BOOM CONTROL PANEL 1
E03 43742 UC5 ROLL SENSOR W TEMPERATURE PROBE 1
E04 43741 UC5 ROLL SENSOR VER. 2 1
E05 43750 UC5 ULTRASONIC SENSOR 2
E11 43765 UC5 NETWORK COUPLER 8-WAY 1
E12 43764 UC5 NETWORK COUPLER 2-WAY 3
E20 43764T UC5 NETWORK COUPLER 2-WAY WITH TERMINATOR 2
M01
UC4.5-BC-MANUAL-
OPERATOR
OPERATOR MANUAL UC4.5 SPRAY HEIGHT CONTROL 1
M02 UC4.5-BC-RG5-INST MANUAL INSTALLATION UC4.5 ROGATOR 1286C (JIC & FLAT FACED O-RING) 1
P03 106162 UC5 NETWORK 6 PIN PLUG 3
V01 44963D VALVE BLOCK ASSEMBLY 2 STATION CC/LS PROP DT 4 BOLT 1
3.4 Optional Main Lift Kit
An optional main lift sensor kit is available for purchase from NORAC.
Part Number Name
4570BC UC4.5 MAIN LIFT OPTION - 44743
6
3.5 Hydraulic Parts - Flat Faced O-Ring Fittings (RG5)
Item Part Number Name Quantity
H01 44863-46 HOSE ASSEMBLY 122R2-06 40IN L 6FORX90 8FORX 4
H10 44865-47 HYDRAULICS FITTING KIT - RG5 1
3.6 Hydraulic Fitting Kit Details (P/N: 44865-47)
Item Part Number Name Quantity Picture
F01 44928 ORIFICE INSERT .047 IN ONE WAY 2
F02 44917 MALE ADAPTER - 6MB 6MOR MACHINED 4
F03 104369 PLUG - 6MBP 2
F04 104885 TEE ADAPTER - 8FORXR 8MORT 4
6 M B - 6 M OR X 90
SIZE IN
1/16TH'S
GENDER: MALE
OR FEMALE
90° ANGLE
SWIVEL
TYPE
GENDER
SIZE
TYPE:
B - ORB
J - JIC
OR - FLAT
FACE
P - PIPE
Fitting Name
Example:
7

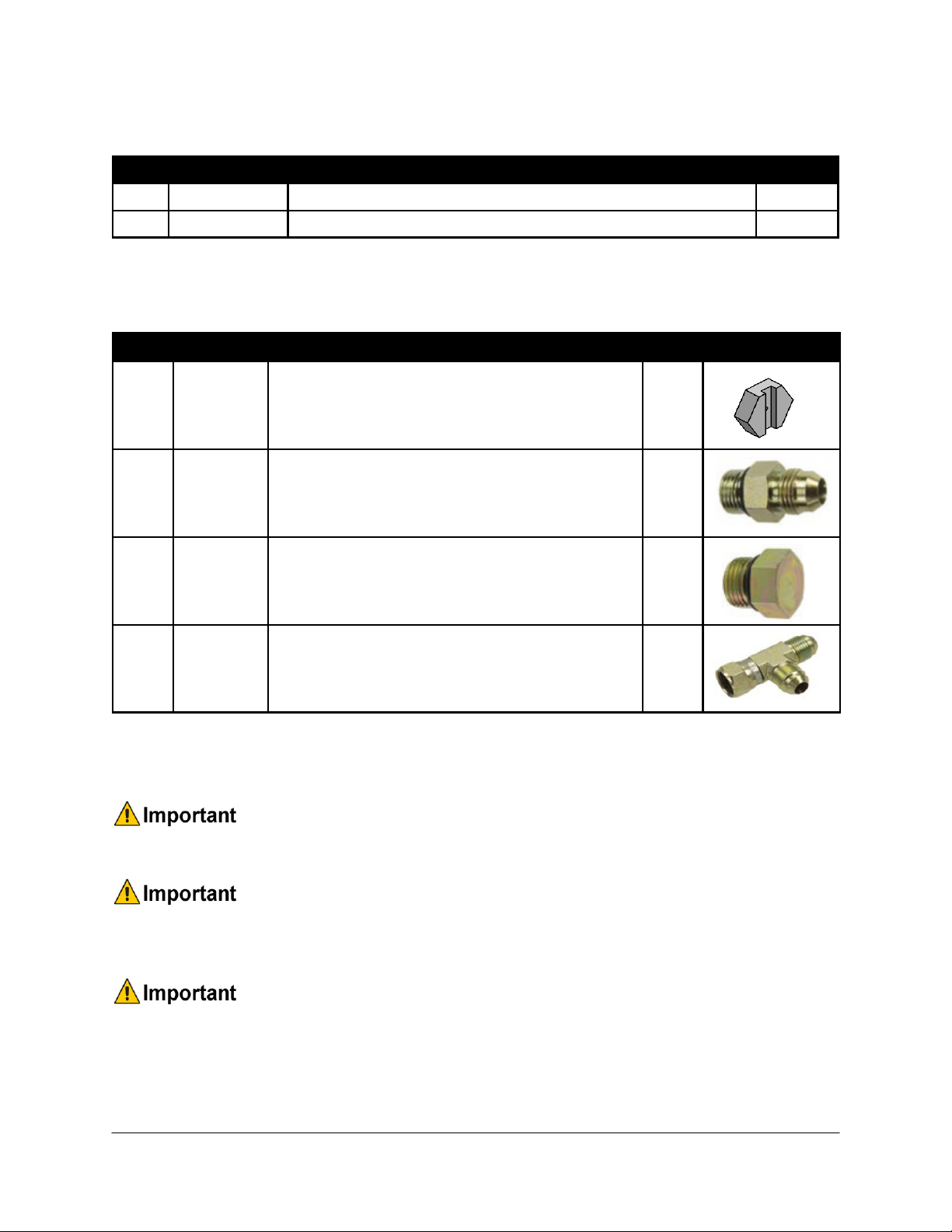

3.7 Hydraulic Parts - JIC Fittings (RG7)
Item Part Number Name Quantity
H01 44863-49 HOSE ASSEMBLY 122R2-06 40 IN L 6FJX90 8FJX 4
H10 44865-55 HYDRAULICS FITTING KIT - RG7 1
3.8 Hydraulic Fitting Kit Details (P/N: 44865-55)
Item Part Number Name Quantity Picture
F01 44928 ORIFICE INSERT .047 IN ONE WAY 2
F02 103312 MALE ADAPTER - 6MB 6MJ 4
F03 104369 PLUG - 6MBP 2
F04 104632 TEE ADAPTER 8FJXR 8MJT 4
Do not use high speed power tools/drills when installing hardware.
The use of dielectric grease is not recommended on any NORAC electrical
connections.
To ensure all stainless steel hardware does not gall or seize apply a light coating of
the supplied Permatex Anti-seize grease to all threaded parts upon installation.
Permatex Anti-seize lubricant is preferred, but other similar anti-seize products
may be used.
