Norcold 1082 Manuale utente

MODEL

PART NO. 619716

NORCOLD 09/02/2010

1082

PARTS LIST

1082 PARTS LIST - PAGE 2

UPPER DOOR - 1082

NO. PART # DESCRIPTION

1 61648838 DOOR HANDLE ASSY-LOWER/BLACK

2 61593830 ENDCAP-BLACK/STOP CATCH

3 61593730 ENDCAP-BLACK/SPRING CATCH

4 61648422 DOORHANDLE-LOWER

5 61581738-B DOOR LINER ASSY-FOAMED/LOWER/BLACK/WHITE

6 61712222 DOORPANEL-LOWER/WHITE/1082

7 61631430 HINGEPLATE-BLACK/LHTOP/RH BOTTOM/PLASTIC

8 61564025 BIN-DOORSHELF/WHITE(SIX PER LOWER DOOR)

9 61714022 DOOR PANEL INSERT-LOWER DOOR

10 61631330 HINGEPLATE-BLACK/RH TOP/LH BOTTOM/PLASTIC

11 61579425 BIN-MILK/WHITE (TWO PER LOWER DOOR)

12 61568030 DOORGASKET-LOWER/GRAY

NS 61593130 PANEL HOLDER-BLACK/LOWER DOOR (NOT SHOWN)

NS 61558822 SPRING-DOOR HANDLE (NOT SHOWN)

1082 PARTS LIST - PAGE 3

LOWER DOOR - 1082

NO. PART # DESCRIPTION

1 61648838 DOOR HANDLE ASSY-LOWER/BLACK

2 61593830 ENDCAP-BLACK/STOP CATCH

3 61593730 END CAP-BLACK/SPRING CATCH

4 61648422 DOORHANDLE-LOWER

5 61581738-B DOOR LINER ASSY-FOAMED/LOWER/BLACK/WHITE

6 61712222 DOORPANEL-LOWER/WHITE/1082

7 61631430 HINGE PLATE-BLACK/LH TOP/RH BOTTOM/PLASTIC

8 61564025 BIN-DOOR SHELF/WHITE (SIX PER LOWER DOOR)

9 61714022 DOOR PANEL INSERT-LOWER DOOR

10 61631330 HINGEPLATE-BLACK/RH TOP/LH BOTTOM/PLASTIC

11 61579425 BIN-MILK/WHITE(TWO PERLOWERDOOR)

12 61568030 DOORGASKET-LOWER/GRAY

NS 61593130 PANEL HOLDER-BLACK/LOWER DOOR (NOT SHOWN)

NS 61558822 SPRING-DOOR HANDLE (NOT SHOWN)

1082 PARTS LIST - PAGE 4

CABINET ASSEMBLY - FRONT VIEW - 1082

1082 PARTS LIST - PAGE 5

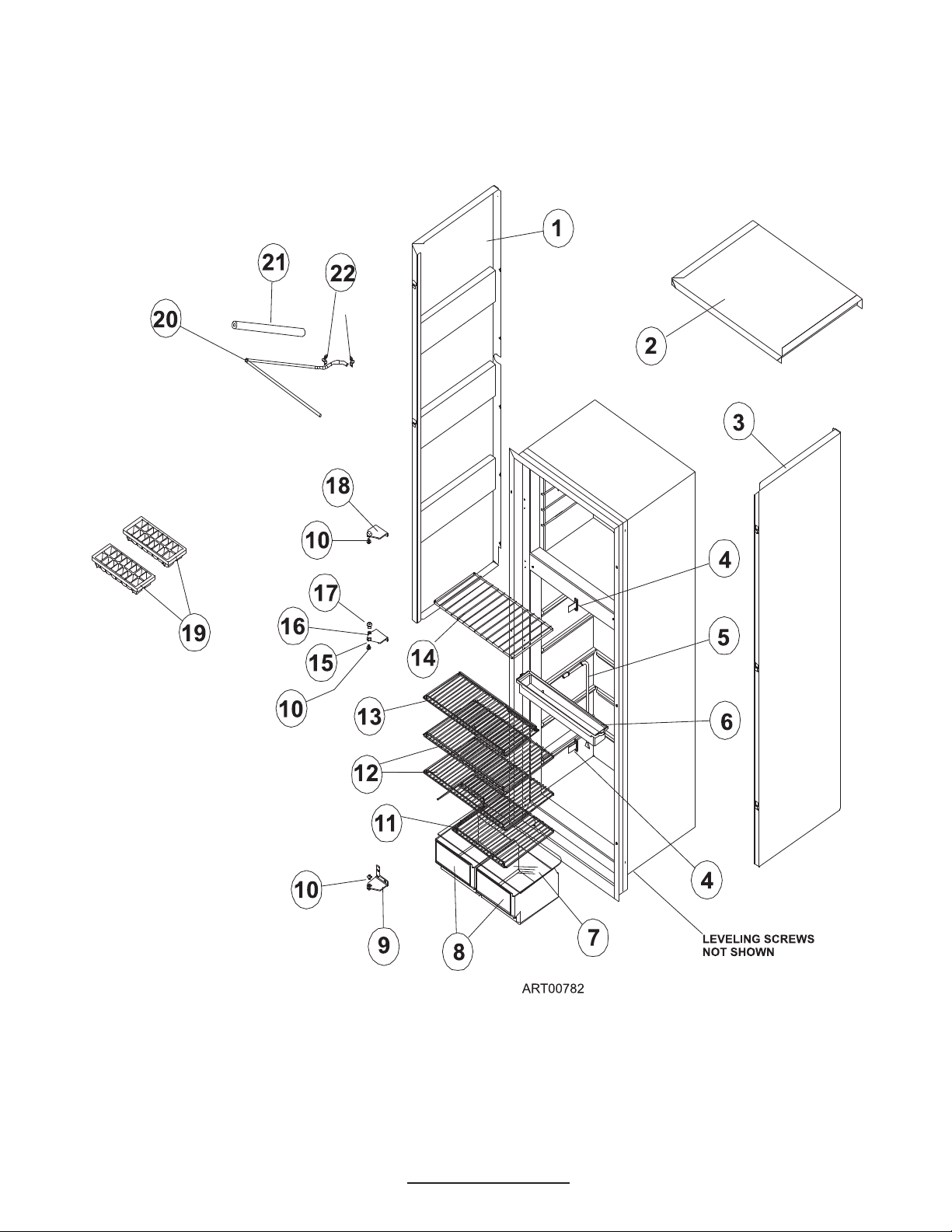

CABINET ASSEMBLY - FRONT VIEW - 1082

NO. PART # DESCRIPTION

1 61652422 COVER-CABINET/SIDE/LH/WHITE

NS 61670822 SPACER-STYROFOAM (NOT SHOWN)

2 61652322 COVER-CABINET/TOP/WHITE

NS 61671322 SPACER-TOP/STYROFOAM (NOT SHOWN)

3 61652222 COVER-CABINET/SIDE/RH/WHITE

NS 61670822 SPACER-STYROFOAM (NOT SHOWN)

4 61578522 DOOR LATCH

5 61509522 DRAIN HOSE (USE 618217)

6 61572830 DRIP TRAY-INSIDE/WHITE

NS 61505122 HOSE CLAMP (NOT SHOWN)

7 61564122 CRISPER COVER-GLASS SHELF

NS 61580322 RETAINER-GLASS SHELF

8 61571325 CRISPER-WHITE (2 PER REFRIGERATOR)

9 61580830 HINGE BRACKET-RH TOP/LH BTM/BLACK

10 61578130 HINGE PIN-BLACK/MALE

11 618651 SHELF-WIRE/CUT OUT

12 618649 SHELF-WIRE/MIDDLE (2 PER CABINET)

13 618062 SHELF-WIRE/TOP/RH RISER

NS 618065 CAP-CLEAR/FOR FLIPPER SHELF (NOT SHOWN)

NS 61580222 RETAINER-WIRE SHELF (NOT SHOWN)

14 618650 SHELF-WIRE/FREEZER

15 61566530 HINGE BRACKET-BLACK/CENTER HINGE

16 61580722 HINGE BUSHING-AT CENTER HINGE

17 61566730 HINGE PIN SHAFT-BLACK/AT CENTER HINGE

18 61580930 HINGE BRACKET-LH TOP/RH BTM/BLACK

19 61630422 ICE CUBE TRAY-PLASTIC

20 61685822 THERMO HEAT TUBE

21 61716022 INSULATION-HEAT TUBE

NS 61715022 LEVELING SCREW-ADJUSTABLE FEET (NOT SHOWN)

PART NO LONGER AVAIALBLE

1082 PARTS LIST - PAGE 6

CABINET ASSEMBLY - REAR VIEW - COOLING UNIT - 1082

NO. PART # DESCRIPTION

1 632325 NSC SYSTEM PACK-COOLING UNIT/BACKER HEATER

2 61686823 FINS-COOLING

3 61695022 CAP-HEAT DEFLECTOR

4 621702 HEATER-AC (COOLING UNIT SERIAL# 11247955 & BELOW)

630811 HEATER-AC (COOLING UNIT SERIAL# 11247956 & ABOVE)

5 61712637 COVER ASSY-BURNER BOX

NS 61695322 BASE-BURNER BOX (NOT SHOWN)

6 61710922 DRIP CUP-REAR/METAL (USE622546)

7 61509522 DRAIN HOSE(USE618217)

1082 PARTS LIST - PAGE 7

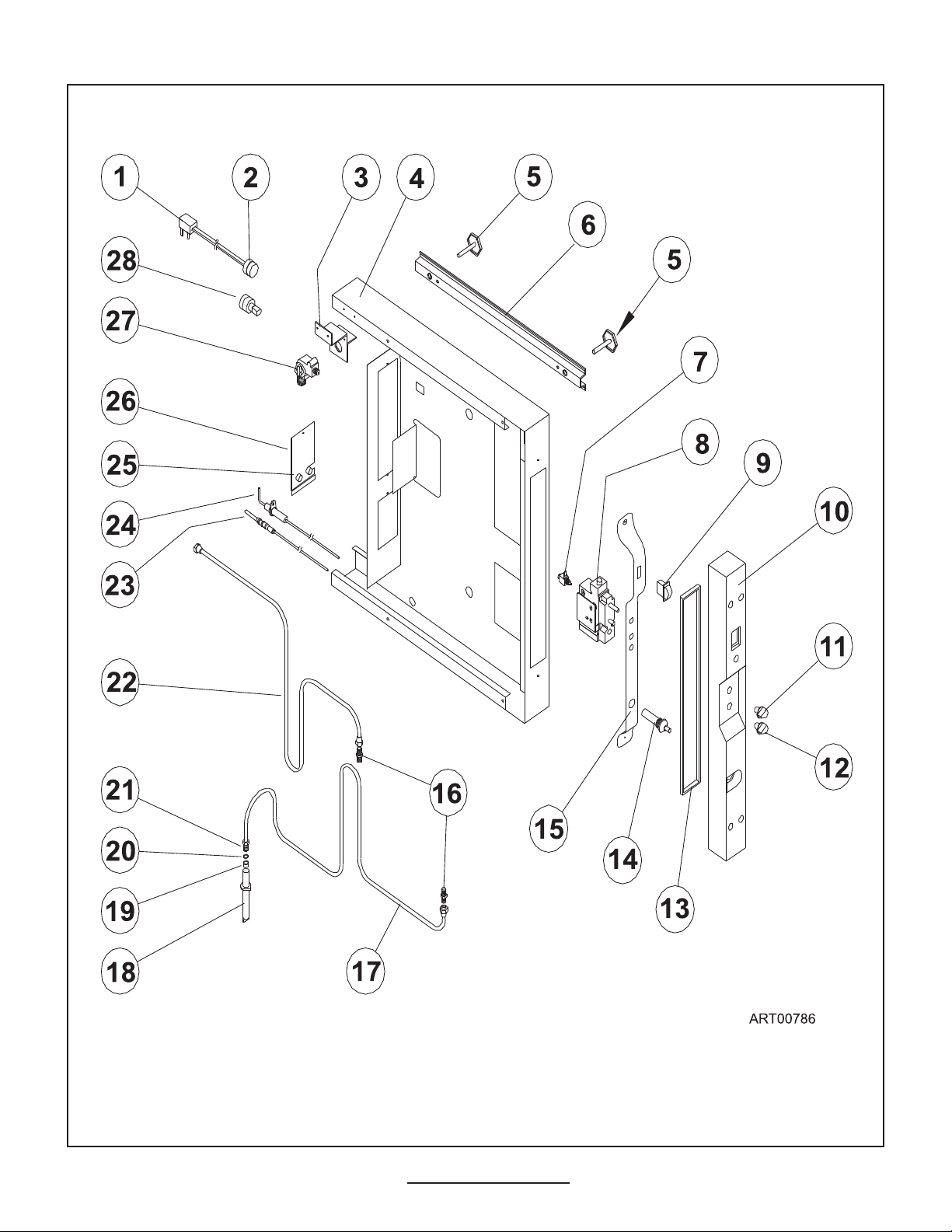

BOTTOM PAN CONTROL ASSEMBLY - 1082

1082 PARTS LIST - PAGE 8

BOTTOM PAN CONTROL ASSEMBLY - 1082

NO. PART # DESCRIPTION

1 61715522 CORD-AC POWER

2 61395922 BUSHING-RELIEF

3 61639222 BRACKET-MANUAL SHUT OFF VALVE

4 61772022 BOTTOM PAN-SUPPORT ASSY

5 61715022 LEVELING SCREW-ADJUSTABLEFEET (NOT SHOWN)

6 618086 BOTTOM RAIL ASSY

7 61481422 INTERRUPTER-1082

8 624274 KIT-COMBINATION CONTROL WITH FITTING

9 61481322 METER-FLAMEINDICATOR

NS 61714522 WIRELEAD-FLAMEMETER(NOT SHOWN)

NS 61671422 SPRING HOLDER-METER (NOT SHOWN)

10 61670222 COVER-CONTROL

11 61641822 KNOB-SELECTOR

12 61642322 KNOB-THERMOSTAT

13 61651722 GASKET-CONTROL COVER

14 61645622 SPARKIGNITOR-MANUAL

15 61646622 BRACKET-CONTROL

16 61546822 CONNECTOR-MALE

17 61643522 BURNERTUBE

18 61705222 BURNERASSY-5 SLOT (USE621955)

19 618865 ORIFICE-LP16 (USE621955)

20 61475122 ORIFICEGASKET (USE621955)

21 61692722 FITTING-GAS TUBECONNECTION

NS 61692622 SLEEVE-BALL/.25"/TUBECOMPRESSIONRING/BRASS (NOT SHOWN)

22 61638522 INLET TUBE

23 61436322 THERMOCOUPLE

24 61714322 ELECTRODEASSY-SPARK

25 61606522 BUSHING-OPEN/CLOSED 1/2"

26 61639122 COVER PLATE-BURNER TUBE

27 61692322 MANUAL SHUT OFF VALVEASSY

28 61638722 FUSEHOLDER

NS 61611622 FUSE-GLASS/5 AMP/110 VOLT (NOT SHOWN)

NS 61714222 WIRING HARNESS (NOT SHOWN)
