PARTS LIST

PART # 620428

NORCOLD 01/04/2007

MODELS

N500

N500.3

N500SERIESPARTSLIST-PAGE2

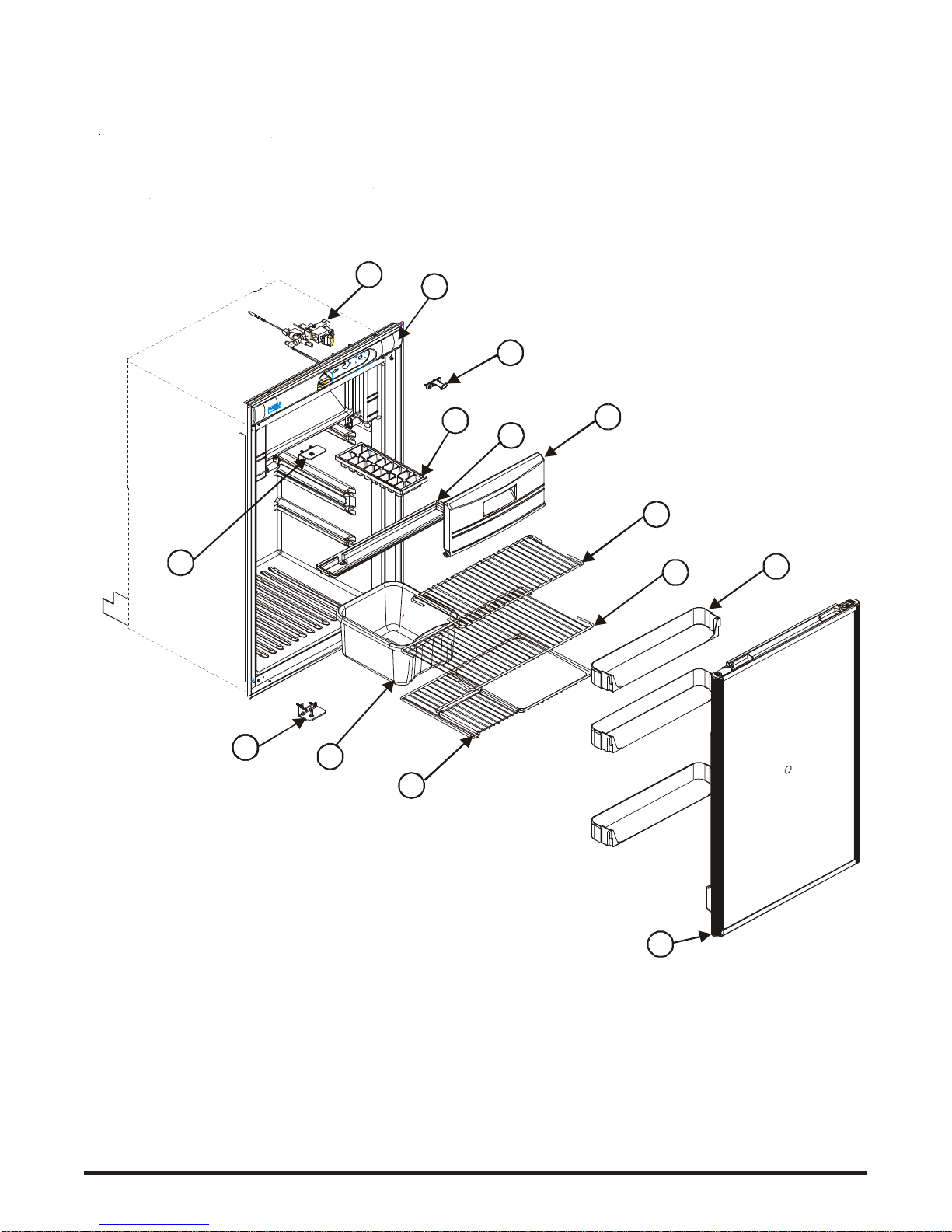

CABINET ASSEMBLY(FRONT VIEW) - N500 SERIES

13 12

ART01567

N500SERIESPARTSLIST-PAGE3

CABINET ASSEMBLY(FRONT VIEW) - N500 SERIES

NO. PART # DESCRIPTION N500 N500.3

1 620195 GAS CONTROL ASSY * *

NS 620881 SHROUD-UPPER CONTROL AREA * *

2 620201 CONTROL PANEL ASSY *

620445 CONTROL PANEL ASSY *

NS 619070 KNOB-SELECTOR-TAUPE (SUBSTITUTE 629357 - WARM GRAY) * *

NS 619069 KNOB-GAS CONTROL (USE619070) * *

3 619103 LATCH-DOOR **

4 61630422 ICECUBETRAY-PLASTIC * *

5 622858 DRIP TRAY-INSIDE **

6 619117 FREEZERDOORASSY * *

NS 619042 SPRING HOLDER ASSY-LH/EVAPORATOR DOOR * *

NS 619041 SPRING HOLDER ASSY-RH/EVAPORATOR DOOR * *

7 620156 SHELF-WIRE/TOP/SHORT * *

8 620155 SHELF-WIRE/MIDDLE **

9 620157 BIN-DOOR SHELF (3 PERREFRIGERATOR) * *

10 620125 DOOR ASSY-CABINET * *

11 620178 SHELF-WIRE/LOWER/FLIPPER * *

12 621309 BIN-CRISPER **

NS 621412 COVER-CRISPER **

13 620187 HINGE-CABINET/UPPERRH/LOWER LH * *

NS 61550722 HINGEPIN-BOTTOM **

14 620188 HINGE-CABINET/UPPER LH/LOWER RH * *

NS 61114600 HINGEPIN-TOP **

NS 621426 BREAKER TRIM/SEAL ASSY-BOTTOM TRIM * *

NS 61409622 CLIP-SHELF **

NS = NOT SHOWN

N500SERIESPARTSLIST-PAGE4

CABINET ASSEMBLY(REAR VIEW) - N500 SERIES

N500SERIESPARTSLIST-PAGE5

CABINET ASSEMBLY(FRONT VIEW) - N500 SERIES

NO. PART # DESCRIPTION N500 N500.3

1 620222 BURNER TUBE **

2 61686823 FINS **

NS 61728722 CLIP-FIN **

3 61695022 CAP-HEAT DEFLECTOR * *

4 621427 NSC SYSTEM PACK-COOLING UNIT * *

5 620884 HEATER-DC/EG3 *

6 61562522 HEATER-AC/200W/110VAC * *

7 61712637 COVER ASSY-BURNER BOX * *

8 61710922 DRIP CUP-REAR **

NS 622393 DRAIN HOSEASSY **

9 61692322 MANUAL SHUT OFF VALVEASSY * *

NS 61694022 BRACKET-MOUNTING/MANUAL SHUT OFF VALVE * *

10 619177 COVER-TERMINAL BLOCK * *

11 617918 CORD-AC POWER **

12 620868 TERMINAL BLOCK **

13 620796 RELIGHTER **

14 620224 INLET TUBE-GAS **

NS 619119 BRACE-CORNER/CABINET/LH * *

NS 619124 BRACE-CORNER/CABINET/RH * *

NS 61583322 FUSECOVER **

NS 61584222 FUSEHOLDER **

NS 621228 PLATE-FUSEHOLDER **

NS 621227 FUSE-25 AMP/EG3 *

NS 61654622 FUSE-3 AMP/32V OR LESS * *

NS 620197 WIRE HARNESS **

NS 621220 WIRE-12"/BLACK/CONTROL * *

NS 621225 WIRE-12"/ORANGE/CONTROL * *

NS 621219 WIRE-14"/WHITE/CONTROL/EG3 *

NS 620233 WIRE-61"/YELLOW/CONTROL *

NS 621221 WIRE-67"/WHITE/CONTROL/EG3 *

NS 621237 SPACER-CONDENSER/FOR COOLING UNIT * *

NS 621413 CABLETIE-HIGH TEMPERATURE * *

NS 61417922 CABLE TIE-NYLON **

NS 61571822 CABLE TIE-NYLON **

NS 619197 COVER-EDGEGUARD **

NS = NOT SHOWN

N500SERIESPARTSLIST-PAGE6

GAS CONTROL ASSEMBLYAREA - N500 SERIES

Not to scale

Art01336

NO. PART # DESCRIPTION N500 N500.3

620195 GAS CONTROL ASSY **

1 617952 BRACKET-MOUNTING/THERMOSTAT/GAS VALVE * *

2 621298 GAS VALVE-THERMOSTAT CONTROL * *

3 61621622 BRASS ELBOW-UNION TUBE * *

4 619055 ADAPTOR-PIPE **

5 622098 SAFETY VALVE **

6 621737 INTERRUPTER **

7 620424 THERMOCOUPLE **

N500SERIESPARTSLIST-PAGE7

CONTROL PANEL ASSEMBLY AREA - N500 SERIES

NO. PART # DESCRIPTION N500 N500.3

1 620202 CONTROL PANEL *

620206 CONTROL PANEL *

2 620863 SWITCH-SELECTOR **

3 621308 NUT-ATTACHMENT **

4 619070 KNOB-SELECTOR (SUBSTITUTE629357 - WARM GRAY) * *

5 61609022 INDICATORLIGHT-FLAME * *

NS 618040 CONNECTOR-.25"/FEMALE * *

NS = NOT SHOWN

N500SERIESPARTSLIST-PAGE8

EVAPORATOR DOOR ASSEMBLY- N500 SERIES

NO. PART # DESCRIPTION N500 N500.3

1 619117 FREEZER DOORASSY **

2 61632930 MOUNTING CLIP-RH/WHITE/EVAPORATOR DOOR * *

3 61633030 MOUNTING CLIP-LH/WHITE/EVAPORATOR DOOR * *

N500SERIESPARTSLIST-PAGE9

DOOR ASEMBLY- N500 SERIES

ART01329

NO. PART # DESCRIPTION N500 N500.3

1 620125 DOOR ASSY-CABINET **

2 620130 PANEL RETAINER **

3 619104 LATCHPLATE-DOOR **

4 620200 PLATE-FILLER/DOORASSY * *

5 61742022 HINGEBUSHING **

618746 HINGEBUSHING **

N500SERIESPARTSLIST-PAGE10

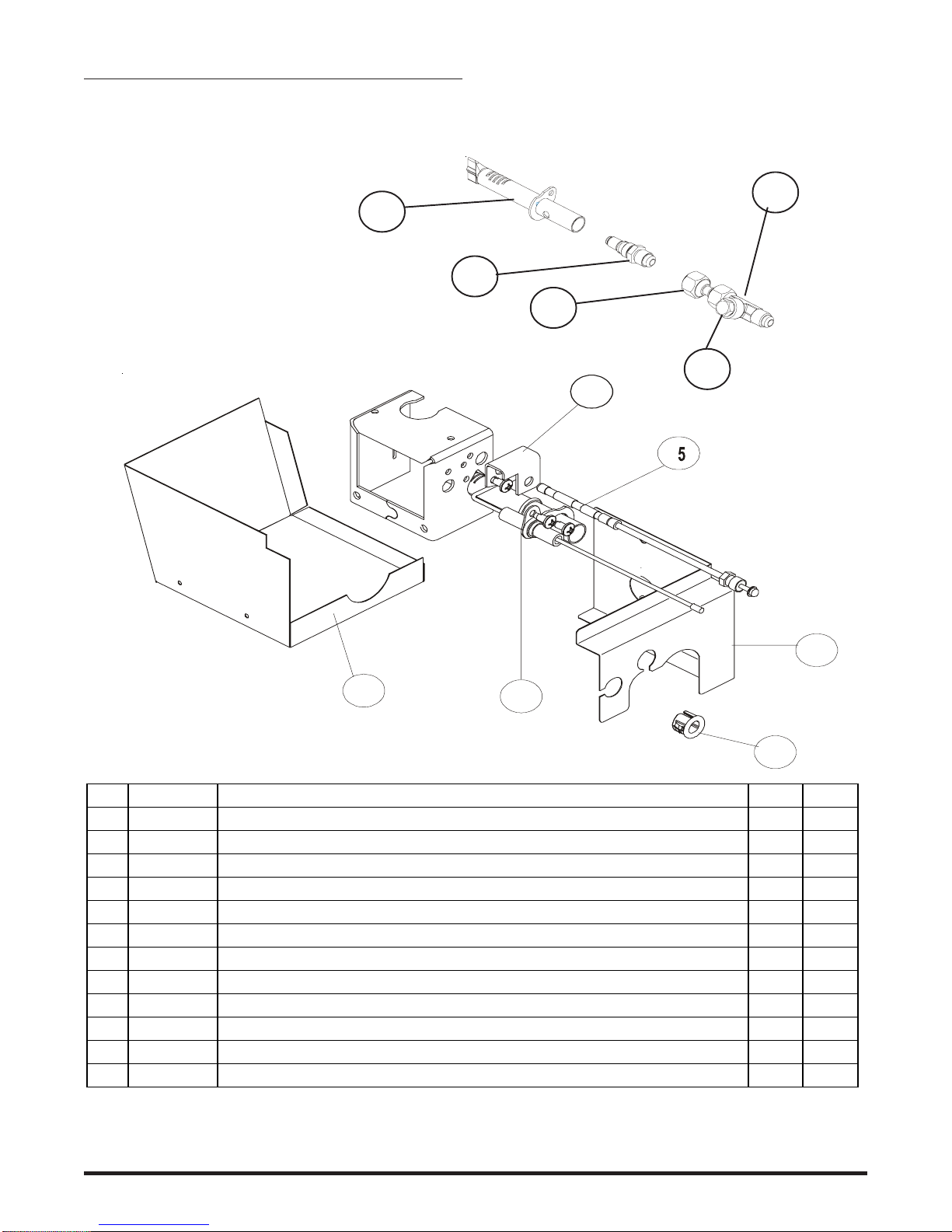

BURNER ASSEMBLY AREA - N500 SERIES

Art01048

NO. PART # DESCRIPTION N500 N500.3

1 61695322 BASE-BURNER BOX **

2 61712637 COVER ASSY-BURNER BOX * *

3 61606522 BUSHING-OPEN/CLOSED 1/2" * *

4 618448 BRACKET-THERMOCOUPLE * *

5 620424 THERMOCOUPLE **

6 61692222 ELECTRODE-SPARK/SENSE/SINGLEELECTRODE/0.25" * *

7 61705222 BURNER ASSY-5 SLOT (USE621955) * *

8 620462 ORIFICEADAPTER ASSY-LP14 (USE621955) * *

621955 KIT-BURNER/ORIFICE ADAPTER ASSY * *

9 621079 CONNECTOR-SWIVEL NUT (SERIAL NUMBER783384 AND ABOVE) * *

10 621054 PRESSURETAP (SERIAL # 783384 AND ABOVE) * *

11 61445322 PLUG-1/8"/FOR PRESSURETAP * *
