Norcold N621 - Manuale utente

PARTS LIST

PART NO. 623422

NORCOLD05/14/2008

N62/N82 SERIES

N62 SERIES

N621

N621F

N623

N624

N82 SERIES

N821

N821F

N821V

N822

N822F

N823

N824

N62/N82 SERIES PARTS LIST - PAGE 2

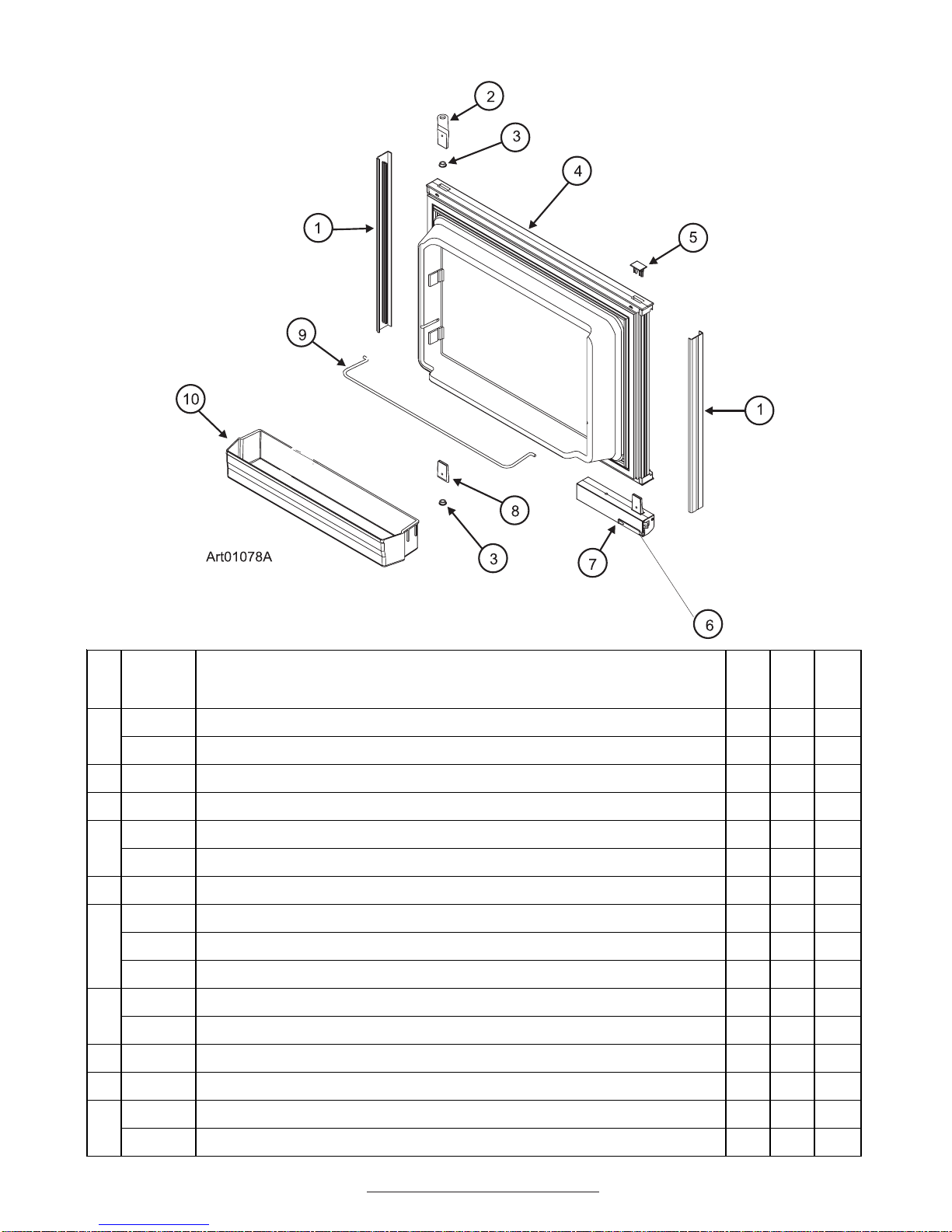

UPPER DOOR (FREEZER) - N62/N82 SERIES

NO. PART # DESCRIPTION

N621

N621F

N623

N624

N821

N821F

N823

N824 N822

N822F

1 623943 PANEL RETAINER-UPPERDOOR/PANEL/BLACK/SDL X X X

619558 PANEL RETAINER-UPPERDOOR/BLACK/WDL X X X

2 618511 HINGE-DOOR SIDE/TOP RH/BTM LH/BLACK/WDL ONLY X X X

3 619671 HINGE BUSHING-DOOR/WARM GRAY/WDL/SDL X X X

4 623945 DOOR LINER ASSY-UPPER/PANEL/BLACK FRAME/SDL X X X

619627 DOOR LINER ASSY-UPPER/PANEL/BLACK FRAME/WDL X X X

5 618160 CAP-HINGEPLUG/BLACK X X X

6 619866 DOOR HANDLE ASSY-UPPER DOOR/RH SWING (SERIAL # 965168 & BELOW) X X

621465 DOOR HANDLE ASSY-UPPER DOOR/RH SWING/PLASTIC (SERIAL # 965169 & ABOVE) X X

621105 DOOR HANDLE ASSY-UPPER DOOR/RH SWING X

7 622313 STORAGE LATCH-DOOR/WARM GRAY/PLASTIC HANDLE X X

619648 STORAGELATCH-DOOR/WARM GRAY/METAL HANDLE X X X

8 618510 HINGE-DOOR SIDE/TOP LH/BTM RH/BLACK/WDL ONLY X X X

9 618618 RAIL-UPPER DOOR/WDL ONLY X X X

10 624863 BIN-DOOR SHELF/WHITE/SDL X X X

618619 BIN-DOOR SHELF/WHITE/WDL X X X

N62/N82 SERIES PARTS LIST - PAGE 3

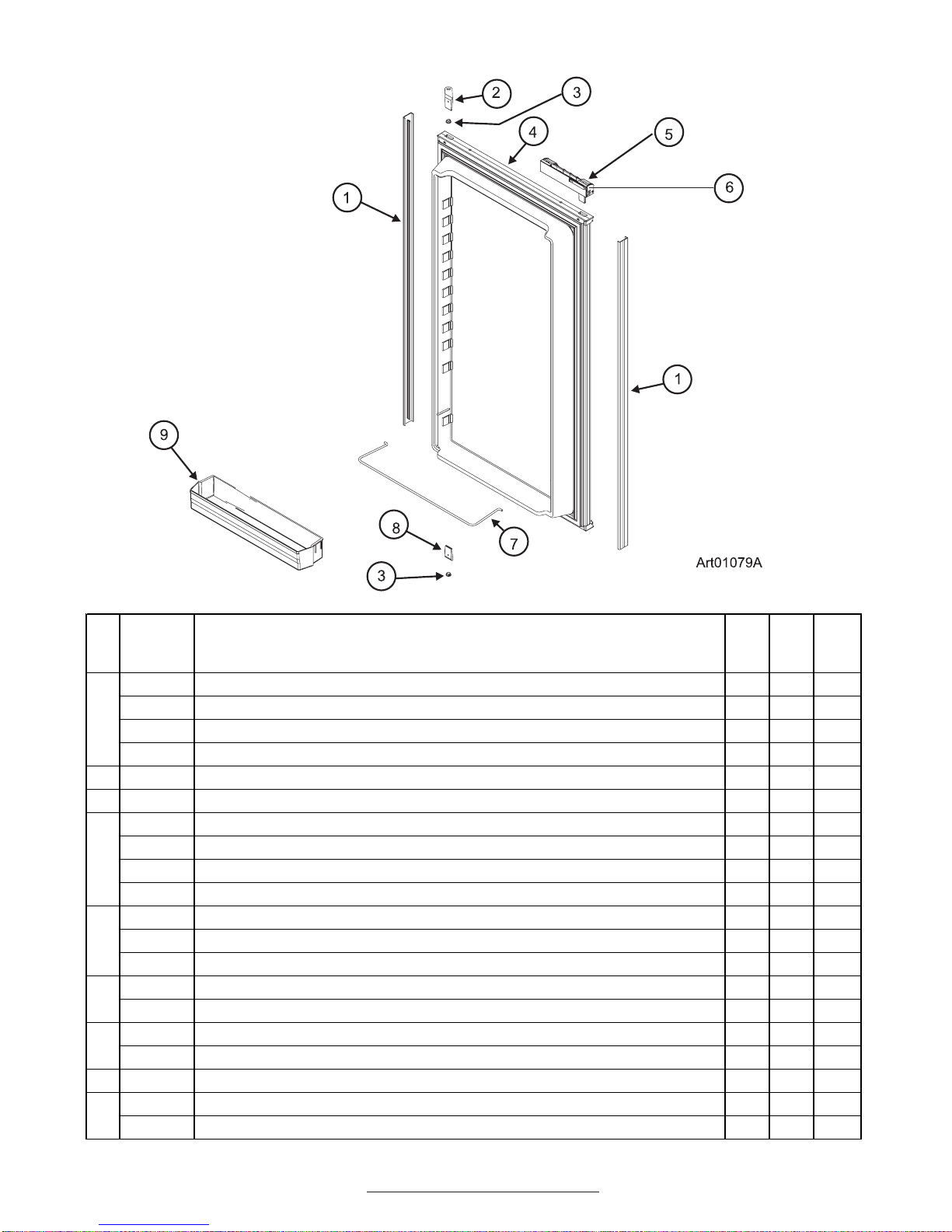

LOWER DOOR (FRESH FOOD) - N62/N82 SERIES

NO. PART # DESCRIPTION

N621

N621F

N623

N624

N821

N821F

N823

N824 N822

N822F

1 623948 PANEL RETAINER-LOWER DOOR/6'/BLACK/SDL X

623760 PANEL RETAINER-LOWERDOOR/8'/BLACK/SDL X X

619559 PANEL RETAINER-LOWERDOOR/6'/BLACK/WDL X

619560 PANEL RETAINER-LOWERDOOR/8'/BLACK/WDL X X

2 618511 HINGE-DOOR SIDE/TOP RH/BTM LH/BLACK/WDL ONLY X X X

3 619671 HINGE BUSHING-DOOR/WARM GRAY X X X

4 623955 DOORLINER ASSY-LOWER/6'/PANEL/BLACKFRAME/SDL X

623942 DOORLINER ASSY-LOWER/8'/PANEL/BLACK FRAME/SDL X X

619629 DOORLINER ASSY-LOWER/6'/PANEL/BLACK FRAME/WDL X

619631 DOORLINER ASSY-LOWER/8'/PANEL/BLACK FRAME/WDL X X

5 619865 DOOR HANDLE ASSY-LOWER DOOR/RH SWING (SERIAL # 965168 & BELOW) X X

621469 DOOR HANDLE ASSY-UPPER DOOR/LH SWING/PLASTIC (SERIAL # 965169 & ABOVE) X X

621104 DOOR HANDLE ASSY-LOWER DOOR/RH SWING X

6 622313 STORAGE LATCH-DOOR/WARM GRAY/PLASTIC DOOR HANDLE X X

619648 STORAGE LATCH-DOOR/WARM GRAY/METAL DOOR HANDLE X X X

7 624866 WIRE-BIN/SDL XXX

618578 RAIL-LOWERDOOR/WDL X X X

8 618510 HINGE-DOOR SIDE/TOP LH/BTM RH/BLACK/WDL ONLY X X X

9 624863 BIN-DOORSHELF/WHITE/SDL X X X

618619 BIN-DOOR SHELF/WHITE/WDL X X X

N62/N82 SERIES PARTS LIST - PAGE 4

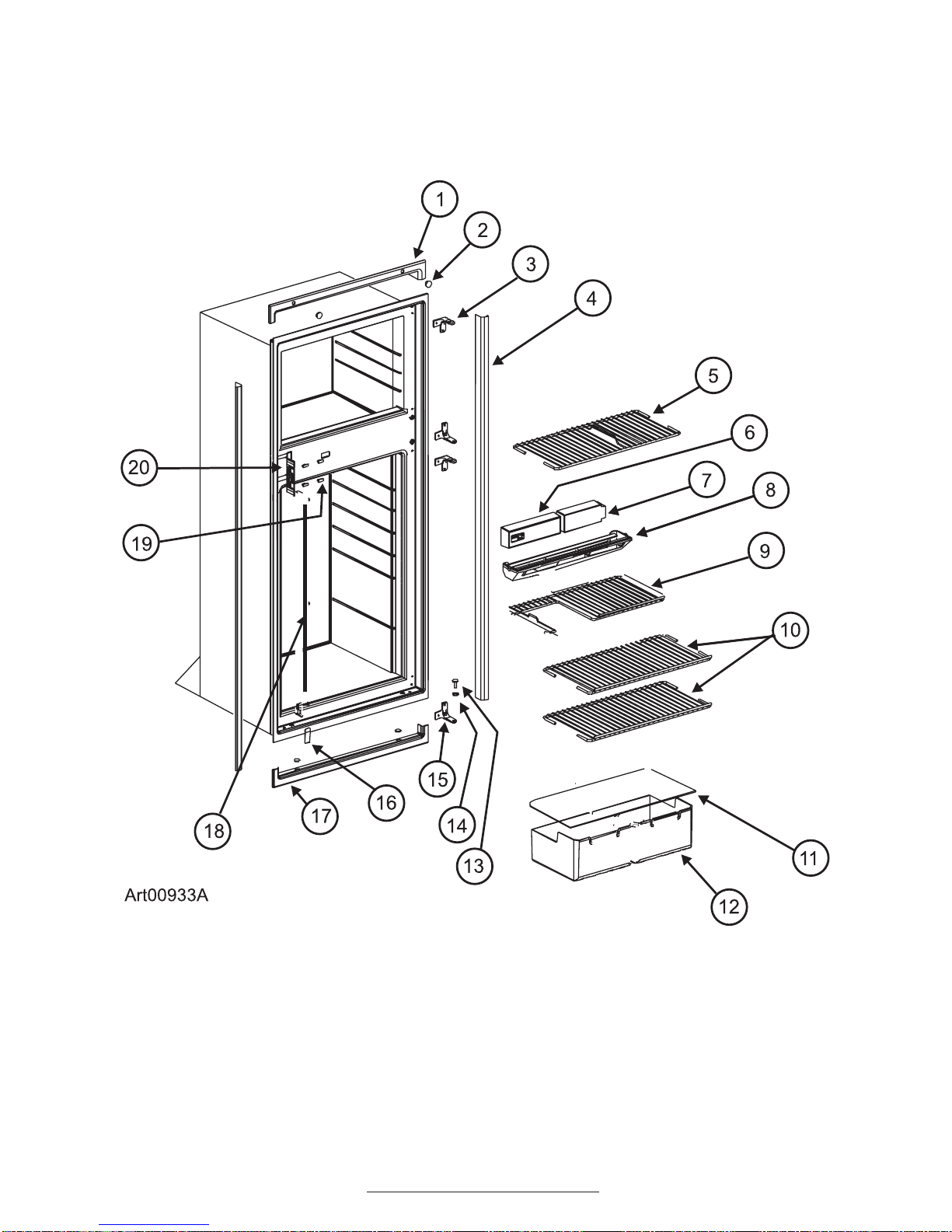

CABINET AREA (FRONT VIEW) - N62/N82 SERIES

N62/N82 SERIES PARTS LIST - PAGE 5

CABINET AREA (FRONT VIEW) - N62/N82 SERIES

NO. PART # DESCRIPTION N62

SERIES N82

SERIES

1 622319 TRIM PIECEASSY-TOP/WITHINSERTS/BLACK X X

2 618170 HOLEPLUG-BLACK(2 PERCABINET) X X

3 623771 HINGE-CABINET/3 POINT/TOP RH/BTM LH/BLACK/SDL X X

3 619335 HINGE-CABINET/3 POINT/TOP RH/BTM LH/BLACK/WDL X X

4 622295 TRIM PIECEFOAM TAPEASSY-CABINET/SIDE/6' (2 PER CABINET) X

622296 TRIM PIECEFOAM TAPEASSY-CABINET/SIDE/8' (2 PER CABINET) X

5 620250 SHELF-WIRE/FREEZER X X

6 628974 CONTROL ASSY-OPTICAL/BLACK (SN RANGE: N621/N821/N822=9126825 & ABOVE-

N623/N823=8970881 & ABOVE) X X

619350 CONTROL ASSY-OPTICAL/BLACK/N62/N82 (SN RANGE: N621/N821/N822=9126824 &

BELOW - N623/N823=8970880 & BELOW) X X

7 619282 FRONT BOX-BLACK XX

8 623250 DRIP TRAY-INSIDE(USE623250) X X

9 620272 SHELF-WIRE/CUT OUT X X

10 620273 SHELF-WIRE/FULL (2 FORTHEN621/N623)( 3 FORTHEN821) X X

11 618158 CRISPER COVER-GLASS SHELF X X

12 618571 CRISPER-WHITE/FULL X X

13 618145 HINGE PIN-UPPER HINGE/BLACK/WDL/SDL X X

623899 HINGE PIN-UPPER/LOWER/BLACK/WDL/SDL X X

61550722 HINGE PIN-BOTTOM/WDL/SDL X X

14 619671 HINGE BUSHING-DOOR/WARM GRAY (4 PER REFRIGERATOR) X X

15 623772 HINGE-CABINET/3 POINT/TOP LH/BTM RH/BLACK/SDL X X

619336 HINGE-CABINET/3 POINT/TOP LH/BTM RH/BLACK/WDL X X

16 619301 COVER-HINGEHOLES/WHITE/3 POINT X X

17 622323 TRIM PIECEFOAM TAPEASSY-CABINET/BOTTOM X X

18 618181 RETAINER-SHELF (SERIAL # 926963 AND BEFORE) X X

622033 RETAINER-SHELF (SERIAL # 926964 AND AFTER) X X

19 619561 HOLEPLUG-DIVIDER/WHITE(PRODUCED03/12/98 TO 07/20/98) X X

620282 HOLEPLUG-DIVIDER/WHITE(PRODUCED07/21/98 TO 02/14/99) X X

20 618167 STRIKEPLATE XX

622325 KIT-INSTALLATION (TRIM PIECES/SCREWS/PLUGS)(NOT SHOWN) X X

N62/N82 SERIES PARTS LIST - PAGE 6

CABINET AREA (REAR VIEW) - N62/N82 SERIES

NO. PART # DESCRIPTION N62

SERIES N82

SERIES

1 61686823 FINS XX

2 61695022 CAP-HEAT DEFLECTOR X X

3 621702 HEATER-AC (COOLING UNIT SERIAL# 11231023 & BELOW) X

HEATER-AC (COOLING UNIT SERIAL# 11232007 & BELOW) X

630811 HEATER-AC/BACKER (COOLING UNIT SERIAL# 11231024 & ABOVE) X

HEATER-AC/BACKER (COOLING UNIT SERIAL# 11232008 & ABOVE) X

4 61695322 BASE-BURNER BOX X X

5 61712637 COVER ASSY-BURNER BOX X X

6 622546 DRIP CUP-REAR/METAL (USE622546) X X

7 622390 DRAIN HOSEASSY X

8 622391 DRAIN HOSEASSY X

9 61505122 HOSE CLAMP (NOT USED WITH DRAIN HOSEASSY 622390/622391) X X

10 630307 NSC SYSTEM PACK-COOLING UNIT (BACKER HEATER) X

11 632314 NSC SYSTEM PACK-COOLING UNIT (BACKER HEATER) X

NS 2M0802 THERMAL SWITCH/BRACKET ASSY (SEENOTE) X X

NS 618111 BAFFLE DIFFUSER/WIRE ASSY-COOLING UNIT (NOT SHOWN) X X

NS 61695022 CAP-HEAT DEFLECTOR(NOT SHOWN) X X

NOTE: FORCOOLINGUNITS WITHA THERMAL SWITCH.

N62/N82 SERIES PARTS LIST - PAGE 7

CONTROLS (REAR VIEW) - MODELS N62/N82 SERIES

NOTE: FOR MODELS MADE WITH A SEPARATE MANUAL SHUT OFF VALVE (SERIAL # 656979 & BELOW).

NO. PART # DESCRIPTION N62

SERIES N82

SERIES

1 618186 BASE-POWERBOARD XX

2 632168001 KIT-POWER BOARD XX

3 618185 COVER-POWER SUPPLY XX

4 621448 WIRE-WHITE/9"/GAS VALVE(2 PER ASSEMBLY) X X

5 61694022 BRACKET-MOUNTING/GAS VALVE X X

6 61594422 PRESSURETAP XX

61445322 PLUG-1/8"/FORPRESSURETAP X X

7 621334 KIT-GAS VALVE/BRACKET/WIRES X X

8 61546822 CONNECTOR-MALE XX

9 61694622 UNION TUBE XX

10 61694922 MANUAL SHUT OFF VALVEASSY (USE621444) X X

11 618252 BURNERTUBE XX

12 621957 KIT-BURNER/ORIFICE ADAPTER ASSY X X

13 61554422 CORD-AC POWER/BLACK XX

14 61712637 COVER ASSY-BURNER BOX X X

15 61695322 BASE-BURNERBOX XX

16 61692222 ELECTRODE-SPARK/SENSE/SINGLEELECTRODE/0.25" X X

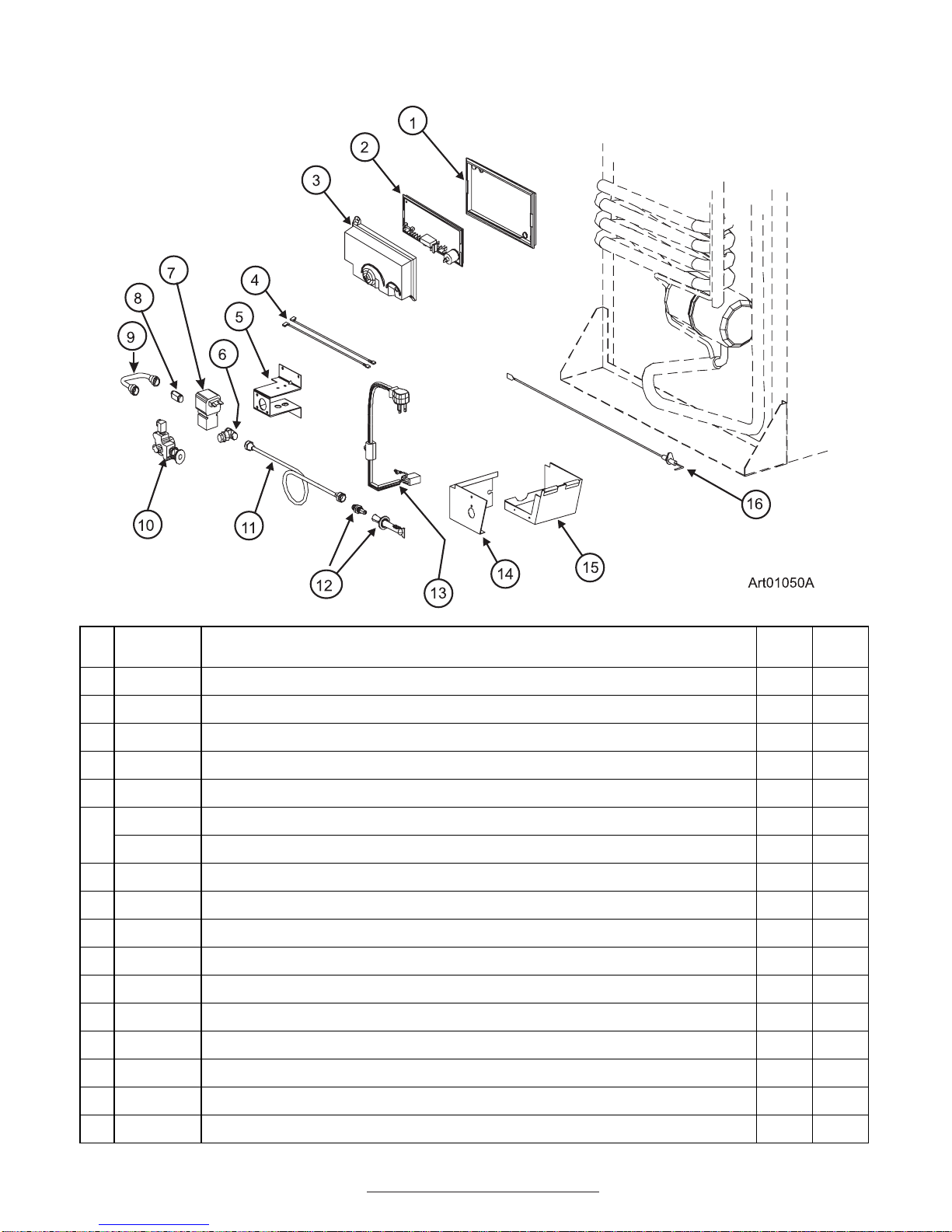

N62/N82 SERIES PARTS LIST - PAGE 8

CONTROLS (REAR VIEW) - N62/N82 SERIES

NOTE: FOR MODELS PRODUCED WITHOUT A SEPARATE MANUAL SHUT OFF VALVE (SERIAL # 656980 &ABOVE)

NO. PART # DESCRIPTION N62

SERIES N82

SERIES

1 628674 BASE-POWER BOARD

(SERIAL RANGE: N621/N821/N822=9126825 & ABOVE, N623/N823=8970881 & ABOVE) X X

618186 BASE-POWER BOARD

(SERIAL RANGE: N621/N821/N822=9126824 & BELOW, N623/N823=8970880 & BELOW) X X

628661 POWERBOARD

(SERIAL RANGE: N621/N821/N822=9126825 & ABOVE, N623/N823=8970881 & ABOVE) X X

2 632168001 KIT-POWER BOARD

(SERIAL RANGE: N621/N821/N822=9126824 & BELOW, N623/N823=8970880 & BELOW) X X

628677 COVER-POWER BOARD

(SERIAL RANGE: N621/N821/N822=9126825 & ABOVE, N623/N823=8970881 & ABOVE) X X

3 618185 COVER-POWERBOARD

(SERIAL RANGE: N621/N821/N822=9126824 & BELOW, N623/N823=8970880 & BELOW) X X

4 621448 WIRE-WHITE/9"/GAS VALVE (2 PER ASSEMBLY) X X

5 628993 BRACKET-MOUNTING/GAS VALVE X X

6 621334 KIT-GAS VALVE/BRACKET/WIRES (9185698 & BELOW) X X

628741 GAS VALVE-SOLENOID (9185699 & ABOVE) X X

7 624682 BURNER TUBE-N8/N6 XX

8 621957 KIT-BURNER/ORIFICE ADAPTER ASSY X X

9 61554422 CORD-AC POWER/BLACK X X

10 61712637 COVER ASSY-BURNER BOX X X

11 61695322 BASE-BURNERBOX XX

12 61692222 ELECTRODE-SPARK/SENSE/SINGLEELECTRODE/0.25" X X

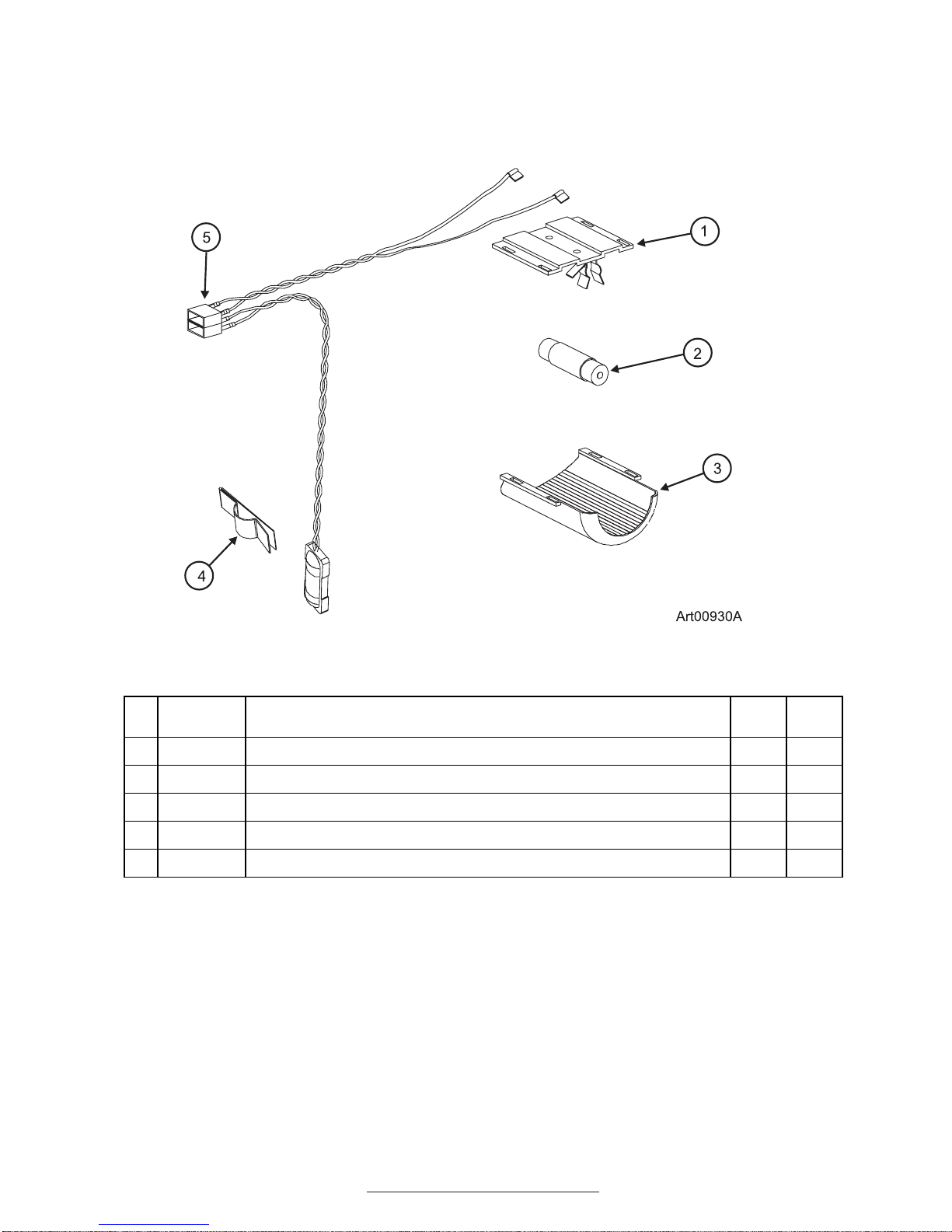

N62/N82 SERIES PARTS LIST - PAGE 9

INTERIOR LIGHT/THERMISTER ASSY - N62/N82 SERIES

NO. PART # DESCRIPTION N62

SERIES N82

SERIES

1 61629722 LAMP BRACKET ASSY X X

2 61628922 LAMP-GE#214-2/DC LIGHT BULB X X

3 621827 COVER-LAMP BRACKET X X

4 61689122 CLIP-THERMISTER MOUNTING/FIN X X

5 618548 LAMP THERMISTER WIREASSY X X

N62/N82 SERIES PARTS LIST - PAGE 10

FAN MODEL COMPONENTS - MODELS N621F, N821F, N821V, N822F

PART # DESCRIPTION

N621F

N821F

N822F N821V

618857 BRACKET-DC FAN 1 1

619016 BRACKET-FAN SUPPORT 1 1

61417922 CABLETIE-NYLON 3 3

618856 FAN-EXTERNAL DC 1

623442 FAN-EXTERNAL DC/HIGHVELOCITY 1

618093 THERMOSTAT-DC FAN/THERMO DISC 1 1

618950 WIRE MOUNT-ADHESIVE 2 2

621943 WIRE-60" (FANMODELS) 1 1

621431 WIRE-AUXILLARY/BLACK/POSITIVE(+) 1 1

621430 WIRE-AUXILLARY/RED/NEGATIVE(-) 1 1

618700 WIRE-BLACK/24"/18 GA 1 1

618701 WIRE-RED/36"/18 GA 1 1

PART # DESCRIPTION

N621F

N821F

N822F N821V

618857 BRACKET-DC FAN 1 1

619016 BRACKET-FAN SUPPORT 1 1

61417922 CABLETIE-NYLON 3 3

618856 FAN-EXTERNAL DC 1

623442 FAN-EXTERNAL DC/HIGHVELOCITY 1

618093 THERMOSTAT-DC FAN/THERMO DISC 1 1

618950 WIRE MOUNT-ADHESIVE 2 1

621943 WIRE-60" (FANMODELS) 1 1

628758 WIRE-AUXILLARY/OUTPUT/BLACK 1 1

628759 WIRE-AUXILLARY/OUTPUT/RED 1 1

628999 WIRE-NEGATIVE/AUXILLARY TO Y CONNECTION 1 1

618701 WIRE-RED/36"/18 GA 1 1

PART # DESCRIPTION

N621F

N821F

N822F N821V

628747 BRACKET-DC FAN 1 1

61417922 CABLETIE-NYLON 3 3

628685 FAN-EXTERNAL DC 1

623442 FAN-EXTERNAL DC/HIGHVELOCITY 1

618093 THERMOSTAT-DC FAN/THERMO DISC 1 1

618950 WIRE MOUNT-ADHESIVE 2 2

621943 WIRE-60" (FANMODELS) 1 1

NOTE: UPPERFANPOSITION- MODELS WITHSERIAL# ABOVE10089300

NOTE: LOWERFANPOSITION- MODELS WITHSERIAL # BELOW 9056492

NOTE: LOWERFANPOSITION- MODELS WITHSERIAL # 9056492 TO 10089300

628758 WIRE-AUXILLARY/OUTPUT/BLACK 1 1

628759 WIRE-AUXILLARY/OUTPUT/RED 1 1

629883 WIREASSY 11

629882 WIREASSY 11
