Norcold DE-251E Manuale utente

PARTS LIST

DE251E

PART#619751

NORCOLD 10/29/2002

EV251E

DE251E/EV251EPARTSLIST-PAGE2

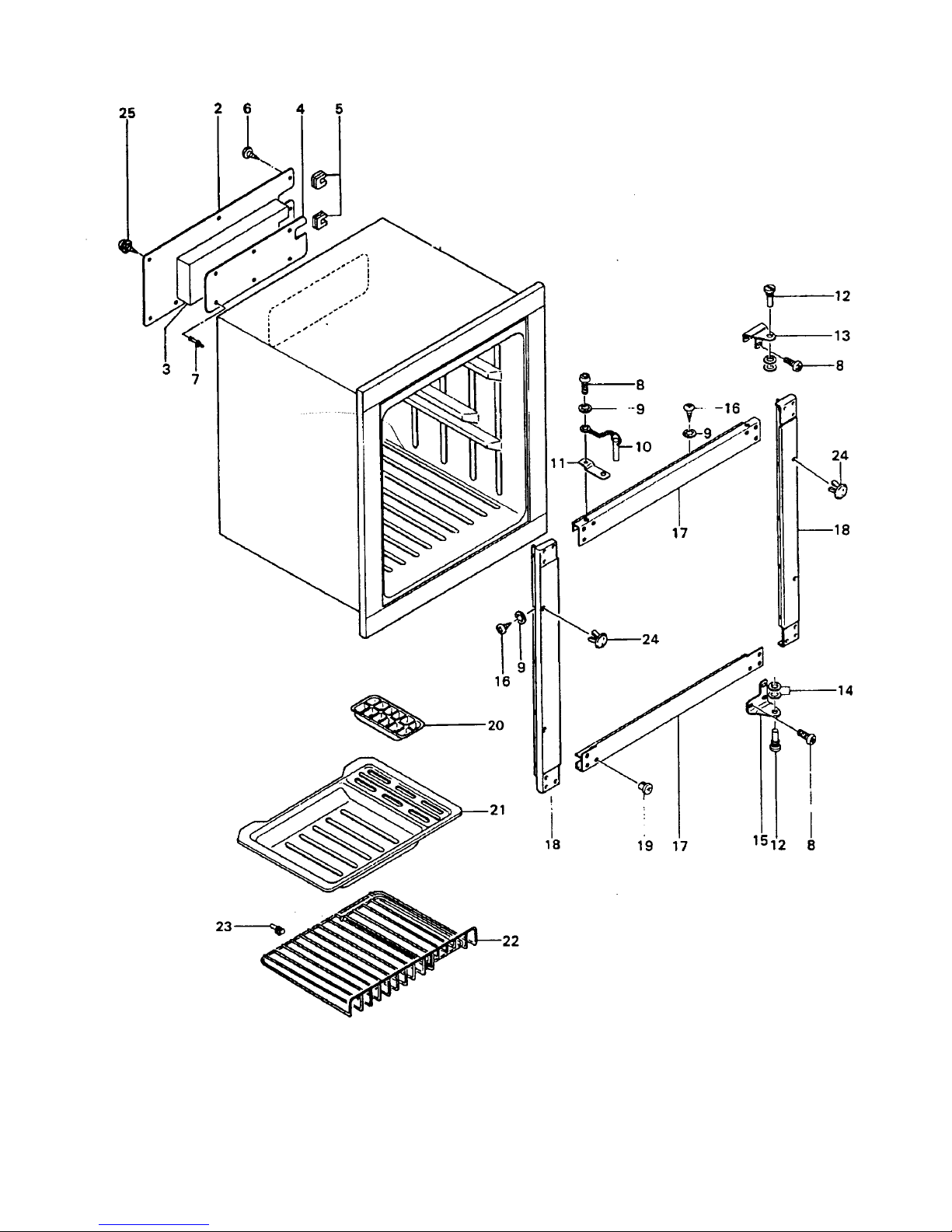

CABINET ASSEMBLY - DE251E/EV251E

DE251E/EV251EPARTSLIST-PAGE3

NO. PART # DESCRIPTION DE251E EV251E

2 304300220 BLIND PLATE XX

3 439003700 HEAT INSULATOR-AT BLIND PLATE X X

4 430301900 PLATE-"I"/CABINET XX

5 416004200 BUSHING-FOR BLIND PLATE X X

6 80830441210 SCREW-TRUSS TAPPING/M4x12 X X

7 645100510 FASTENER-PLASTIC RIVET X X

8 80500401040 SCREW-M4x10 XX

9 83400400010 WASHER-TEETHLOCK XX

10 160201440 TRAVEL PINASSY (USE 160207600) X X

160207600 TRAVEL PINASSY-0.75" X X

160207610 TRAVEL PINASSY-WHITE X X

11 322118720 SUPPORT-TRAVEL PIN XX

12 505502320 HINGEPIN (USE 61114600) X X

13 322118820 HINGE-RHTOP XX

14 503001900 WASHER XX

15 322118920 HINGE-RHBOTTOM XX

16 80830441210 SCREW-TRUSS TAPPING/M4x12 X X

17 323005810 CABINET FRAME-BLACK/TOP/BOTTOM X X

323005830 CABINET FRAME-WHITE/TOP/BOTTOM (USE323005810) X X

18 323005910 CABINET FRAME-BLACK/SIDES X X

323005930 CABINET FRAME-WHITE/SIDES (USE323005910) X X

19 8080043103 SCREW-TAPPING/HINGEHOLE/BLACK X X

80800431020 SCREW-TAPPING/HINGEHOLE/WHITE X X

20 160203000 ICECUBETRAY XX

21 433001401 DRAINAGEPAN XX

22 523002600 SHELF XX

23 645101700 HOLDER-SHELF/REAR XX

24 422101510 CAP-BLACK/INSTALLATION HOLES X X

422101520 CAP-WHITE/INSTALLATIONHOLES X X

25 8073044121 SCREW-TAPPING/WITH TEETH LOCK WASHER X X

CABINET ASSEMBLY - DE251E/EV251E

DE251E/EV251EPARTSLIST-PAGE4

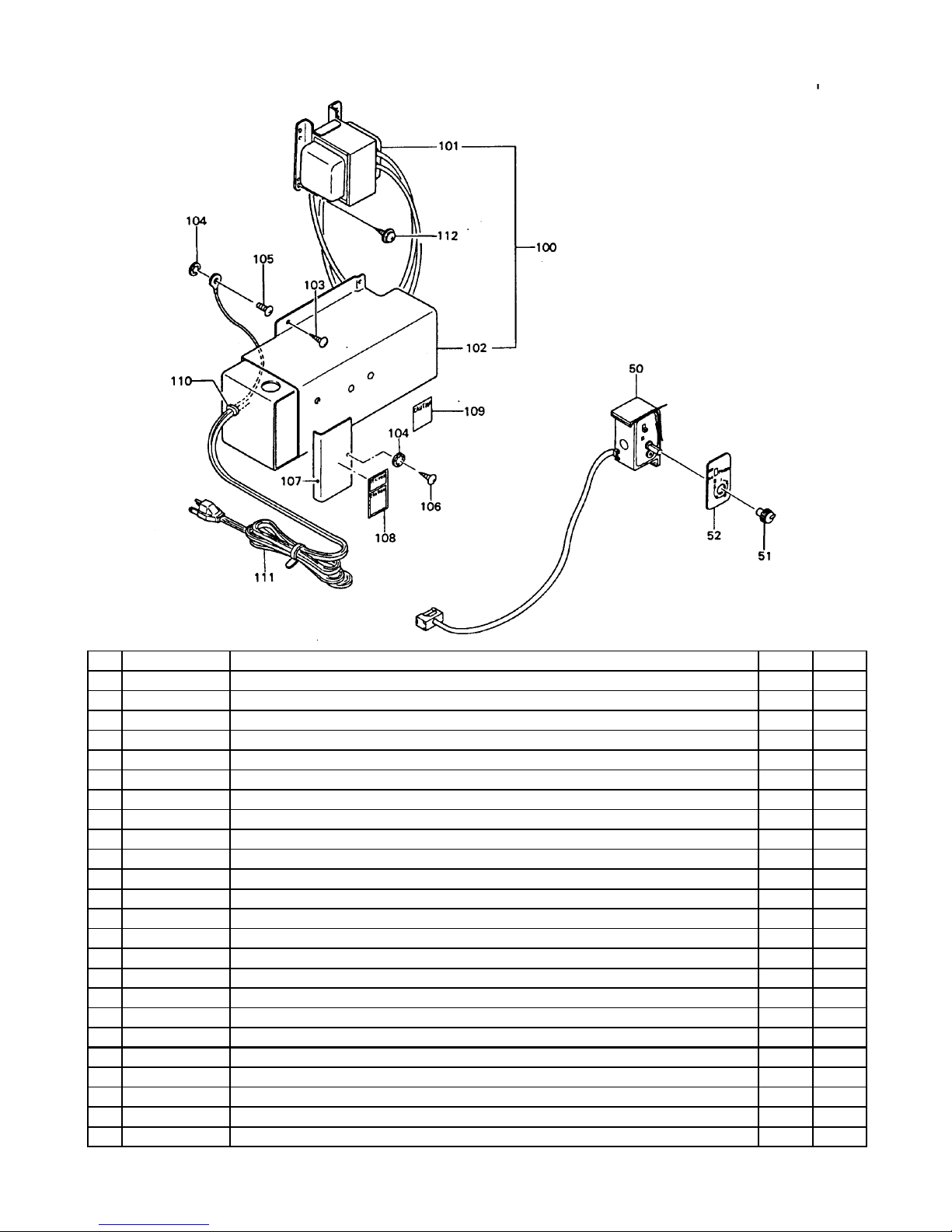

THERMOSTAT & POWER SUPPLY - DE251E/EV251E

NO. PART # DESCRIPTION DE251E EV251E

50 160107210 THERMOSTAT XX

51 160206700 KNOB-THERMOSTAT XX

52 545020740 MARK-THERMOSTAT COVER X X

100 16011396007 KIT-POWER SUPPLY (NOT SHOWN) X

16011393008 KIT-POWERSUPPLY (NOT SHOWN) X

160107100 POWERSUPPLY (USE16011396007) X

160107000 POWERSUPPLY (USE16011393008) X

101 196013100 TRANSFORMER ASSY (USE16011396007) X

196013110 TRANSFORMER ASSY (USE16011393008) X

102 163007800 OSCILLATORONLY (USE16011396007) X

163007700 OSCILLATORONLY (USE16011393008) X

103 80830441210 SCREW-TRUSS TAPPING/M4x12 X X

104 834004000 WASHER-TEETHLOCK X X

105 8000040121 SCREW XX

106 80840430810 SCREW-TRUSS TAPPING/M4x8 X X

107 322119100 COVER-DC WIRES X

322124500 COVER-DC WIRES X

108 546017100 CAUTION PLATE(ON DC COVER) X

109 546028000 CAUTION PLATE X

546028900 CAUTIONPLATE-POWER SUPPLY X

110 601600010 GROMMET-STRAIN RELIEF X

111 191203410 CORD ASSY-AC X

191217100 CORD ASSY-POWER X

112 8073044121 SCREW-TAPPING/WITH TEETH LOCK WASHER X X

DE251E/EV251EPARTSLIST-PAGE5

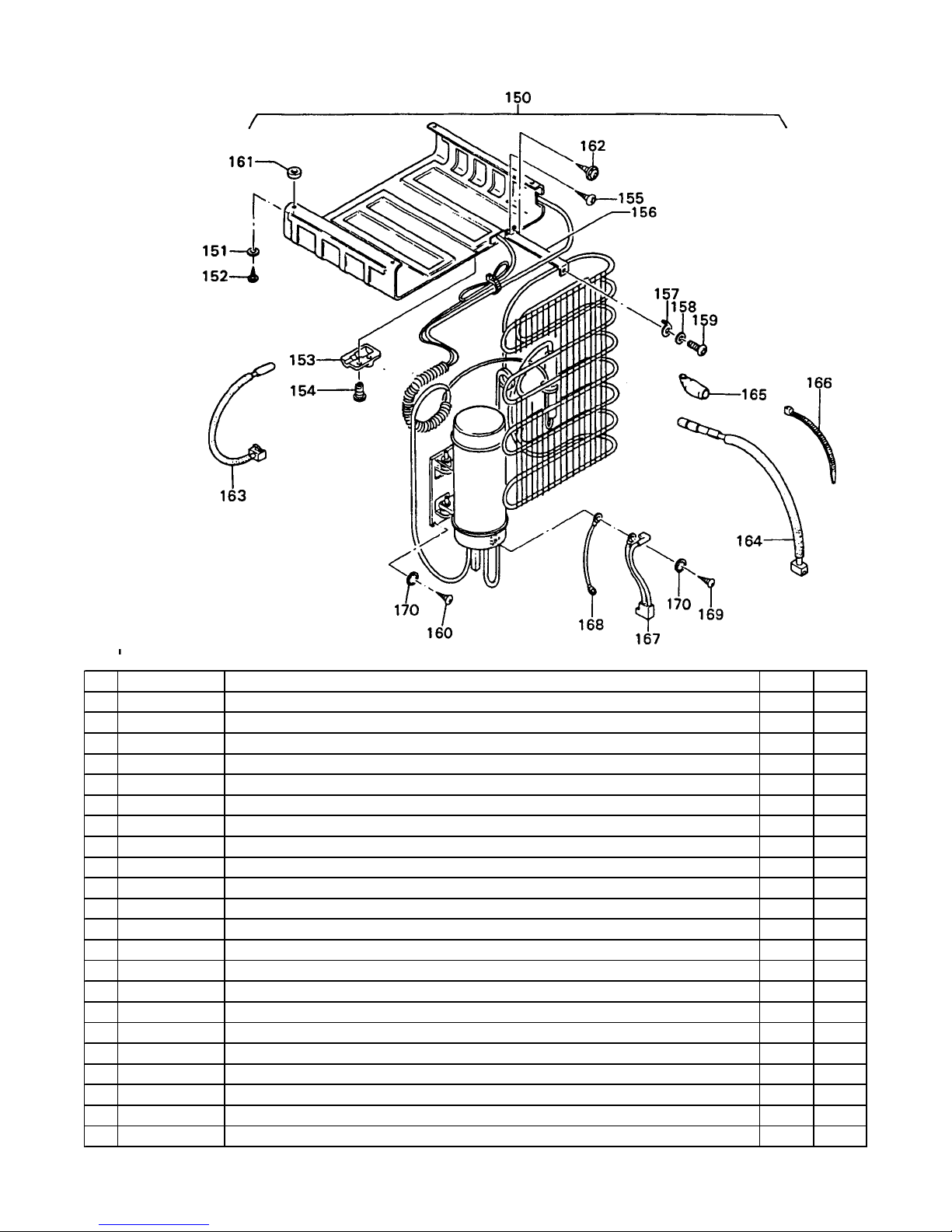

COOLING UNIT AREA - DE251E/EV251E

NO. PART # DESCRIPTION DE251E EV251E

150 161005010 COOLING UNIT-DE251E/DC254A/DE250G X

161005040 COOLING UNIT-EV251E X

151 403001700 WASHER-"I" XX

152 80800441620 SCREW-TAPPING/M4x16 X X

153 422305000 HOLDER-THERMISTER/AT EVAPORATOR X X

154 8080043082 SCREW-TAPPING XX

155 500800400 SCREW-TAPPING XX

156 322132800 HOLDER-CONDENSER XX

157 322005310 HOLDER-CONDENSERWASHER X X

158 8320042003 WASHER-SPRING LOCK X X

159 8080043163 SCREW-TAPPING XX

160 80830431210 SCREW-TAPPING/M4x12 X X

161 422000700 COLLAR-"I"/AT EVAPORATOR X X

162 8073044121 SCREW-TAPPING/WITH TEETH LOCK WASHER X X

163 605503201 THERMISTER-EVAPORATOR X X

164 605503300 THERMISTER-WIRECONDENSER (USE605503301) X X

165 410110200 CAP-THERMISTER XX

166 645105900 FASTENER XX

167 190228600 COUPLER ASSY XX

168 192116604 CORD WITH TERMINAL-GROUND CORD X X

169 8040043081 SCREW-TRUSS TAPPING/M4x8 X X

170 83400400010 WASHER-TEETHLOCK XX

DE251E/EV251EPARTSLIST-PAGE6

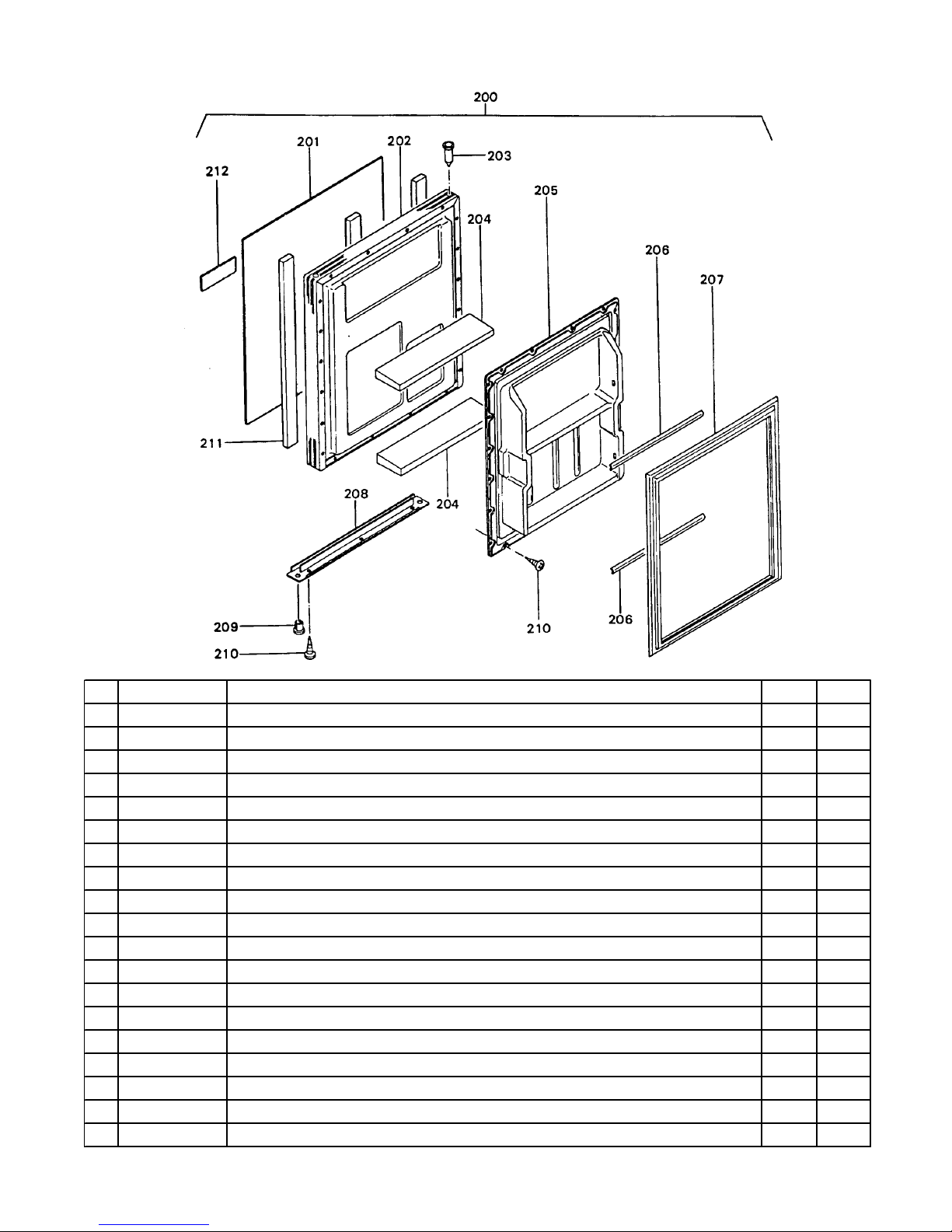

DOOR ASSEMBLY - DE251E/EV251E

NO. PART # DESCRIPTION DE251E EV251E

200 160017600 DOOR ASSY-BLACK (USE160031620) X X

160031620 DOOR KIT ASSY-GRAY X X

160017640 DOOR ASSY-WHITE(USE 160031620) X X

160031630 DOOR KIT ASSY-WHITE(USE160031620) X X

201 302308310 DOOR PANEL-BLACK XX

302303260 DOORPANEL-WHITE XX

202 160907510 DOOR FRAME ASSY-BLACK/3 SIDES (USE 160031620) X X

160907530 DOOR FRAMEASSY-WHITE/3 SIDES (USE160031620) X X

203 404004700 HINGEBUSHING-POINTED X X

204 439003610 CUSHION-DOORSHELF X X

205 433100510 DOOR LINER XX

206 242504000 BAR-BOTTLEHOLDER X X

207 414801200 DOOR GASKET XX

208 427600510 DOOR FRAME-BOTTOM/BLACK X X

427600530 DOOR FRAME-BOTTOM/WHITE X X

209 404001000 HINGEBUSHING XX

210 80830441210 SCREW-TRUSS TAPPING/M4x12 X X

211 412006610 CUSHION-DOOR ASSY/VERTICAL X X

212 545008203 MARK-NORCOLD/BLACK X X
