Norcold DC-254A Manuale utente

PARTS LIST

DC254APARTS LIST

NORCOLD 10/30/2002

DC254A

DC254APARTSLIST-PAGE2

CABINET ASSEMBLY - DC254A

DC254APARTSLIST-PAGE3

CABINET ASSEMBLY - DC254A

NO. PART # DESCRIPTION DC254A

2 304300220 BLINDPLATE X

3 439003700 HEAT INSULATOR-AT BLIND PLATE X

4 430301900 PLATE-"I"/CABINET X

5 416004200 BUSHING-FOR BLIND PLATE X

6 80830441210 SCREW-TRUSS TAPPING/M4x12 X

7 645100510 FASTENER-PLASTIC RIVET X

8 80500401040 SCREW-M4x10 X

9 83400400010 WASHER-TEETH LOCK X

10 160201440 TRAVEL PIN ASSY (USE160207600) X

160207600 TRAVEL PIN ASSY-0.75" X

160207610 TRAVEL PIN ASSY-WHITE X

11 322118720 SUPPORT-TRAVEL PIN X

12 505502320 HINGEPIN(USE61114600) X

13 322118820 HINGE-RH TOP X

14 503001900 WASHER X

15 322118920 HINGE-RH BOTTOM X

16 80830441210 SCREW-TRUSS TAPPING/M4x12 X

17 323005810 CABINET FRAME-BLACK/TOP/BOTTOM X

323005830 CABINET FRAME-WHITE/TOP/BOTTOM (USE323005810) X

18 323005910 CABINET FRAME-BLACK/SIDES X

323005930 CABINET FRAME-WHITE/SIDES (USE323005910) X

19 8080043103 SCREW-TAPPING/HINGEHOLE/BLACK X

80800431020 SCREW-TAPPING/HINGEHOLE/WHITE X

20 160203000 ICECUBETRAY X

21 433001401 DRAINAGEPAN X

22 523002600 SHELF X

23 645101700 HOLDER-SHELF/REAR X

24 422101510 CAP-BLACK/INSTALLATIONHOLES X

422101520 CAP-WHITE/INSTALLATIONHOLES X

25 8073044121 SCREW-TAPPING/WITHTEETH LOCKWASHER X

DC254APARTSLIST-PAGE4

THERMOSTAT & POWER SUPPLY - DC254A

NO. PART # DESCRIPTION DC254A

50 603200921 THERMOSTAT (USE603200910) X

603200910 THERMOSTAT X

51 603604000 CIRCUIT BREAKER X

52 191214900 CORD ASSY (THERMOSTAT TO POWER SUPPLY) X

53 191212910 CORD ASSY (CIRCUIT BREAKERTO POWER SUPPLY) X

54 422501700 COVER-THERMOSTAT X

55 545020730 MARK-THERMOSTAT HOLDER X

56 160203200 KNOB-THERMOSTAT/BLACK X

100 16011395008 KIT-POWERSUPPLY X

160102990 POWER SUPPLY (USE16011395008) X

101 163007430 OSCILLATOR& TRANSFORMER(USE16000395008) X

102 196008720 TRANSFORMER ASSY-DC340/DC351 (USE16011395008) X

103 163008510 OSCILLATORONLY (USE16011395008) X

104 163204100 CASEASSY X

105 322119100 COVER-DC WIRES X

106 546017100 CAUTIONPLATE(ONDC COVER) X

107 546028011 CAUTIONPLATE(ONPOWERSUPPLY) X

108 80840430810 SCREW-TRUSS TAPPING/M4x8 X

109 83400400010 WASHER-TEETHLOCK X

110 80830441210 SCREW-TRUSS TAPPING/M4x12 X

111 8073044121 SCREW-TAPPING/WITHTEETHLOCKWASHER X

DC254APARTSLIST-PAGE5

COOLING UNIT AREA- DC254A

NO. PART # DESCRIPTION DC254A

150 161005010 COOLING UNIT X

151 403001700 WASHER-"I" X

152 80800441620 SCREW-TAPPING/M4x16 X

153 320200001 HOLDER-THERMOSTAT BULB X

154 8080043082 SCREW-TAPPING X

155 500800400 SCREW-TAPPING X

156 322132800 HOLDER-CONDENSER X

157 322005310 HOLDER-CONDENSER WASHER X

158 8320042003 WASHER-SPRING LOCK X

159 8080043163 SCREW-TAPPING X

160 80830431210 SCREW-TAPPING/M4x12 X

161 422000700 COLLAR-"I"/AT EVAPORATOR X

162 8073044121 SCREW-TAPPING/WITH TEETH LOCK WASHER X

163 192116604 CORD WITH TERMINAL-GROUND CORD X

164 80840430810 SCREW-TRUSS TAPPING/M4x8 X

165 83400400010 WASHER-TEETH LOCK X

DC254APARTSLIST-PAGE6

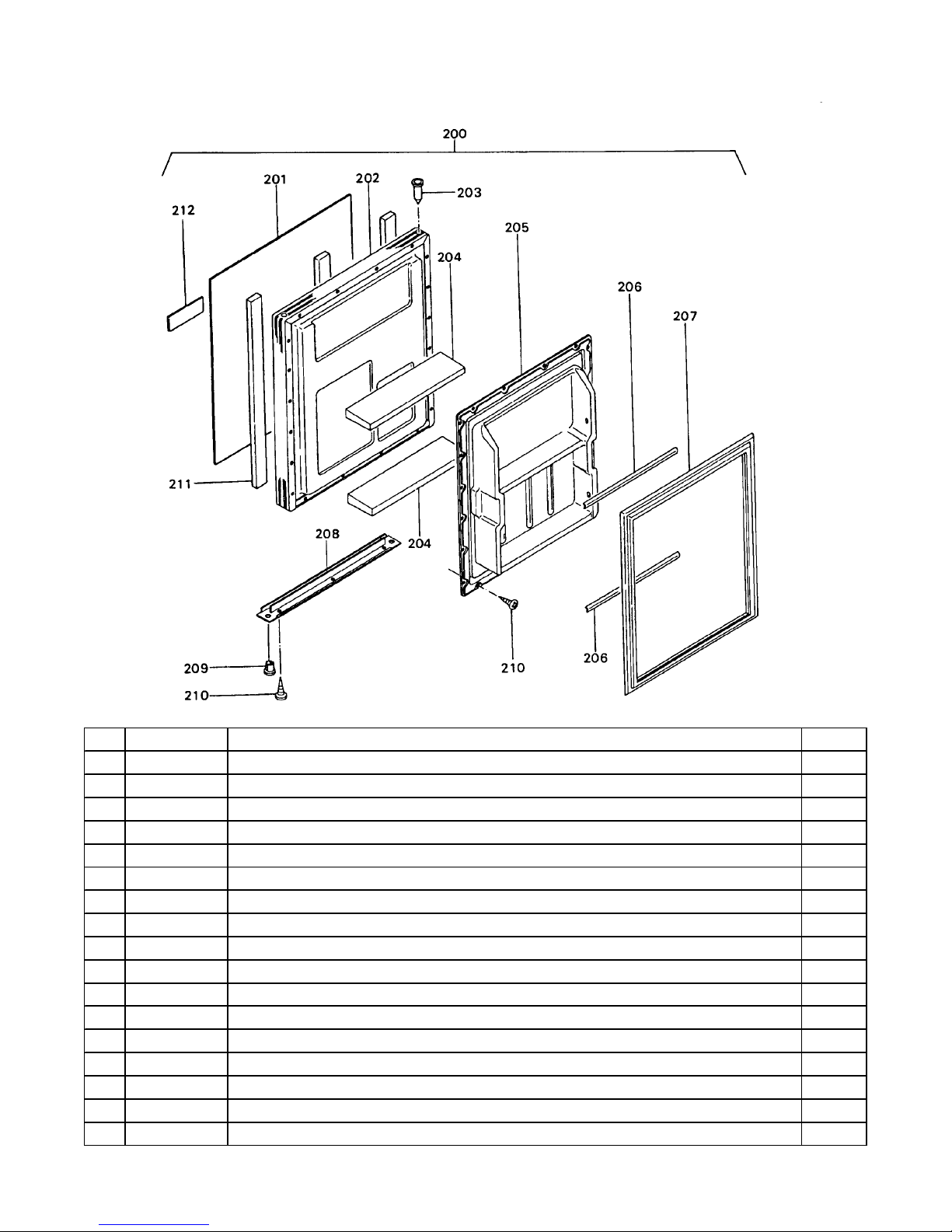

DOOR ASSEMBLY - DC254A

NO. PART # DESCRIPTION DC254A

200 160017600 DOOR ASSY-BLACK (USE160031620) X

160017640 DOOR ASSY-WHITE (USE160031620) X

201 302308310 DOOR PANEL-BLACK X

302303260 DOOR PANEL-WHITE X

202 160907510 DOOR FRAME ASSY-BLACK/3 SIDES (USE160031620) X

160907530 DOOR FRAME ASSY-WHITE/3 SIDES (USE 160031620) X

203 404004700 HINGEBUSHING-POINTED X

204 439003610 CUSHION-DOOR SHELF X

205 433100510 DOOR LINER X

206 242504000 BAR-BOTTLEHOLDER X

207 414801200 DOOR GASKET X

208 427600510 DOOR FRAME-BOTTOM/BLACK X

427600530 DOOR FRAME-BOTTOM/WHITE X

209 404001000 HINGEBUSHING X

210 80830441210 SCREW-TRUSS TAPPING/M4x12 X

211 412006610 CUSHION-DOOR ASSY/VERTICAL/FOAM X

212 545008203 MARK-NORCOLD/BLACK X
