Ntron 405FX-SC Manuale utente

(Revised 2010-11-15)

400 Series

Industrial Ethernet Switches

Installation

Guide

(Revised 2010-11-15)

Industrial Ethernet Switch Installation Guide

405TX

405FX-SC

405FX-ST

405FXE-SC-YY

405FXE-ST-YY

Where: YY = -15, -40, or -80

(Revised 2010-11-15)

820 S. University Blvd., Suite 4E

Mobile, AL 36609 USA

Corp. is prohibited, except as allowed under copyright laws.

Ethernet is a registered trademark of Xerox Corporation. All other product names, company names, logos

or other designations mentioned herein are trademarks of their respective owners.

The information contained in this document is subject to change without notice. N-TRON Corp. makes no

warranty of any kind with regard to this material, including, but not limited to, the implied warranties of

merchantability or fitness for a particular purpose. In no event shall N-TRON Corp. be liable for any

incidental, special, indirect or consequential damages whatsoever included but not limited to lost profits

arising out of errors or omissions in this manual or the information contained herein.

Warning

Do not perform any services on the unit unless qualified to do so. Do not substitute unauthorized parts or

make unauthorized modifications to the unit.

Do not operate the unit with the top cover removed, as this could create a shock or fire hazard.

Do not block the air vents on the sides or the top of the unit.

Do not operate the equipment in the presence of flammable gasses or fumes. Operating electrical equipment

in such an environment constitutes a definite safety hazard.

(Revised 2010-11-15)

Safety Warnings

ELECTRICAL SAFETY

WARNING: Do not disconnect while circuit is live, unless area is known to be non-hazardous.

WARNING: Disconnect the power cable before removing the enclosure top.

WARNING: Do not operate the unit with the top cover removed.

WARNING: Properly ground the unit before connecting anything else to the unit. Units not properly

grounded may result in a safety risk and could be hazardous and may void the warranty. See the

grounding technique section of this user manual for proper ways to ground the unit.

WARNING: Do not work on equipment or cables during periods of lightning activity.

WARNING: Do not perform any services on the unit unless qualified to do so.

WARNING: Do not block the air vents.

WARNING: Observe proper DC Voltage polarity when installing power input cables. Reversing

voltage polarity can cause permanent damage to the unit and void the warranty.

Power must be supplied by an isolating source, and a 0.5 A max rated UL recognized fuse must be

installed immediately before the unit

LASER SAFETY (405FXE Only)

CAUTION: CLASS 1 LASER PRODUCT. Do not stare into the laser!)

(Revised 2010-11-15)

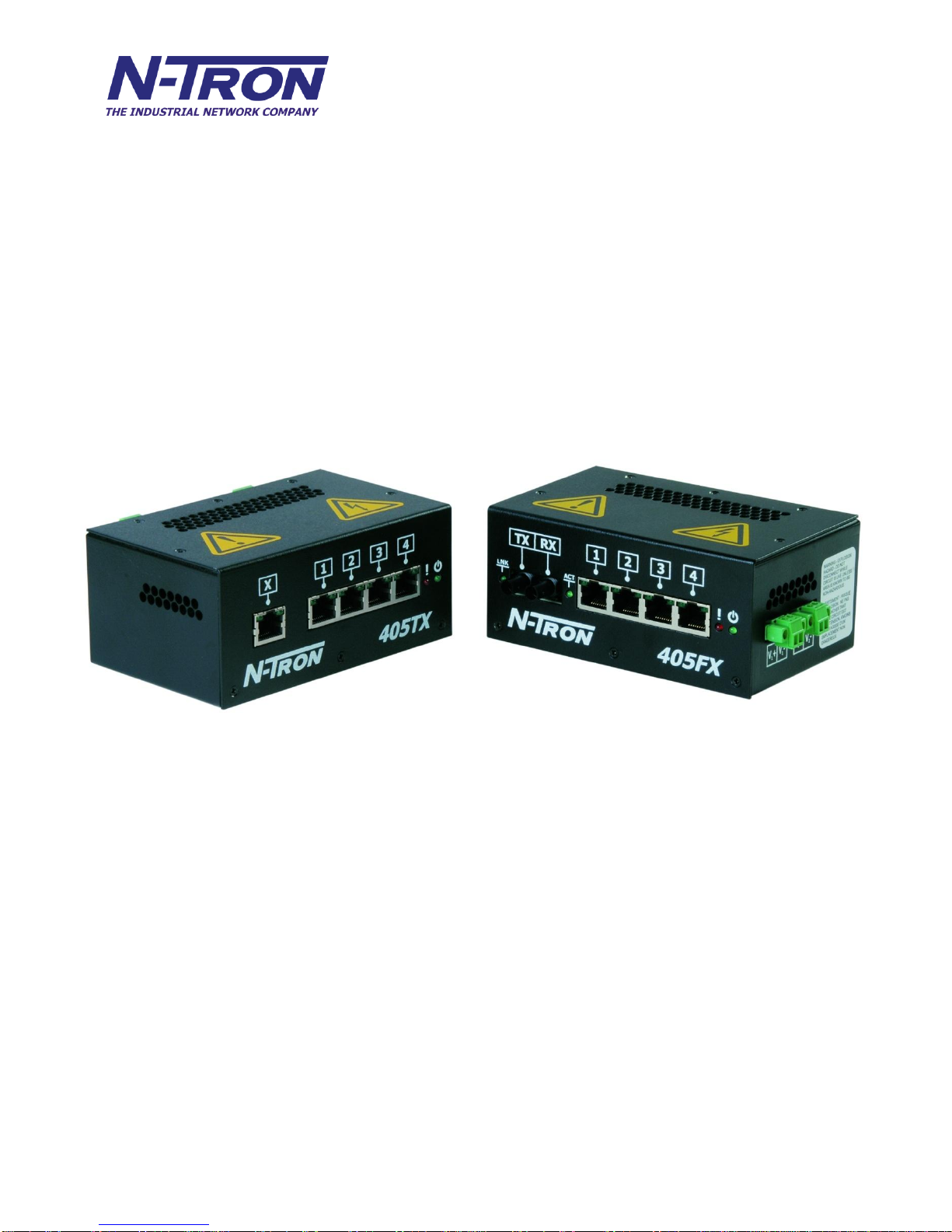

405FX, 405FXE, & 405TX Industrial Ethernet Switches

The 405TX and 405FX Unmanaged Industrial Ethernet Switches support high speed layer 2 switching

between ports.

The 405TX is an affordable 5 port unmanaged switch that is capable of auto negotiating 10/100 Mb and

half/full duplex communications. The N-TRON 405TX is housed in a ruggedized steel enclosure, and

provides 5 Category 5 compliant 10/100-BaseT connections for high performance network design, and

hub/repeater upgrades.

The 405FX is a 5 port unmanaged switch that has 4 ports identical to the 405TX, plus an additional

multimode fiber optic up-link port, capable of 2 Kilometers of 100 Mb communications without the use of

repeaters.

The 405FXE is a 5 port unmanaged switch that is similar to the 405FX, but with extended range. The N-

TRON 405FXE utilizes a singlemode fiber transceiver that is capable of 15 Kilometers of 100 Mb

communications.

Both the 405FX and 405FXE utilize the IEEE compliant SC or ST duplex connector for fiber optic

communications. The 4 10/100Base-TX ports utilize the RJ45 shielded connector.

All N-TRON switches come housed in a steel ruggedized Din-Rail enclosure, designed to withstand the

most demanding industrial applications, and have been fully tested and certified at industrial environmental

extremes. All 405 Units operate on 10-30VDC @ 0.2A.

Key Features

Full IEEE 802.3 & 100BASE-FX Compliance

Extended Environmental Specifications

Support for Full/Half Duplex Operation

LED Link/Activity Status Indication

Auto Sensing Speed and Flow Control

Up to 1.0 Gb/s Maximum Throughput

Industry Standard DIN-Rail Enclosure

(Revised 2010-11-15)

PACKAGE CONTENTS

Please make sure the Ethernet Switch package contains the following items:

1. 405FX/405FXE/405TX Ethernet Switch

2. This Installation Guide

Contact your carrier if any items are damaged.

INSTALLATION

Read the following warning before beginning the installation:

WARNING

The 405FXE unit contains a Class 1 Laser. Do not stare into the laser beam (fiber optic connector)

when installing or operating the product.

Never install or work on electrical equipment or cabling during periods of lightning activity.

Disconnect the power cable before removing the enclosure top.

Do not operate the unit with the top cover removed

UNPACKING

Remove all the equipment from the packaging, and store the packaging in a safe place.

File any damage claims with the carrier.

(Revised 2010-11-15)

405FX/405FXE HALF DUPLEX SETUP

While all RJ45 ports are Autosensing, the 405FX/405FXE Fiber Optic Port is factory configured for full

duplex operation. In the event half duplex operation is desired, follow these steps:

1. Remove the Voltage Input Power Plugs.

2. Remove the top cover (8 screws).

3. Remove the jumper plug (JP1) from pins 1 and 2.

4. Replace the top cover.

5. Proceed with the installation.

Full Duplex = Pins 1 and 2 shorted.

Half Duplex = Remove jumper.

In order to verify the jumper settings have been set correctly, for units which have the N-View option turned

on, you should install N-ViewOPC Server software on a PC connected to the LAN. The software is freely

distributed on the ProductCD and our web site ( http://www.n-tron.com/html/opc.html ). Once N-ViewOPC is

installed, you should view the Ports Counter page to remotely monitor each connected port. You may find it

helpful to Copy [Alt]+[PrintScreen] the Port Counter information for each port and Paste [Control]+[V] into a

Windows document for further review. Please consult your N-View OPC Server Manual for additional

information.

(Revised 2010-11-15)

DIN-Rail Mounting

Install the unit in a standard DIN-Rail. Recess the unit to allow at least 5” of horizontal clearance for fiber optic

cable bend radius (2” for TX models). Note: This unit may be mounted horizontally or vertically.

To install the unit to 35 mm industrial DIN-Rail - Place the top edge of the included mounting bracket on

the back of the unit against the top flange of the DIN-Rail at a 15° angle. Rotate the bottom of the unit to the

back (away from you) until it snaps into place.

To remove the unit from the 35 mm industrial DIN-Rail - Apply downward force to the unit until it

disengages from the bottom of the unit from the DIN-Rail. Then, rotate the unit approximately 15° upward

and towards you to completely remove the unit.

Optional Mounting

With the exception of the 524TX and 526FX2, all N-Tron™ products are designed to be mounted on

industry standard 35mm DIN-Rail. However, DIN-Rail mounting may not be suitable for all applications.

We offer two alternative mounting solutions.

Our 900 Panel Mount Assembly (P/N: 900-PM) may be used to securely mount our 100, 200, 300, 400,

500, or 900 Series products to a panel or other flat surface.

Our Universal Rack Mount Kit (P/N: URMK) may be used to mount our products to standard 19" racks.

(Revised 2010-11-15)

FRONT PANEL

From Left to Right:

LNK Link LED for Fiber Optic Port (405FX/FXE only)

TX Fiber Optic Transmit Port (405FX/FXE Only)

RX Fiber Optic Receive Port (405FX/FXE Only)

ACT Activity LED for Fiber Optic Port (405FX/FXE only)

X RJ45 Crossover Uplink Port (405TX Only)

RJ45 Ports Auto sensing 10/100BaseT Connections

! Red LED indicates controller error

Green LED lights when Power is connected

NOTE: Each RJ45 data port has two LED’s located at the top of each connector. The left LED

indicates LINK status, and the right LED indicates ACTIVITY.

(Revised 2010-11-15)

LED’s: The table below describes the operating modes:

LED

Color

Description

GREEN

Power is Applied

OFF

Power is OFF

RED

Controller HW Error

OFF

No Errors. Normal

Operation.

LNK

GREEN

Link between ports

established

OFF

No Link between ports

ACT

GREEN

Data is active between

ports

OFF

Data is inactive between

ports

APPLYING POWER (Side View)

Unscrew & Remove the DC Voltage Input Plug(s) from the side header

Install the DC Power Cables into the Plug(s) (observing polarity).

Plug the Voltage Input Plug(s) back into the side header.

Tightening torque for the terminal block power plug is 0.22 Nm/0.162 Pound Foot.

All LED’s will flash ON Momentarily (including the Error LED)

Verify the Power LED stays ON (GREEN).

Verify the Error LED is OFF (after a few seconds).

Note: Only 1 plug is required to be connected to power input for minimal operation. For redundant

power operation, V1and V2plugs must be connected to separate DC Voltage sources. Use wire sizes

16-28 gauge.

Recommended 24V DC Power Supplies, similar to

100VAC/240VAC:

N-Tron’s NTPS-24-1.3, DC 24V/1.3A
