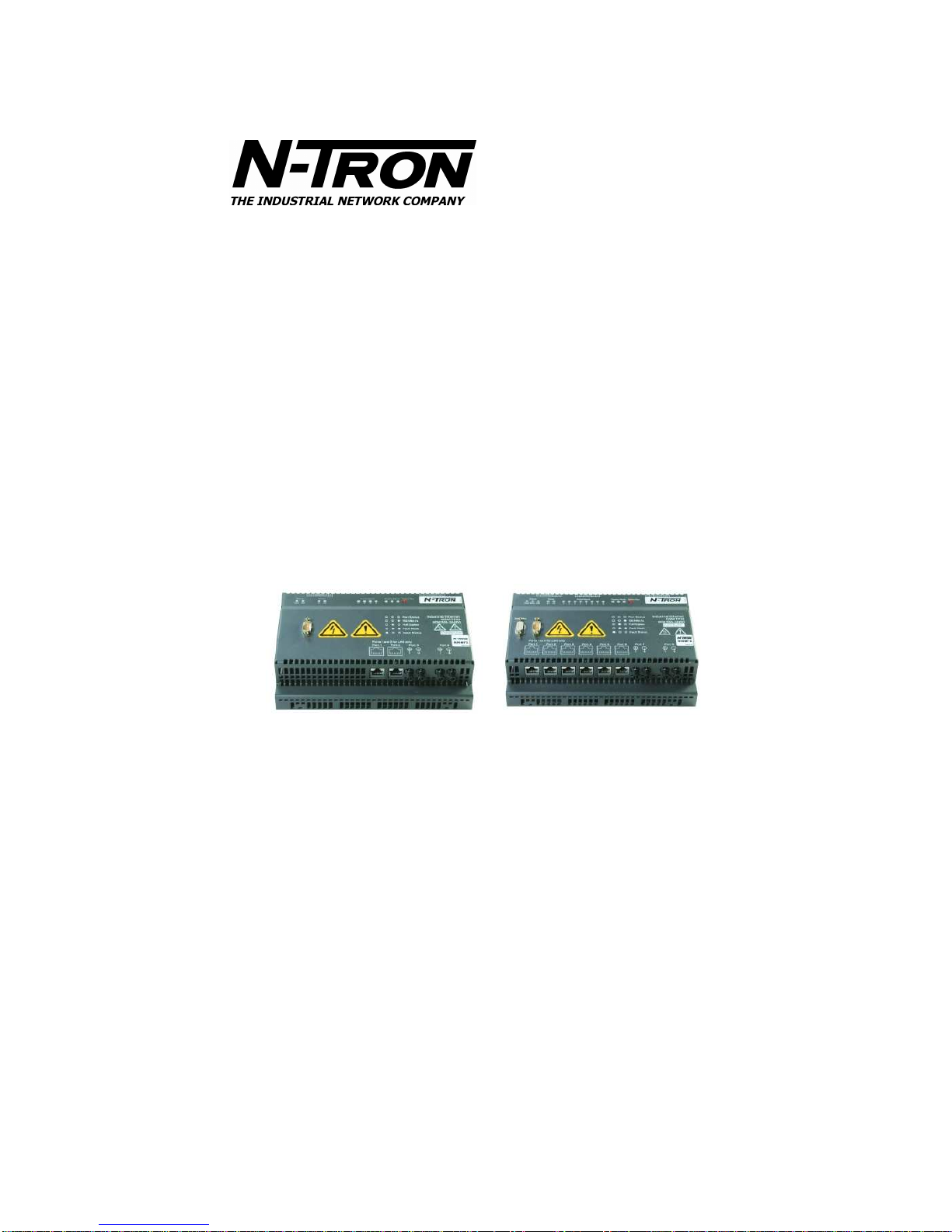

Ntron 600 Series Manuale utente

12/15/05

600 Series

Industrial

Ethernet

Switches

Hardware

Installation

Guide

12/15/05

Industrial Ethernet Switch Installation Guide

604MFX-ST

604MFXE-ST-15

604MFXE-ST-40

604MFXE-ST-80

608MFX-ST

608MFXE-ST-15

608MFXE-ST-40

608MFXE-ST-80

12/15/05

820 S. University Blvd., Suite 4E

Mobile, AL USA 36609

from N-TRON Corp. is prohibited, except as allowed under copyright laws.

Ethernet is a registered trademark of Xerox Corporation. All other product names, company

names, logos or other designations mentioned herein are trademarks of their respective owners.

The information contained in this document is subject to change without notice. N-TRON

Corp. makes no warranty of any kind with regard to this material, including, but not limited to,

the implied warranties of merchantability or fitness for a particular purpose. In no event shall

N-TRON Corp. be liable for any incidental, special, indirect, or consequential damages

whatsoever included but not limited to lost profits arising out of errors or omissions in this

manual or the information contained herein.

Warning

Do not perform any services on the unit unless qualified to do so. Do not substitute

unauthorized parts or make unauthorized modifications to the unit.

Do not operate the unit with the top cover removed, as this could create a shock or fire hazard.

Do not block the air vents on the sides or the top of the unit.

Do not operate the equipment in the presence of flammable gasses or fumes. Operating

electrical equipment in such an environment constitutes a definite safety hazard.

12/15/05

Safety Warnings

ELECTRICAL SAFETY

WARNING: Disconnect the power cable before removing the

enclosure top.

WARNING: Do not operate the unit with the top cover removed.

WARNING: Do not work on equipment or cables during periods of

lightning activity.

WARNING: Do not perform any services on the unit unless qualified

to do so.

WARNING: Do not block the air vents.

WARNING: Observe proper DC Voltage polarity when installing

power input cables. Reversing voltage polarity can cause permanent

damage to the unit and void the warranty.

LASER SAFETY (604/608MFXE Version Only)

WARNING: CLASS 1 Laser Product.

WARNING: Do not stare into the Laser Beam.

12/15/05

600 Series Industrial Ethernet Switch

The N-TRON 600 Series are product derivatives of the OSM/ESM family

jointly manufactured by Siemens and N-TRON. The N-TRON 600 Series

switches supports high speed layer 2 switching between ports, and is housed

in a ruggedized steel enclosure, and can withstand industrial temperatures,

as well as high shock & vibration, and caries an MTBF in excess of 1M

hours.

The 604MFX (608MFX) is a 4 (8) port ruggedized Ethernet switch that is

capable of auto negotiating 10/100 Mb and half/full duplex communications

on 2 (6) copper ports, and contains two 100BaseFX Fiber Optic ports.

The 604/608MFX are managed switches that supports SNMP management

software, as well as configuration by a CLI (Command Line Interface –

Serial Port), Telnet, and/or Web based browsers.

The 600 Series Switches can also serve as a redundancy managers, detect

faults in ring topologies and allow high-speed ring network healing, thus

providing media redundancy for mission critical control applications.

Key Features

•Full Managed Solution

•Supports Web Based Management

•802.1P QOS (Quality of Service) Supported

•Port Mirroring supported

•Supports Media Redundant Fiber Ring Topology

•Full IEEE 802.3 & 100BASE-FX Compliance

•Extended Environmental Specifications

•Support for Full/Half Duplex Operation

•Auto Sensing Speed and Flow Control

•Industry Standard 35mm DIN-Rail Enclosure

•Fully Redundant Isolated DC Power Inputs

12/15/05

PACKAGE CONTENTS

Please make sure the Ethernet Switch package contains the following items:

1. 600 Series Ethernet Switch

2. This Installation Guide

Contact your carrier if any items are damaged.

INSTALLATION

Read the following warning before beginning the installation:

WARNING

The FXE units contain a class 1 laser. Do not stare into the laser beam

(fiber optic connector) when installing or operating the product.

Never install or work on electrical equipment or cabling during periods of

lightning activity. NO USER SERVICABLE PARTS INSIDE.

Disconnect the power cable before removing the enclosure top.

Do not operate the unit with the top cover removed

UNPACKING

Remove all the equipment from the packaging, and store the packaging in a

safe place.

File any damage claims with the carrier.

12/15/05

600 Series Hazardous Location Installation Requirements

1. WARNING! Do not disconnect while circuit is live, unless area is

known to be non-hazardous.

2. WARNING! Install only in accordance with Local & National

Codes of .Authorities Having Jurisdiction.

3. Class I, Div 2 installation requires that all devices connected to this

product must be approved for the area in which it is installed.

4. Only hazardous location approved wiring with temperature ratings

greater than 80 C permitted for Class I, Div 2 installations

operating at temperatures up to 60 C ambient.

Personnel Qualification Requirements

Only qualified personnel should be allowed to install and work on this

equipment. Qualified personnel are defined as individuals who are

familiar with the installation, assembly, startup, and operation of this

product and who possess the relevant qualifications for their work e.g.:

•Training in or authorization for connecting up, grounding, or

labeling circuits and devices or systems in accordance with current

standards in safety technology.

•Training in or authorization for the maintenance and use of suitable

safety equipment in accordance with current standards in safety

technology.

•First aid qualification.

DIN-Rail Mounting

Install the unit on a standard 35mm Din-Rail. When installing the unit in an

enclosed cabinet, recess it to allow at least 3” of clearance for fiber optic

cable bend radius, and 2 inches for TX cables and power connections.

Please note the 600 Series units must be installed in the vertical orientation

for cooling purposes. In this orientation, the power connector is at the top

of the unit, and the signal cables exit from the bottom of the unit.

19” Rack Mounting

19” Rack mount kits are available. Please consult with your local sales

representative for price & availability. Order part number: 900-RM

12/15/05

APPLYING POWER

1. Unscrew the flange & remove the DC Voltage Input Plug from the

Header.

2. Install the DC Power Cables into the Plug(s) (observing polarity

per the legend on the top of the unit). L1+ and L2+ are the +24V

connections. M1 and M2 are the minus (-) returns for the L1 and

L2 respectively. F1 and F2 terminals are across the contact switch

that opens to signify a fault detection. Voltage/Current for F1/F2

is limited to 24V @ 100mA.

3. Plug the Voltage Input Plug back into the side header. All LED’s

will flash ON Momentarily.

4. The unit will complete the power up cycle in approximately 20

seconds.

Note: Only 1 power supply is required to be connected to power for

minimal operation. For redundant power operation, L1 and L2

terminals must be connected to separate DC Voltage sources. Use wire

sizes 14-28 gauge.

Recommended 24V DC Power Supplies, similar to:

100VAC/240VAC:

N-Tron’s NTPS-24-1.3, DC 24V/1.3A,

Operating temp range -10°C to +60°C

12/15/05

CONNECTING THE STANDARD RING

Remove the dust cap from the fiber optic connectors and connect the

fiber optic cables.

Please refer to the Figure 1. Diagram.

To begin the ring, the TX out-port #7 should be connected to the RX

in-port #8 of the far end station. The RX in-port #7 should be

connected to the TX out-port #8 on the far end station.

Likewise, the TX out-port #8 should be connected to the RX in-port #7

of the far end station completing the ring. The RX in-port #8 should be

connected to the TX out-port #7 on the far end station.

608MFX

RING

MANAGER

608MFX RING TOPOLOGY

Figure 1

608MFX 608MFX

MMI PC

MMI

CAT5TO MES

CAT5

FIBER OPTIC PAIR

FIBER OPTIC PAIR FIBER OPTIC PAIR

PLC PC

LAPTOP

CAT5 CAT5

N-TRON

405TX PLC

CAT5 CAT5

PLC DRIVE

CAT5 CAT5

(UP TO 6 COPPER PORTS CONNECTED TO 608MFX)

(UP TO 6 COPPER PORTS CONNECTED TO EACH 608MFX)

#7 #8 #7 #8

608MFX

Additional

Ports

12/15/05

For 10/100 Base-TX ports, plug a Category 5 (or better) twisted pair

cable into one the RJ45 copper ports (1-6). Connect the other end to

the far end station. Verify that the Port LED’s are ON once the

connection has been completed. For Switch to Switch or Switch to

Repeater connections, a crossover cable may be required if the

connecting unit does not support the HP-MDIX auto cable detect

feature. For 10/100BaseTX operation, the 600 Series Switch will sense

& adapt accordingly.

A maximum number of 50 600 Series switches can be connected in a

single ring.

CONNECTING MULTIPLE RINGS (608MFX Only)

For multiple rings, the connection between two network segments is

made on two separate paths. Two of the 608MFX’s in a ring are

connected together via a connection cable with an ITP cable (maximum

length of 40m), and inform each other of their operating states. One of

the 608MFX units is assigned the redundant function using the DIP

switch setting “Stby on” (Standby Slave). The other 608MFX unit

takes over the function of the Standby Master, with the DIP switch

setting “Stby off” (see Figure 2). Please note that 604MFX units

cannot be used as Ring Couplers.

Because of the 50-unit ring limit, for larger networks, the user must

configure multiple rings. By using the Master/Slave Standby approach

to couple rings together, the user can enlarge the network by chaining

segments.

Port Assignment in the Standby Mode

On the Standby Master and Standby Slave only port #1 (default

standby port) can be used for the coupling to the neighboring ring.

Connect the #1 ports together using a CAT5E crossover cable between

switches. Ports 2-6 can be used just as normal switch ports.

Simultaneous Standby and Redundancy Manager Operation

A standby master or standby slave can adopt the function of a

redundancy manager at the same time.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Ntron Interruttore

Ntron

Ntron 509FX Manuale utente

Ntron

Ntron 508TX Manuale utente

Ntron

Ntron 708TX Istruzioni per l'installazione e il funzionamento

Ntron

Ntron 105FX-POE Istruzioni per l'installazione e il funzionamento

Ntron

Ntron 7026 Series Istruzioni per l'installazione e il funzionamento

Ntron

Ntron 608MFX-ST Manuale utente

Ntron

Ntron 711FX3 Series Istruzioni per l'installazione e il funzionamento

Ntron

Ntron 100-POE-SPL Istruzioni per l'installazione e il funzionamento

Ntron

Ntron 100-POE4 Istruzioni per l'installazione e il funzionamento

Ntron

Ntron 100 Series Istruzioni per l'installazione e il funzionamento

Ntron

Ntron 7010TX Series Istruzioni per l'installazione e il funzionamento

Ntron

Ntron 716M12 Istruzioni per l'installazione e il funzionamento

Ntron

Ntron 7900 Series Istruzioni per l'installazione e il funzionamento

Ntron

Ntron 308FX2 Istruzioni per l'installazione e il funzionamento

Ntron

Ntron 714FX6 Series Istruzioni per l'installazione e il funzionamento

Ntron

Ntron 302MC-XX Manuale utente

Ntron

Ntron 712FX4 Series Istruzioni per l'installazione e il funzionamento

Ntron

Ntron 7014TX Istruzioni per l'installazione e il funzionamento

Ntron

Ntron 7018TX Istruzioni per l'installazione e il funzionamento

Ntron

Ntron 9000 Series Istruzioni per l'installazione e il funzionamento

Ntron

Ntron NTSFP-LX-40 Istruzioni per l'installazione e il funzionamento

Ntron

Ntron 526FX2 Manuale utente

Ntron

Ntron 7014 Series Guida rapida

Ntron

Ntron 405FX-SC Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
