Nuvoton ISP/ICP 2-in-1 Programmer Manuale utente

ISP/ICP 2-in-1 Programmer

Brief Introduction

The “ISP/ICP 2-in-1 Programmer”, as shown in the following picture, can function as an ISP Programmer or an ICP

Programmer. For detailed information of the ISP Programmer and the ICP Programmer, please refer to their

respective user manuals.

Auto Key

(For off-line operation, press to do 'Update Chip')

Green/Red LEDs

(To show programming result)

ISP/ICP Interface

As an ISP Programmer

As an ICP Programmer

ISP Interface:

Pin-5: (PL) (Pull-low control)

Pin-4: RST (Reset control to 8051 MCU)

Pin-3: VCC (Power supply from target system)

Pin-2: DTA (Serial data to/from 8051 MCU)

Pin-1: GND (Ground)

ICP Interface:

Pin-5: VPP (Programming voltage to 8051 MCU)

Pin-4: CLK (Serial clock to 8051 MCU)

Pin-3: VCC (Power supply from target system)

Pin-2: DTA (Serial data to/from 8051 MCU)

Pin-1: GND (Ground)

ISP/ICP 2-in-1 Programmer

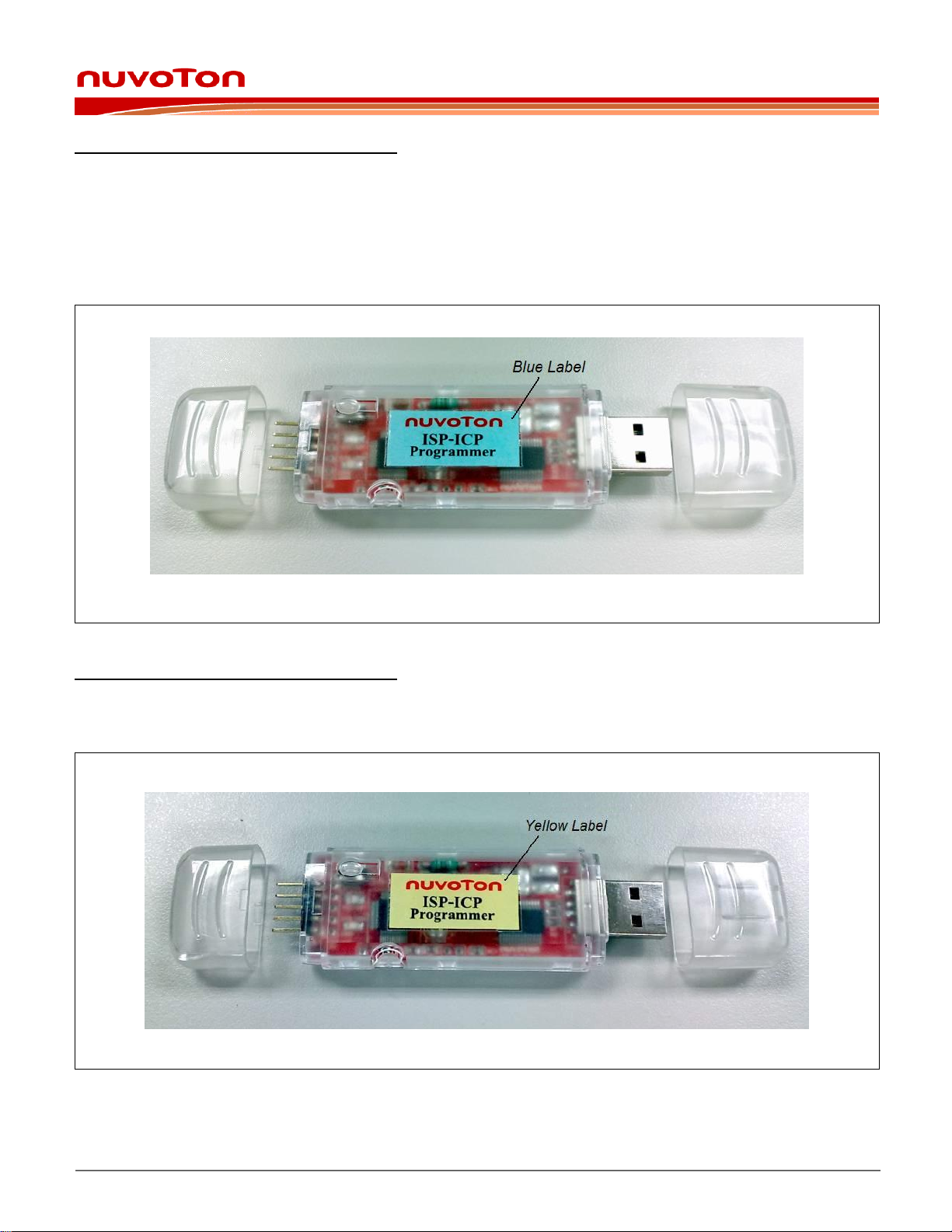

V2.2 of “ISP/ICP 2-in-1 Programmer”

V2.2 of the “ISP/ICP 2-in-1 Programmer”, as shown in the following picture, has the following differences compared

with the first version:

V2.2 has the VCC pin, The 3rd pin of the ISP/ICP interface, designed as bi-directional power input and output. When

the programmer is connected to PC (for on-line operation), the VCC pin can output power to the target chip for

ISP/ICP programming. In off-line operation, the VCC pin should be powered from the target system for the

programmer to operate.

V2.3 of “ISP/ICP 2-in-1 Programmer”

V2.3 of the “ISP/ICP 2-in-1 Programmer”, as shown in the following picture, has better noise immunity compared

with the V2.2.

ISP/ICP 2-in-1 Programmer

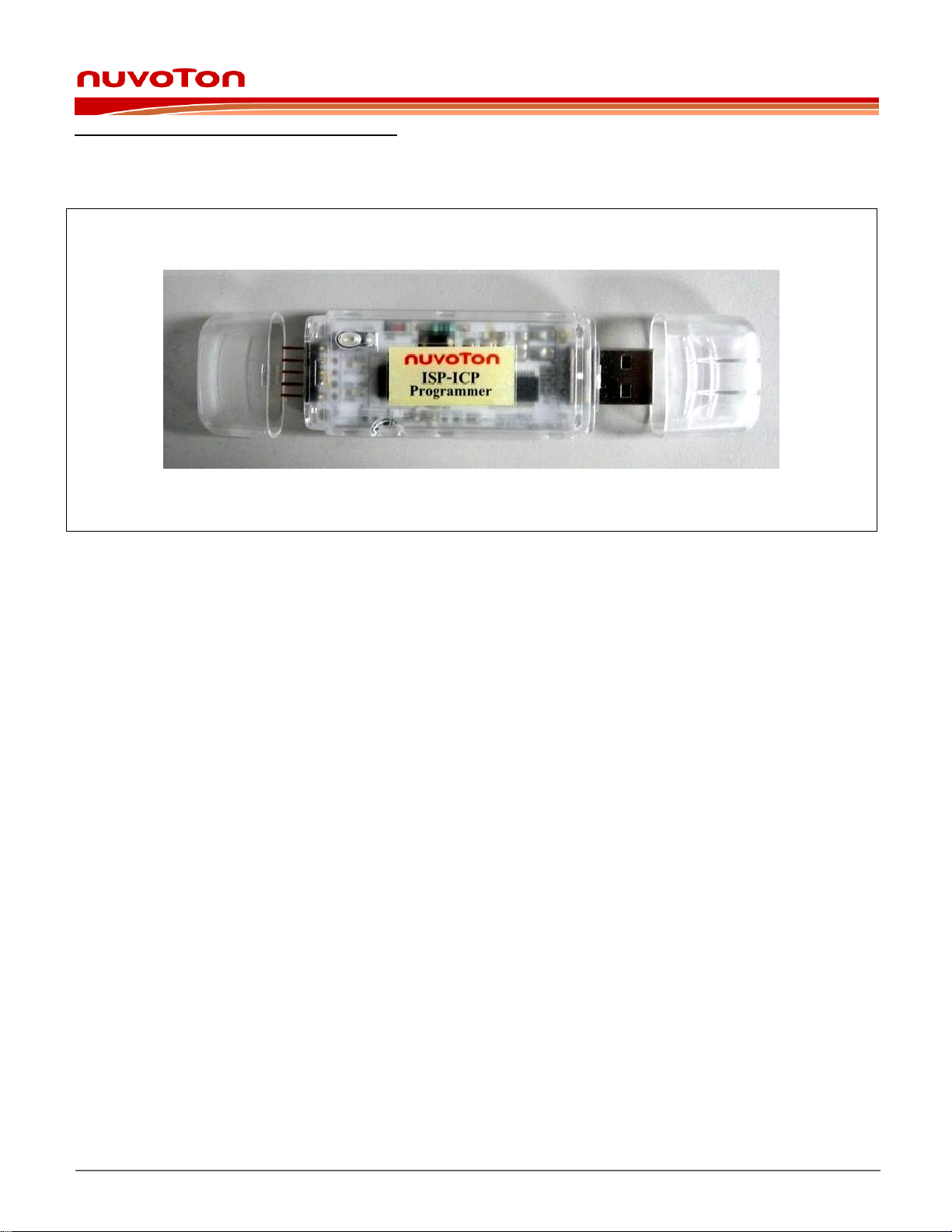

V2.4 of “ISP/ICP 2-in-1 Programmer”

V2.4 of the “ISP/ICP 2-in-1 Programmer”, as shown in the following picture, Replaced 10 kΩwith 2 kΩon R13/R14

and modified reset circuit with FP6810-44.
