Oakcastle SB-200 Manuale utente

SB·200

USER MANUAL

EN CONTENTS

Contents�� 2

Box Contents �� 3

Controls & functions�� 4

How to Connect�� 7

Getting Started�� 8

Basic Operations�� 9

Organising Channels & Stations�� 11

USB/Multimedia & Recording�� 12

Electronic Program Guide�� 15

Scanning & Rescanning �� 16

Audio Language & Format �� 17

Audio-Visual Settings & Options �� 18

Parent Controls & Auto-Power On�� 19

System Maintenance�� 20

Factory Reset & Software Update�� 21

Network Settings & Apps �� 22

Troubleshooting�� 23

Spec & Warranty �� 24

Safety Information�� 25

extended warranty at: www�oakcastle�co�uk

3YEAR

WARRANTY

BOX CONTENTS

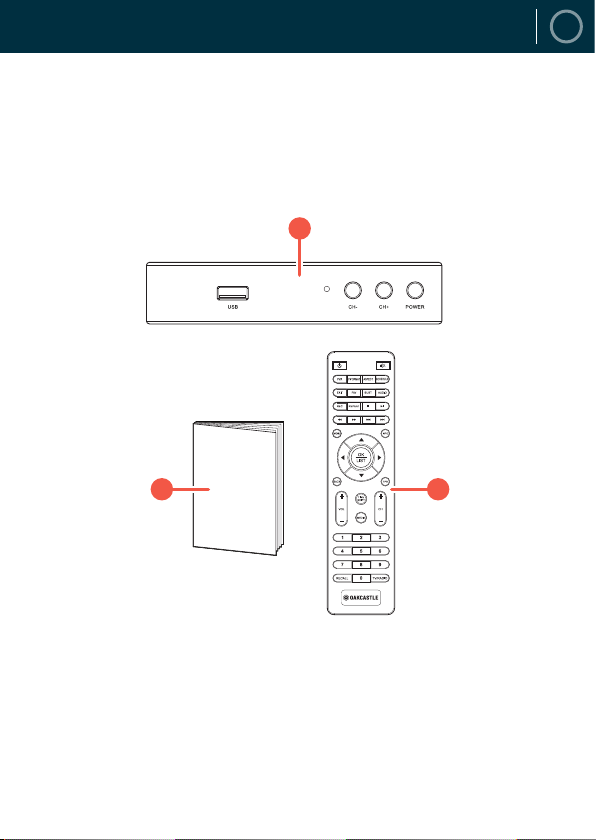

WHAT’S IN THE BOX

A. Oakcastle SB200 HD Freesat Recorder

B. Instructions Guide

C. Remote Control (and 2 x AAA batteries)

B C

REMOTE CONTROL

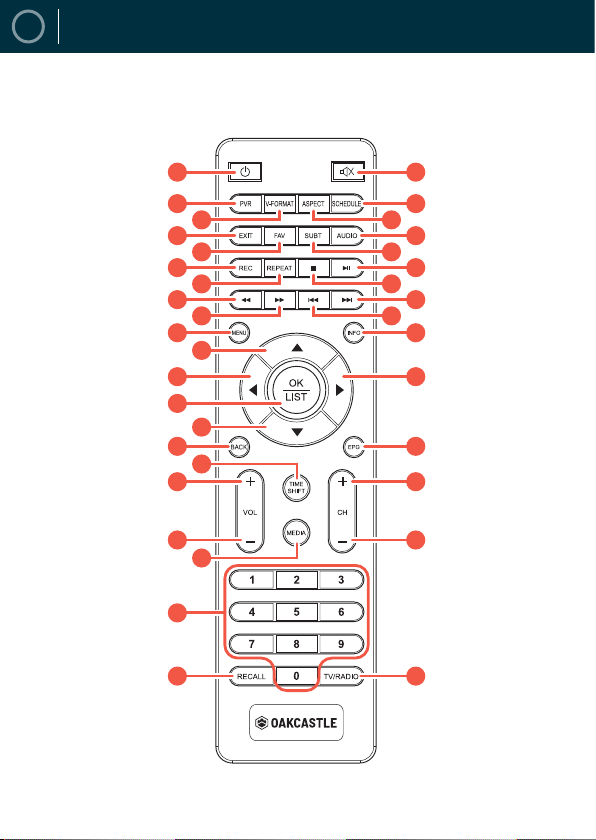

CONTROLS & FUNCTIONS

1� Power on/o

2� PVR button (access PVR menu)

3� V-Format: change TV resolution

4� Exit: Exit to top menu

5� Fav: Add favourites

6� Rec: Start recording (Press Menu

to stop)

7� Repeat: 

8� Rewind

9� Fast forward

10� Menu: Display/return to menu

11� Up

12� Left

13� OK/Select

14� Down

15� Back: Go back

16� Time Shift: pause live TV (requires



17� Volume +

18� Volume -

19� Media: press to access USB

content

20� Number keypad

21� Recall: Go to previous channel

22� Mute/Unmute

23� Schedule: Schedule recording

24� Aspect: Change aspect ratio

25� Audio: Change audio settings

26� Subt: 

27� Pause/play

28� Stop

29� Skip forwards: 



30� Skip backwards: Back to previous



31� Info: show programme info

32� Right

33� EPG: Electronic Program Guide

34� CH+: Next channel

35� CH-: Previous channel

36� TV/Radio: Switch modes

CONTROL BUTTONS

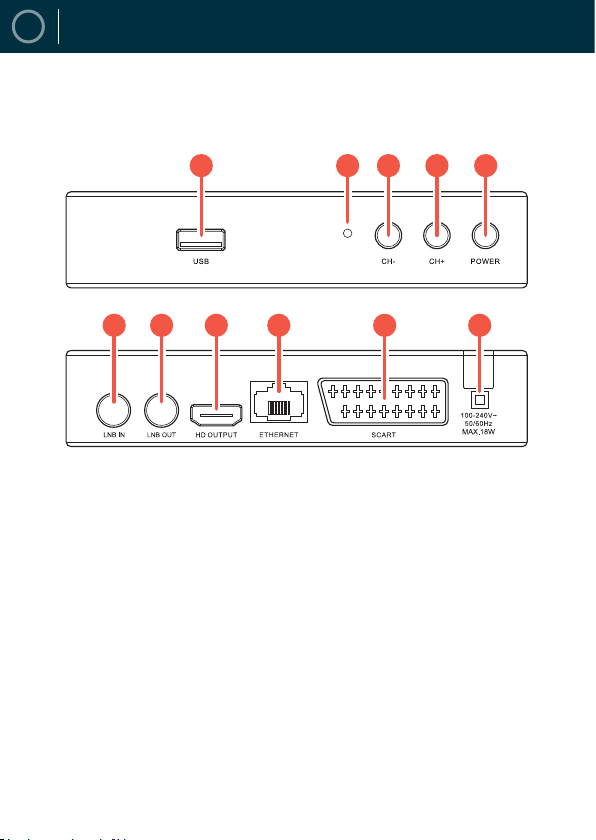

CONTROLS & FUNCTIONS

37. USB Port

38. Standby Light

39. CH- (prev. channel)

40. CH+ (next channel)

41. 

42. LNB IN

43. LNB OUT

44. HDMI port

45. Ethernet Port

46. Scart Connection

47. Power Supply

37 38 39 40 41

43 44 45 46 47

HOW TO CONNECT

Connection

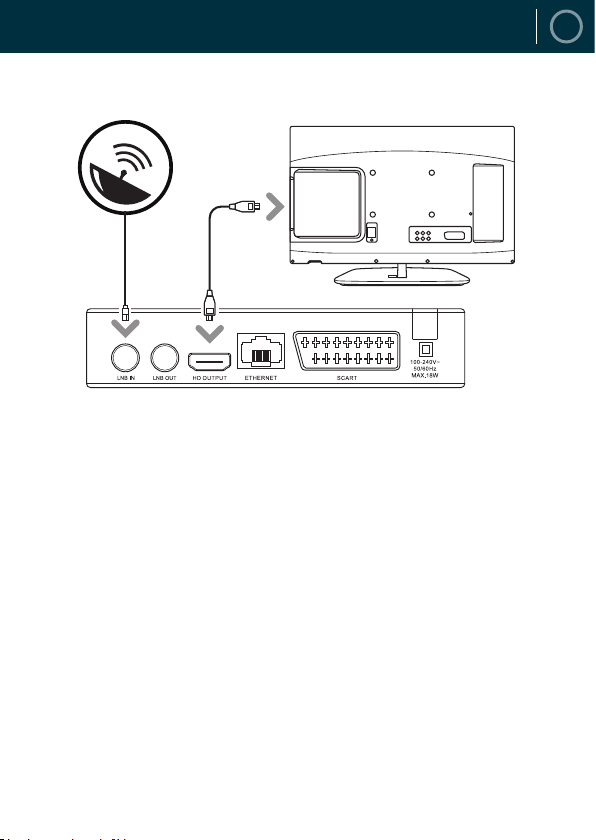

Refer to the diagram above for the connection of your Freesat box to your satellite

and TV using the HDMI slot.

Step 1: Connect your antenna lead to the TV LNB IN port (Ref.42).

Step 2: Choose an installation method (HDMI (Ref.44) or SCART (Ref.46)) and

follow the steps below.

HDMI - connect an HDMI cable between your TV and the device. HDMI

incprporates both audio and video so there is no requirement to make separate

connections for audio.

SCART - if your TV does not have an HDMI slot, you can connect using the SCART

connection (Ref.46).

HDMI Cable

Coaxial Cable

Rear view of the TV

Satellite

EN GETTING STARTED

Steps for getting started with your Freesat Box

Turn on your TV.

Plug the STB (Set Top Box) device into the mains.

Connect the STB to your TV using an HDMI cable or SCART cable (See page 7 for

details).

Select the correct source/video or AV input channel for the HDMI input. This can

be done by pressing the TV/AV or VIDEO button on your TV remote control. (Refer

to your TV user’s manual for instructions).

The welcome screen will appear, followed by a message asking if you would like to

automatically search for channels and stations.

To automatically search for available channels and stations, press OK on the

remote control (Ref.13). The auto search window will apear and searching begins.

If you want to search for channels and stations yourself, see ‘Manual Searching’ on

page 17 for instructions and follow the steps described.

Once the search is complete, the device will automatically begin playing one of the

TV channels found.

Selecting a channel

Follow one of the methods below to switch channels.

Press up or down on the navigation controls (Ref.11/Ref.14) to move to the next or

previous channel.

If you already know the channel number, enter the number using the number

keypad (Ref.20) and then press OK (Ref.13) or wait for 2 seconds.

Press OK (Ref.13) on the remote control. This will display the channel/radio station

list.

Press up or down until the channel you want is highlighted, and then press OK

(Ref.13).

Press the EPG button (Ref.33), select the channel you want from the list, and press

EPG (Ref.33) again.

NOTE: Press the RECALL button (Ref.21) to return to the last channel or station

played.

Selecting a radio station

Press TV/RADIO (Ref.36) to enter radio mode, then enter the number. (For

example, 201 is the number for ABC Jazz).

Press OK (Ref.13) to display the station list. Press up or down until the channel you

want is highlighted, and then press OK (Ref.13).

NOTE: The STB uses the Logical Channel Numbering system (LCN) by default.

Secondary channels can be selected by pressing the primary number followed by

another number. (For example, pressing 2 gives you ABC1, and pressing 22 gives

you ABC2).

BASIC OPERATIONS

EN BASIC OPERATIONS

Adjusting the volume

Press up or down on the remote control (Ref.17/Ref.18) to increase or decrease

the volume.

Press the mute button (Ref.22) to mute or un-mute the sound.

Getting channel information

Press the info button (Ref.31) to view program information including the current

and next program. The banner will stay displayed for a few seconds. To hide it,

press exit (Ref.4) on the remote control.

Subtitles

To switch on subtitles, if they are available for the program you are watching,

press SUBT on the remote control (Ref.26), then select the desired language and

press OK (Ref.13).

Picture freeze/pause live TV

Press Timeshift (Ref.16) to pause live TV. Press again to resume. Note: this

function requires USB storage space of at least 1GB by default (you can change



storage size).

Favourites

To add a channel to your favourites list, press Menu on the remote control

(Ref.10) to bring up the main menu. From here, select the ‘Program’ section from

the main header. Then select ‘Program Edit’ by pressing down on the remote

control (Ref.14) and press OK (Ref.13). Insert the password (default password is

000000). Select the channel you want to save as a favourite, press the FAV button

(Ref.5) to bring up the favourites menu, then choose a favourite type to add it to

the list. Press EXIT (Ref.4) to exit the menu and save your changes.

To select favourites while watching TV, press FAV (Ref.5).
