OCZ AGILITY 2 SATA II 2.5 Manuale utente

to change prices, products, or specifications without notice.

Based on a cutting-edge new architecture, Agility 2 Solid State Drives deliver unprecedented performance

while maintaining an affordable storage solution for early adopters looking to update their systems with the

latest technology. OCZ designed the Agility 2 to excel in both sequential and random read/write rates to

take your PC or notebook productivity to the next level, featuring superb 4KB random writes up to 10,000

IOPS to give a performance edge over the previous generation. Using the latest controller technology, Agility

2 not only provides a faster, more responsive PC experience, but promotes cooler, quieter, and more

energy efficient conditions compared to traditional mechanical hard drives. Built with SATA 3Gb/s, the Agility

2 Series easily integrates into today’s mobile and desktop platforms and features TRIM support to optimize

performance over the drive’s lifespan as the ultimate Windows 7 notebook or desktop upgrade.

D e s i g n & T e c h n o l o g y :

A p p l i c a t i o n s :

Workstation PCs

Desktop PCs

Notebooks

Part Numbers

UPC

Agility 2 40GB

OCZSSD2-2AGT40G

842024019770

Agility 2 50GB

OCZSSD2-2AGT50G

842024016571

Agility 2 60GB

OCZSSD2-2AGTE60G

842024017684

Agility 2 80GB

OCZSSD2-2AGT80G

842024022978

Agility 2 90GB

OCZSSD2-2AGTE90G

842024019787

Agility 2 100GB

OCZSSD2-2AGT100G

842024016588

Agility 2 120GB

OCZSSD2-2AGTE120G

842024017691

Agility 2 160GB

OCZSSD2-2AGT160G

842024022985

Agility 2 180GB

OCZSSD2-2AGTE180G

842024019794

Agility 2 200GB

OCZSSD2-2AGT200G

842024016595

Agility 2 240GB

OCZSSD2-2AGTE240G

842024017707

Agility 2 400GB

OCZSSD2-2AGT400G

842024016823

Agility 2 480GB

OCZSSD2-2AGTE480G

842024018308

O C Z A g i l i t y 2 S e r i e s

S A T A I I 2 . 5 i n S o l i d - S t a t e D r i v e s

to change prices, products, or specifications without notice.

Agility 2 40GB

Agility 2 50-240GB

Agility 2 400 –480GB

P E R F O R M A N C E

Max Read¹

up to 280 MB/s

up to 285 MB/s

up to 250 MB/s

Max Write¹

up to 270 MB/s

up to 275 MB/s

up to 240 MB/s

Sustained Write²

up to 200 MB/s

up to 250 MB/s

up to 200 MB/s

4KB Random Write³

10,000 IOPS

Seek Time

0.1 ms

P H Y S I C A L

Capacities

40GB, 50GB, 60GB, 80GB, 90GB, 100GB, 120GB, 160GB, 180GB, 200GB, 240GB, 400GB, 480GB

NAND Components

Multi-Level Cell (MLC)

Interface

SATA II / 3Gbps

Form Factor

2.5 Inch

Controller

SandForce 1222

Dimensions (L x W x H)

99.8 x 69.63 x 9.3 mm

Weight

77g (may vary slightly depending on capacity)

E N V I R O N M E N T A L

Power Consumption

Idle: 0.5 Watts Active: 2 Watts

Operating Temperature

0°C ~ +70°C

Storage Temperature

-45°C ~ +85°C

Shock Resistance

1500G

Certifications

RoHS, CE, FCC

R E L I A B I L I T Y

MTBF

2 million hours

ECC Recovery

Up to 24 bytes correctable per 512-byte sector

Product Health Monitoring

Self-Monitoring, Analysis and Reporting Technology (SMART)

C O M P A T I B I L I T Y

Serial ATA (SATA)

Fully compliant with Serial ATA International Organization: Serial ATA Revision 2.6. Fully compliant with

ATA/ATAPI-7 Standard Native Command Queuing (NCQ)

Operating System

Windows XP 32-Bit and 64-Bit; Windows Vista 32-Bit & 64 Bit; Windows 7 32-Bit and 64-Bit;

Linux, Mac OSX (Qualified at Apple Labs)

Power Requirements

Standard SATA Power Connector

A D D I T I O N A L F E A T U R E S

Performance Optimization

TRIM (requires OS support)

System Integration

Bundled with 3.5" desktop adapter bracket

Service & Support

3-Year Warranty, Toll-Free Tech Support, 24 Hour Forum Support, Firmware Updates

¹ Maximum Sequential Speeds are determined using ATTO

² Sustained transfer rate is measured using Iometer 2008, Queue Depth 32, 128KB

³ Small file I/O performance is measured using Iometer 2008, Queue Depth 32, 4KB Aligned

S p e c i f i c a t i o n s :

O C Z A g i l i t y 2 S e r i e s

S A T A I I 2 . 5 i n S o l i d - S t a t e D r i v e s

to change prices, products, or specifications without notice.

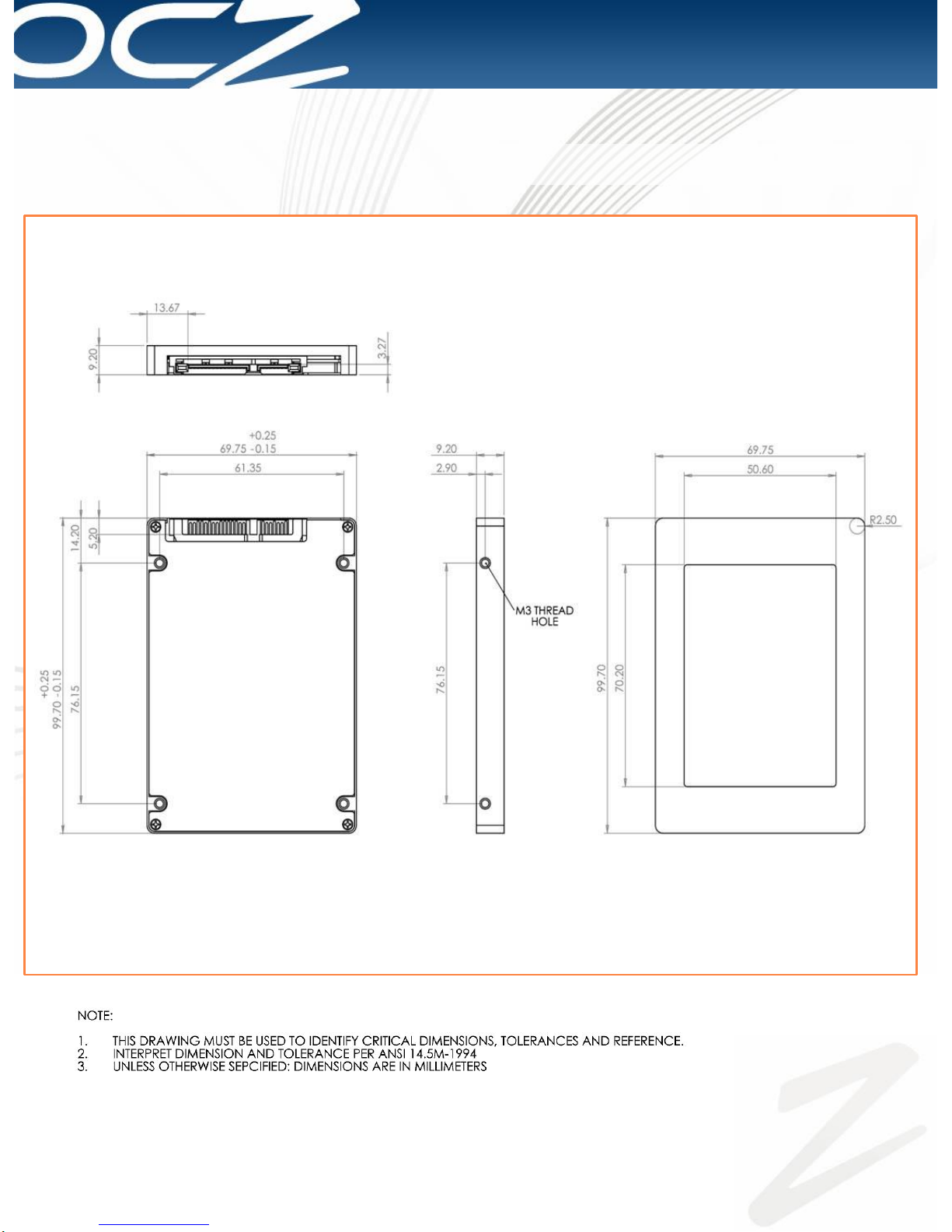

M e c h a n i c a l S p e c i f i c a t i o n s :

O C Z A g i l i t y 2 S e r i e s

S A T A I I 2 . 5 i n S o l i d - S t a t e D r i v e s
