Oki CX2033MFP Manuale di servizio

Handy Reference

Guide de référence pratique

Referencia Rápida

Guia de referência rápida

CX2033 MFP

59399001 my.okidata.com

Walk-up Operation . . . . . . . . . . 4

General Information . . . . . . . . . .4

Control Panel Basics . . . . . . . . . .5

Scanner Control Panel. . . . . . . . .6

Printer Control Panel. . . . . . . . . .9

Loading Documents for Scanning10

Copy. . . . . . . . . . . . . . . . . . . .11

Send. . . . . . . . . . . . . . . . . . . .12

Fax. . . . . . . . . . . . . . . . . . . . .14

Duplex Printing . . . . . . . . . . . . 17

Clearing Media Jams . . . . . . . . 18

Scanner (ADF) Jams. . . . . . . . .18

Printer Jams . . . . . . . . . . . . . .19

Tray 1 . . . . . . . . . . . . . . . . . . . 26

Multi Purpose Tray [MPT] . . . . 27

Exit Trays. . . . . . . . . . . . . . . . . 29

Maintenance . . . . . . . . . . . . . . 30

Replacing Toner Cartridges . . . .30

Cleaning the ADF Rollers & Pad .34

Cleaning the ADF Glass. . . . . . .35

Replacing the ADF Pad . . . . . . .36

Error Messages . . . . . . . . . . . . 37

Service & Support . . . . . . . . . . 42

Utilisation autonome . . . . . . . . 43

Généralités. . . . . . . . . . . . . . . 43

Éléments de base du panneau de

commande . . . . . . . . . . . . . . 44

Panneau de commande du scanneur

Panneau de commande de

l'imprimante . . . . . . . . . . . . . 48

Chargement de documents pour le

scannage . . . . . . . . . . . . . . . 49

Photocopie . . . . . . . . . . . . . . . 50

Envoi . . . . . . . . . . . . . . . . . . . 51

Télécopie . . . . . . . . . . . . . . . . 53

Impression duplex (recto verso)

Dégagement des bourrages . . 58

Bourrage du scanneur . . . . . . . 58

Bourrages dans l’imprimante . . 59

Bac 1 . . . . . . . . . . . . . . . . . . . . 66

Bac multifonction[MPT]. . . . . . 67

Bacs de sortie . . . . . . . . . . . . . 69

Maintenance . . . . . . . . . . . . . . 70

Remplacement de la cartouche de

toner . . . . . . . . . . . . . . . . . . 70

Nettoyage des galets et du

coussinet du CAD. . . . . . . . . . 74

Nettoyage du verre du CAD . . . 75

Remplacement du tampon du CAD

Messages d’erreur . . . . . . . . . . 77

Service et soutien . . . . . . . . . . 83

Contents Table des matières

59399001

Acceso desde la unidad . . . . . . 84

Información General. . . . . . . . .84

Funcionamiento básico del panel de

control. . . . . . . . . . . . . . . . . .85

El panel de control de la impresora

Colocación de los documentos para

escanear . . . . . . . . . . . . . . . .90

Copiar. . . . . . . . . . . . . . . . . . .91

Envio . . . . . . . . . . . . . . . . . . .92

Fax. . . . . . . . . . . . . . . . . . . . .94

Impresión Dúplex . . . . . . . . . . 97

Solución de atascos. . . . . . . . . 98

Atascos del escáner (ADF). . . . .98

En la impresora . . . . . . . . . . . .99

Bandeja 1 . . . . . . . . . . . . . . . 106

Bandeja multiuso [MU] . . . . . 107

Bandejas de salida. . . . . . . . . 109

Mantenimiento. . . . . . . . . . . . 110

Reemplazo del cartuchos de tóner

110

Limpieza de los rodillos y

almohadilla del ADF . . . . . . . 114

Limpieza del vidrio del ADF . . . 115

Cómo cambiar la almohadilla del

ADF. . . . . . . . . . . . . . . . . . . 116

Mensajes de error . . . . . . . . . 117

Servicio & Soporte. . . . . . . . . 123

Operação direta. . . . . . . . . . . 124

Informações gerais . . . . . . . . 124

Aspectos básicos do painel de

controle . . . . . . . . . . . . . . . 125

Painel de controle do scanner . 126

Painel de controle da unidade de

impressão . . . . . . . . . . . . . . 129

Colocação de documentos para

escanear. . . . . . . . . . . . . . . 130

Copiar . . . . . . . . . . . . . . . . . 131

Envio . . . . . . . . . . . . . . . . . . 132

Fax . . . . . . . . . . . . . . . . . . . 134

Impressão duplex . . . . . . . . . 138

Eliminação de atolamentos de

papel . . . . . . . . . . . . . . . . . . 139

Encravamento de Scanner (ADF). .

139

Na impressora . . . . . . . . . . . 140

Bandeja 1 . . . . . . . . . . . . . . . 147

Bandeja multiusos [MPT] . . . 148

Escaninhos de saída . . . . . . . 150

Manutenção . . . . . . . . . . . . . . 151

Troca do cartucho de toner. . . 151

Limpeza dos roletes e do bloco

separador do AAD . . . . . . . . 155

Limpeza do vidro do AAD . . . . 156

Troca do bloco separador do AAD .

157

Mensagens de erro . . . . . . . . 158

Assistência técnica e suporte 165

Contenido Sumário

•

English

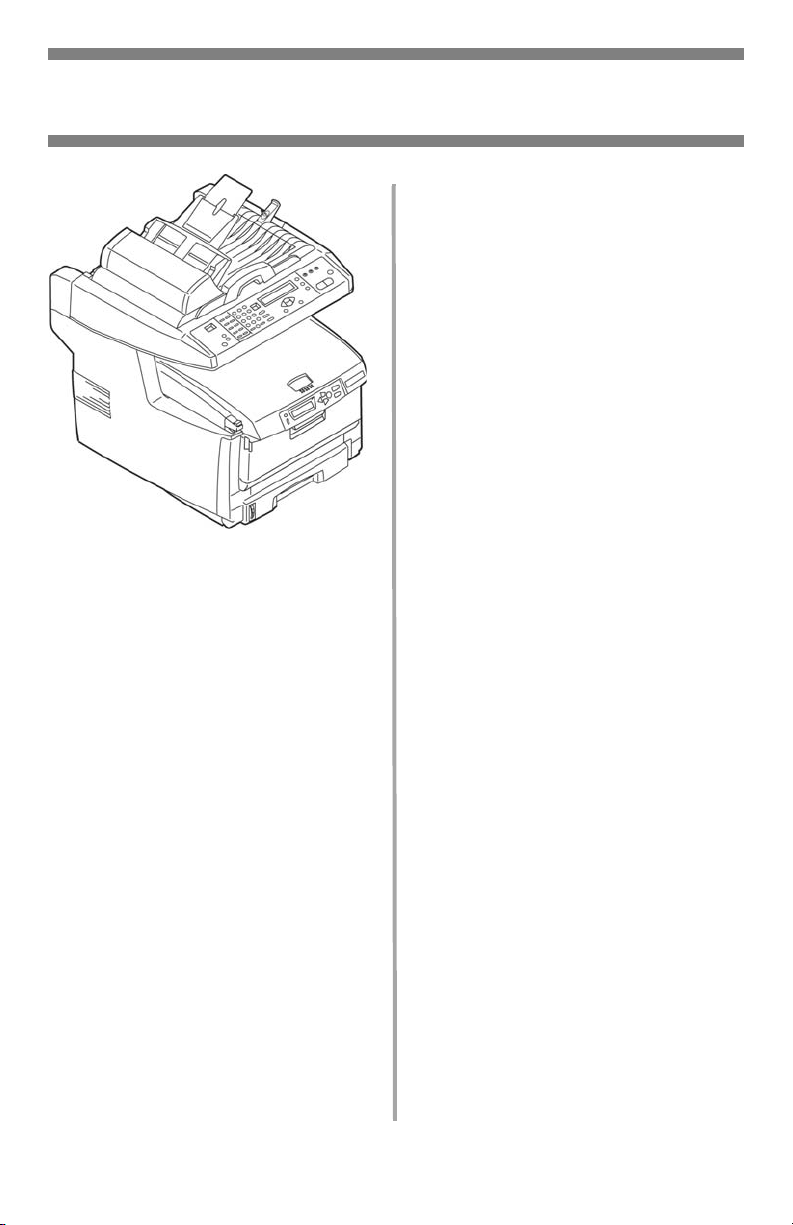

Walk-up Operation

General Information

These instructions assume that all

necessary configurable parameters

and profiles have been set up and,

where applicable,

password-protected by your System

Administrator. If you have any

questions, consult your System

Administrator.

If you do not have a System

Administrator, see the on-line User’s

Guide provided on the CD supplied

with the system for more

information.

Available Walk-up Options

•

Copy

(see page 11)

•Send

– and E-mail (see page 12)

– to File Server (see page 13)

•Fax

– Basic Faxing (see page 14)

– Delayed Send Faxing

(see page 15)

– Manual Feed Faxing

(see page 15)

– Poll Receive Faxing (see page 16)

– Broadcast Faxing (see page 16)

•

English

Walk-up Operation

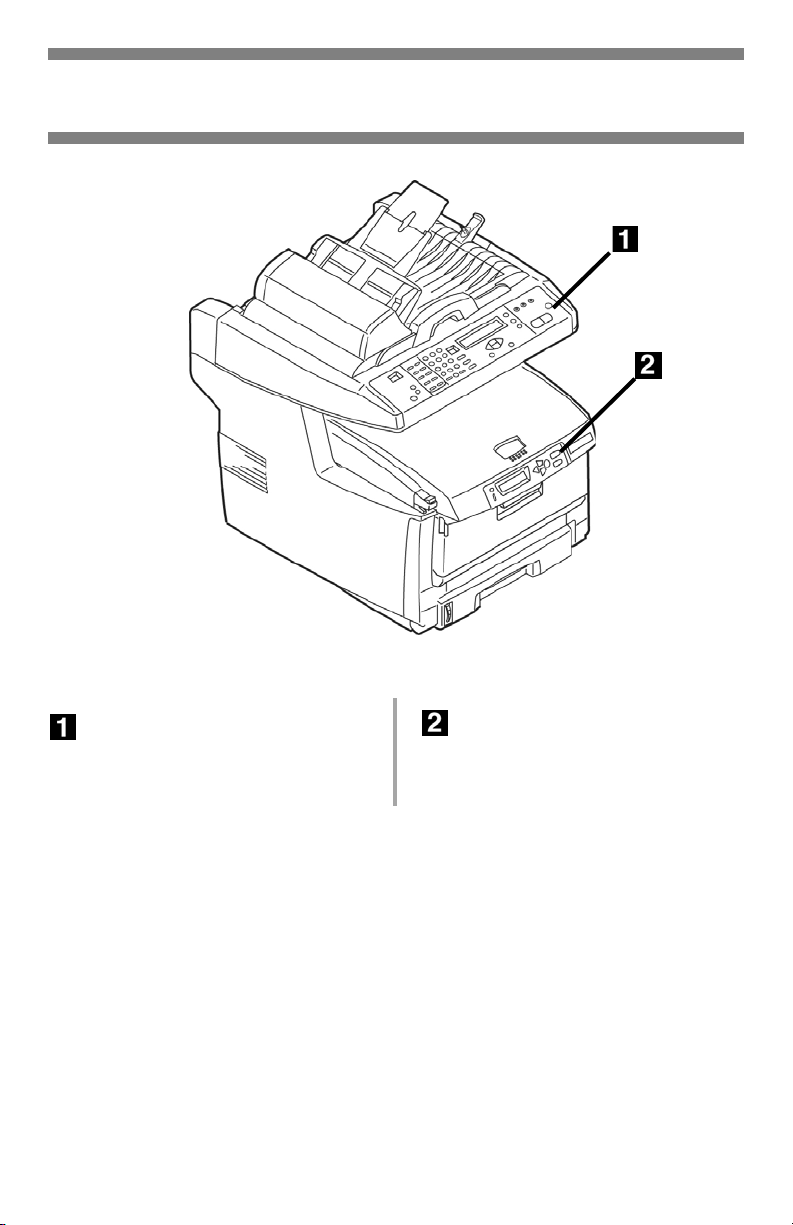

Control Panel Basics

Scanner Control Panel

The scanner control panel is used

when making copies, sending faxes

and scanning documents (see pages

11, ff.).

Printer Control Panel

The printer control panel is used for

setting the printer defaults and to

print out reports (see page 9).

•

English

Walk-up Operation

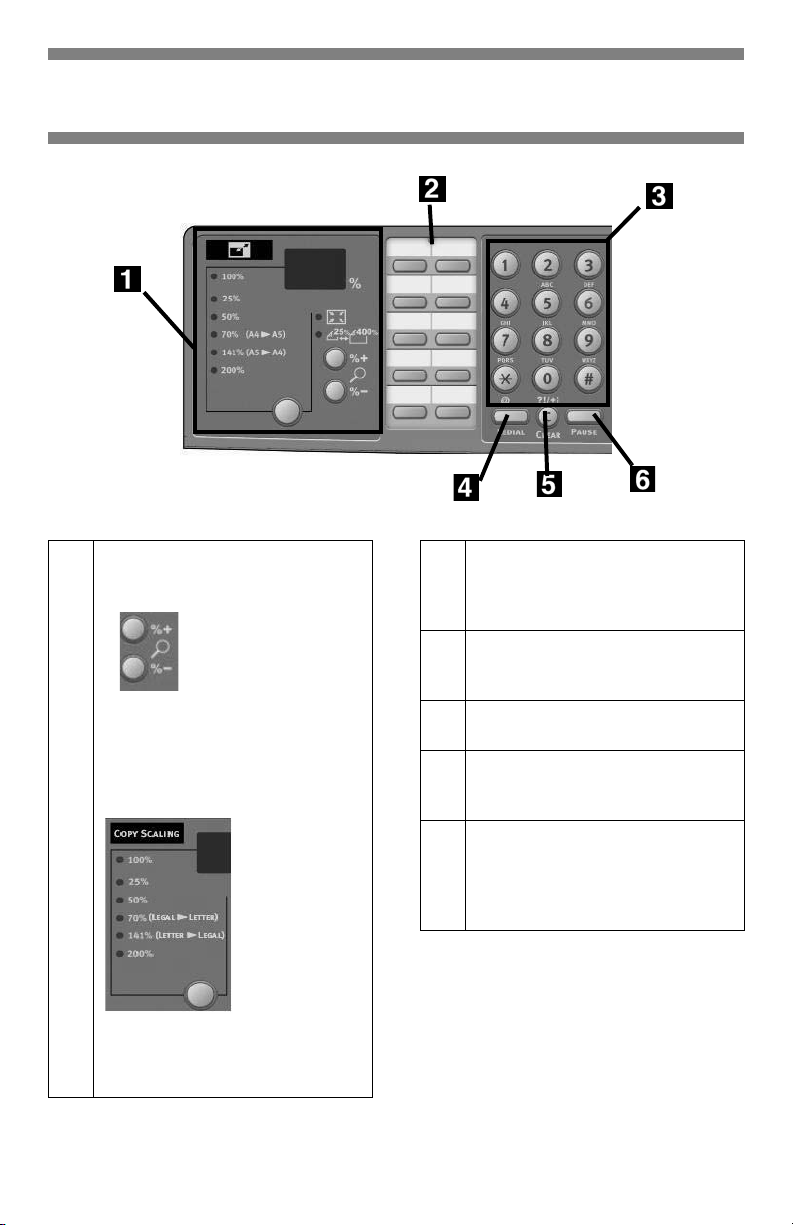

Scanner Control Panel

Note:

For more detailed information, see

the on-line User’s Guide or check

with your System Administrator.

1 Zoom Function

Available only in the Copy mode.

Use the zoom keys

to increase or decrease scaling in

1% increments from 25% up to

400%. Selected value appears in

the % box.

Use the zoom preset key

to select a preset percentage of

100% (the default), 25%, 50%,

70%, 141%, or 200%.

2 One Touch Keypad

Provides one-touch dialing of your

most often used or favorite fax

numbers.

3 Alpha-Numeric Keypad

Used to enter the copy quantity,

fax number or e-mail address.

4 Redial Key

Used to manually resend a fax.

5ClearKey

Used to delete an entry from the

LCD panel.

6PauseKey

Press to insert a “-” within a fax

number which causes a pause to

occur during dialing. This is used

when dialing an extension.

•

English

Walk-up Operation

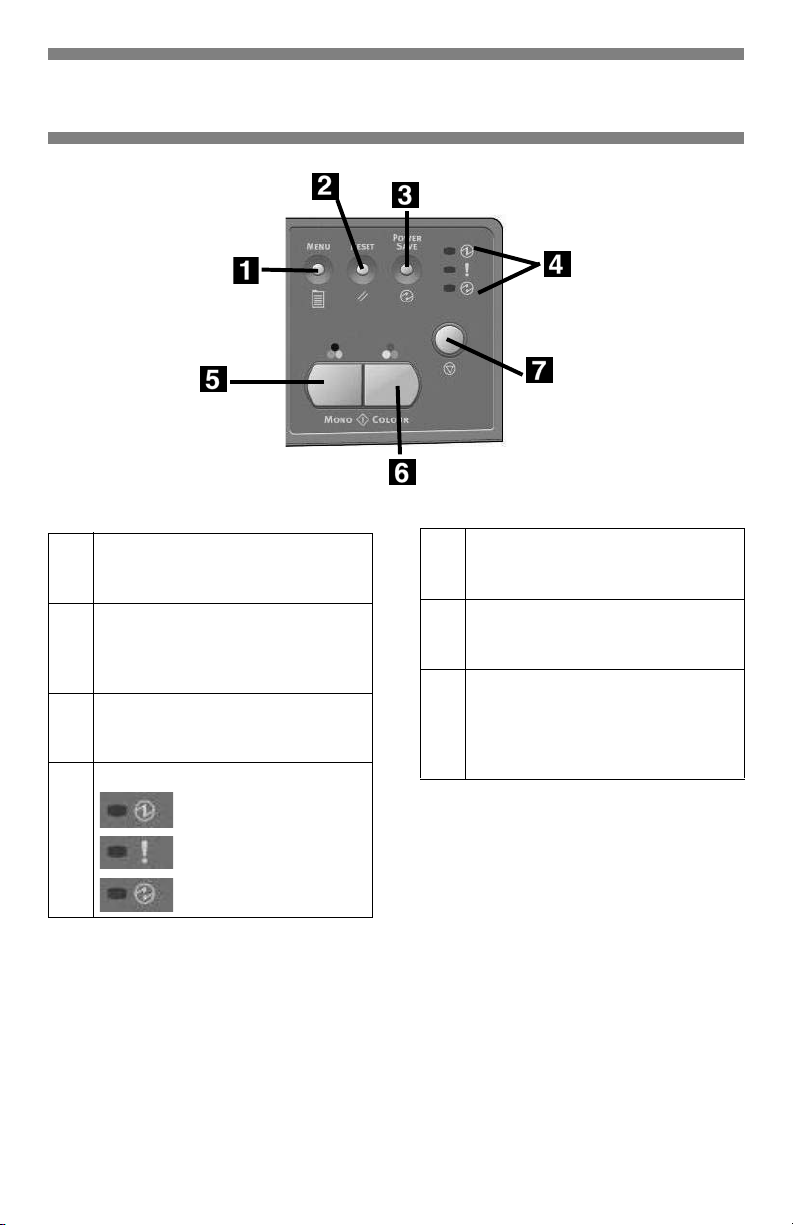

Scanner Control Panel (cont.)

Note:

For more detailed information, see

the on-line User’s Guide or check

with your System Administrator.

1 Copy Count Display

Indicates the number of copies

selected.

2CopyModeKey

Used to select Copy mode (also

the default working mode).

3SendModeKey

Used to select Send mode

4FaxModeKey

Used to select Fax mode.

5 Return Key

Used to cancel selections and go

back to the top level of the setting.

The key is also used to cancel any

previous input.

6ArrowKeys

Used to move the cursor in the

LCD up/down/left/right. The up/

down keys are used to switch

function indication.

7OKKey

Used to select and confirm current

setting selections.

8 Additional Settings

Used to execute additional settings

of “Copy” and “Send” modes. (The

settings are available only for

three minutes. After three

minutes, the settings will

automatically return to the default

value).

9FTPAddress

Used to indicate the stored FTP

address for the “Send” function.

This key is only available in the

“Send” mode.

10 Address Book

Used to indicate the stored E-mail

addresses for the Send function.

Also used to indicate the stored

Fax numbers for the fax function.

Press once to view speed dial

numbers, press twice to view

group dial numbers.

•

English

Walk-up Operation

Scanner Control Panel (cont.)

Note:

For more detailed information, see

the on-line User’s Guide or check

with your System Administrator.

1 Menu Key

Press to access the menu to set up

the system.

2 Reset Key

Press and hold for 5 seconds to

change the scanner to the factory

default settings.

3PowerSaveKey

Press once to go to “sleep” mode

(continuous press is invalid).

4PowerLEDs

Illuminates to indicate

“power on and ready”.

Illuminates to indicate

error condition.

Illuminates to indicate

power save mode.

5MonoKey

Press to send or copy documents

in monochrome.

6 Color Key

Press to send or copy documents

in color.

7StopKey

Select to stop all operation (LCD

indication shifts to stand-by screen

for each function). Does not effect

settings

•

English

Walk-up Operation

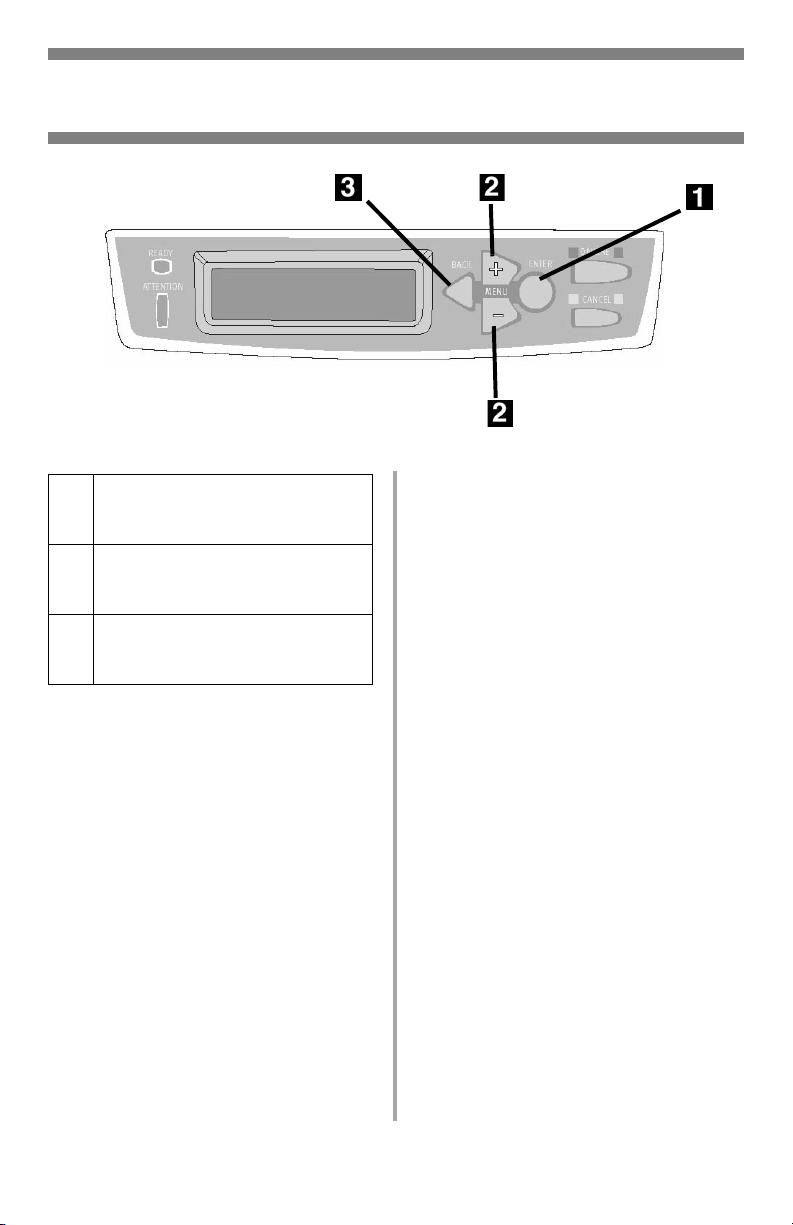

Printer Control Panel

Using the Printer Control

Panel

Use the printer control panel

• to set the printer defaults

(media size/weight/ type for each

tray, feed tray, etc.)

• to print out reports, including the

MenuMap which provides a list of

all printer menu items and the

current settings for each.

For more information on the printer

menu items, see “Contents of Each

Printer Menu” in the on-line User’s

Guide or check with your System

Administrator.

How to Print the MenuMap

Press the

NTER

key.

2. Press the + key.

Information Menu appears on the

display.

3. Press the ENTER key twice.

The MenuMap prints

1EnterKey

Press to enter the menu mode or

to engage a new setting.

2+/–Keys

Press to scroll through the menu

entries.

3BackKey

Press to cancel the selection or to

exit the menu item.

•

English

Walk-up Operation

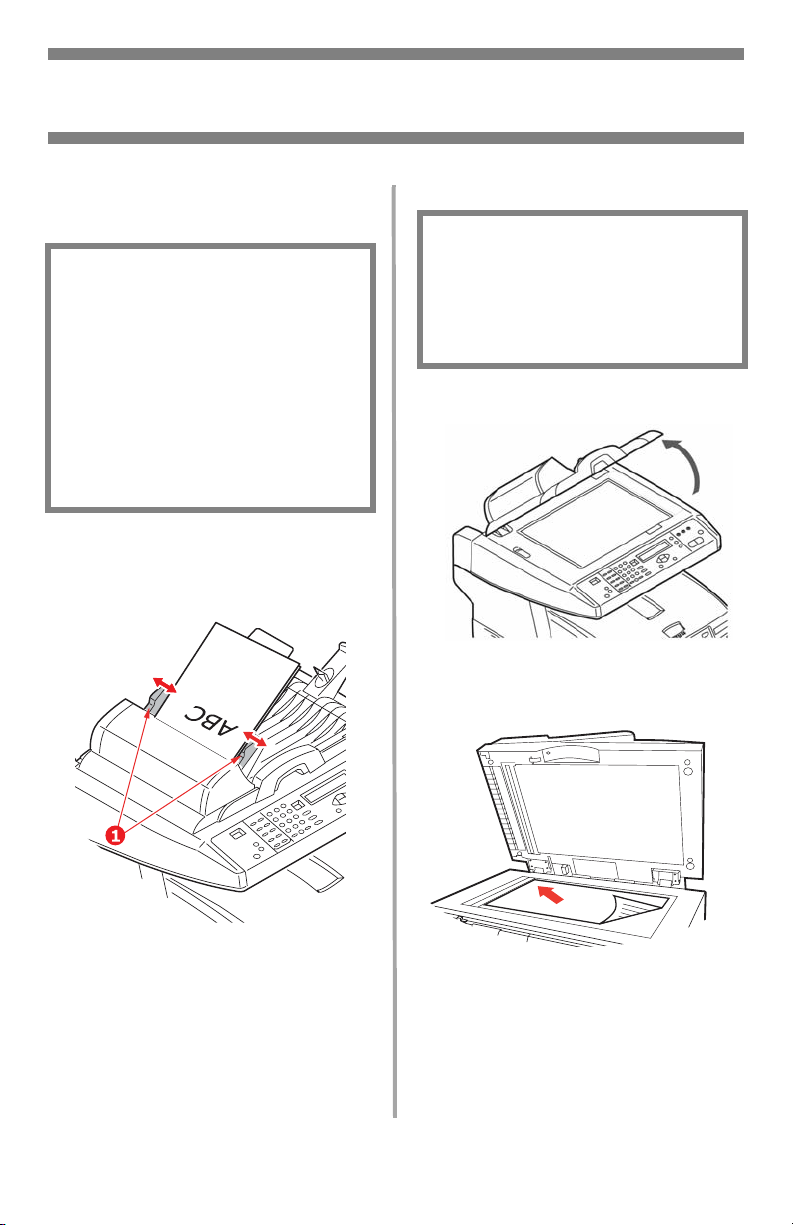

Loading Documents for Scanning

Loading a Document

Automatic Document Feed

Adjust the guides (

) for paper size

and load documents face up, with the

top edge entering the scanner.

Scanner Glass

1. Open the scanner lid.

2. Load the document face down,

with the top edge to the left.

3. Close the scanner lid.

• Up to 50 sheets 20-lb. (75 g/m

)

paper

• No staples, clips, ragged edges.

•Documentsize:

– min. 4.5" x 5.5"

(114 x 140 mm)

– max. 8.5" x 14"

(216 x 356 mm)

• Weight Range: 16 to 28 lb. (60

to 105 g/m

)

•Documentsize:

– maximum 8.5" x 11.69"

(216 x 297 mm)

• Maximum thickness

approximately 0.75" (20 mm)

Altri manuali per CX2033MFP

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Oki Stampante tutto in uno

Manuali Stampante tutto in uno popolari di altre marche

Triumph Adler

Triumph Adler DC 2016 Manuale

Epson

Epson WorkForce WF-2510 Guida utente

Epson

Epson Stylus Scan 2000 Manuale di installazione e funzionamento

Epson

Epson PictureMate Snap PM 240 Manuale di istruzioni

Konica Minolta

Konica Minolta bizhub C35 Manuale utente

Brother

Brother MFC-J430w Manuale utente

Konica Minolta

Konica Minolta BIZHUB 558 Manuale utente

Lexmark

Lexmark MX710 Series Manuale

Brother

Brother MFC-9760 Manuale utente

Lexmark

Lexmark XC8155 Manuale utente

Lexmark

Lexmark X642E Manuale utente

Sharp

Sharp MX-2310U Guida

Aficio

Aficio 200 Manuale utente

Canon

Canon ImageCLASS 2300 Manuale

Ricoh

Ricoh Pro C900 Manuale utente

Lexmark

Lexmark X925 Manuale utente

Brother

Brother Business Smart MFC-J4510dw Manuale utente

Epson

Epson Stylus CX8400 Series Manuale utente
