Okolab H201-MINI Manuale utente
H201-MINI User Manual
April 2015
www.oko-lab.com
Page1
H201-MINI
Compatible with the following XY stages
Compatible with the following Okolab Controllers
•Physik Instrumente: P-737.1SL/2SL/5SL
•It fits in any MW plate holder
•H201-T-BL-PLUS
H201-MINI User Manual
April 2015
www.oko-lab.com
Page2
Index
1. Components and dimensions................................................................................................... 3
2. Sample Holders................................................................................................................... 4
2.1 Available Sample Holders ................................................................................................... 4
3. Insertion of the Sample Feedback Temperature Sensor.................................................................. 4
4. Insertion of Sample Holder into Chamber ................................................................................... 5
5. Working with 35 or 60 mm Petri Dish –Spacing Rings and Magnetic Locks ........................................... 5
6. Working with 1x3’’ and 1x2’’ chamber slides - magnetic locks......................................................... 7
7. Connection of the Gas Supply ................................................................................................. 8
8. Working with Perfusion ......................................................................................................... 8
9. Connection of the Chamber with XY stage .................................................................................. 9
H201-MINI User Manual
April 2015
www.oko-lab.com
Page3

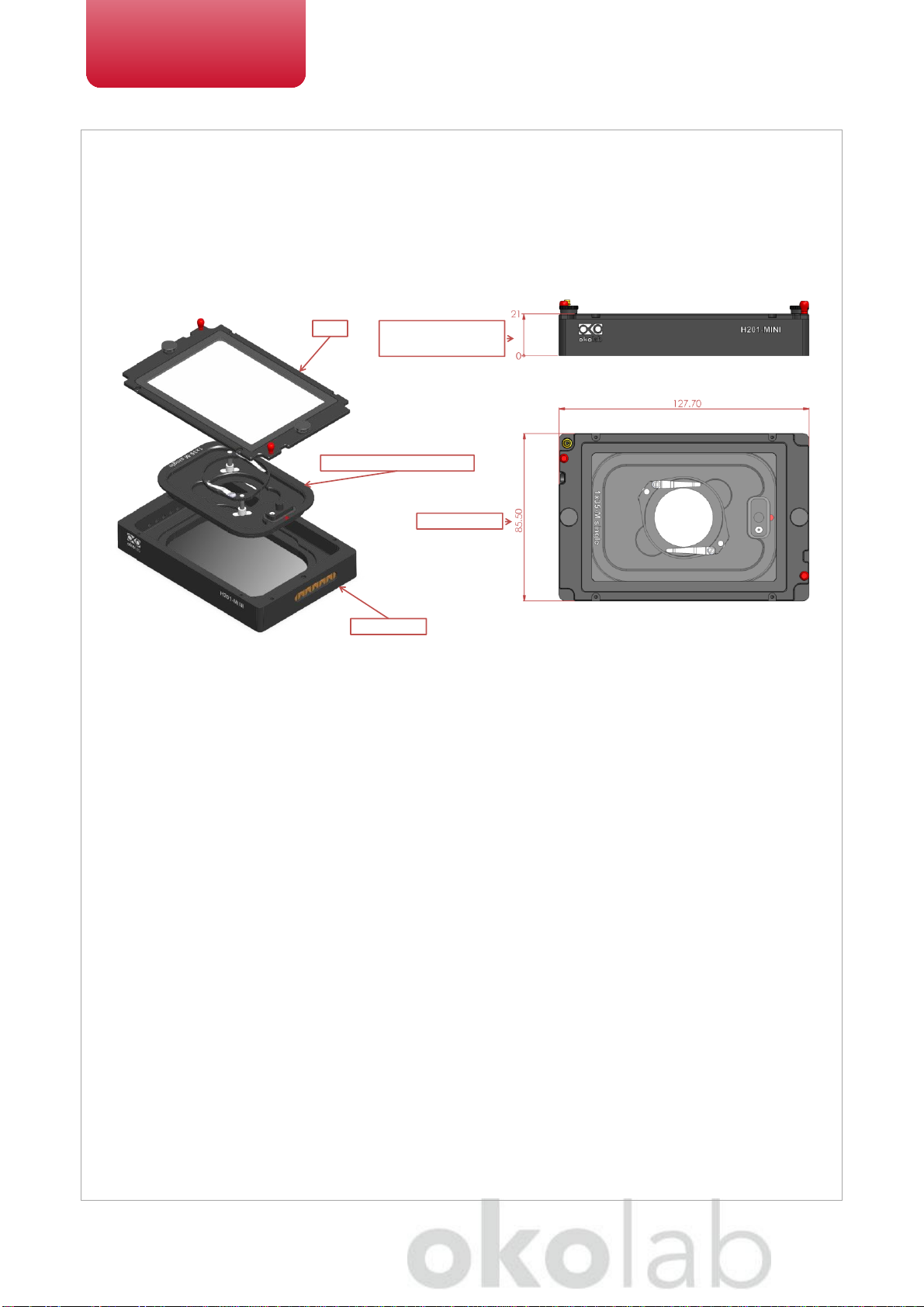

1. Components and dimensions
H201-MINI includes the following components:
•Chamber main body
•Glass lid
Distance between focal plane
and upper side of the glass
lid
Chamber top view
Lid
Chamber Base
Sample Holder - Order Separately
Figure 1. H201-MINI - Components and Dimensions.
H201-MINI User Manual
April 2015
www.oko-lab.com
Page4

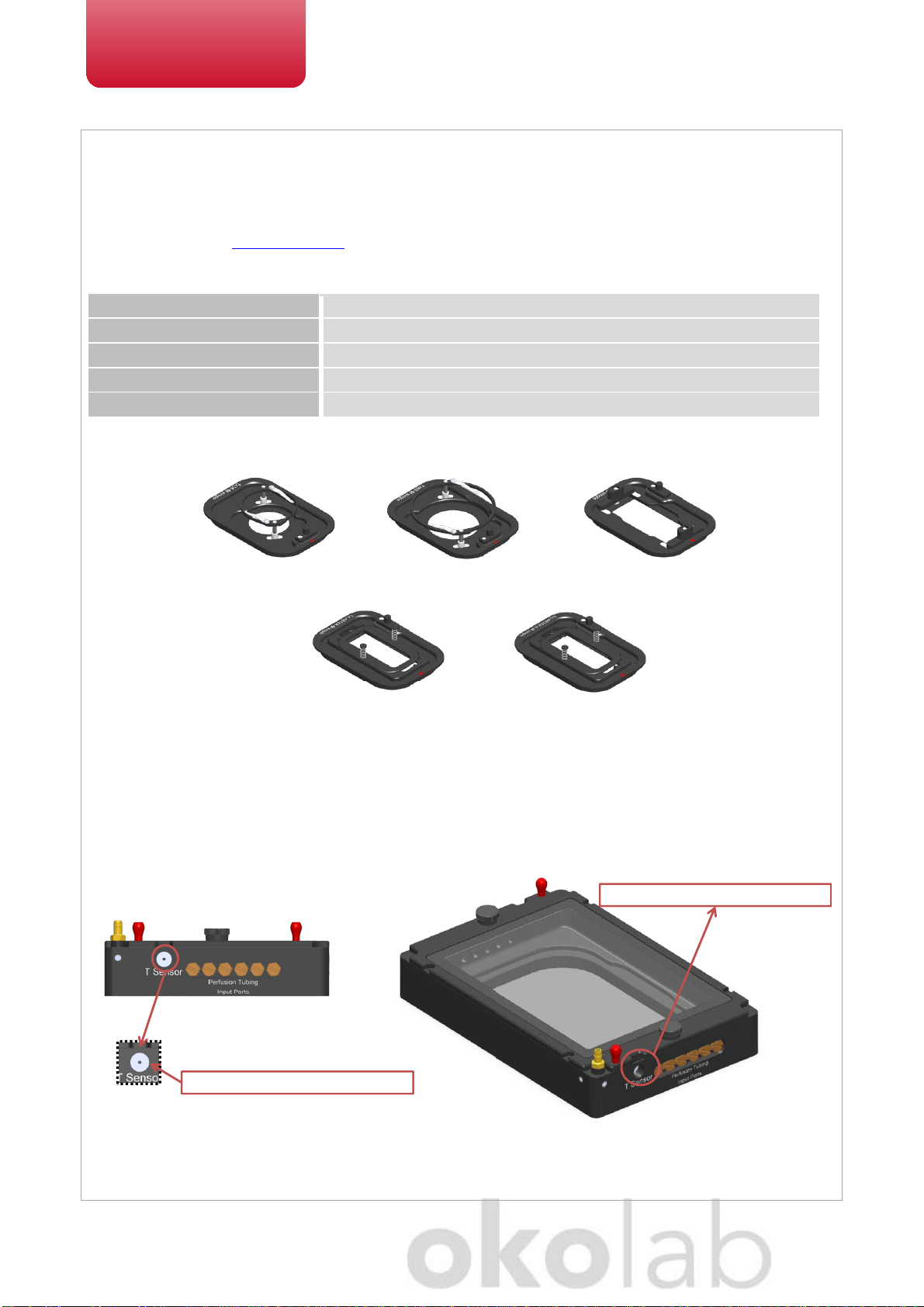

2. Sample Holders
2.1 Available Sample Holders
The following sample holders are available.
NOTE: Please contact [email protected] if you cannot find the sample holder you are looking for. We are constantly
adding new inserts to the list.
1x35-M single
#1 35mm Petri-dish
1xGS-M single
#1 1x3in. chamber slide
1xLABTEK-M single
#1 Lab-Tek 1in.x2in. chambered cover glass
1xLABTEK-II-M single
#1 Lab-Tek II 1in.x2in. chambered cover glass
1x60-M-single
#1 60mm Petri-dish
1x35-M single
For #1 35mm Petri-dish holder
1x60-M single
For #1 60mm Petri-dish holder
1xGS-M single
For #1 1”x3” chamber slide holders
1xLABTEK-M single
For #1 1”x2” Labtek
chambered cover glass holder
1xLABTEK-II-M single
For #1 1”x3”chamber slide and
#2 35mm petri dishes
Figure 2.Available sample holders.
3. Insertion of the Sample Feedback Temperature Sensor
Insert the Sample Feedback Temperature Sensor through the dedicated opening located in the H201-MINI (see Figure 3,
Frontal and 3D views).
1.Frontal view 2.3D view
Temperature Sensor dedicated opening
Temperature Sensor dedicated opening
Figure 3. Insertion of the temperature sensor inside the chamber
H201-MINI User Manual
April 2015
www.oko-lab.com
Page5

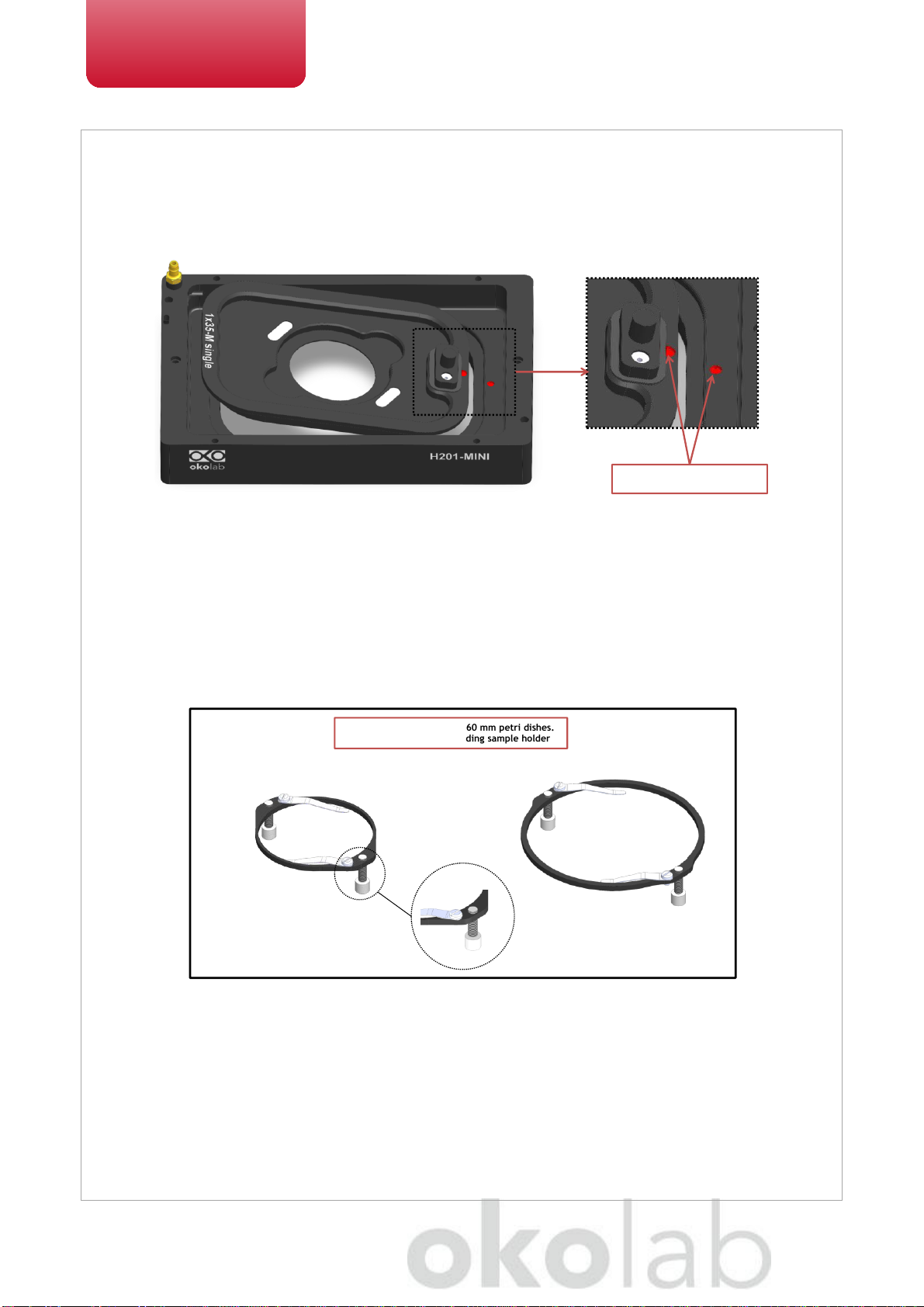

4. Insertion of Sample Holder into Chamber
Sample holders fit into the chamber base and are held in place by magnets embedded within both chamber and hold-
er. To introduce a sample holder with the proper orientation, match the red dot on the holder to the one on the
chamber base, as illustrated in Figure 4.
Insert the adapter by
superimposing the red points
Figure 4. Introduction of the Specimen Holder inside the Chamber Base.
5. Working with 35 or 60 mm Petri Dish –Spacing Rings and
Magnetic Locks
Magnetic locks prevent movement of 35 and 60 mm dishes inside the sample holder.
Figure 5 illustrates the available magnetic locks for 35 and 60 mm dishes. Threaded magnetic posts allow adjusting
holder’s height.
Magnetic Locks for 35 and 60 mm petri dishes.
Included in the corresponding sample holder
Figure 5.Magnetic locks for 35 and 60 mm dish
NOTE: Magnetic locks are included with sample holder.
Spacing rings accounting for variability in dish diameter from one manufacturer to another are also included. Figure 6
shows how to position the ring. Ring selection guide diagrams: rings for 35 and 60 mm dish -Figure 7 and Figure 8, re-
spectively.
H201-MINI User Manual
April 2015
www.oko-lab.com
Page6
1
3
2
Figure 6. 1) Insertion of the ring, 2) insertion of the 35 mm dish, 3) insertion of the magnetic lock.
NOTE: Spacing rings are included with sample holder.
Grainer-Petri35x10 Ibidi μ-Dish35mm-low
Corning-35x10mm MatTek-P35G-X-14-X
Willco-35x10BD Falcon-35x10
Figure 7. Ring selection scheme for 35 mm dish.
MatTek-P50G-X-30-X
Grainer - Petri 60x15
Willco60x15
BD Falcon 60x15
Ibidi μ-dish 50mm-low
Corning-60x15mm
Figure 8. Ring selection scheme for 60 mm dish.
H201-MINI User Manual
April 2015
www.oko-lab.com
Page7

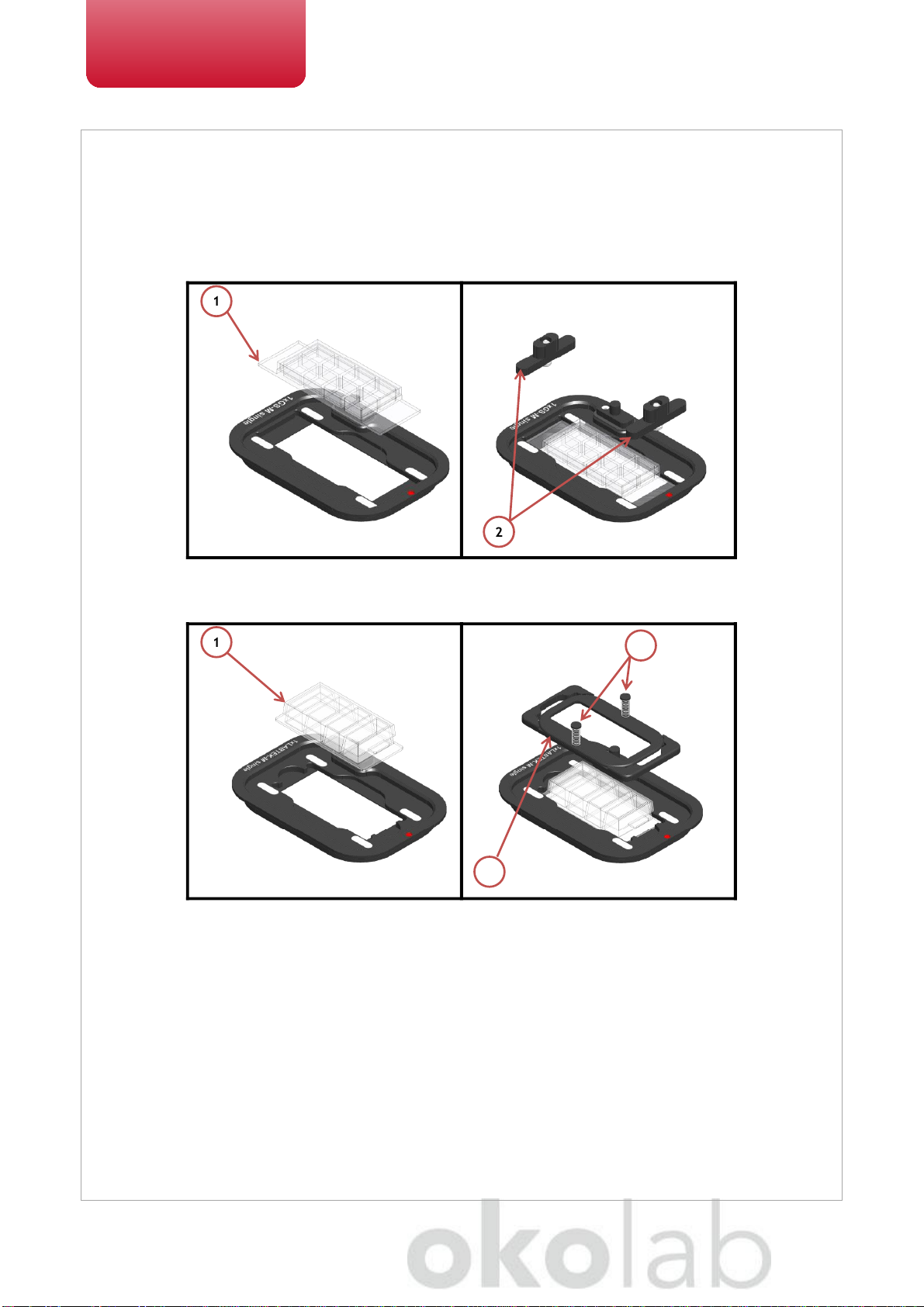

6. Working with 1x3’’ and 1x2’’ chamber slides - magnetic
locks
Magnetic locks prevent movement of 1’’x 3’’ and 1’’x 2’’ chamber slides inside of the sample holder.
NOTE: Magnetic locks are included with sample holder.
1
2
Figure 9. Magnetic lock for 1'' x 3'' chamber slide.
13
2
Figure 10. Magnetic lock for 1'' x 2'' chamber slide. To lock the slide, push simultaneously the buttons indicated with (3).
H201-MINI User Manual
April 2015
www.oko-lab.com
Page8
7. Connection of the Gas Supply
A single silicon tubing carries output gas from the Okolab Gas Controller to the H201-MINI. Silicon tubing connects to a
gas input - brass opening - located on a corner of the H201-MINI. See Figure 11. Connect by gently pushing silicon tub-
ing onto brass opening.
Gas Input
Figure 11.Connection with gas supply.
8. Working with Perfusion
The Chamber H201-MINI features 12 perfusion holes on the sides for the insertion of perfusion tubing up to 2.5 mm in
outer diameter. Small screws plug the perfusion holes when not in use. (screws plug M3x3 THD). Remove small screws
plug as necessary before introducing perfusion tubing.
Figure 12 shows location of perfusion holes.
1.Frontal view 2.3D view
Perfusion dedicated opening
Figure 12. Perfusion
H201-MINI User Manual
April 2015
www.oko-lab.com
Page9
9. Connection of the Chamber with XY stage
H201-MINI fits on the XY Stage without any screws. To fix the chamber on the stage, follow the steps shown in Figure
13.
1. Place the chamber on the stage (See Image 1 of Figure 13).
2. Tilt the chamber and slide it towards the spring until it snaps in place. (See Image 2 of Figure 13).
3. Image 3 of Figure 13 shows the chamber installed on the XY Stage.
Springs
12
3
Figure 13. Connection of the Chamber with XY Stage
