GENERAL INFORMATION
GENERAL INFORMATION
This Set TopBox (STB) willtake you tothe new andexciting world oftelevision. A
world of crystalclear widescreen pictures,digital sound, moreinformation services.
Tomake full useof your STB,please take thetime to familiarizeyourself extensive
features of theunit detailed inthis User Manual.
Main Features
SD MPEG-2/HD H.264 & fully DVB-T compliant
Automatic PAL/NTSC conversion
1000 channels TV and Radio programmable
8 different favorite groups selection
Fully support to 7 days Electronic Program Guide(EPG)
256 colors On Screen Display
Channel search in automatic, manual search
Various channel editing functions(favorite, move, lock, rename and sort)
Parental control for channels
Ease to use Menu System
Time set by GMT offset automatic and manual,Summer Time support
Automatic turn on\ off by Timer setting(multiple options)
Automatic save for last channel
Support Logic Channel Number(LCN)
Games: Teris,Othello,Sudoku
Support FAT32,NTFS(Option)
MP3/ JPEG/ BMP/ OGG files
Record Live TV with Subtitle (you can choose to display or close subtitle during playback)
Lock/Delete/Rename,Preview playback,Browse record files information
Play/Pause/Stop/Step
Fast Forward/Fast Backward 2/4/8/16/24,
Slow Forward/Slow Backward 1/2, 1/4, 1/8
GENERAL INFORMATION
GENERAL INFORMATION
2
For Your Safety
Be sure to turn the Receiver off and
disconnect the AC power cord before
cleaning the Receiver surface. If the
surface is dirty, wipe clean with a cloth
which has been dipped in a weak soap-and-
water solution and wrung out thoroughly,
and then wipe again with a dry cloth.
Switch the receiver off whenever it remains
out of service for an extended period.
Do not touch the receiver during thunder,
since that might create electric-shock
hazards.
Do not block ventilation holes of the
Receiver so that air can circulate freely.
Do not expose the receiver un-der the
sunlight. And keep it away from the heat
source.
Keep the receiver away from flower vases,
tubs, sinks, etc., in order to avoid damaging
the equipment.
To avoid electric-shock hazards, do not
open the cabinet, refer servicing to qualified
personnel only.
When the abnormal phenomenon occur,
you should cut off the power immediately.
PR
MENU
INFO
FAV
EPG
OK
LIST
EXIT
TV/RADIO
PAGE+
PAGE-
F1 F2
GENERAL INFORMATION
GENERAL INFORMATION
3
Unpacking(optional)
General Operation
Throughout this manual you will notice that the everyday operation of the receiver is
based on a series of user friendly on screen display and menus. These menus will
help you get the most from your receiver, guiding you through installation, channel
organizing, viewing andmany other functions.
All functions can be carried out using the buttons on the RCU, and some of the
functions can alsobe carried outusing the buttonson the frontpanel.
The receiver is easy to use, always at your command and adaptable for future
advances.
Please be awarethat new softwaremay change thefunctionality of thereceiver.
Should you experience any difficulties with the operation of your receiver, please
consult the relevant section of this manual, including the Problem Shooting, or
alternatively call yourdealer or acustomer service adviser.
Remote Control Batteries User Manual
AV cable
GENERAL INFORMATION
GENERAL INFORMATION
4
RCU
The picture is for reference only , actual product may vary..

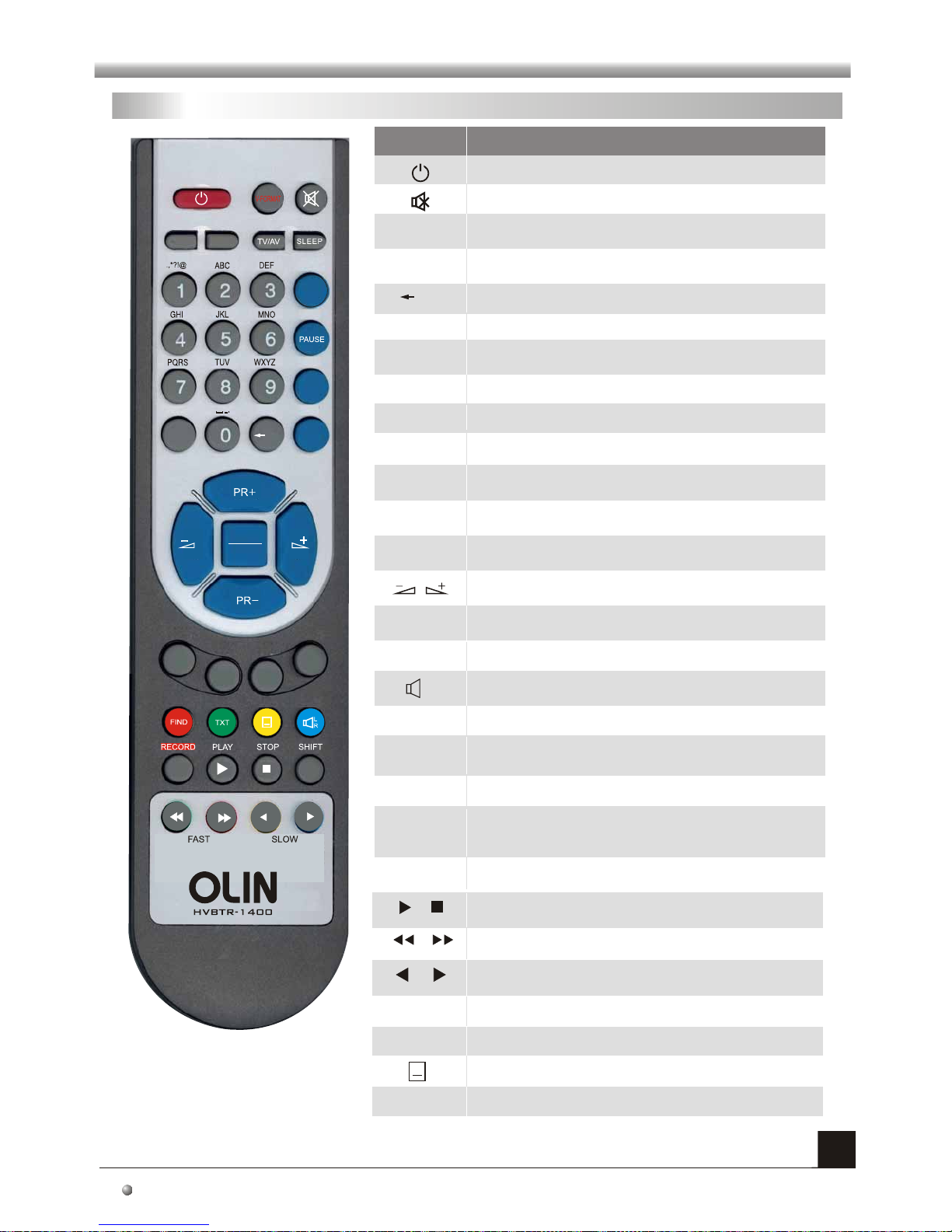

Key Function
Standby
When watching achannel, mute thesound
Switches between TVand Radio mode
0~9
MENU
EXIT
OK, LIST
PR+, PR-
Enter number ofthe required menuitem or
select a channelnumber to watch
Press this keyone time torun menu onscreen
Return to theprevious menu on the menu
screen or escapefrom the menu
Press once topause the screenpicture, press
once again togo to the normal mode whenwithout
external device
TV/RADIO
PR
Switches back toprevious channel
Displays the favoritegroup list
Show information ofthe current channel
Switch to teletext mode(subject to teletext broadcasting)
Moves up /down a page in the list
FAV
INFO
Executes the selecteditem in the menu screen
or enters thedesired value in any input mode
When watching achannel, change channels or
move to thenext higher or lower item inthe menu
When watching achannel, adjust the volume or
move to theleft or right item in themenu
Call up the EPG (Electronic Program Guide)
Display the Audio window.
EPG
L
R
PAUSE
FIND Enter Record Manager to view current recorded list
SLEEP
Enter into thesleep in mode
TXT
SHIFT
RECORD
Press to fastforward or fast backward
Record the programwhen with external device
Time shift function (External Driveis required)
Press to slowforward or slow backward
PAGE+,PAGE-
Play and stopthe program when with external
device
,
TV/AV
Switch between TVand AV modes (notavailable
in this model)
F1 Shortcut to TVSystem Setting
F2 Shortcut to MusicFunction
V-Format Press this keyto change displayresolution
Press this keyto display subtitles
PR
MENU
INFO
FAV
EPG
OK
LIST
EXIT
TV/RADIO
PAGE+
PAGE-
F1 F2
INSTALLATION
INSTALLATION
5
The picture is for reference only , actual product may vary.
Rear Panel
Connecting to TVusing RCA support
Front Panel
Pull USB compartmentdoor as indicatedon the front panel.
Connect your removableexternal drive viabuilt-in USB port when trying to record
programs.
LR
INVIDEO
TV
AUDIO
Antenna
DTR
CONNECT TOAUDIO R/LTO TV ORAUDIO TUNER
COMPOSITE VIDEO BROADCASTSIGNAL
POWER ON/OFF
COMPONENT VIDEO OUTPUT,ANALOGUE, HIGH DEFINITION.
ANT IN: CONNECTTO ANTENNA
LOOP OUT : CONNECT TO ANOTHER RECEIVER
CONNECT TO PC FOR
SOFTWARE UPGRADE
CONNECT TO TV SET HDMI-OUT INPUT

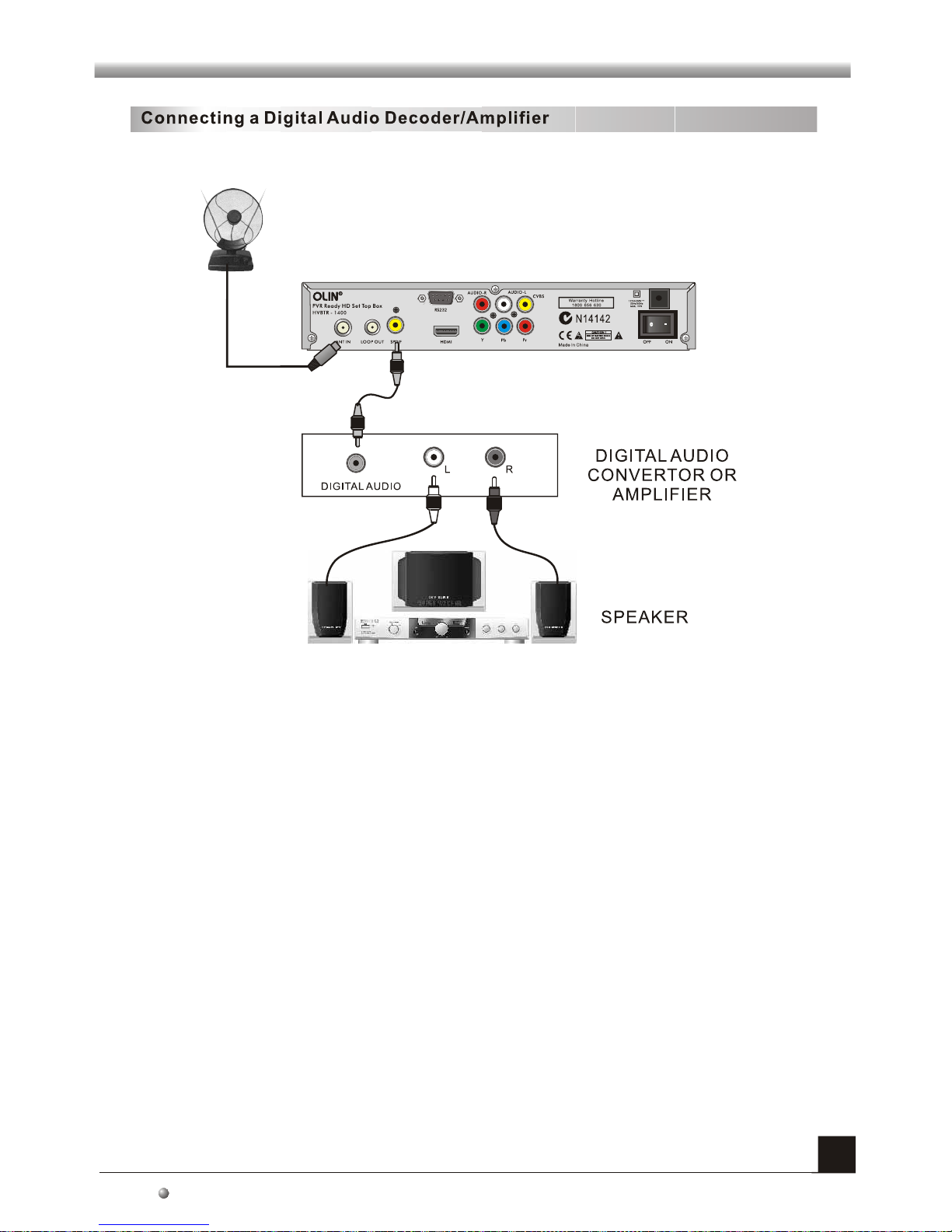

CONNECT TO DIGITAL AMPLIFIER
INSTALLATION
INSTALLATION
6
The picture is for reference only , actual product may vary.
Antenna
7
WELCOME PAGE
WELCOME PAGE

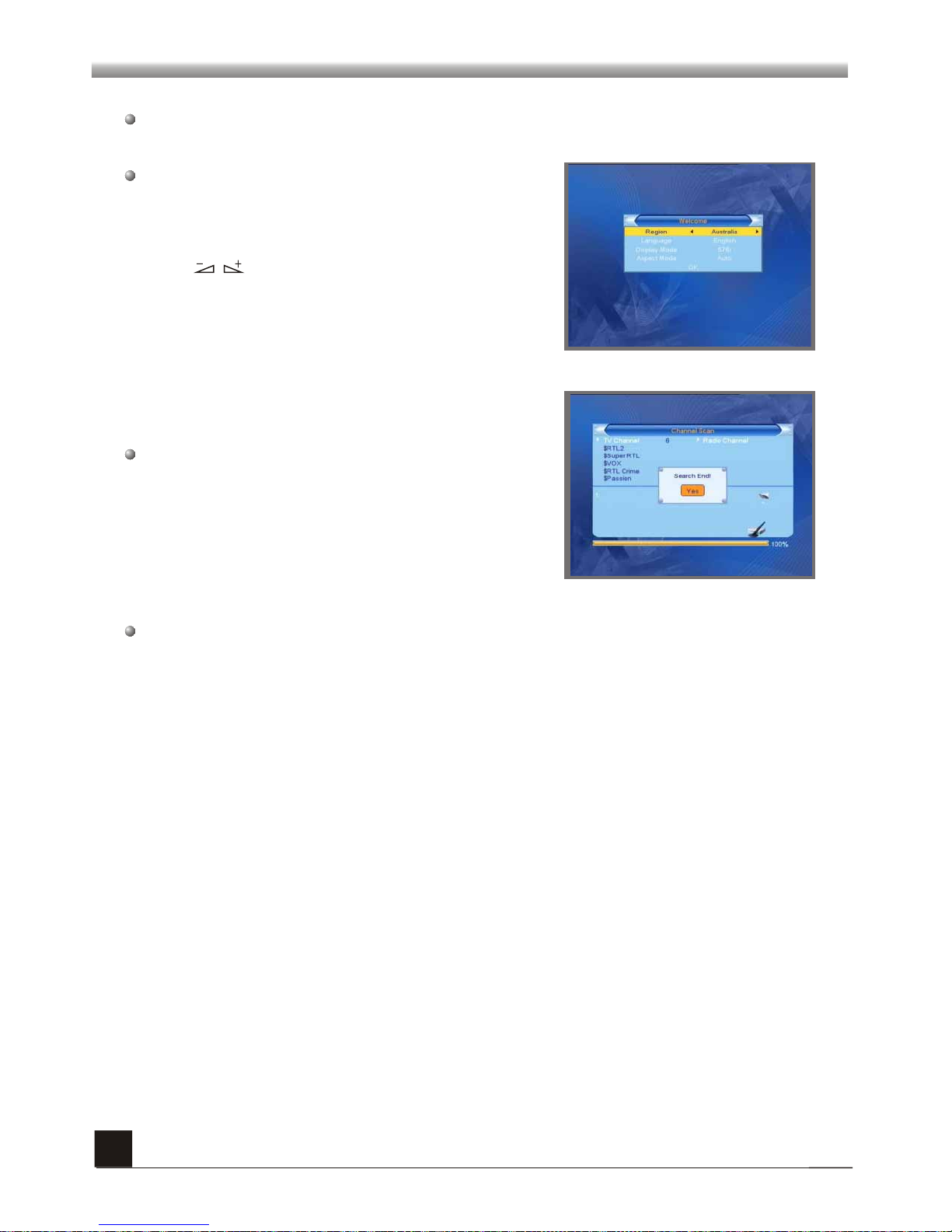

When power onfirst time, itwill show welcomepage like below.
Press keys to change Region, Language
and Aspect Mode. Press OK when highlight
Display Mode andselect from pop-upwindow.
Press PR+,PR- keys to move highlight to select
Region, Display Mode, Aspect Mode and
language.
Press [EXIT] keyto exit thismenu.
Move highlight to [OK] option and press OK key
to enter “Auto Scan”menu .
8
MAIN MENU
MAIN MENU
This menu consistsof 6 majorsub-menus as
below.
- Edit Channel
- Installation
- System Setup
- Tools
- Game
- REC
1. Edit Channel
When you press[MENU] key, you canenter Main Menu.
Move highlight on Edit Channel item and press [OK]
key to enterEdit Channel menuas besides.
This menu has3 sub-menus suchas: TV Channel list,
Radio Channel Listand Delete All .
1. Press PR+, PR- keys to select the program that you
want to play, and then press OK key to preview it in the
small window. If move the yellow cursor to select up or
down, you will see a gray line which indicates the
playing program in the small window.
1.1 TV ChannelList
2. Press FAV key to move the FAV button upward.
Select the program and press OK key to pop up the
favourite group list. In the list, select the group that you
want to add into and press OK key, and then you will
find the favourite mark is displayed at the right side of
the selected program.
Press EXIT key to exit from the fav mode, and then
press FAV key you will find the FAV button return to the
origin position.
3. Press red colour key to move the Lock button
upward. Select the program and press OK key to mark
this program with the Lock mark. You can cancel this
mark by pressing OK key once more.
Press red colour key again to exit from the lock mode,
and you will find the Lock button return to the origin
position.
