Olympia electronics GR-108/12L/90 Manuale utente

‘’CLASSIC LIGHT‘’ SERIES FOR NON MAINTAINED / ΜΑΙΝΤΑΙΝΕD

EMERGENCY LUMINAIRES

GR-109/12L/180

GR-108/12L/90

220-240V AC/50-60Hz

3 hours90 min

24 h

Battery charging LED, TEST button

From overcharge and deep discharge

IP20

3.6V/600mAh 3.6V/1Ah

40lm / 100lm 38lm / 100lm

12 white LED’s

3W / 3.5VA2.5W / 3VA

EN 60598-1, EN 60598-2-22, ΕΝ 55015, ΕΝ 61547, ΕΝ 61000-3-2, ΕΝ 61000-3-3

5 to 40 C

Up to 95%

ABS/PC, PC

3 years (1 year for the battery)

262 x 100 x 69 mm

Page 1 of 3

GENERAL

These luminaires are used indoors (ta 40 C)

where emergency light is needed.

Each luminaire must be permanently connected

to mains power supply.

In normal operation the battery is charging and

the 2 yellow LED’s light in the screen.

In case of a mains power supply failure the

luminaire will light the led strip automatically in

emergency mode. When the mains power

supply is restored the device turns to normal

operation.

MAINTAINED / NON-MAINTAINED

OPERATION

There is an option to select the maintained or

non-maintained operation by placing the jumper

to the appropriate place according to step 4

(page 2).

ΑΤΤΕΝΤΙΟΝ!!!

1. Operations for installation, maintainance or

testing must be done by authorized personnel

only.

2. The device must be connected to the mains

power supply through a fuse dependent by the

total amount of the line’s power load.

3. It is suggested to check every month the

indication LED for battery charging, and by

pushing the TEST button to check the emergency

circuit. The led strip should: a) light with bigger

intensity as long as the TEST button is pressed

(maintained operation),

b) light as long as the TEST button is pressed

(non-maintained operation).

4. It is suggested to check every 6 months the

minimum autononous duration by disconnecting

the mains power supply. Count the time that the

led strip lights and in case of less time than the

minimum autonomous duration the battery must

be replaced. If the measured time is considerably

less than the minimum autonomous duration

In case of battery or led strip

replacement, these must be replaced by parts of

the same type, by the manufacturer or by a

competent person.

t i

in battery recycling

points.

Do not incinerate.

If the luminaire

doesn’t work as described above contact the

installer.

contact the installer.

5. In case of inactive use for a period greater than

2 months, disconnect the battery by pulling out

the battery’s connector.

6. I s not allowed to discard batteries into

common trash bins, they must be

discarded only

535gr 545gr

923109004_09_010

Thank you for your trust in our products

Olympia Electronics - European manufacturer

TECHNICAL CHARACTERISTICS (for LED MODULE Spec ifications see page 2)

OPERATION TEMPERATURE RANGE

RELATIVE HUMIDITY

EXTERNAL DIMENSIONS

CONSTRUCTION MATERIALS

TYPICAL WEIGHT

GUARANTEE

OPERATION VOLTAGE

MAXIMUM POWER CONSUMPTION

BATTERIES (Ni-Cd)

CHARGING TIME

INDICATIONS - CONTROLS

BATTERY PROTECTION

MINIMUM AUTONOMOUS DURATION

DEGREES OF COVER PROTECTION

PRODUCED IN ACCORDANCE WITH

EMERGENCY ILLUMINATION

ILLUMINATION SOURCE

INSTALLATION INSTRUCTIONS

Page 2 of 3

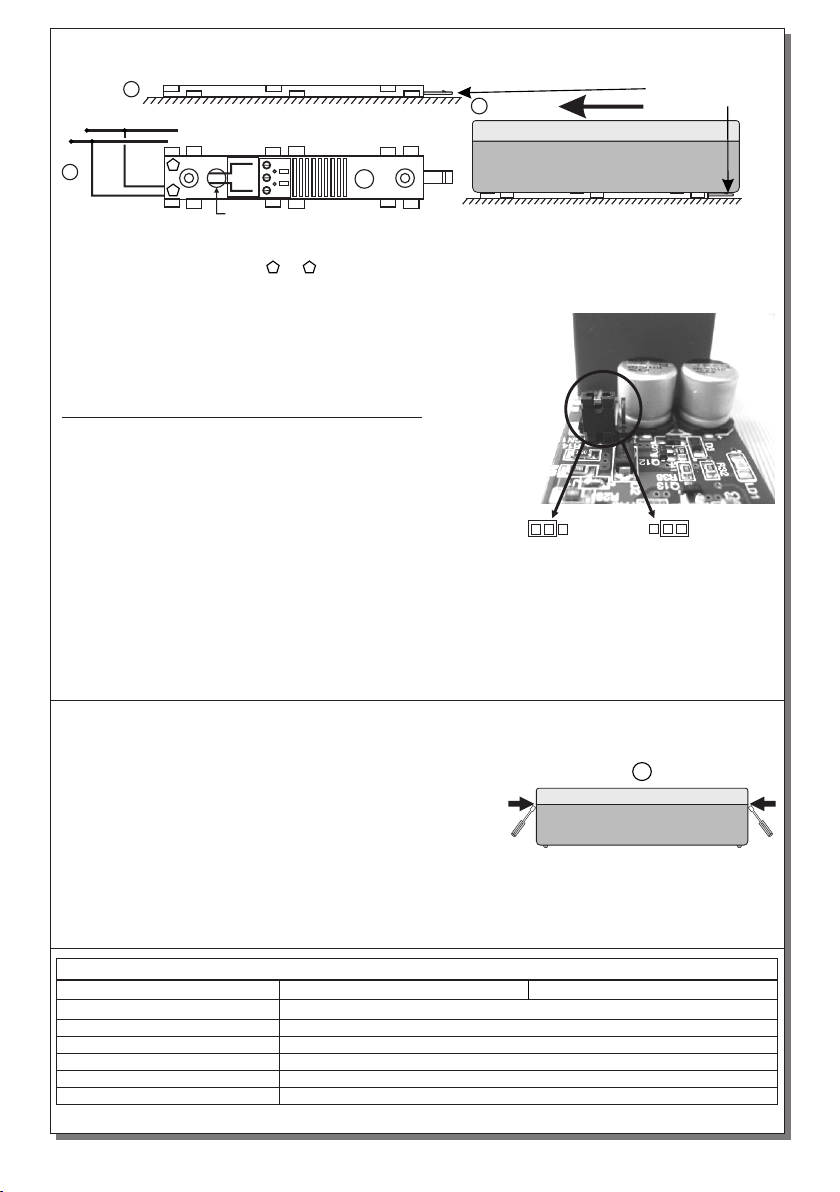

1. Detach the plastic base (located in the bottom of the luminaire) by pulling the unlock hook and

pass the cables from area or and through the cable entry hole. The luminaire must be

connected to a permanent electrical installation to ensure the immobilization of the cable. Mount

the plastic base with the included mounting accessories.

2. Connect the mains cables to the respective detachable

terminal block. Ν for neutral, L for live wire.

3. Attach the luminaire by sliding it on the plastic base until the

plastic hook locks, and power the luminaire.

4. MAINTAINED/NON-MAINTAINED OPERATION

JUMPER SELECTION

You can choose the luminaire’s operation. When the

jumper is installed (by default) in the middle and right pins

maintained operation is selected.

When the jumper is installed in the middle and left pins non-

maintained operation is selected.

NOTE!!

After finishing the installation you must power the device at least for 24 ours for battery

charging to perform the nominal autonomy.

Maintained

operation

Non-maintained

operation

L230V AC

NPlastic base

Cable entry hole

N L

Battery replacement

It can be done only by a competent person and after

the mains interruption.

1. Detach the luminaire from its base (step 1 of the

installation procedure).

2. Use a flat blade screwdriver to remove the diffusor.

3. Remove the reflector.

4. Disconnect the connector and remove the old battery.

5. Connect the new battery with the same type and

place it in the position of the old one.

6. Replace the removed parts (step 1,2 and 3).

LED MODULE CHARACTERISTICS

Olympia Electronics S.A.

Cable connection between main pcb and led module

45 °C max. across the board

2.9-3.6VDC

780mW

0111163

GR-108/12L/90

GR-109/12L/180

Lock - unlock hook

Manufacturer

Model Number

Voltage Range

Connections

Nominal Power

Temperature (tc)

923109004_09_010

Page 3 of 3

The light source contained in this luminaire shall only be replaced by the manufacturer, or his

agent, or a similar qualified person.

NOTE! The light source is non-user replaceable.

WARRANTY

Olympia Electronics guarantees the quality, condition and operation of the goods. The period of warranty

is specified in the official catalogue of Olympia Electronics and also in the technical leaflet, which

accompanies each product. This warranty ceases to exist if the buyer does not follow the technical

instructions included in official documents given by Olympia Electronics or if the buyer modifies the goods

provided or has any repairs or re-setting done by a third party, unless Olympia Electronics has fully

agreed to them in writing. Products that have been damaged can be returned to the premises of our

company for repair or replacement, as long as the warranty period is valid.

Olympia Electronics reserves the right to repair or to replace the returned goods and to or not charge the

buyer depending on the reason of defection. Olympia Electronics reserves the right to charge or not the

buyer the transportation cost.

HEAD OFFICE

72nd km. O.N.R. Thessaloniki-Katerini

P.C. 60300 P.O. Box 06 Εginio Pierias Greece

www.olympia-electronics.gr

[email protected]

(*) Maintained operation: The luminaire lights its illumination source, when it is powered by the mains

power supply or not.

Non Maintained operation: The luminaire lights its illumination source, only in power supply’s failure.

Note!! The installer should fill in, on the

specification label, the letter G if the

luminaire is used as a safety sign.

NOTE: LED= Light Emitting Diode

LABELING EXPLANATION:

X: Self contained

1: Maintained (*)

A: Including test device

G: Internally illuminated safety sign

90: 1.5 hour duration

180: 3 hours duration

X 1 9 0A

923109004_09_010
