GENERAL
o
This device is used indoors (ta 40 C) in places
where emergency luminaires are needed.
Each device must be permanently connected
to mains power supply. The GR-292/M/HL is
suitable for corridors lighting and the GR-
293/M/HL for open area lighting. In normal
operation the battery is charging. In case of a
mains power supply failure, the device enters
emergency mode and the illumination LED
turns on. When the mains power supply is
restored, the device turns to normal operation.
INSTALLATION
To install the luminaire follow the installation
instructions οn page 3.
Battery Charging
The battery charging is completely controlled.
In this case, is achieved the perfect battery
maintenance , as well as the elongation of its
duration. When the battery has completely
charged, it charges with a maintenance
current.
Battery Cut-off
The device enters this mode when the mains
power supply has failed and battery has lost its
energy. During this mode the device enters in
idle state and battery consumption is
negligible, in order to be protected from deep
discharge.
Manual Test
This test can be done by pushing the test
button. The light source and the emergency
circuit of the device are monitored. The manual
test can be conducted only if the main power
supply and the battery are connected. During
this test period all indication LEDs are OFF.
Automatic Operational Test
This test includes all the operations that provide
the manual test and is conducted automatically
every 15 days. In order to be performed, the
mains power supply and the battery should be
connected.
Automatic Autonomous Test
This test monitors the device’s back up
operation and emergency duration. The
BATTERY FAULT LED blinks during the test,
indicating this process to the user. This test is
conducted automatically every six months. In
order to be performed, the mains power supply
should be connected and the battery must be
fully charged. If the battery is not fully charged,
the test is postponed until the battery is
completely charged. If during this test, the
autonomy is less than the nominal then the
SELF TESTING NON-MAINTAINED EMERGENCY CEILING MOUNTED LUMINAIRES
OPERATION TEMPERATURE RANGE
RELATIVE HUMIDITY
CONSTRUCTION MATERIAL
EXTERNAL DIMENSION
WEIGHT
GUARANTEE
OPERATION VOLTAGE
MAXIMUM POWER CONSUMPTION
BATTERY (Ni-MH)
CHARGE TIME
INDICATIONS - CONTROLS
BATTERY PROTECTION
MINIMUM DURATION
DEGREES OF COVER PROTECTION
PRODUCED IN ACCORDANCE WITH
EMERGENCY ILLUMINATION
LIGHT SOURCE
220-240V AC / 50-60Hz
24 hours
Deep discharge and overcharge protection
IP20
4.8V/4Ah
1 white power LED
o
5 to 40 C
Up to 95%
ABS/PC
3 years (1 year for the battery)
737gr.
Ø125 x 72 mm
EN 60598-1, EN 60598-2-22, ΕΝ 55015, ΕΝ 61547, ΕΝ 61000-3-2, ΕΝ 61000-3-3
Charge, lamp fault, battery fault, TEST button
4.9W / 5.2 VA
TECHNICAL CHARACTERISTICS (for LED MODULE specifications see page 5)
Thank you for your trust in our products
Olympia Electronics - European manufacturer
3 hours
330lm
GR-292/M/HL GR-293/M/HL
battery fault led turns on continuously indicating
that the battery must be replaced.
Back Up Operation
The autonomous duration of battery during
emergency mode is at least the one that is
stated in the list of the technical characteristics.
During emergency mode, a light source test is
also performed.
Resetting Errors
Push the Test button for >10 seconds, to delete
all the indicated LED errors. Then the device
enters regular operation mode.
Test Switch
Pressing the test switch less than 5 seconds
will initiate a light source test (last for 3 secs).
If the test switch is pressed for more than 10
seconds, the device will be reset (delete all
errors).
ΑΤΤΕΝΤΙΟΝ!!!
1. Operations for installation or maintainance
must be done by authorized personnel only.
2. The device must be connected to the mains
power supply through a fuse dependent by the
total amount of the line’s power load.
3. The replacement of the battery and the light
source must be done using parts of the same
type, by the manufacturer or by a competent
person.
4. In case of inactive use for a period greater
than 2 months, disconnect the battery by pulling
out the battery’s connector.
5. I s not allowed to discard batteries into t i
common trash bins, they must be
discarded only in battery recycling
points. Do not incinerate.
Connection to module (After request)
This luminaire can be connected to any of the
following modules: Remote module, address
module, wireless module and fault relay
module. If you connect it to a module that
supports inhibit or rest mode, you should know
that these commands can be cancelled only
during normal mode (ie. not in emergency). For
installation refer to step 2 of the istallation
procedure in page 3.
Also refer to the user’s manual of each module
for additional information.
NOTE: LED= Light Emitting Diode
LABELING EXPLANATION:
X: Self contained
0: Non maintained (*)
A: Including test device
F: Automatic test gear complying with IEC
61347-2-7 denoted EL-T
180: 3 hour duration
Maintained operation: The luminaire lights its
illumination source, when it is powered by the
mains power supply or not.
(*) Non Maintained operation: The luminaire
turns on illumination source, only in case of
power supply failure.
Page 2 from 6
Status of LEDs
LEDs Description of indication
CHARGE : Battery charging, : battery charged, : disconnected battery
LAMP FAULT : Operation check, : lamp fault, : normal operation
BATT. FAULT : Autonomy test, : autonomy fault, : normal operation
Note : Blinking, : constantly on, : off
Note!! If a module will be used (except the fault
relay module), then the installer should fill in, on
the specification label, the letters B C.
X0AF
923293007_09_001
8 01
Page 3 from 6

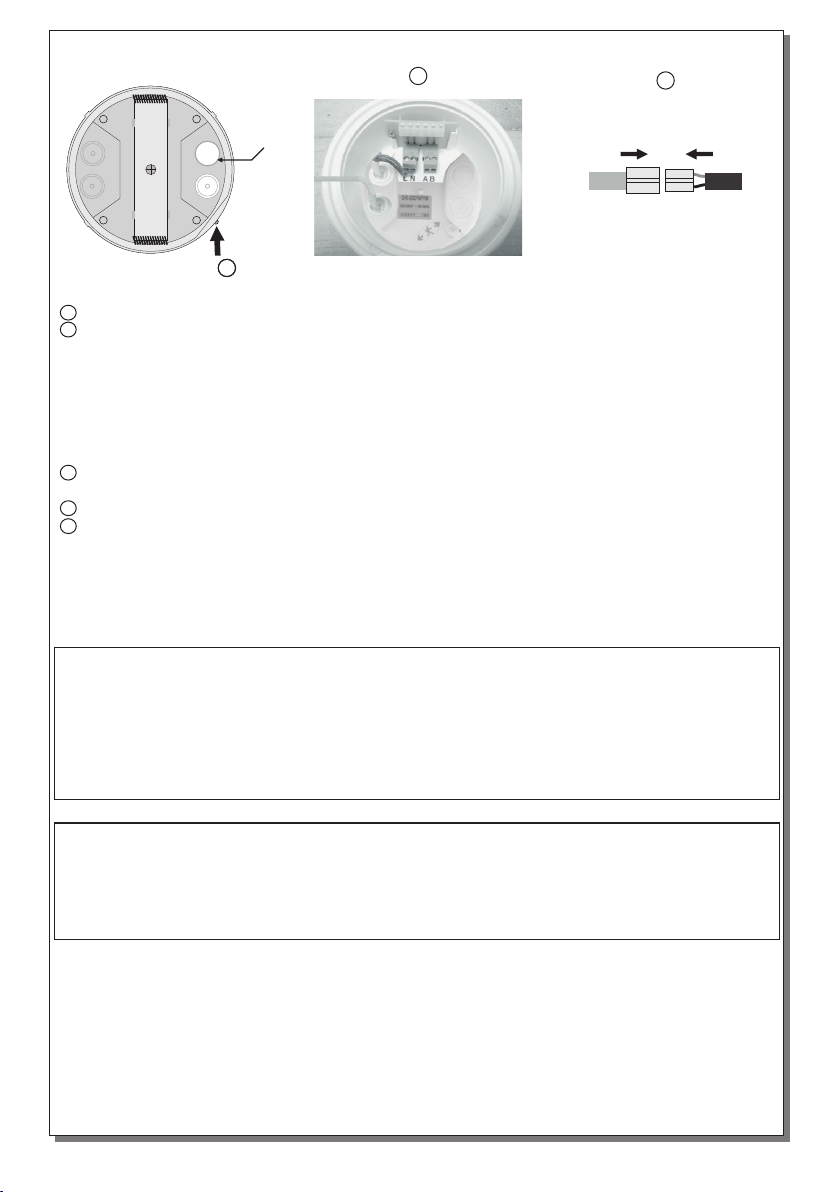

INSTALLATION INSTRUCTIONS
4
2
Initial installation
1 Untighten the screw and pull up the reflector.
2 Always use in any case round mains cable, with a diameter of 5-10mm (H05RN-F type 2x1mm²
or any other type, at least equal to it’s mechanical and electrical properties). Make a hole in the
center of the gasket by using a small screwdriver. Pass the round cable through the gasket. Detach
the power terminal, connect the wires as shown in the picture and attach the power terminal (10A
max). If you use a module (except the wireless module) pass the 2 signal cables on the A, B terminals
minding the correct polarity. Depending on the module that will be used, the cables could have
different names. In A, signals +L, C are also connected, while signals -L, NC/NO are connected on
the terminal B.
3 Refit the reflector (mind the correct orientation), tighten the screw securely and the luminaire is ready
for mounting.
4 Place the battery’s connector to the corresponding connector of the luminaire.
5 Mount the luminaire on the ceiling.
NOTE!! After finishing the installation you must power the luminaire for at least 24 hours in
order to completely charge the battery. The rated autonomy duration can be achieved after that
time.
11
Cable
entry
hole
Battery pack replacement.
It can be done only by a competent person and after the mains interruption.
1. Remove the luminaire from the suspended ceiling (figure 3 on page 4).
2. Remove the battery pack from the suspended ceiling.
3. Disconnect the connector and remove the old battery pack.
4. Connect the new battery pack (step 4 of the installation instructions) and place it in the position of
the old one.
5. Place the removed parts back and power the device.
Important notice for the installed luminaires in one area !!!
The installer must connect the battery’s connector first and then should power the luminaire.
The time between batteries connection must be, at least 1.5 minute.
With this variation, it is ensured that the non synchronized Automatic Autonomous Test for two or more
luminaires installed in one area, is not conducted in the same day.
923293007_09_001
Page 4 from 6 923293007_09_001
Mounting the lamp in suspended ceiling.
Set up the lamp to the suspended ceiling as it is shown bellow (Required opening 110mm):
Step 1
Pass the battery pack into the ceiling then bend the springs, to get into the hole of the suspended
ceiling, as you can see to the next figure.
Step 2
Push up the luminaire, as shown in figure 2.
Step 3
Continue to push upwards until the lamp locks.
If you want to pull off the device, put a flat blade
screwdriver, between the device and the ceiling.
Figure 2
Figure 3
Figure 1 Ø110mm
NOTE: The length of the battery pack cable is 70 cm.
CAUTION : Do not view directly with bare eyes.
230V
230V
230V
Page 5 from 6
LED MODULE CHARACTERISTICS
Olympia Electronics S.A.
75 C max. across the board °
3-3,2V DC
2.3W
0405185
fixed connection between main pcb and led module
Manufacturer
Model Number
Voltage Range
Connections
Nominal Power
Temperature (tc)
Lamp fault
indication LED
ATTENTION!!!
During installation follow this light direction.
Corridor
lighting
Open
area
lighting
FAULT
LAMP
CHARGE
BATT.
FAULT
LAMP
CHARGE
BATT.
96 mm
72 mm
125 mm
FAULT
LAMP
CHARGE
BATT.
Battery
fault
indication
LED
Battery
charge
indication
LED
Figure 4
The light source contained in this luminaire shall only be replaced by the manufacturer, or his
agent, or a similar qualified person.
NOTE! The light source is non-user replaceable.
FAULT
LAMP
CHARGE
BATT.
GR-292/M/HL
GR-293/M/HL
GR-292/M/HL
GR-293/M/HL
923293007_09_001
A-290/BAT
286 mm 31 mm
33 mm
TEST
Test
button
TEST TEST
TEST
50 mm
Page 6 from 6
WARRANTY
Olympia Electronics guarantees the quality, condition and operation of the goods. The period of warranty
is specified in the official catalogue of Olympia Electronics and also in the technical leaflet, which
accompanies each product. This warranty ceases to exist if the buyer does not follow the technical
instructions included in official documents given by Olympia Electronics or if the buyer modifies the goods
provided or has any repairs or re-setting done by a third party, unless Olympia Electronics has fully
agreed to them in writing. Products that have been damaged can be returned to the premises of our
company for repair or replacement, as long as the warranty period is valid.
Olympia Electronics reserves the right to repair or to replace the returned goods and to or not charge the
buyer depending on the reason of defection. Olympia Electronics reserves the right to charge or not the
buyer the transportation cost.
HEAD OFFICE
72nd km. O.N.R. Thessaloniki-Katerini
P.C. 60300 P.O. Box 06 Εginio Pierias Greece
www.olympia-electronics.gr
923293007_09_001
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali olympia electronics Lanterna
olympia electronics
olympia electronics BAU LIGHT Series Manuale utente
olympia electronics
olympia electronics KLIN-20/ST Manuale utente
olympia electronics
olympia electronics GR-220/DUO/M Manuale utente
olympia electronics
olympia electronics EASY LIGHT Series Manuale utente
olympia electronics
olympia electronics GR-290 Manuale utente
olympia electronics
olympia electronics POWER LIGHT Series Manuale utente
olympia electronics
olympia electronics GRL-37/90/WP Manuale utente
olympia electronics
olympia electronics WEATHER LIGHT Series Manuale utente
olympia electronics
olympia electronics Double Easy Light GR-391/L Manuale utente
olympia electronics
olympia electronics Slim Light Series Manuale utente
olympia electronics
olympia electronics WATERPROOF POWER LIGHT Series Manuale utente
olympia electronics
olympia electronics GR-490/WP Manuale utente
olympia electronics
olympia electronics OLY-1004 Manuale utente
olympia electronics
olympia electronics Power Light Series Manuale dell'operatore
olympia electronics
olympia electronics WEATHER LIGHT Series Manuale utente
olympia electronics
olympia electronics GR-940/15L/MAR Manuale utente
olympia electronics
olympia electronics GR-108/12L/90 Manuale utente
olympia electronics
olympia electronics SLD-28/DZ Manuale utente
olympia electronics
olympia electronics GR-1935/15L Manuale utente
olympia electronics
olympia electronics GR-8/leds Manuale utente
