Olympus VG-110/D-700 Manuale utente

Instruction Manual

VG-110/D-700

DIGITAL CAMERA

●Thank you for purchasing an Olympus digital camera. Before you start to use your new camera, please read these

instructions carefully to enjoy optimum performance and a longer service life. Keep this manual in a safe place for

future reference.

●We recommend that you take test shots to get accustomed to your camera before taking important photographs.

●In the interest of continually improving our products, Olympus reserves the right to update or modify information

contained in this manual.

●The screen and camera illustrations shown in this manual were produced during the development stages and may

differ from the actual product.

Step 1

Other accessories not shown: warranty card

Contents may vary depending on purchase location.

Checking the contents of the box

LI-70B Lithium

Ion Battery

USB cable OLYMPUS

Setup

CD-ROM

Step 2

Preparing the Camera

“Preparing the Camera” (p. 12)

Step 3

Shooting and Playing Back Images

“Shooting, Viewing, and Erasing” (p. 19)

Step 4

How to Use the Camera

“Camera Settings” (p. 3)

Step 5

Printing

“Direct printing (PictBridge)” (p. 45)

“Print Reservations (DPOF)” (p. 49)

Contents

Names of Parts............................................... 8

Preparing the Camera.................................. 12

Shooting, Viewing, and Erasing ................. 19

Using Shooting Modes ................................ 27

Using Shooting Functions .......................... 31

Menus for Shooting Functions ................... 34

Menus for Playback, Editing, and Printing

Functions...................................................... 38

Menus for Other Camera Settings.............. 41

Printing.......................................................... 45

Usage Tips .................................................... 52

Appendix....................................................... 57

Strap F-2AC

USB-AC adapter

Digital camera

Camera Settings

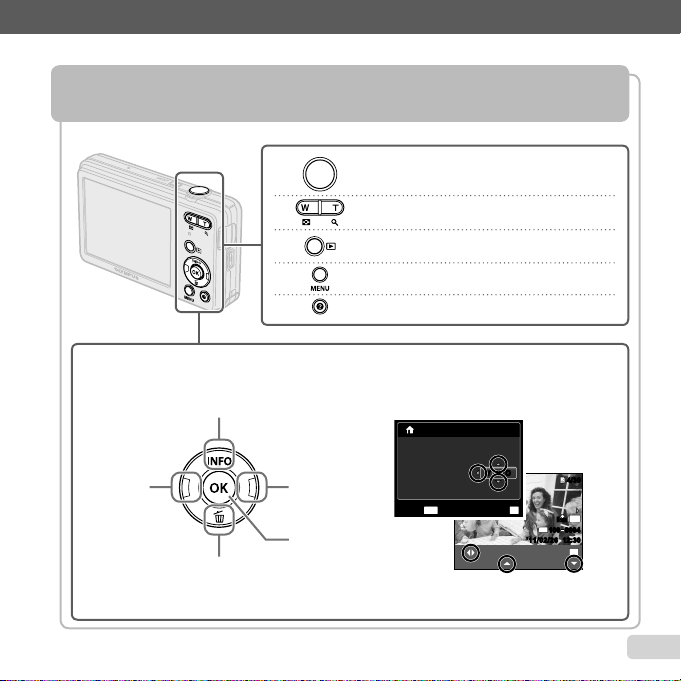

Using the Direct Buttons

Frequently used functions can be accessed using the direct buttons.

Arrow pad

H(left)

G(down) /

Dbutton (erase) (p. 25)

F(up) /

INFO button (change information

display) (p. 23, 26)

I(right)

Qbutton

(p. 17)

The symbols FGHI displayed for image

selections and settings indicate that the arrow pad

is to be used.

ORM

Single Print

4/304/30

12:30’11/02/26’11/02/26 12:30

ORM

12M

FILE

100 0004100 0004

02 26 12 30:..2011

Set

YMDTime

Cancel

Y/M/DY/M/D

Shutter button (p. 20)

Zoom buttons (p. 22, 25)

qbutton (switch between shooting and

playback) (p. 20, 23)

mbutton (p. 5)

Ebutton (menu guide) (p. 26)

Using the Menu

Use the menu to change camera settings such as the shooting mode.

There may be menus that are unavailable depending on other related settings or the smode (p. 27).

Function menu

Press Hduring shooting to display the function menu. The function menu is used to choose the shooting mode

and provides access to frequently used shooting settings.

To select the shooting mode

Use HI to select a shooting mode and press the Qbutton.

To select the function menu

Use FG to select a menu and use HI to select a menu option. Press the Q

button to set the function menu.

0.00.0

AUTO

ISO

AUTO

ISO

Program AutoProgram Auto

ORM

Shooting

Function menu

Shooting mode

Selected option

Setup menu (p. 5)

1Press the mbutton.

The setup menu is displayed.

Set

Exit

Digital Zoom Off

Icon Guide On

AF Mode Face/iESP

Date Stamp Off

Compression Normal

Image Size 12M

ResetReset

2Press Hto highlight the page tabs. Use

FG to select the desired page tab and

press I.

Set

Exit

Power Save Off

English

World Time

Bright

Page tab

Set

Exit

Bright

Power Save Off

English

World Time

Submenu 1

3Use FG to select the desired submenu 1

and then press the Qbutton.

Set

Exit

Bright

English

World Time

Power Save Off

Set

Back

Bright

English

World Time

Power Save

Off

Power Save

Off

Power Save

OffOff

Submenu 2

●

4Use FG to select the desired submenu 2

and then press the Qbutton.

Once a setting is selected, the display returns to

the previous screen.

There may be additional operations.

“Menu Settings” (p. 34 to 44)

Set

Exit

Bright

English

World Time

Power Save On

5Press the mbutton to complete the

setting.

●

Setup menu

Press the mbutton during shooting or playback to display the setup menu. The setup menu provides access

to a variety of camera settings, including options not listed in the function menu, display options, and the time and

date.

Menu Index

Menus for Shooting Functions

1Shooting mode

P(Program Auto) .............p. 19

M(iAUTO)...................p. 27

N(DIS Mode) ................p. 27

s(Scene Mode) .........p. 27

P(Magic Filter) ..........p. 29

~(Panorama)..................p. 30

A(Movie)........................p.21

2Flash.................................p. 31

3Macro ...............................p. 31

4Self-timer ..........................p. 32

5Exposure compensation...p. 32

6White balance...................p. 33

7ISO ...................................p. 33

8#(Setup) X

z(Shooting menu)

Reset ...........................p. 34

Image Size ..................p. 34

Compression ...............p. 34

AF Mode......................p. 35

Digital Zoom ................p. 36

Icon Guide ...................p. 37

Date Stamp .................p. 37

A(Movie menu)

Image Size ..................p. 35

Frame Rate .................p. 35

R(Movie sound

recording) ..................p. 36

0.00.0

AUTO

ISO

AUTO

ISO

Program AutoProgram Auto

ORM

Set

Exit

Digital Zoom Off

Icon Guide On

AF Mode Face/iESP

Date Stamp Off

Compression Normal

Image Size 12M

Reset Image Size VGA

Frame Rate 30fps

Set

Exit

Menus for Playback, Editing, and Printing Functions

1r(Settings 1)

Memory Format/

Format .......................... p. 41

Backup ......................... p. 41

USB Connection........... p. 41

qPower On ............... p. 42

Keep KSettings......... p. 42

Beep ............................. p. 42

Pixel Mapping............... p. 43

2s(Settings 2)

s(Monitor) ................ p. 43

Power Save .................. p. 43

W(Language)............ p. 43

X(Date/time)............. p. 44

World Time ................... p. 44

Menus for Other Camera Settings

1q(Playback menu)

Slideshow ..................... p. 38

Edit ......................... p. 38, 39

Erase ............................ p. 39

Print Order.................... p. 40

?(Protect).................... p. 40

y(Rotate).................... p. 40

Slideshow

Edit

Erase

Print Order

Set

Exit

Backup

qPower On Yes

Format

Keep

Settings

Yes

USB Connection

Storage

Beep On

Pixel Mapping

Set

Exit

Names of Parts

Camera unit

1Connector cover

........................ p.14, 16, 45

2USB connector

........................ p.14, 16, 45

3Strap eyelet .................... p. 9

4Battery/card compartment

cover ........................... p. 12

5Flash............................. p. 31

6Self-timer lamp ............. p. 32

7Lens........................ p. 57, 71

8Microphone............. p. 36, 39

9Tripod socket

1nbutton........ p. 17, 19

2 Shutter button............... p. 20

3Monitor ................... p. 19, 52

4Zoom buttons ............... p. 22

5Indicator lamp... p. 13, 14, 16

6qbutton

(switch between shooting

and playback) ....... p. 20, 23

7Qbutton (OK).............. p. 17

8Arrow pad ....................... p. 3

INFO button

(change information

display) ................. p. 23, 26

Dbutton (erase) .......... p. 25

9Ebutton (menu guide)

.................................... p. 26

mbutton .................. p. 5

Attaching the camera strap

Pull the strap tight so that it does not come loose.

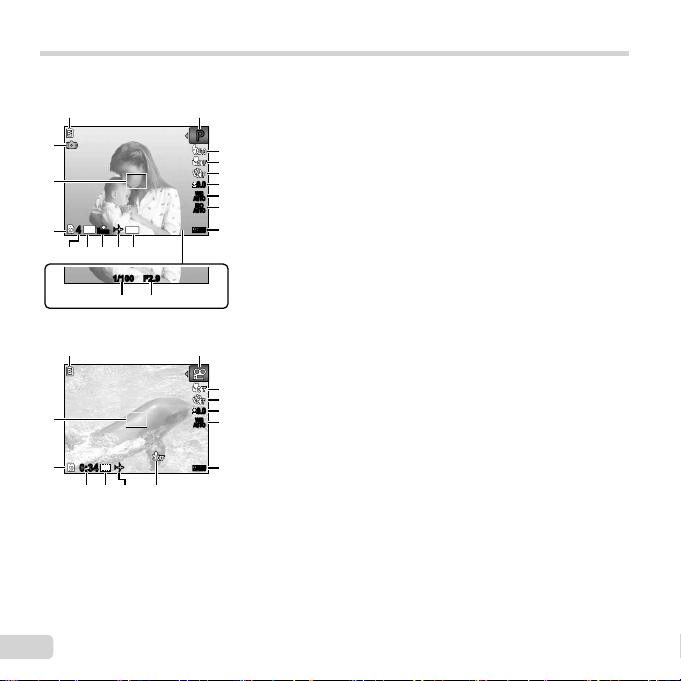

Monitor

Shooting mode display

Still image

Movie

0:340:34

0.00.0

AUTO

VGA

1 2

2122 10

1/100 F2.9F2.9

1/100

0.00.0

AUTO

ISO

AUTO

ISO

DATE

1 2

131415 11

1920

ORM

1Battery check................ p. 16

2Shooting mode ....... p. 19, 27

3Flash............................. p. 31

Flash standby/ﬂash charge

.................................... p. 52

4Macro ........................... p. 31

5Self-timer ...................... p. 32

6Exposure compensation

.................................... p. 32

7White balance............... p. 33

8ISO ............................... p. 33

9Setup menu .................... p. 5

Recording with sound

(movies) ...................... p. 36

Date stamp ................... p. 37

World time .................... p. 44

Compression

(still images)................ p. 34

Image size

(still images)................ p. 34

Number of storable pictures

(still images)................ p. 19

Current memory ........... p. 59

AF target mark.............. p. 20

Camera shake warning

Aperture value .............. p. 20

Shutter speed ............... p. 20

Image size (movies) ..... p. 35

Continuous recording length

(movies) ...................... p. 21

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Olympus Macchina fotografica digitale

Olympus

Olympus E420 - Evolt 10MP Digital SLR Camera Guida rapida

Olympus

Olympus Tough TG-810 Istruzioni di montaggio

Olympus

Olympus Camedia D-540ZOOM Manuale utente

Olympus

Olympus FE 360 - Digital Camera - Compact Manuale di istruzioni

Olympus

Olympus E-500 - EVOLT Digital Camera Manuale utente

Olympus

Olympus CAMEDIA C-200Zoom Guida all'installazione

Olympus

Olympus C-990ZOOM Manuale utente

Olympus

Olympus Camedia C-2040Zoom Guida all'installazione

Olympus

Olympus CAMEDIA D-460ZOOM Manuale utente

Olympus

Olympus DP23 Manuale utente

Olympus

Olympus CAMEDIA C-470 Zoom Guida all'installazione

Olympus

Olympus C-50 - Camedia 5MP Digital Camera Manuale utente

Olympus

Olympus E620 - Evolt 12.3MP Live MOS Digital SLR... Manuale utente

Olympus

Olympus TRIP AF 60 Manuale utente

Olympus

Olympus 550WP - Stylus Digital Camera Manuale utente

Olympus

Olympus CAMEDIA D-550 Zoom Manuale utente

Olympus

Olympus SP-500 Guida all'installazione

Olympus

Olympus E-1 - Digital Camera SLR Guida alla configurazione

Olympus

Olympus STYLUS VERVE S Manuale utente

Olympus

Olympus FE 120 - Digital Camera - 6.0 Megapixel Guida all'installazione

Olympus

Olympus FE 300 - Digital Camera - Compact Manuale utente

Olympus

Olympus TG-830 Manuale utente

Olympus

Olympus TG 850 Manuale utente

Olympus

Olympus SP-510 Manuale utente

Manuali Macchina fotografica digitale popolari di altre marche

Mercury

Mercury 350K Manuale utente

Pentax

Pentax Optio LS 465 Manuale utente

Sanyo

Sanyo VPC-S1085 Manuale utente

GE SMART A1255 Manuale utente

Point Grey

Point Grey Gazelle Manuale utente

Nikon

Nikon COOLPIX A Manuale utente

Pentax

Pentax P-5 Manuale utente

BlazeVideo

BlazeVideo A280 Manuale utente

Sony

Sony MCA-20 Manuale utente

Sony

Sony Alpha DSLR-A290 Manuale utente

ATIK Cameras

ATIK Cameras One Manuale utente

CohuHD Costar

CohuHD Costar 3930 Series Manuale utente

Leica

Leica M10-R Manuale utente

FujiFilm

FujiFilm FinePix A700 Manuale utente

Lorex

Lorex LNZ81P25 Series Manuale utente

GE J1470S Manuale utente

Sony

Sony A6700 Guida utente

Canon

Canon EOS ELAN7 Manuale utente
