OHV30D & OHV40D

High Velocity

Chrome Desk Fans

Instruction

Manual

omega altise

Important Safety Instructions

1. Read all instructions.

2. Disconnect the power plug before dismantling, assembling or before cleaning.

3. Avoid touching mobile parts of the fan.

4. Make sure the fan is on a dry and even surface.

5. Never insert fingers, pencils or any other objects through the guards whenever

the power plug is connected, especially while running.

6. The appliance is not intended for use by young children or infirm persons unless

they have been adequately supervised by a responsible person to ensure that

they can use the appliance safely.

7. Young children or infirm persons should be supervised to ensure that they do not

play with the appliance.

8. Do not use the appliance for any other purpose than its intended use.

9. The fan must not be used if the guards are not fastened according to

instructions.

10. When the power cord is damaged, it must be replaced by the manufacturer or its

service agent or a similarly qualified person in order to avoid a hazard.

11. Do not use your appliance with an extension cord unless it has been checked

and tested by a qualified electrician or electrical supplier.

Read all instructions before using this unit. Keep them for future reference.

Specifications

Model OHV30D OHV40D Settings 3 speed

Rated Voltage 220-240V / 50Hz Fan blade size 30cm 40cm

Watts 45W 60W Tilt action Tilting fan head

Dimensions

(h x w x d) cm 58x41x30 65x48x30 Oscillation No

Controls Rotary switch Warranty 2 year replacement

omega altise

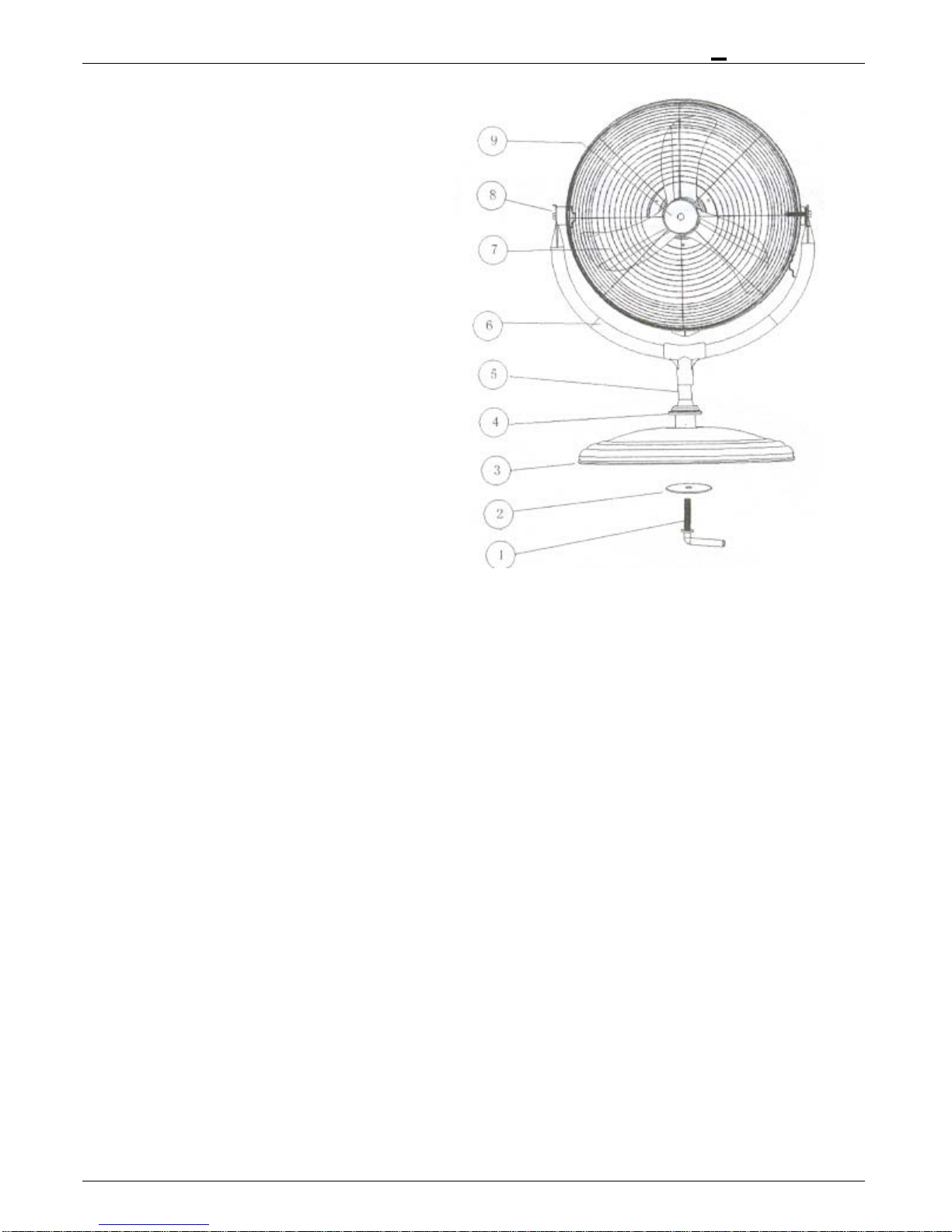

Parts List

1. L screw

2. Washer

3. Decorative base plate

4. Decorate Cap

5. Base tube

6. Fan head tube

7. Transparent blade

8. Fan head locking nut

9. Fan head

Assembly Instructions

1. Remove all items of packaging from the fan.

2. Lifting the decorative cap (4), secure the decorative base plate (3) to the base

tube (5) using the L shaped screw and large washer (1 & 2).

3. Assemble the fan head and tube (9 & 6) onto the base tube (5) and tighten the

screw knob to lock the head onto the extension tube. Do not over tighten.

Operating Instructions

1. Use in a dry place, free of excessive humidity and water.

2. To set the fan in motion turn the rotary switches at the back of the unit to the

desirable speed:

0 = OFF 1 = LOW 2 = MEDIUM 3 = HIGH

3. Turn the switch knob to OFF and unplug the power cord when the fan is not in

use.

omega altise

Fan Direction Adjustment

1. Do not attempt to make any adjustment to the direction of the grille and fan

assembly until the fan has been turned off and unplugged from the socket.

2. To adjust the direction of the fan, hold the grille and gently tilt the fan until the

desired position is reached.

3. Plug the fan back into the socket and turn the fan on.

Care and Maintenance

1. Always disconnect the cord from the electrical outlet when cleaning your fan.

2. Light accumulated dust may be removed from the fan with a soft cloth or vacuum

cleaner using the dusting brush attachment.

3. Wipe the exterior surfaces of the fan occasionally with a cloth moistened (not

dripping wet) with a mild soap solution. Dry the case thoroughly with a soft dry

cloth before operating the fan.

4. Avoid the use of gasoline, benzine, thinner etc as they may result in damage to

the fan.

5. Store the fan in a clean dry place when not in use.

CAUTION! Do not immerse the fan in water or allow water to drip into

the interior of the fan housing as this could create a fire or electric

shock hazard.

WARNING! Do not attempt to open or repair the fan yourself. Doing so

could void the warranty and cause damage or personal injury.

Omega Altise products are distributed in Australia by MEA,

(A Division of Hagemeyer Brands Australia Pty Ltd)

ABN 28 001 375 686

Locked Bag 4013, Kingsgrove NSW 2208

Phone: 1300 739 033

Fax: 1800 838 899

Email: [email protected]

Web: meaappliances.com.au
