OS100 SERIES

Mini-Infrared Transmitter

MADE IN

omega.com

e-mail: [email protected]

For latest product manuals:

omegamanual.info

User’s Guide

Shop online at

OS101

OS102

Servicing North America:

U.S.A.: One Omega Drive, P.O. Box 4047

ISO 9001 Certified Stamford, CT 06907-0047

TEL: (203) 359-1660

FAX: (203) 359-7700

e-mail: [email protected]

Canada: 976 Bergar

Laval (Quebec) H7L 5A1, Canada

TEL: (514) 856-6928

FAX: (514) 856-6886

e-mail: [email protected]

For immediate technical or application assistance:

U.S.A. and Canada: Sales Service: 1-800-826-6342/1-800-TC-OMEGA®

Customer Service: 1-800-622-2378/1-800-622-BEST®

Engineering Service: 1-800-872-9436/1-800-USA-WHEN®

Mexico: En Espan˜ol: (001) 203-359-7803

e-mail: [email protected]

FAX: (001) 203-359-7807

[email protected]

Servicing Europe:

Czech Republic: Frystatska 184, 733 01 Karviná, Czech Republic

TEL: +420 (0)59 6311899

FAX: +420 (0)59 6311114

Toll Free: 0800-1-66342

e-mail: [email protected]

Germany/Austria: Daimlerstrasse 26, D-75392 Deckenpfronn, Germany

TEL: +49 (0)7056 9398-0

FAX: +49 (0)7056 9398-29

Toll Free in Germany: 0800 639 7678

e-mail: [email protected]

United Kingdom: One Omega Drive, River Bend Technology Centre

ISO 9002 Certified Northbank, Irlam, Manchester

M44 5BD United Kingdom

TEL: +44 (0)161 777 6611

FAX: +44 (0)161 777 6622

Toll Free in United Kingdom: 0800-488-488

e-mail: [email protected]

OMEGAnet®Online Service Internet e-mail

omega.com [email protected]

It is the policy of OMEGA Engineering, Inc. to comply with all worldwide safety and EMC/EMI

regulations that apply. OMEGA is constantly pursuing certification of its products to the European New

Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification.

The information contained in this document is believed to be correct, but OMEGA accepts no liability for any

errors it contains, and reserves the right to alter specifications without notice.

WARNING: These products are not designed for use in, and should not be used for, human applications.

Table of Contents

Section ................................................................... Page

Safety Warnings and IEC Symbols ............................. iii

Caution and Safety Information .................................. iii

Section 1 Introduction .................................................................... 1-1

Section 2 Installation ...................................................................... 1-1

2.1 Unpacking and Inspection ...................................... 1-1

2.2 Electrical Connection .............................................. 2-1

Section 3 Operation ........................................................................ 3-1

3.1 Main Board ................................................................ 3-1

3.2 Ambient Temperature .............................................. 3-2

3.3 Atmospheric Quality ................................................ 3-3

3.4 Measuring Temperature .......................................... 3-3

3.5 Alarm Setting ............................................................ 3-4

3.6 Adding Extension Cable........................................... 3-4

Section 4 Laser Sight Accessory ................................................... 4-1

4.1 Warning and Cautions ............................................. 4-1

4.2 Operating the Laser Sight Accessory ..................... 4-1

Section 5 Specifications ................................................................. 5-1

5.1 General ....................................................................... 5-1

5.2 Laser Sight Accessory (OS100-LS) .......................... 5-2

Section 6 Emissivity Table ............................................................. 6-1

OS100 Series Infrared Transmitter Table of

Contents

Table of Figures

Figure Description Page

2-1 Power Supply & Analog Output Connections .......... 2-1

2-2 Alarm Output Connection ............................................ 2-1

3-1 Main PC Board ............................................................... 3-2

3-2 Sensor Housing .............................................................. 3-2

3-3 Optical Field of View ..................................................... 3-4

3-4 Setting the Temperature Engineering Unit.................. 3-4

3-5 Mounting Bracket OS100-MB ....................................... 3-5

3-6 Water Cooling Jacket, OS100-WC ................................ 3-5

3-7 Typical Water Cool Jacket Assembly ........................... 3-5

3-8 Air Purge Collar, OS100-AP .......................................... 3-6

3-9 DIN Rail Mounting Adapter, OS100-DR .................... 3-6

3-10 NEMA-4 Aluminum Enclosure .................................... 3-6

4-1 Laser Sighting Accessory, OS100-LS ............................ 4-2

4-2 Laser Warning Label ...................................................... 4-2

OS100 Series Infrared Transmitter

Table of

Figures

Safety Warnings and IEC Symbols

This device is marked with international safety and hazard symbols in

accordance with IEC 1010. It is important to read and follow all precautions and

instructions in this manual before operating or commissioning this device as it

contains important information relating to safety and EMC. Failure to follow all

safety precautions may result in injury and or damage to your calibrator.

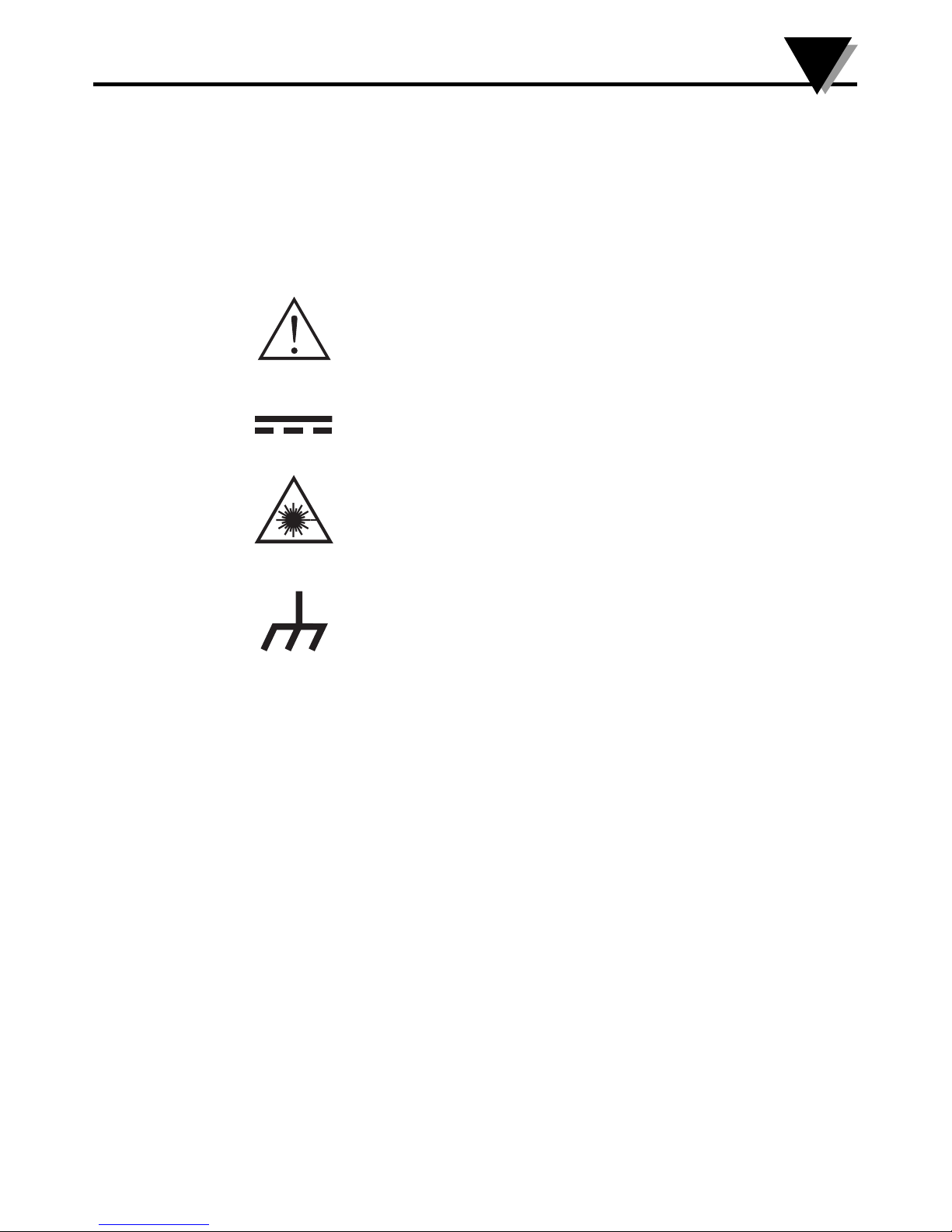

IEC symbols Description

Caution and Safety Information

• If the equipment is used in a manner not specified in this manual, the

protection provided by the equipment may be impaired.

• The installation category is one (1).

• There are no user replaceable fuses in this product

• The output terminals of this product are for use with equipment (digital

meters, chart recorders, etc,) which have no accessible five parts. Such

equipment should comply with all the applicable safety requirements.

• Do not operate the equipment in flammable or explosive environments.

• All connections to the thermometer should be made via a shielded

cable, 24 AWG stranded wire with the following ratings: 300V, 105°C

(221°F), PVC insulation.

• Power must be disconnected before making any electrical connections.

• The power supply used to power the thermometer should be VDE or

UL approved with the following ratings: 12 to 24vdc @150mA with

overload protection of 500mA.

OS100 Series

iii

Caution, refer to accompanying

documents

Direct Current

Laser Symbol

Frame or Chassis

NOTES:

OS100 Series

Section 1 - Introduction

The low cost OS101 mini-infrared transmitter provides non-contact

temperature measurement for industrial applications. The unit measures a

temperature range of -18 to 538°C (0-1000°F) and provides a linear analog

output of either 4-20 mA, 0-5 VDC, K type TC, 1 mV/°C, or 1 mV/°F.

The new OS102 mini-infrared transmitter has all the functions of OS101

plus a built-in LED display that shows the measured temperature in

degrees F or degrees C which is switchable in the field.

The miniature sensor head design 2.5 cm dia. x 6.3 cm Length (1" x 2.5") is

ideal for measuring temperature in confined, and hard to reach places.

The aluminum sensor head as well as the rugged electronic housing (Die

cast Aluminum) are NEMA-4 rated.

The sensor head is connected to the electronic housing via a 1.82 m (6 feet)

shielded cable as standard. The unit provides field adjustable alarm

output.

Section 2 - Installation

2.1 Unpacking

Remove the packing list and verify that you have received all your

equipment. If you have any questions about the shipment, please call

Customer Service at:

1-800-622-2378 or 203-359-1660. We can also be reached on the internet:

omega.com e-mail: [email protected]

When you receive the shipment, inspect the container and equipment for

any signs of damage. Note any evidence of rough handling in transit.

Immediately report any damage to the shipping agent.

The carrier will not honor any damage claims unless all the shipping materials are saved for

inspection. After examination and removing contents, save packing material and carton in the

event reshipment is necessary.

The following items are supplied in the box:

• The infrared transmitter including the sensor head and the 1.82 m

(6 feet) shielded cable

• User's Manual

• Mounting Nut

OS100 Series - Introduction 1

1-1

NOTE:

OS100 Series - Installation

The following describes the ordering information:

OS102 or OS101 - MA - *, **, where

The following optional accessories are available:

Here are the Features of OS101 and OS102 infrared transmitters:

2.2 Electrical Connection

Sensor Head Cable - The Sensor head is pre-wired to a 1.8 m (6 feet)

shielded cable. Plug & lock-in the male connector to the mating female

connector on the aluminum housing.

Power & Output Connection - Open the cover of the main aluminum

housing. Slide the cable through the strain relief and connect the wires to

the terminal block on the board as shown in Fig. 2-1. For Alarm output

connection, refer to Fig. 2-2.

2-1

Model No. Description

OS100-MB Mounting Bracket

OS100-DR DIN Rail Mounting adapter

OS100-WC Water Cooling jacket

OS100-AP Air purge collar

OS100-LS Laser Sighting

OS100-CA15FT Sensor Head Extension Cable (4.6 m, 15")

OS100-CA25FT Sensor Head Extension Cable (7.6 m, 25')

TX8-100 8 Conductor stranded Shielded cable (30 m, 100')

PSU-93 Unregulated 16-24 VDC Power Supply

CAL3-IR NIST Traceable Calibration

Features OS101 OS102

Accuracy 2% Rdg or 4°F (2.2°C)

Temp Range 0-1000°F (-18 to 538°C)

Emissivity 0.1 to 0.99 Adj.

Field of View 6 to 1

Alarm Output Standard

1mV/Deg. Output Standard

4-20mA Output Standard

0/5 VDC Output Standard

K Type T/C Std. ––

LED Display –– Std.

Main Housing 65.5 x 30.5 x 115.3 mm 65.5 x 55.9 x 115.3 mm

(2.58" x 1.2" x 4.54") 2.58" x 2.2" x 4.54"

MA - 4/20 mA output

V1 - 0 to 5 VDC output

K - Thermocouple output, K type

MV - Millivolt output

C - 1 mV/°C output

F - 1 mV/°F output

HT- High

temperature

sensor head

OS100 Series - Operation 3

3-1

Figure 2-1. Power Supply & Analog Output Connections

Figure 2-2. Alarm Output Connection

Section 3 - Operation

3-1 Main Board

The Main Board is shown in Fig. 3-1. Here are the important components

on the board:

(1) - Terminal Block for Power & Output connections

(2) - Single Turn Potentiometer to adjust Emissivity in tenths (0.x_)

(3) - Single Turn Potentiometer to adjust Emissivity in hundreds (0._x)

(4) - Slide switch to select between real time (Normal Operation) and alarm

set point

(5) - Alarm set point adjust, P4

(6) - Sensor Head connection

(7) - Input Zero adjust, P3

(8) - Input Span adjust, P2

(9) - Output Zero adjust, P5

(10) - Output Span adjust, P6

ANALOG

OUTPUTS

4/20mA

1mV/Deg

0-5VDC

T/C

POWER

SUPPLY

12-24VDC

CHASSIS 6

5-24VDC+

CHASSIS

POWER

SUPPLY

12-24VDC

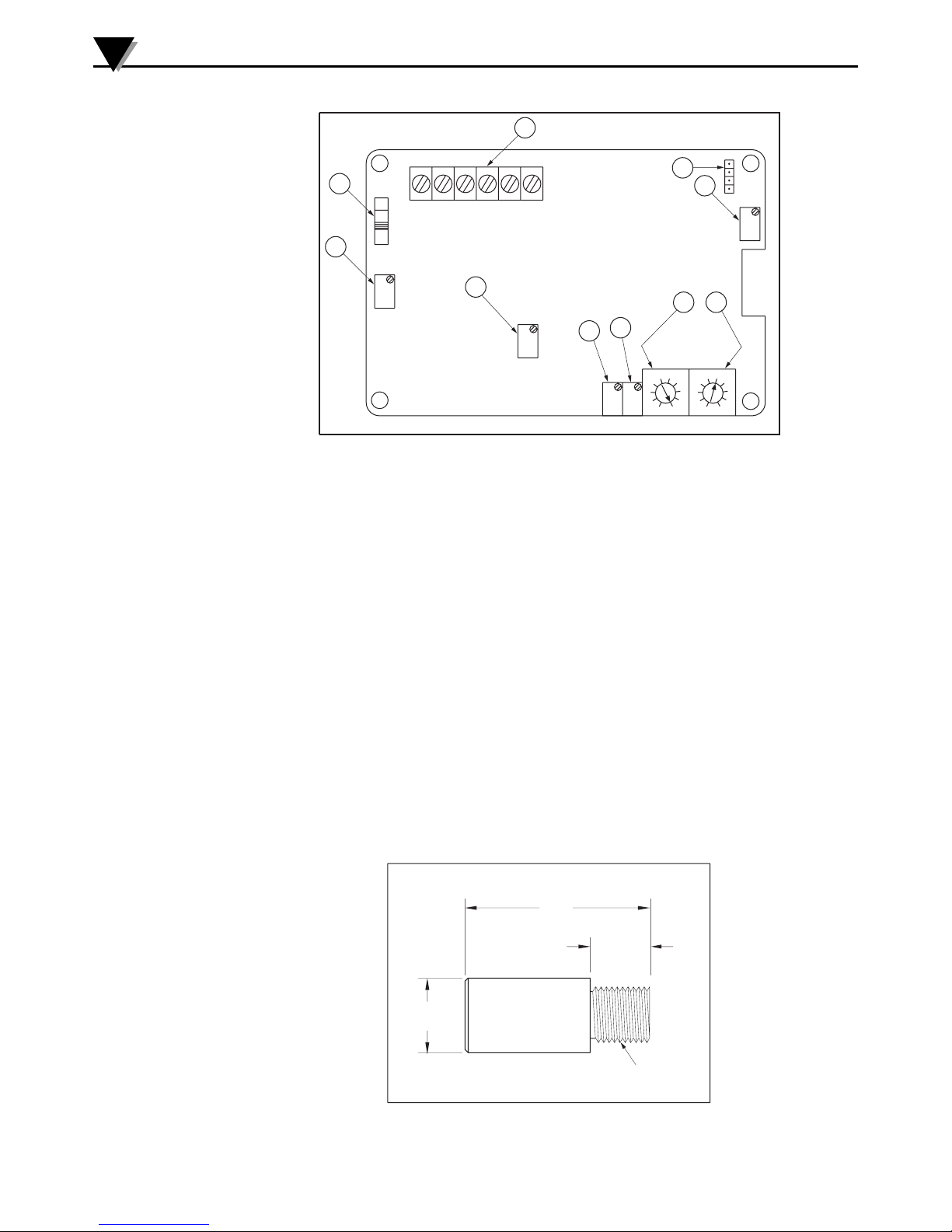

Figure 3-1. Main PC Board

3.2 Ambient Temperature

The Sensing head can operate in an ambient temperature of 0 to 70°C (32

to 158°F). The Sensing head in the high temperature model (-HT) can

operate in an ambient temperature of 0 to 85°C (32 to 185°F) without any

cooling required. The Sensing head can operate up to 200°C (392°F) using

the water cool jacket accessory OS100-WC (See Fig. 3-6).

There is a warm up period of 3 minutes after power up. After the warm

up period, temperature measurement can be made.

When the ambient temperature around the sensor head changes abruptly,

the sensor head goes through thermal shock. It takes a certain amount of

time for the sensor head to stabilize to the new ambient temperature. For

example, it takes about 30 minutes for the sensor head to stabilize going

from 25°C to 50°C (77 to 122°F) ambient temperature.

The sensor head dimensions are shown in Fig. 3-2.

Figure 3-2. Sensor Housing

OS100 Series - Operation

3-2

3/4-16 UNF

(1.0)

(0.8)

63.5

(2.5)

Dimensions mm (in.)

SW1 P6

P2P3

REAL

TIME

E=0.95

ALARM

ADJUST

ALARM

109

Altri manuali per OS101

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Omega Trasmettitore

Omega

Omega ZW Series Manuale utente

Omega

Omega UWBT Series Manuale utente

Omega

Omega HX93B Series Manuale utente

Omega

Omega LVU800 Series Manuale utente

Omega

Omega EWS-RH Manuale utente

Omega

Omega UWPC-2-NEMA Manuale utente

Omega

Omega LVU2800 Series Manuale utente

Omega

Omega DRST-CM Manuale utente

Omega

Omega PX880 and PX881 Manuale utente

Omega

Omega LVU800 Series Manuale utente

Omega

Omega XW-ED Manuale utente

Omega

Omega FMA1001A series Manuale utente

Omega

Omega OS137 SERIES Manuale utente

Omega

Omega DRST-UR Manuale utente

Omega

Omega FMG-1000-MAW Manuale utente

Omega

Omega EWS-BP-A Manuale utente

Omega

Omega TX94A Manuale utente

Omega

Omega TX93 Manuale utente

Omega

Omega TX787 Manuale utente

Omega

Omega OM-CP-RF Series Manuale utente

Omega

Omega TX90A Series Manuale utente

Omega

Omega UWTC Series Manuale utente

Omega

Omega W Series Manuale utente

Omega

Omega CDTX-90 Series Manuale utente

Manuali Trasmettitore popolari di altre marche

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manuale del proprietario

Honeywell

Honeywell 5816WMBR Manuale utente

Kamstrup

Kamstrup READy MTU Istruzioni operative

ABB

ABB Field 264H Guida

Alinco

Alinco DJ-V17T Manuale utente

Dejero

Dejero EnGo 3x Manuale utente

Rosemount

Rosemount 4600 Manuale utente

Speaka Professional

Speaka Professional 2342740 Manuale utente

trubomat

trubomat GAB 1000 Manuale utente

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manuale utente

Rondish

Rondish UT-11 Manuale utente

MG 10JRE Manuale utente

Burkert

Burkert 8177 Manuale utente

Firetide

Firetide HotPort 3203 Manuale

Tele Radio

Tele Radio T9-02 Manuale utente

Rotronic

Rotronic HygroFlex HF3 Series Manuale utente

Jamara

Jamara FCX6 Pro Tel Manuale utente

Excalibur

Excalibur SoundMaster FM Transmitter 144 Manuale utente
