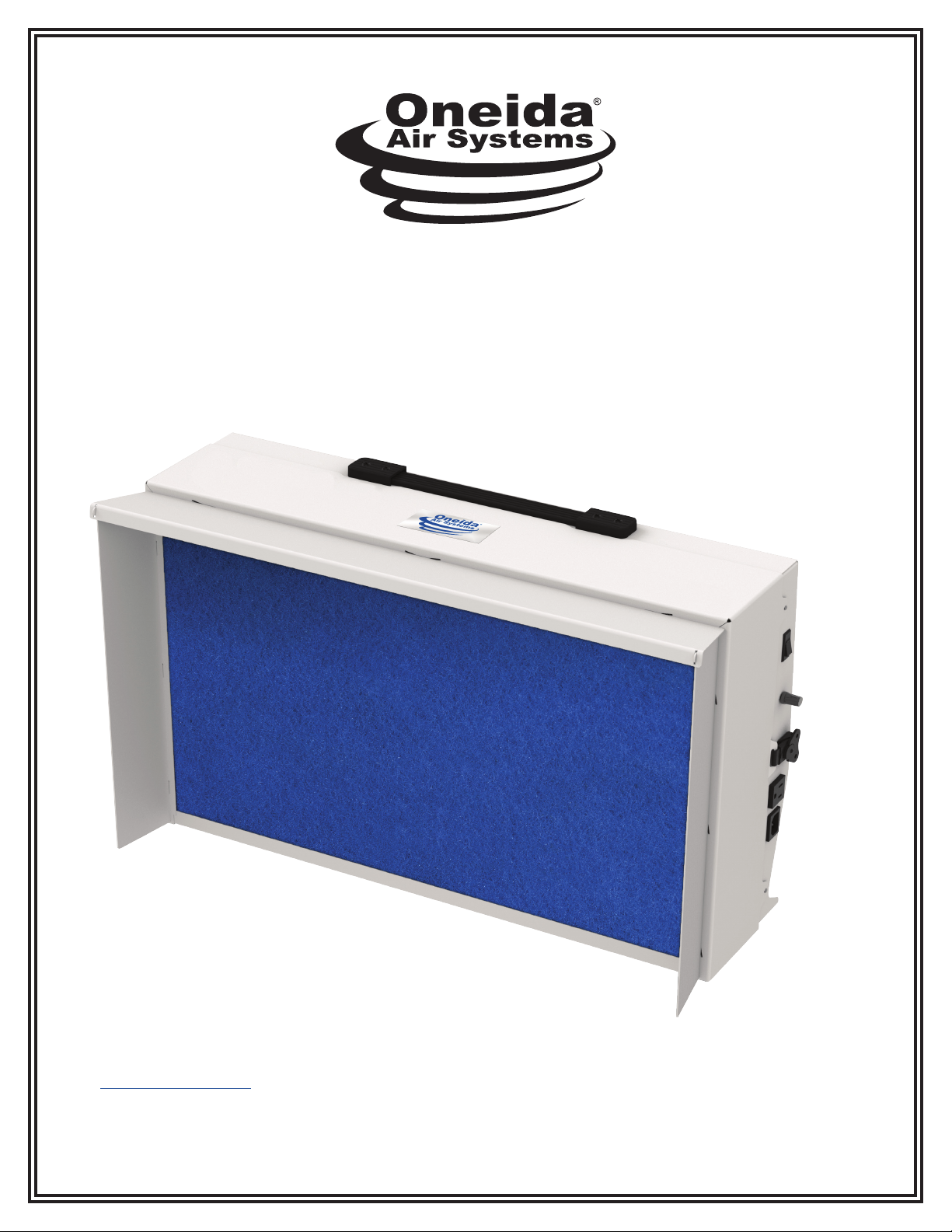

Oneida Air Systems BenchTop Manuale utente

BenchTop

Personal Dust Collector

#XBZ000100

Rev: B 20230428LL Doc. #ZBM000041

Appearance may vary slightly

OWNER’S MANUAL

Patents: www.oneida-air.com/patents

oneida-air.com 1

Table of Contents

System Specications 6

System Dimensions 7

System Contents 8

Assembly Instructions 9

BenchTop Features 12

Maintenance 13

Troubleshooting 15

F.A.Q. 16

Recommended Accessories 17

Warranty Information 19

Notes 20

Oneida Air Systems, Inc.2

System Start-Up Information

 WARNING 

1. READ and understand ALL instructions and warning labels BEFORE using the dust collector.

2. REPLACE warning labels if they become obscured or removed.

3. ALWAYS follow all applicable federal, state, local, OSHA, NFPA, or authorities having jurisdiction codes and

regulations when installing and operating this dust collector.

4. ENSURE that all users of this Dust Collector are informed of all warnings and precautions, safe use, and

maintenance procedures.

5. FULL mental alertness is required. NEVER operate under the inuence of drugs or alcohol, when tired, or

when distracted.

6. DO NOT allow use by or near children.

7. DO NOT allow to be used as a toy. Close attention is necessary when used by or near children.

8. NEVER leave the dust collector running while unattended.

9. TURN OFF and UNPLUG the dust collector BEFORE walking away, servicing, or cleaning. Allow the fan

blower motor to come to a COMPLETE STOP before walking away or performing any maintenance, service,

cleaning, or adjustments. is eliminates the risk of injury from unintended startup or contact with live

electrical components.

10. ENSURE that your dust collector is turned OFF and UNPLUGGED during installation. is eliminates the

risk of injury from unintended startup or contact with live electrical components.

11. ONLY use the dust collector for its intended purpose as described in this manual. DO NOT force it or

an attachment to do a job for which it was not designed. Consult this owner’s manual or reach out for

recommended accessories.

12. ENSURE enough air volume is at the suction point to capture all the particulate generated.

13. NEVER make modications without prior approval from Oneida Air Systems. Modifying the dust collector

or using it dierently than intended will void the warranty and may result in malfunction or mechanical

failure that leads to serious personal injury or death!

14. DO NOT locate or operate the system in moist, wet, poorly lit, or cluttered environments. Operating in these

areas can create shock hazards, increase the risks of accidents and injury, and/or lower the operating lifespan

Before Purchasing or installing a dust collection system the process owners/operators

are cautioned to do so in accordance with prescribed Federal, State, Local, OSHA, NFPA,

and any other applicable codes or regulations relating to the type of dust(s) you are

collecting.

This manual contains specific precautionary statements relative to worker safety. Read

thoroughly and comply as directed. The most up to date safety information can be found

on our website: oneida-air.com/safety

oneida-air.com 3

System Start-Up Information (Continued)

of the dust collector.

15. DO NOT install in classied hazardous atmospheres without an enclosure rated for the application. System

Location must account for wind, seismic zone, and other load conditions. Codes may regulate acceptable

locations for installing dust collectors. Consult with the appropriate authorities having jurisdiction to ensure

compliance with all national and local codes regarding dust collector installation. Equipment must be

anchored in a manner consistent with local code requirements. Anchors must be sucient to support dead,

live, seismic, and other anticipated loads. Consult a qualied engineer for nal selection of anchorage.

16. ENSURE exhaust air is properly vented. It should NOT be vented into a wall, a ceiling, or a concealed space

of a building. Personal injury, death, and/or property damage can result from material discharge during

venting. e risk of personal injury and/or property damage can be minimized or avoided by locating vented

equipment outside buildings and away from normally occupied areas. If exhaust air is vented outside, you

must provide make up / return air. Flue gases (carbon monoxide) can be drawn into the shop from furnaces,

water heaters, or other appliances

17. INSPECT and MAINTAIN REGULARLY. Keep the dust collector in proper working order. A machine that

isn’t properly maintained, not working as it should, has been dropped, damaged, le outdoors, or dropped in

water could malfunction leading to serious personal injury or death!

18. AVOID CORD DAMAGE. DO NOT pull or carry by cord. DO NOT use cord as handle. DO NOT unplug

by pulling on cord. To unplug, grab the plug, DO NOT close door on cord or pull cord around sharp edges or

corners. DO NOT run dust collector over cord. DO NOT handle cord/plug with wet hands. Keep cord away

from heated surfaces.

19. ALWAYS check for damaged parts. A part that is damaged should be carefully checked to determine that

it will operate properly and perform its intended function. Immediately repair or replace damaged or mis-

adjusted parts before operating machine.

20. DO NOT put any object in openings. DO NOT use with any opening blocked.

21. ALWAYS wear a NIOSH approved respirator during operation. Some dust created by power sanding, sawing,

grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects

or other long-term respiratory damage

22. ALWAYS keep hair, loose clothing, ngers, and all parts of body AWAY from openings and moving parts.

23. ALWAYS wear ANSI-approved safety glasses or a face shield when operating or observing machinery and

when emptying dust bin.

24. ALWAYS wear hearing protection during extended periods of operation.

Oneida Air Systems, Inc.4

System Start-Up Information (Continued)

1. THIS UNIT IS NOT RATED FOR USE IN COMBUSTIBLE ENVIRONMENTS.

2. DO NOT operate the dust collector in areas where explosion risks are high. Areas of high risk include, but

are not limited to, areas near pilot lights, open ames, or other ignition sources.

3. ONLY operate dust collector in locations that include a re suppression system or have a re extinguisher

available nearby.

a. e ABC type (dry chemical) is generally a good choice for small wood shops.

b. Additional information on portable extinguishers can be found in NFPA 10 (Standard for Portable Fire

Extinguishers).

4. DO NOT allow accumulation of layers of ne dust on horizontal surfaces. Especially overhead lights,

electrical boxes and fuse panels which can ignite dust. Keep the oor around the system clean and free of

scrap material, oil, grease.

5. ENSURE all equipment and ductwork is electrically grounded.

6. ALWAYS consult an electrician or qualied service personnel about wiring practices and electrical codes

in your area. ONLY allow an electrician or qualied service personnel to do electrical installation or repair

work.

7. ALWAYS disconnect power before accessing or exposing electrical equipment. Improper wiring can cause

re, electrocution, injury, or death.

8. DO NOT use to pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

9. DO NOT use to pick up liquids, ammable liquids, or combustible liquids, such as gasoline, or use in areas

where they may be present.

10. DO NOT use to pick up VOCs, acids, corrosives, or ammable fumes.

11. DO NOT use excessively large wood waste bins. Wood dust mixtures are highly ammable and can be

explosive

 FIRE HAZARDS 

Process owners/operators retain all responsibility for the suitability of fire and explosion

hazard mitigation, suppression, and isolation strategies and to follow all applicable

federal, state, local, OSHA, NFPA, or authorities having jurisdiction codes and regulations

when installing and operating this dust collector.

Improper operation of a dust control system may contribute to conditions in the work

area or facility that could result in severe personal injury and product or property

damage.

Oneida Air Systems assumes no responsibility or liability for the suitability of any fire and/

or explosion mitigation strategy, or any items incorporated into a collector as part of an

owner/operators hazard mitigation strategy.

oneida-air.com 5

Customer Service Dept.

1-866-387-8822 • support@oneida-air.com

System Start-Up Information (Continued)

12. ALWAYS check your dust bin for smoldering materials before leaving the shop.

13. NEVER introduce sparks or sources of ignition into the dust collector. Sparks can be generated in several

ways:

a. High speed sanders, abrasive planers, saws, and edgers may strike foreign material and create a red-hot

metal fragment.

b. Knots in hardwood can create frictional sparks.

c. Trapped metal, when drawn into the dust collection system, can spark against ductwork.

d. Check wood stock for old nails and screws which can create red-hot metal fragments.

14. DO NOT overload woodworking equipment, especially sanders, as excessive frictional heat can

spontaneously ignite dust. Sanders can produce concentrations of dust well into the combustible range.

15. ALWAYS check that all dust collection equipment is properly selected and sized for the intended use.

Authorities with jurisdiction should be consulted before installing to verify local codes and installation

procedures. In the absence of such codes, install collector according to the National Electric Code, NFPA No.

70-latest edition and NFPA 91, NFPA664 Code (NFPA 654 if combustible dust is present).

Oneida Air Systems, Inc.6

System Specications

OPERATION

Airow Variable Speed 0 - 481 CFM

Horsepower 0.3HP

Phase Single-Phase

Voltage 110V

Cycle 60HZ

Amperage Draw 3A

On/O Switch Analog Variable Speed Control

Power Cord Length 6'

Plug Type NEMA 5-15P

Noise Level 62.5 to 74 dBA

SYSTEM DIMENSIONS AND CONSTRUCTION

Primary Build Materials Cold Rolled Steel with a powder-coated nish

Overall Weight 20 lbs

Pre-Filter Dimensions 16 x 24-1/4 x 1/2"

Main Filter Dimensions 16 x 25 x 3"

Outer Filtration / Material MERV 5 / Polyester

Main Filter Filtration / Material MERV 15 / Synthetic

oneida-air.com 7

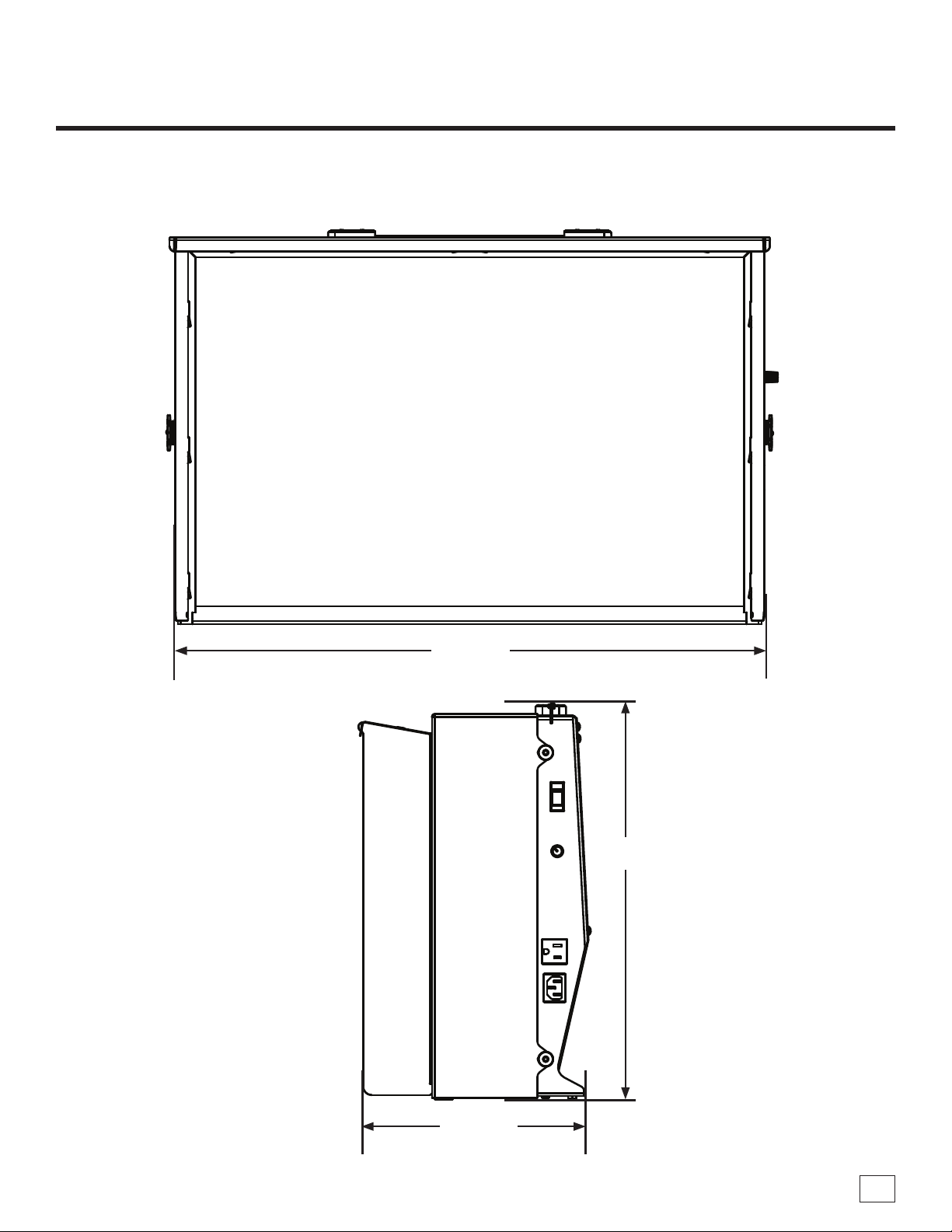

System Dimensions

Nominal dimensions shown. Dimensions subject to slight variations in manufacturing.

16-1/2"

419 mm

9-3/4"

248 mm

25-1/2"

648 mm

Oneida Air Systems, Inc.8

J KI

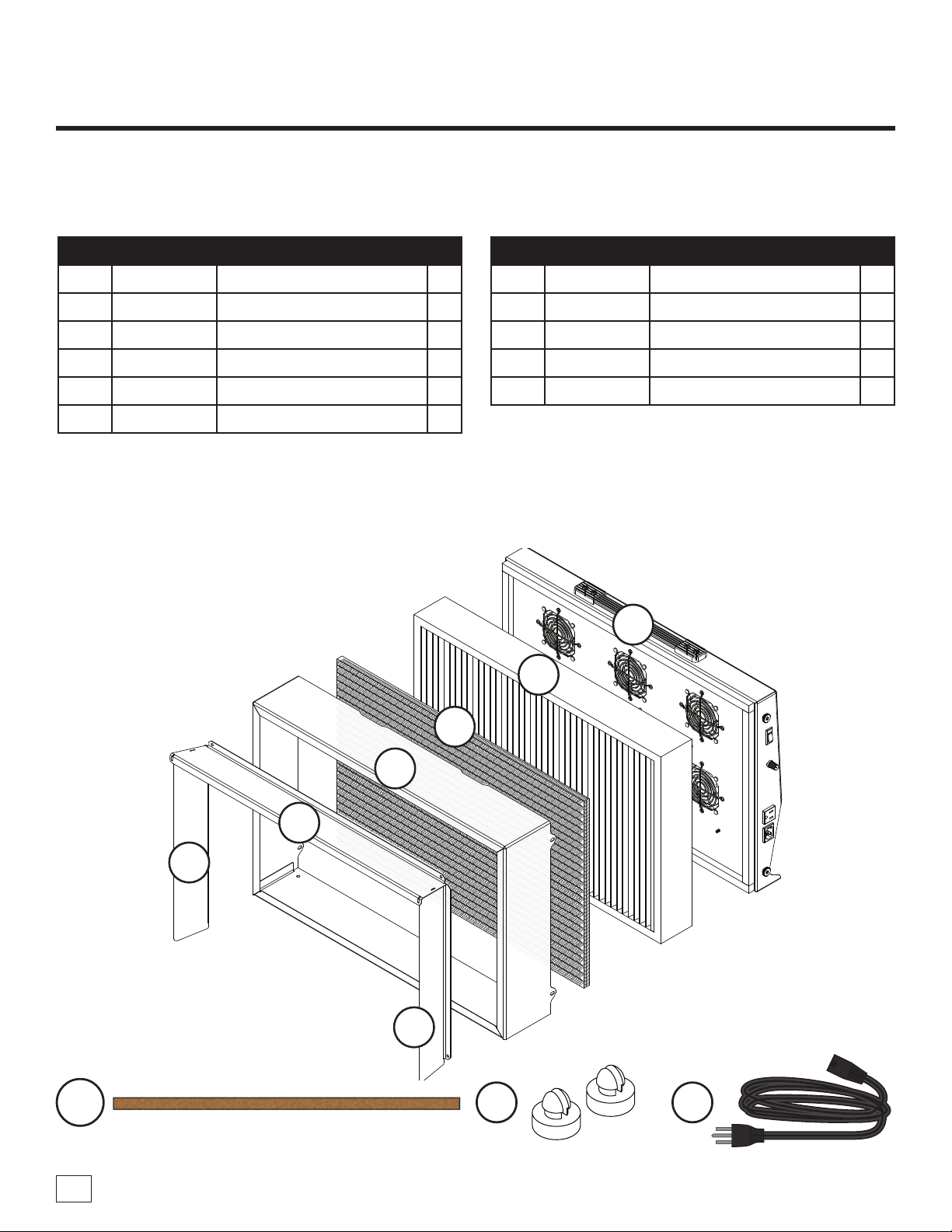

System Contents

Please unpack the parts carefully and conrm you have received each item listed here.

*Components are pre-installed at the factory and are listed here for maintenance and convenience. e pre-installed

components will be referred to as the BenchTop Assembly (A).

ID Part number Part description Qty

A XBZ000100 BenchTop Assembly 1

B* BTB000100 Fan Assembly 1

C* FCS162503 Main Filter 1

D* FCS000001 Pre-Filter 1

E* RBB000100 Frame Assembly 1

F BTV000001 Left Vane 1

ID Part number Part description Qty

G BTV000003 Top Vane 1

H BTV000002 Right Vane 1

I* RGC062524 24" Cork Strip 1

J* STX000351 Nylon Foot 2

K WCW000007 AC Cord 1

If you cannot find an item on the list, examine the packaging materials very carefully for nested items. Please

note that certain components have been pre-installed. There may be hardware leftover.
