AS-1E –Assembly Instruction Manual–

•Have a Phillips screw driver (large or medium) avail-

able.

• Assemble the product on a carpet or mat so that the

ﬂoor and/or the stand will not become scratched or

damaged.

•Before starting assembly, make sure that you have all

the parts by referred to in the parts list and assembly

diagram.

•Be careful not to scratch the speaker when you install

the speaker on the speaker stand.

Product weight: 15.9 lbs (per unit)

Static live load capacity: 44 lbs or less;

* Do not exceed this limit.

* This illustration shows a single unit.

Thank you for purchasing an Onkyo product!

• This instruction manual describes how to assemble and use the speaker stand and provides precautionary infor-

mation.

• Be sure to read this manual BEFORE you assemble the stand to ensure proper use of the product.

• Store this manual in a safe place for future reference to help extend the useful life of the product.

• Onkyo cannot guarantee product quality unless you follow the instructions in the manual to assemble the stand.

Precautions before unit assembly

Dimensions

4-15/16"

11-5/16" 16-1/4"

23"

22"

Package contents

Finished assembly

• Spike • Screws for additional

top panel

• Speaker afﬁxing screw • Teﬂon washer

AS-1E.fm Page 1 Thursday, July 20, 2006 10:40 AM

SN 29344352

I0607-1

(C) Copyright 2006 ONKYO CORPORATION Japan. All rights reserved.

* 2 9 3 4 4 3 5 2 *

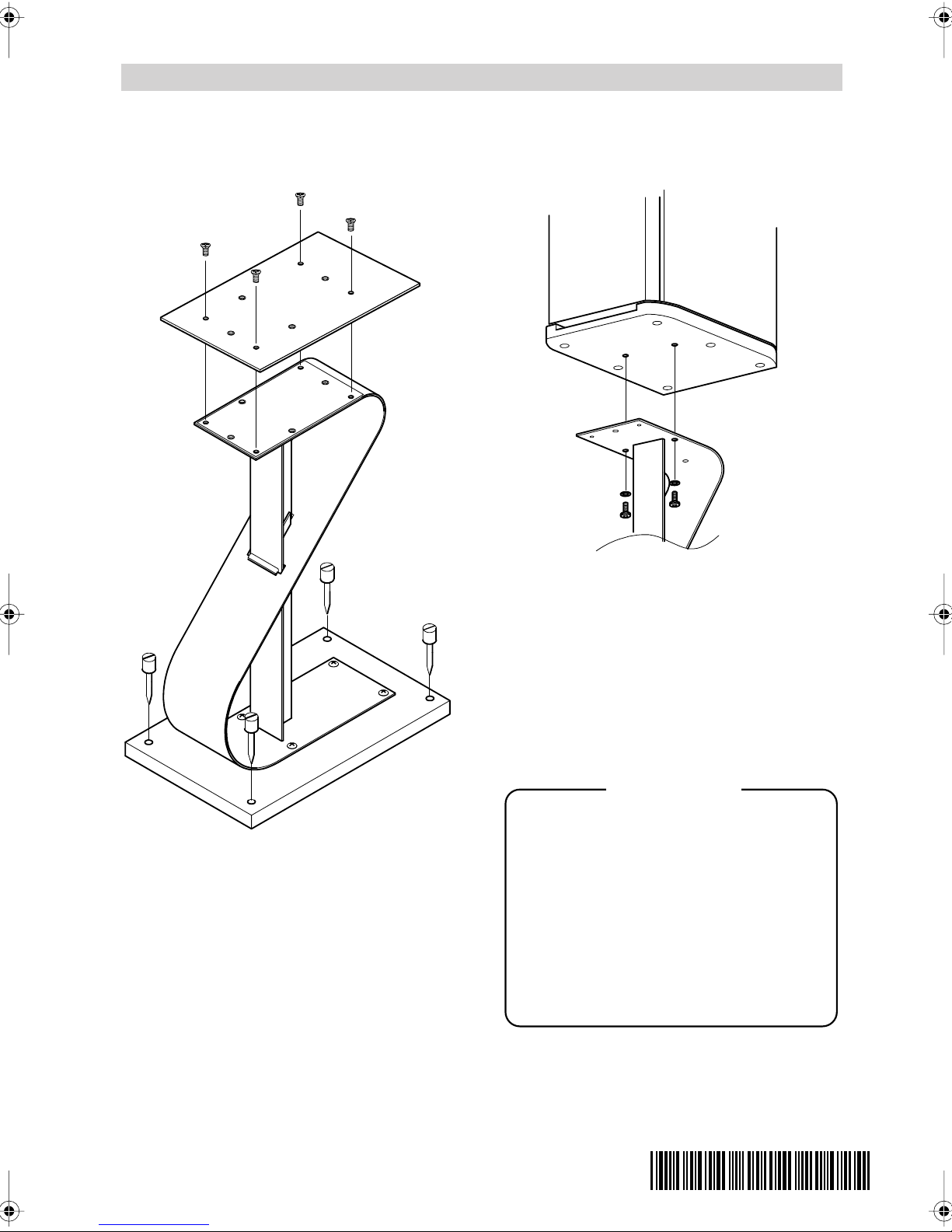

Attach the additional top panel to the original

top panel by inserting and tightening the addi-

tional top panel screws in the appropriate screw

holes in accordance with the size of the speaker.

Insert the spikes into the spike holes in the base.

Onkyo recommends that you use the included

spikes for improved sound quality. However, be

aware that spikes may leave scratches or traces on

a wooden ﬂoor.

Secure the D-312E speaker to the stand.

Use the speaker afﬁxing screws and teﬂon washers

to install and secure the speaker to the stand, as

shown in the illustration.

Assembling the speaker stand

Maintenance

To keep the stand clean, occasionally wipe off

dust using a soft dry cloth.

To remove dirt, dilute a neutral detergent (e.g., a

6-to-1 water/detergent solution). Lightly dampen

a cloth using the diluted detergent solution, then

wipe off the dirt. Then, wipe off any detergent

from the surface using a water-soaked cloth.

Finally, wipe the surface using a soft dry cloth.

Do NOT use alcohol or a thinner solvent or allow

the surface to remain wet. Otherwise, the stand

may be deformed or discolored.

AS-1E.fm Page 2 Thursday, July 20, 2006 10:40 AM
