Opticon OPH1000 Manuale utente

GRAPHICAL DEMO APPLICATION FOR OPH1000 OPTICON

Graphical Demo Application

Manual

Version XFA30920

for OPH1000

(For Operating System versions XBAV0104 or higher)

GRAPHICAL DEMO APPLICATION FOR OPH1000 OPTICON

CAUTION: This user’s manual may be revised or withdrawn at any time without prior notice.

Version

User’s manual for Graphical demo application

Model: OPH1000

Version: XFA30920

Operating System (OS) version: XBAV0104 or higher

February 2007

Limited warranty and disclaimers

By opening the package of this product you agree to become bound by the liability and warranty

conditions as described below.

Under all circumstances this manual should be read attentively, before installing and or using the

product. In no event,

Opticon Sensors Europe will be liable for any direct, indirect, consequential or incidental damages

arising out of use or inability to use both the hardware and software, even if Opticon has been informed

about the possibility of such damages.

All Opticon products are warranted for a period of one year after purchase, covering defects in physical

media and physical documentation. The liability of Opticon is limited to replacement of defective media

or documentation.

Opticon will not be liable for modifications that are made by the customer. Opticon does not warrant that

the software is free of errors, or that it will meet any user’s particular standards, requirements, or needs.

Opticon will in no event be liable for any direct, indirect or incidental damages arising out of use of this

software.

Trademarks used are property of their respective owners.

TABLE OF CONTENTS - 3

GRAPHICAL DEMO APPLICATION FOR OPH1000 OPTICON

Table of contents

TABLE OF CONTENTS 3

1. KEYS 4

2. THE MENU STRUCTURE 5

2.1 Scan Labels 6

2.2 Scroll data 7

2.3 Transmit Data 8

2.4 Delete Database 9

2.5 System Menu 10

2.6 Version 16

3. DATA FORMAT 17

GRAPHICAL DEMO APPLICATION - PAGE 4

GRAPHICAL DEMO APPLICATION FOR OPH1000 OPTICON

1. Keys

The OPH1000 has full alphanumeric keypad with some additional control keys

including the following:

The Q1 key (Up key) or left key (with shift)

The Trigger key.

The Q2 key (Down key) or right key (with shift)

While holding the shift key and pressing a

numeric key the alpha representative value is

displayed on the screen.

GRAPHICAL DEMO APPLICATION - PAGE 5

GRAPHICAL DEMO APPLICATION FOR OPH1000 OPTICON

2. The Menu Structure

The menu structure consists of several items. These items together form the

main and submenus. You may use the (Q1) and (Q2) keys to

navigate through the menu and items may be selected by pressing the ENT or

the (Trigger) button. Direct selection of the menu is also possible by

pressing the numeric equivalent of the menu item.

Below is the schematic representation of the OPH1000 menu.

•1 Scan Labels

•2 Scroll Database

•3 Transmit Data

•4 Delete Database

•5 System Menu

•i. Com Port

•1. Port

•2. Baudrate

•3. Parity

•4. Databits

•5. Stopbits

•ii. Protocol

•iii. Display

•iv. Barcodes

•v. Memory

•vi. Drive

•6 Version

GRAPHICAL DEMO APPLICATION - PAGE 6

GRAPHICAL DEMO APPLICATION FOR OPH1000 OPTICON

2.1 Scan Labels

Scan Labels

By pressing the trigger button the laser line emits and

it is possible to scan a barcode.

Barcode can now be scanned be pressing the trigger

button. You may also use the keypad to enter code.

To enter alpha data, hold the (Shift) button while

pressing any of the numeric keys. To enter the input

data press the (ENT) or (Trigger) keys.

To return to the main menu, press the (CLR)

key.

The data entered now appears on the display.

Total indicates the current quantity in the database. If

the entered data does not exist in the database yet,

the total is 0.

By default, you are adding 1 to the total. You may

overwrite the default value with any number that is 4

digits or less.

To input a negative value, keep the (Shift)

pressed and press the (0). To make a negative

value positive, repeat the same process.

To enter the input press the (ENT) or

(Trigger) keys.

If the Total + Add quantity is 0 (zero) the record is

deleted from the database.

GRAPHICAL DEMO APPLICATION - PAGE 7

GRAPHICAL DEMO APPLICATION FOR OPH1000 OPTICON

If the total quantity in the database plus the newly

added quantity exceeds 999999 or

–999999, then an error message appears. The added

quantity is not stored in the database.

After pressing a key the scan barcode menu appears.

After entering the quantity the application returns to

the scan barcode screen.

2.2 Scroll data

This option allows you to scroll through the database

of stored codes.

To navigate through the inputted data use the

(Q1) and (Q2) keys.

GRAPHICAL DEMO APPLICATION - PAGE 8

GRAPHICAL DEMO APPLICATION FOR OPH1000 OPTICON

2.3 Transmit Data

By selecting the Transmit Data option, the database, if

present, can be transmitted to the PC. The system will

use the settings selected in the System Menu.

The communication parameters include:

Protocol: Default = NetO Protocol

Port: Default = Cradle

Baudrate: Default = 115200

Parity: Default = None

Databits: Default = 8

Stopbits: Default = 1

When the transmit data message appears on the

display put the OPH1000 in the cradle. You must run

an application to receive the data on the PC

Following a transmission, a message appears to

inform you whether is was successful or not.

If you receive an error message, check your settings,

ensure the PC application is running and ready to

receive, then try to transmit the database again.

GRAPHICAL DEMO APPLICATION - PAGE 9

GRAPHICAL DEMO APPLICATION FOR OPH1000 OPTICON

2.4 Delete Database

You may select this menu item if you wish to delete

the entire database from the OPH1000

You are then asked to confirm your choice. You can

now press (ENT) to delete the database or

(CLR) to cancel and return to the previous

screen.

When cancel is selected the database is not removed

from the RAM disk.

GRAPHICAL DEMO APPLICATION - PAGE 10

GRAPHICAL DEMO APPLICATION FOR OPH1000 OPTICON

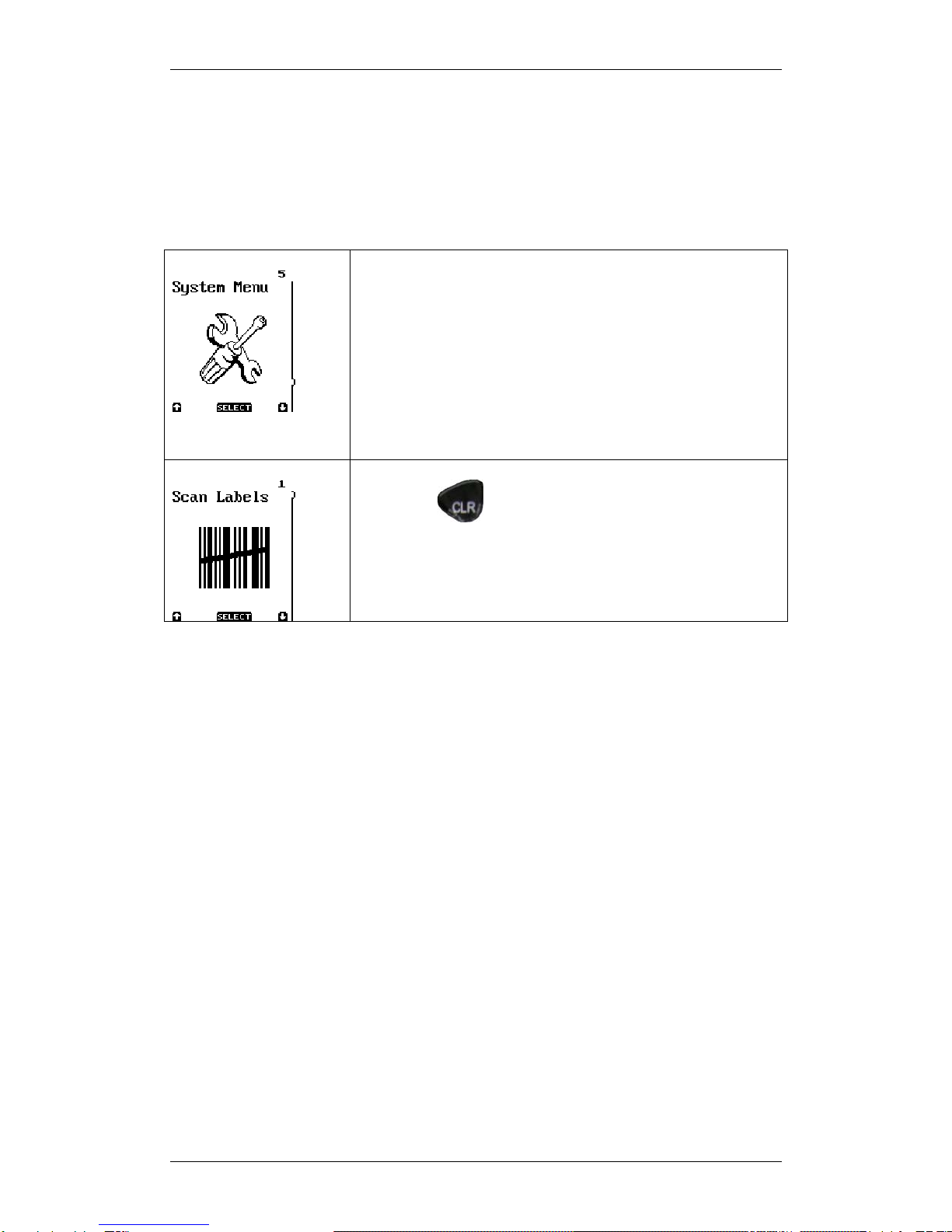

2.5 System Menu

The System menu contains a submenu where special terminal options can be

viewed or set. The navigation of this menu behaves the same as the main

menu.

The system menu consist of 6 items:

•Com Port

•Protocol

•Display

•Barcodes

•Memory

•Drive

When the (CLR) button is selected, the

application returns to the main menu.
