ANALOGUE QUARTZ WATCH

<UU(KHA), UW(KUA)>

INSTRUCTION MANUAL

Thank you for choosing our product. To ensure prolonged use and optimum

performance, please read this instruction manual carefully and familiarize

your-self with the terms of the guarantee.

Please keep this Instruction Manual handy for future reference.

SAFETY PRECAUTIONS

Make absolutely sure to observe the demarcated contents indicated below to

prevent any possible physical danger and property damage to you as well as

other people concerned.

... A demarcation with this symbol represents the contents

assuming possibility for death or serious injury

when the product is used in any manner different from

given instructions.

... A demarcation with this symbol represents the contents

assuming possibility of causing human injury or

material damage only when a product is used in any

manner different from given instructions.

WARNING

CAUTION

ENGLISH

IN HANDLING THE WATCH

(1) Water-resistance

Conditions

of use

Type

Underwater

operation of

crown and

operation

of crown

with drops

of water

on it

Exposure

to small

amounts

of water

(face-

washing,

rain, etc.)

Water sports

(swimming,

etc.),

frequent

contact with

water (car-

washing,

etc.)

Skin diving

(air tanks

are not

used)

Scuba

diving

(air tanks

are used)

Mixed-gas

Diving

(using

helium

gas)

Non water resistant

Without

WATER

RESISTANT

(WATER

RESIST)

××××××

Water

resistant

watches

Water

resistant for

daily life

WATER

RESISTANT

(WATER

RESIST) ×× × × ×

Reinforced

water

resistance

for daily

life I

WATER

RESISTANT

(WATER

RESIST)

50m (5bar)

×  × × ×

Reinforced

water

resistance

for daily

life II

WATER

RESISTANT

(WATER

RESIST)

100m (10bar)

200m (20bar)

×× ×

Diver’s

watches

Diver’s

watch for Air

Diving

AIR DIVER’S

100m / 150m

200m ×    ×

Diver’s

watch for

Mixed-gas

Diving

He-GAS

DIVER’S

200m / 300m /...

×

* It is recommended that you use the watch correctly following the above-mentioned scope of usage

after ascertaining water resistance precautions marked on the dial or caseback.

ENGLISH

1A watch with water resistance for daily life 30m (3 bar) can be used during

face-washing, etc. but cannot be used in an environment in which it will be

submerged in water.

2A watch with reinforced water resistance for daily life I 50m (5 bar) can be

used while swimming, etc. but cannot be used during any type of diving

including skin diving.

3A watch with reinforced water resistance for daily life II 100m or 200m (10

or 20 bar) can be used while skin diving, but cannot be used while scuba

diving using oxygen tanks or saturation diving using helium gas, etc.

4Keep the crown pushed in at all times (in the normal position) while using

the watch. If the crown is the screwed-down type, check that it is securely

screwed down.

5Do not operate the crown underwater, or while the watch is wet. Water

may enter the interior of the watch and defeat the water resistance.

6If your watch is non-water resistant, beware of splashes of water (during

face washing, rain, etc.) and sweat. If the watch becomes wet from water

or sweat, wipe the moisture off with a dry, soft cloth.

7Even with a water resistant watch for everyday use, avoid directing strong

jets of mains water onto the watch. Water pressure above the limit can

apply, which may defeat the water resistance.

8With a water resistant watch for everyday use, rinse sea water off the case

after exposure, then wipe it thoroughly to avoid corrosion and other effects.

9The interior of the watch contains some amount of moisture, which may

cause fogging on the inside of the glass when the outside air is cooler than

the internal temperature of the watch. If the fogging is temporary it causes

no harm inside the watch, but if prolonged, or if water enters the watch,

consult your place of purchase and do not leave the problem untreated.

CAUTION

WARNING

ENGLISH

(2) Handling the Battery

1Store the battery out of the reach of infants and other young children. Should

the battery be accidentally ingested, contact a doctor immediately.

2Do not remove the battery from the watch. Contact the place of purchase

of the watch or your nearest ORIENT authorized service center for

assistance when wanting to remove the battery.

3The battery used in this watch is not a rechargeable battery, so it cannot be

recharged and used again. Do not attempt to charge the battery as doing

so could cause it to overheat or explode.

4A skin rash or other symptom may develop if leaking battery fluid comes

into contact with skin. Do not leave depleted batteries sitting around for

long periods of time.

(3) Replacing the Battery

1Depleted batteries that are left sitting in the watch for long periods of time

may begin to leak battery acid, which could lead to malfunction. Be sure to

replace depleted batteries as soon as possible.

2Replace the watch battery only with the specified battery type.

3Battery replacement requires special-purpose tools, techniques, etc.

Reversing the polarities when inserting the battery may cause the battery

to overheat or explode. Contact the place of purchase or your nearest

ORIENT authorized service center for assistance when wanting to replace

the battery.

WARNING

CAUTION

ENGLISH

(4) Shock

1Be sure not to carry the watch when you engage in strenuous

sports, whereas playing such light sports as golf, etc., will not

adversely influence the watch.

2Avoid a violent shock such as dropping the watch on the

floor.

(5) Magnetism

1If the watch is left at a location with strong magnetism for an extended

period of time, the components may be magnetized, resulting in

malfunction. Be careful.

2The watch may temporarily speed up or slow down when exposed to

magnetism. Precision is restored when placed away from magnetism. In

such a case, reset the time.

(6) Vibration

The watch may lose precision if subjected to strong

vibrations such as from riding motorcycles, using

jackhammers, chain saws, etc.

(7) Temperature

In environments below and above normal temperatures (5°C-35°C), the

watch may malfunction and stop.

Do not use the watch at high temperatures, such as in a sauna. The watch

may heat and cause burns.

(8) Chemicals, Gases, etc.

Utmost caution must be exercised when coming into contact with gases,

mercury, chemicals (paint thinner, gasoline, various solvents, detergents

containing such components, adhesives, paint, drugs, perfumes,

cosmetics, etc.), and so forth. Such may cause discoloration of the

watchcase, watchband, and dial face. Discoloration, deformation, and

damage to various resin-based component parts may also occur.

CAUTION

ENGLISH

(9) About accessory parts

Do not attempt to disassemble or modify the watch.

Store the bracelet/strap pin and other small parts out of the reach of

children.

If any small parts are swallowed, immediately contact a doctor.

(10)Allergic reactions

If you develop a skin rash or your skin becomes abnormally irritated due to

contact with the watch or strap, stop wearing the watch immediately and

consult a doctor.

(11)About “luminous light”

Some models have luminous light on the hands and dial.

The luminous light is a safe paint that stores sunlight and artificial light

without using any radioactive material, and emits that light in a dark

setting. As the paint discharges the stored light, it will become dimmer

over time. The amount of light emitted and the time that light is emitted

depends on various factors when the light is stored, such as the shape

of the glass, the thickness of the paint, surrounding brightness level, the

distance from the watch to the light source, and the light absorption level.

Please note that when not enough light energy is stored, the watch may

emit weak light or emit light for only a short time.

(12)Water resistant watchband

Some models employ leather and nylon bands on which a special

treatment to resist perspiration and water absorption have been applied.

Please understand that the water resisting effect of this watchband can be

lost depending on the period and conditions of use.

WARNING

CAUTION

ENGLISH

HOW TO IDENTIFY THE CALIBER NUMBER

Check the caliber number by referring to the model number of your watch or

the case code on the watch’s case back.

1. Searching by 10-digit model number

Check the 10-digit model number on the guarantee supplied with your watch.

You can also see the number on the product tag put on the watch. Its second

and third digits indicate the caliber number of your watch.

Example:

If the model number is “□UW00005B□”, the caliber number is

“UW”.

2. Searching by the case code

See the case code on the case back of your watch.

The first two digits indicate the caliber number.

Example: When the case code is “UW00-C0”, the caliber number is “UW”.

Case code

* The place of case code may vary and its letter size may be small and

difficult to see depending on the characteristics of watches.

* The pictures and illustrations on this manual may differ from the actual

appearance of your watch but the function and operation procedures are

the same.

FEATURES

(1) This is an analogue crystal oscillator watch.

(2) The current time is indicated by the hour, minute and second hands.

(3) The date and the day of the week are indicated by hands.

*The day of the week is shown using retrograde display *UU(KHA) only

(4) The 24-hour time is indicated by hand *UU(KHA) only

ENGLISH

SPECIFICATIONS

(1) Crystal oscillator frequency …

32,768 Hz (Hz = Oscillations per second)

(2) Wrist-worn accuracy … Mean monthly rate: ±20 seconds

(at 5°C to 35°C)

(3) Operating temperature range … –5°C to +50°C

(4) Drive system … Step motor

(5) Battery … SR920SW ; 1 piece

(6) Battery life … Approximately 3 years from insertion of

a new battery

* The above specifications may change without notice for improvement.



NAMES AND FUNCTIONS OF INDIVIDUAL COMPONENT PARTS

A:Hour hand

B:Minute hand

C:Second hand

D:Crown

E:Dial

F: Date hand

Day of the week hand

H:24-hour hand

* The position of date, day of the week, 24-hour hands and crown differ on

some models.

MODELS WITH SCREWED-DOWN CROWN

Depending on the model, you may not be able to pull the crown out without

unscrewing it (models with screwed-down crown).

Operate this type of watch as follows:

(1) Before setting the date and time, first turn the crown to the left to loosen

the screw lock.

(2) After setting the date and time, turn the crown to the right while pressing

in, until it stops turning to securely tighten the screw.

㻿

㻲

㼀

㼃

㼀

㻹

ENGLISH

HOW TO SET THE TIME AND CALENDAR

[How to set the time and day of the week]

* Days of the week are not automatically adjusted. Adjust the day of the week

by turning the hour and minute hands before setting the time.

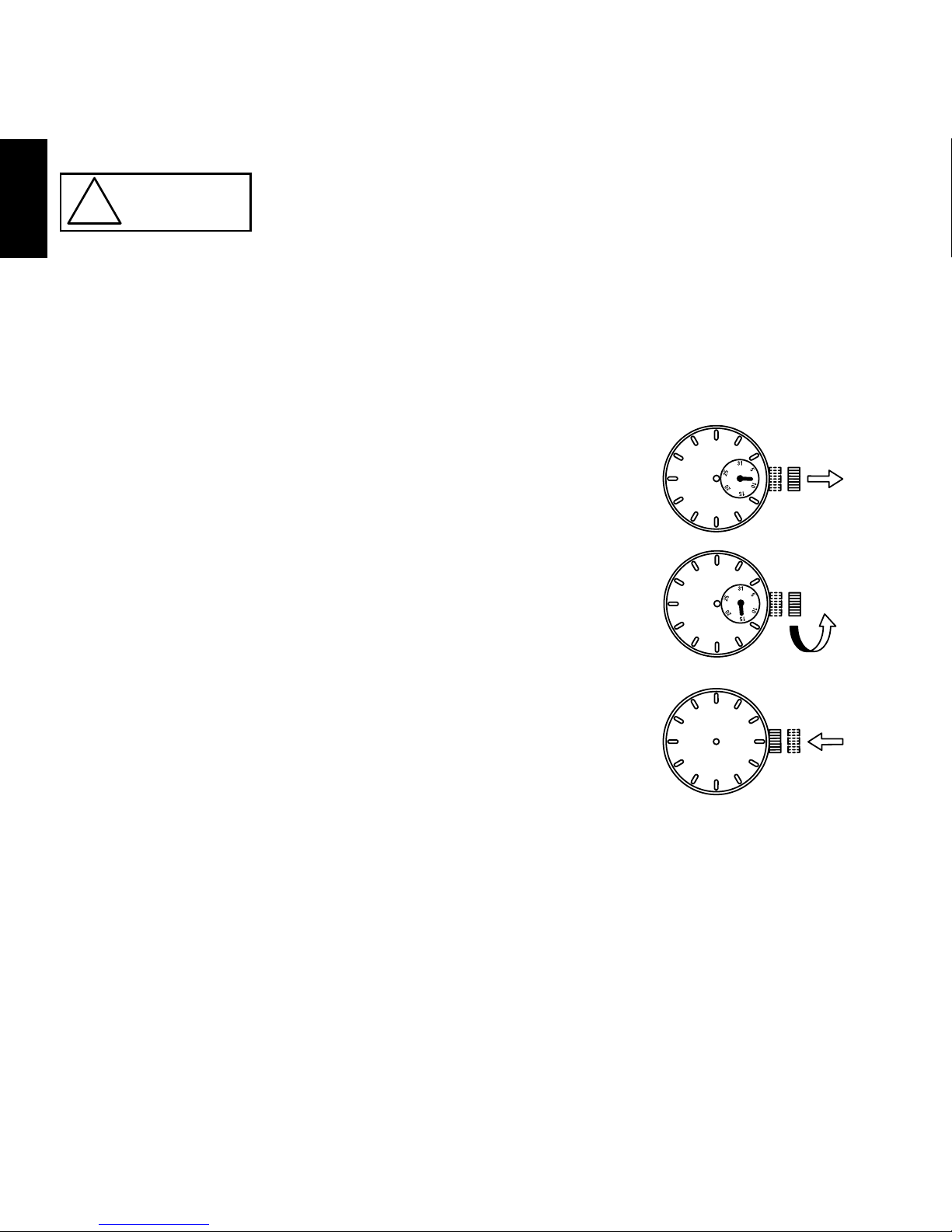

(1) Pull out the crown to the second click when the

second hand is at the 12 o’clock position. The second

hand stops on the spot.

(2) Turn the crown to set the day of the week.

• Turn the crown clockwise.

When the 12 o’clock

position is passed, the day

of the week hand begins to

change.

• Advance the hour and minute hands until the day of the week hand

indicates the next day.

• If further adjustment of the day of the week hand is required, turn the

crown counter-clockwise and go back 4 to 5 hours.

Turn the crown forward again to advance the day of the week hand

faster.

• Repeat this step and set the day of the week.

(3) After the day of the week is set, set the time.

*This watch features a calendar function.

When setting the hour hand, check that AM/PM is

set correctly. The date changes at “0:00 a.m.”.

Check AM or PM with the 24-hour hand. *UU(KHA) only

*When setting the time, first advance it 4 to 5 minutes ahead of the

desired time, and then turn it back to the exact time.

(4) Push the crown back in to the normal position.

㪪

㪝

㪫

㪮

㪫

㪤

㪪

㪝

㪫

㪮

㪫

㪤

Clockwise

Counterclockwise

ENGLISH

[How to set the date]

CAUTION

* Do not set the date during the time period noted below because the date

is changing.

9:00 p.m. to 1:00 a.m.

If date is set during this time period, the date may not change properly on

subsequent days.

* Avoid this time period when setting the date.

(1) Pull out the crown to the first click.

*The crown on this watch has two click positions.

(2) Turn the crown counterclockwise and adjust the date.

(3) Push the crown back in to the normal position.

* The position of date, day of the week and

24-hour hands and crown differ on some models.

* About date correction at month’s end:

Date correction is necessary for months with 30 days or less.

In this case, set the date to the [1st day] on the first day of the next month.

[24-hour hand] *UU(KHA) only

The 24-hour hand is interlocked with the hour hand and cannot be adjusted

individually.

Counterclockwise

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Orient Orologio

Orient

Orient ST(KUD) Manuale utente

Orient

Orient WE (KL7) Manuale utente

Orient

Orient RA-KV0403S Manuale utente

Orient

Orient UB8A002B Series Manuale utente

Orient

Orient FTD10002B0 Manuale utente

Orient

Orient UG1R002B Manuale utente

Orient

Orient OrientStar DIVER'S WATCH 200m Manuale utente

Orient

Orient FUN8G001 Manuale utente

Orient

Orient KU(RMC) Manuale utente

Orient

Orient BF J50 Manuale utente

Orient

Orient UT (H4A) Manuale utente

Orient

Orient EW 46F Manuale utente

Orient

Orient GNA Manuale utente

Orient

Orient UY (KTA) Manuale utente

Orient

Orient AA F69 Manuale utente

Orient

Orient EMAM80 Manuale utente

Orient

Orient DB 46A Manuale utente

Orient

Orient cem65001b Manuale utente

Orient

Orient 32A00 Manuale utente

Orient

Orient CFA02001B Manuale utente

Orient

Orient DD (48C) Manuale utente

Orient

Orient TT(KFB) Manuale utente

Orient

Orient XC Manuale utente

Orient

Orient M14 Manuale utente

Manuali Orologio popolari di altre marche

Pandora

Pandora WATCH2 Manuale utente

Casio

Casio QW-4343 Manuale utente

Suunto

Suunto X6 Manuale utente

Seiko

Seiko N830 Manuale utente

MotionX

MotionX 365 Manuale utente

Garmin

Garmin VENU SQ 2 Manuale utente

QCY

QCY Watch GTC Manuale utente

Canyon

Canyon Cindy CNE-KW41WP Manuale utente

Esq

Esq Watches Guida all'installazione

Crane

Crane AA5-CDSM-3A Manuale utente

Timex

Timex W-214 Manuale utente

DETOMASO

DETOMASO MATERA Manuale utente

Geemarc

Geemarc Watch N Shake Manuale utente

LORUS

LORUS W590 Manuale utente

STENLILLE

STENLILLE Actío Manuale utente

Casio

Casio 5594 Manuale utente

Sinn

Sinn HUNTER'S WATCH 3. Edition Manuale utente

Slazenger

Slazenger SLZ800 Manuale utente
