Origin Acoustics CIW60 Series Manuale utente
1
CIW60 COLLECTION INSTALLATION USER MANUAL
CIW60,CIW61,CIW63,CIW65 Installation Manual
CIW60 COLLECTION
CIW61 CIW63 CIW65CIW60
2
CIW60 COLLECTION INSTALLATION USER MANUAL
Table of Contents
Introduction 1
Specifications 2
What’s Included 3
Tools & Items 3
Wire Recommendation 3
Speaker Placement 4
About Speaker Wire 5
Installing the Wire 5
Wire Routing 6
Painting the Grille 7
Cutting the Hole 7
Connecting the Wire 8
Installing the Speaker 9
Installing the Grille 9
Troubleshooting 12
Technical Assistance 13
Warranty 14
Return Process 15
1
CIW60 COLLECTION INSTALLATION USER MANUAL
Thank you for purchasing the Origin CIW60 Collection. At Origin Acoustics, we take pride in
providing you with a high quality product. All of Origin Acoustics’ speakers are designed to
have excellent sound quality, longevity, and a simple installation process.
This instruction booklet covers the necessary information for a smooth installation, including:
the tools you will need, step-by-step instructions for installation, troubleshooting tips for any
errors that may occur, and all warranty information. If for any reason you experience problems
or if you have installation questions please call us at (844) 674-4461. Hours of operation are
8:00am to 5:00pm (Pacific Time), Monday through Friday.
Introduction
2
CIW60 COLLECTION INSTALLATION USER MANUAL
SPECIFICATIONS
Model: CIW61 Part: CIW6100
Model: CIW63 Part: CIW6300
• Woofer: 6 ” IMG • Dimensions: 12 x 8 ” (305 x 208mm)
• Tweeter: 1” DPSD™ Pivoting • Grille Dimensions: 12 x 8 (315 x 218mm)
• Frequency Response: 45Hz-20kHz • Cutout Dimensions: 10 x 6 ”(273 x 176mm)
• Power Handling: 25-110 Watts • Mounting Depth: 3” (76mm)
Model: CIW65 Part: CIW6500
Bracket:
BRL13
Bracket:
BRL13
• Woofer: 6 ” IMG • Dimensions: 12 x 8 ” (305 x 208mm)
• Tweeter: 1” Aluminum Pivoting • Grille Dimensions: 12 1 x 8 (315 x 218mm)
• Frequency Response: 45Hz-20kHz • Cutout Dimensions:10 x 6 ”(273 x 176mm)
• Power Handling: 25-110 Watts • Mounting Depth: 3” (76mm)
• Woofer: 6 ” Poly • Dimensions: 12 x 8 3/16” (305 x 208mm)
• Tweeter: 1” Silk Dome Pivoting • Grille Dimensions: 12 x 8 (315 x 218mm)
• Frequency Response: 45Hz-20kHz • Cutout Dimensions:10 x 6 ”(273 x 176mm)
• Power Handling: 25-110 Watts • Mounting Depth: 3” (76mm)
Bracket:
BRL13
Model: CIW60 Part: CIW6000
• Woofer: 6 ” Poly • Dimensions: 12 x 8 3/16” (305 x 208mm)
• Tweeter: 1” (25mm) PEI • Grille Dimensions: 12 x 8 (315 x 218mm)
• Frequency Response: 45Hz-20kHz • Cutout Dimensions:10 x 6 ”(273 x 176mm)
• Power Handling: 25-110 Watts • Mounting Depth: 3” (76mm)
Bracket:
BRL13
*All product specifications are subject to change. Please refer to the dealer portal for the latest information.
3
CIW60 COLLECTION INSTALLATION USER MANUAL
WHAT’S INCLUDED
• Drywall Saw
• Speaker Wire
• Pencil
• Wire Stripper
• Measuring Tape
• Drill
• Drill Bit ⅛” (3mm)
• Stiff Wire
• Stud Finder
• Fish Tape
• Spray Paint
• Compressed Air
TOOLS & ITEMS
The gauge of wire used can have an impact on the performance of your speakers.
Use a multi-stranded wiring designed for amplifier to speaker connections.
Which gauge to select depends on the length of wire to be used on any particular
speaker. The longer your run is, the larger your wire size must be.
WIRE RECOMMENDATION
Wire Length Wire Gauge
0 -100’ (0 - 30m) 16
50 - 150’ (15 - 45m) 14
Over 100’ (30m) 12
Speaker Grille Template
CIW Series
In-Wall Composer Collection
Cut-Out Template:
10.75 x 6.93”(273 x 176mm)
www.originacoustics.com
844.674.4461
8:00AM - 5:00PM (PT) Mon - Fri
4
CIW60 COLLECTION INSTALLATION USER MANUAL
Position the two speakers on the wall, no less
than 6’ (2m) apart. Ideally, the two speakers
would be placed an equal distance from the
listener. Ideally the speakers will be at ear level.
Also, if the speaker placement is intended for
standing (as opposed to sitting) listeners, the
speakers can be higher on the wall.
AUXILIARY ROOM (2 SPEAKER PLACEMENT)
The Le Rear (LR) and Right Rear (RR) speakers should be installed just behind
the listener, one on either side. The Center Channel (CC) speaker should be
placed above or below the television, with the Le Front (LF) and Right Front
(RF) speakers placed equidistant to either side.
HOME THEATER (5 SPEAKER PLACEMENT)
6’ (2m)
L R
TV
Listening area
5
CIW60 COLLECTION INSTALLATION USER MANUAL
Strip ¼ to ½ inches (6 to 12 mm) of the
insulation o both ends of the wire. To
avoid stray strands, twist them at the
end. Connect the wire to the amplifier,
and make sure the wire connected to
the le speaker output will be routed
to the le speaker, right output to right
speaker, etc.
1. INSTALLING THE WIRE
You will need a wire that has at least two conductors; one that can be identified
as the positive and the other as the negative. All two conductor wires have some
means of identifying which conductor is which, but at times this identification
may be subtle. It’s crucial that you keep track of which wire you use for positive
(+) and negative (-). Typically if the wires are colored red and black, the red wire
is used for positive and the black wire is used for negative, but sometimes other
colors or patterns are used. You can choose whichever color of wire you want to
be positive and negative as long as you remain consistent throughout the install.
On both your amplifier and your speaker the connectors will be identified as red
for positive and black for negative. It is very important to look carefully at the
speaker wires and be certain that the same wire that is attached to the positive
connector in the amplifier is attached to the positive connector in the speaker.
ABOUT SPEAKER WIRE
0.25 - 0.5”
(6 - 12mm)
Speaker
Wire
6
CIW60 COLLECTION INSTALLATION USER MANUAL
Plan how you’ll route the wire to the desired speaker location. There are several
methods for routing the wire, and you may need to combine several of them.
WIRE ROUTING
One option is to li up the carpet and
route “tape wire” under the carpet.
UNDER THE CARPET
The wire can be routed behind the
baseboard by cutting a groove out
of the back of the baseboard, or by
buying special baseboard designed for
concealing wires.
BEHIND THE BASEBOARD
When available, you can route the wire
through an attic or crawlspace.
ATTIC OR BASEMENT
When running wires through a wall, be
sure to avoid all obstacles such as AC
wiring, pipes, and ducts.
THROUGH WALLS
If these speakers are being installed in a new home during construction, the
installation process will be a bit dierent (although much simpler). For these
situations, it’s recommended you purchase a bracket. Instructions on how to
install the speakers are provided with the bracket, or can be found on our web-
site. Visit www.originacoustics.com for more information.
FOR NEW CONSTRUCTION
7
CIW60 COLLECTION INSTALLATION USER MANUAL
3. CUTTING THE HOLE
In some situations the speakers may look better if the color matched the walls,
ceiling, or trim in the room. This can be accomplished by painting the grille. The
grille must be painted with spray paint, and most hardware stores will mix a can
of paint to match whatever color you need. Before painting, carefully remove the
thin cloth on the underside of the grille. Lightly spray the front of the grille with the
paint from a distance, being careful not to plug any of the holes. Diluting the paint
with paint thinner will lessen the risk of filling any holes. If a hole gets plugged use
a can of compressed air to open it. Once the paint is dry, put the cloth back on
the grille.
2. PAINTING THE GRILLE
Grille
Paint
Grille Cloth
Grille
When you’ve decided on the locations for all of the speakers, use the template
to trace a circle lightly in pencil where the hole should be. (If you don’t have a
template, check the Specifications section for cutout sizes.) If you’re unsure
on whether there may be obstacles (such as pipes or wires) where you plan on
installing the speaker, drill a ⅛ inch hole in the center of the circle, then put a bent
coat hanger through the hole to feel around. Use a keyhole or drywall saw to cut
the hole.
8
CIW60 COLLECTION INSTALLATION USER MANUAL
plate, check the Specifications section for cutout sizes.) If you’re unsure on whether
there may be obstacles (such as pipes or wires) where you plan on installing the
speaker, drill a ⅛ inch hole in the center of the circle, then put a bent coat hanger
through the hole to feel around. Use a keyhole or drywall saw to cut the hole.

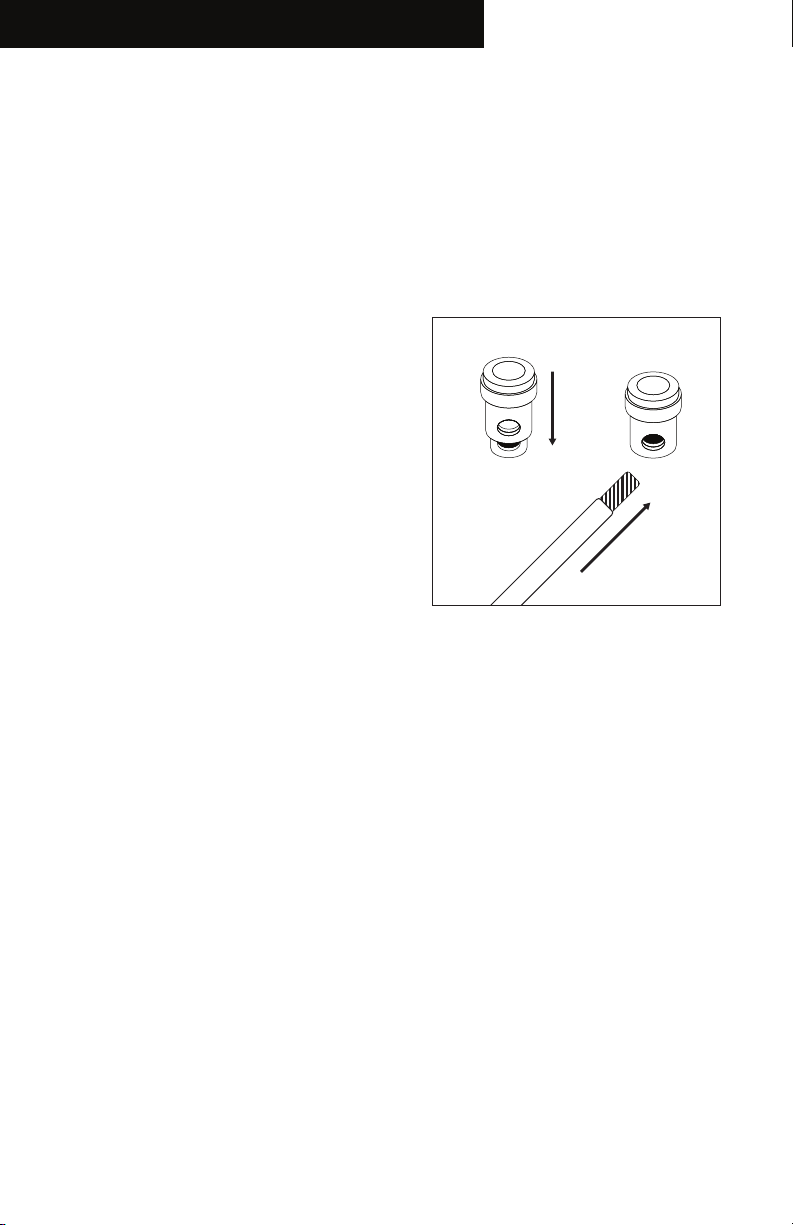

Insert the wires into the connectors,
making sure that the positive wire is
being attached to the red connection
and the negative wire is being
attached to the black connection. If
the negative and positive wires are
switched, speaker performance will be
drastically impacted.
4. CONNECTING THE WIRE
Speaker
Wire
Connector
