Installation Manual

D65EX, D83EX, D83DT/SUR EX, D83AEX, D85EX

EXPLORER COLLECTION

D65EX

D83EX D83DT/SUR EX D83AEX D85EX

Explorer Collection™ Manual

Table of Contents

Introduction 1

Specifications 2

Dual Tweeter 4

What’s Included 5

Tools & Items 5

Wire Recommendation 5

Speaker Placement 6

About Speaker Wire 7

Installing the Wire 7

Wire Routing 8

Painting the Grille 9

Cutting the Hole 9

Installing the Bayonet Ring 10

Connecting the Wire 10

Installing the Speaker 11

Testing & Adjustments 12

Installing the Grille 12

Troubleshooting 13

Technical Assistance 14

Warranty 15

Return Process 16

Explorer Collection™ Manual

Thank you for purchasing the Explorer Collection. The Explorer Collection of

loudspeakers from Origin Acoustics were developed to withstand the harsh

conditions found in marine environments. This includes exposure to saltwater,

extreme temperature changes and airborne humidity. They will produce amazing

musical fidelity while spending family time on the lake or a trip on the open sea

and they have the build quality to last for years in these situations.

Thisinstructionbookletcoversthenecessaryinformationforasmoothinstallation,

including: the tools you will need, step-by-step instructions for installation,

troubleshooting tips for any errors that may occur, and all warranty information.

If for any reason you experience problems or if you have installation questions

please call us at (844) 674-4461. Hours of operation are 8:00am to 5:00pm (Pacific

Time), Monday through Friday.

Introduction

Explorer Collection™ Manual

Model: D83EX

Part: DSC83000EX

• Woofer: 8” IMG • Diameter: 9 ” (244mm)

• Tweeter: 1” Aluminum Multi-Motion Pivoting • Grille Diameter: 10” (254mm)

• Frequency Response: 38Hz-20kHz • Cutout Diameter: 8 ” (222mm)

• Power Handling: 50-125 Watts • Mounting Depth: 4 ” (105mm)

• Woofer: 8” IMG • Diameter: 9 ” (244mm)

• Tweeter: Dual 1” Aluminum • Grille Diameter: 10” (254mm)

• Frequency Response: 38Hz-20kHz • Cutout Diameter: 8 ” (222mm)

• Power Handling: 50-125 Watts • Mounting Depth: 4 ” (109mm)

• Woofer: 8” IMG - Fixed Angle • Diameter: 9 ” (244mm)

• Tweeter: 1” Aluminum Multi-Motion Pivoting • Grille Diameter: 10” (254mm)

• Frequency Response: 38Hz-20kHz • Cutout Diameter: 8 ” (222mm)

• Power Handling: 50-125 Watts • Mounting Depth: 4 ” (105mm)

• Woofer: 8” IMG • Diameter: 9 ” (244mm)

• Mid-Range: 4” IMG Multi-motion Pivoting • Grille Diameter: 10” (254mm)

• Tweeter: 1” Aluminum Multi-Motion Pivoting • Cutout Diameter: 8 ” (222mm)

• Frequency Response: 36Hz-20kHz • Mounting Depth: 5 ” (142mm)

• Power Handling: 50-150Watts

EXPLORER SPECIFICATIONS

*All product specifications are subject to change. Please refer to the dealer portal for the latest information.

Model: D83DT/SUR EX

Part: SCDT83000EX

Model: D83AEX

Part: SCD08030AEX

Model: D85EX

Part: SCD85000EX

Explorer Collection™ Manual

• Woofer: 8” IMG - Fixed Angle • Diameter: 9 ” (244mm)

• Tweeter: 1” Aluminum Multi-Motion Pivoting • Grille Diameter: 10” (254mm)

• Frequency Response: 38Hz-20kHz • Cutout Diameter: 8 ” (222mm)

• Power Handling: 50-125 Watts • Mounting Depth: 4 ” (105mm)

• Woofer: 8” IMG • Diameter: 9 ” (244mm)

• Mid-Range: 4” IMG Multi-motion Pivoting • Grille Diameter: 10” (254mm)

• Tweeter: 1” Aluminum Multi-Motion Pivoting • Cutout Diameter: 8 ” (222mm)

• Frequency Response: 36Hz-20kHz • Mounting Depth: 5 ” (142mm)

• Power Handling: 50-150Watts

• Woofer: 6 ” IMG Pivoting • Diameter: 9 ”(244mm)

• Tweeter: 1” Aluminum • Grille Diameter: 10” (254mm)

• Frequency Response: 45Hz-20kHz • Cutout Diameter: 8 ”(222mm)

• Power Handling: 25-140 Watts • Mounting Depth: 5 ” (140mm) - At 0oTilt

• Mounting Depth: 5 ” (155mm) - At Maximum Tilt

EXPLORER SPECIFICATIONS

*All product specifications are subject to change. Please refer to the dealer portal for the latest information.

Model: D65EX

Part: SCD65000EX

Explorer Collection™ Manual

In this mode, one channel is fed into both tweeters to be distributed throughout

the area. This way in a multiple-speaker setup, one speaker can be a dedicated

le speaker and another a dedicated right.

Surround (Dipole)

The Dual Tweeter models can be used for either one channel (surround) or two

channels (stereo). A switch is located on the back of the speaker to select which

mode to use. One of the inputs is labeled for surround. This is the input that

should be used if you’re only using one channel.

Dual Tweeters

In this mode, two channels are fed into the speaker: one channel for each tweeter.

This setup is ideal for small rooms such as walk-in closets and bathrooms, as well

as oddly-shaped areas such as hallways. With both le and right channels in one

speaker, only one speaker is needed in smaller rooms. In areas like hallways, both

channels can be evenly distributed throughout the area with multiple speakers.

Stereo (Dipole)

If you are using a dual tweeter speaker in stereo mode (i.e. there are two wires

connected to the speaker: one for the le channel and one for the right), do not

set the switch to surround mode. This could damage the amplifier.

Warning

Explorer Collection™ Manual

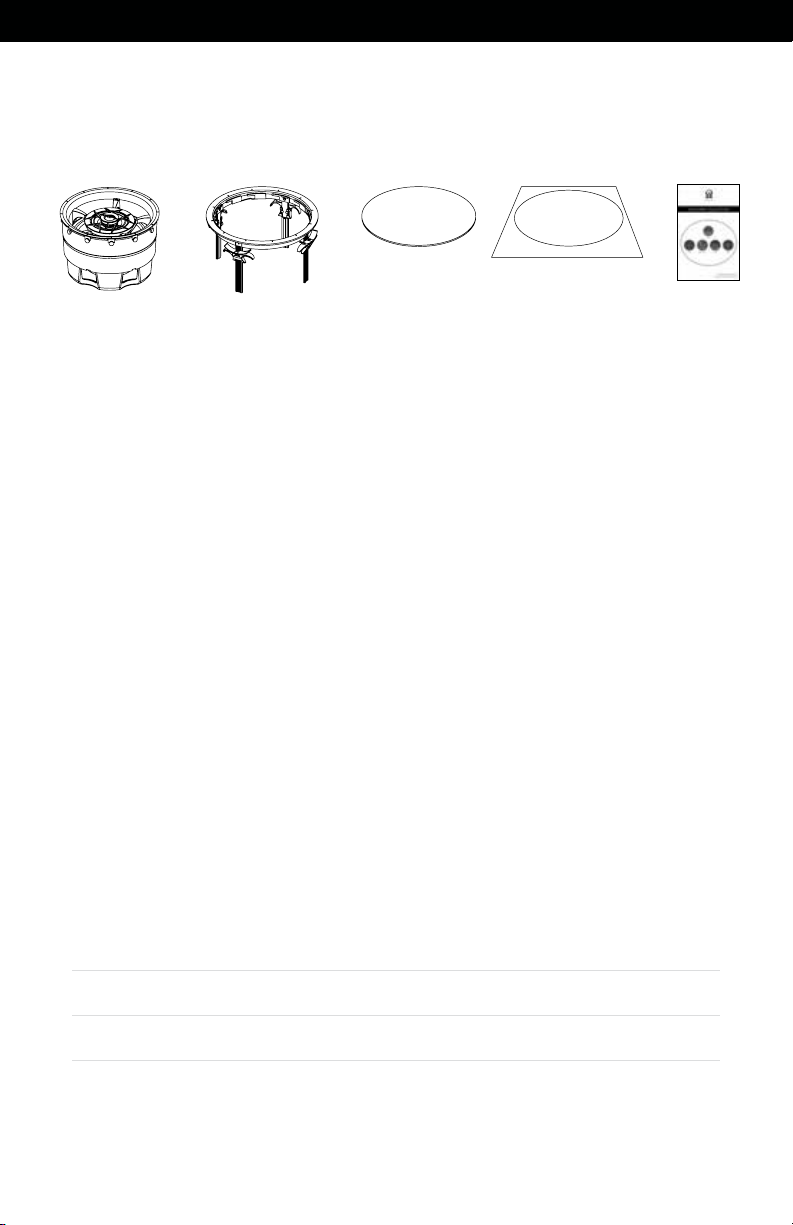

Speaker Bayonet Ring Grille Template

What’s Included

• Drywall Saw

• Speaker Wire

• Pencil

• Wire Stripper

• Measuring Tape

• Drill

• Drill Bit ⅛” (3mm)

• Stiff Wire

• Stud Finder

• Fish Tape

• Spray Paint

• Compressed Air

Tools & Items

The gauge of wire used can have an impact on the performance of your speakers.

Use a multi-stranded wiring designed for amplifier to speaker connections. Which

gauge to select depends on the length of wire to be used on any particular speak-

er. The longer your run is, the larger your wire size must be.

Wire Recommendation

Wire Length Wire Gauge

0 -100’ (0 - 30m) 16

50 - 150’ (15 - 45m) 14

Over 100’ (30m) 12

Installation Manual

Explorer Collection™ Manual

Ideally, the two speakers should be

placed an equal distance from the lis-

tener. If the room has a lower ceiling,

the speakers can be closer together.

Also, if the speaker placement is in-

tended for standing (as opposed to

sitting) listeners, the speakers can be

closer together.

Auxiliary Room (2 Speaker Placement)

The Le Rear (LR) and Right Rear (RR)

speakers should be installed just be-

hind the listener, one on either side.

The Center Channel (CC) speaker

should be placed above and slightly

in front of the television, with the Le

Front (LF) and Right Front (RF) speak-

ers placed equidistant to either side.

Home Theater (5 Speaker Placement)

Listening Area

6’ (2m)

3’ (1m)3’ (1m)

Listening Area

6’ (2m)

3’ (1m)3’ (1m)

3’

(1m)

Explorer Collection™ Manual

Strip ¼ to ½ inches (6 to 12 mm) of the

insulation o both ends of the wire. To

avoid stray strands, twist them at the

end. Connect the wire to the amplifier,

and make sure the wire connected to

the le speaker output will be routed

to the le speaker, right output to right

speaker, etc.

1. Installing the Wire

Use a two conductor wire that allows you to identify one conductor from the oth-

er. This designation may be obvious or as subtle as a ridge on one conductor.

It’s crucial that you keep track of which wire you use for positive (+) and negative

(-). Typically if the wires are colored red and black, the red wire is used for positive

and the black wire is used for negative, but sometimes other colors or patterns

are used. You can choose whichever color of wire you want to be positive and

negative as long as you remain consistent throughout the install.

On both your amplifier and your speaker the connectors will be identified as red

for positive and black for negative. It is very important to look carefully at the

speaker wires and be certain that the same wire that is attached to the positive

connector in the amplifier is attached to the positive connector in the speaker.

About Speaker Wire

0.25 - 0.5”

(6 - 12mm)

Speaker

Wire

Explorer Collection™ Manual

Plan how you’ll route the wire to the desired speaker location. There are several

methods for routing the wire, and you may need to combine several of them.

Wire Routing

One option is to li up the carpet and

route “tape wire” under the carpet.

Under the Carpet

The wire can be routed behind the

baseboard by cutting a groove out

of the back of the baseboard, or by

buying special baseboard designed for

concealing wires.

Behind the Baseboard

When available, you can route the wire

through an attic or crawlspace.

Attic or Basement

When running wires through a wall, be

sure to avoid all obstacles such as AC

wiring, pipes, and ducts.

Through Walls

If these speakers are being installed in a new home during construction, the

installation process will be a bit dierent (although much simpler). For these

situations, it’s recommended you purchase a bracket. Instructions on how

to install the speakers are provided with the bracket, or can be found on our

website. Visit www.originacoustics.com for more information.

For New Construction
