Oticon Delta series Manuale utente

INSTRUCTIONS

FOR USE

Congratulations

You have chosen to take action and improve your

ability to communicate.

This booklet contains the information you need to

get the full benefit of your new hearing devices.

Daily use is straightforward and you should be

able to get started right away.

We hope you will enjoy your new Delta devices.

Content

Description 4

On/off 6

Product case 8

Putting on the device 10

Daily maintenance – Domes 12

Changing the dome 14

Daily maintenance – Micro Moulds 16

Changing batteries 22

Daily use and care 24

Trouble shooting for devices with domes 26

Trouble shooting for devices with Micro Moulds 28

International warranty 30

Warnings Yellow pages

The device consists of:

• A triangular ampliﬁer unit, which holds the

microphones and the battery. The ampliﬁer unit

sits comfortably and discreetly behind the ear.

• A speaker unit where a thin tube connects the

speaker with the ampliﬁer. The speaker sits in the

ear canal and delivers sound directly into the ear.

• An optional ear grip, which follows the contour of

the ear and ensures that the speaker and the whole

device is securely fastened.

• An ear piece, a dome (A) or a custom made Micro

Mould (B), which holds the speaker comfortably in

the ear. It also protects the speaker against ear wax.

Amplifier unit

Speaker unit

Dome (A)

Ear grip

Micro Mould (B)

Sound outlet

Wax Protection system

Ventilation opening

Up/down indicator

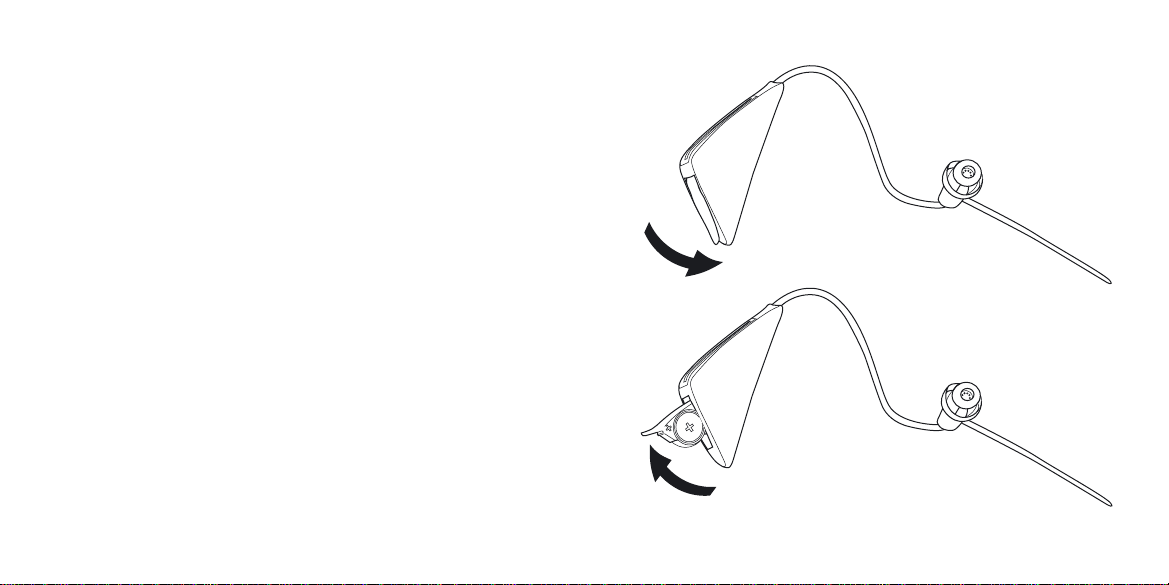

On/off

Close the battery door to turn on the device. You

will hear a short series of beeps and a jingle, which

indicates that the device is turned on.

Open the battery door to turn it off. When you are

not using the device, please make sure it is turned

off and that the battery door is fully open.

We recommend you use the product case supplied

with your hearing devices when storing them for the

night.

Off

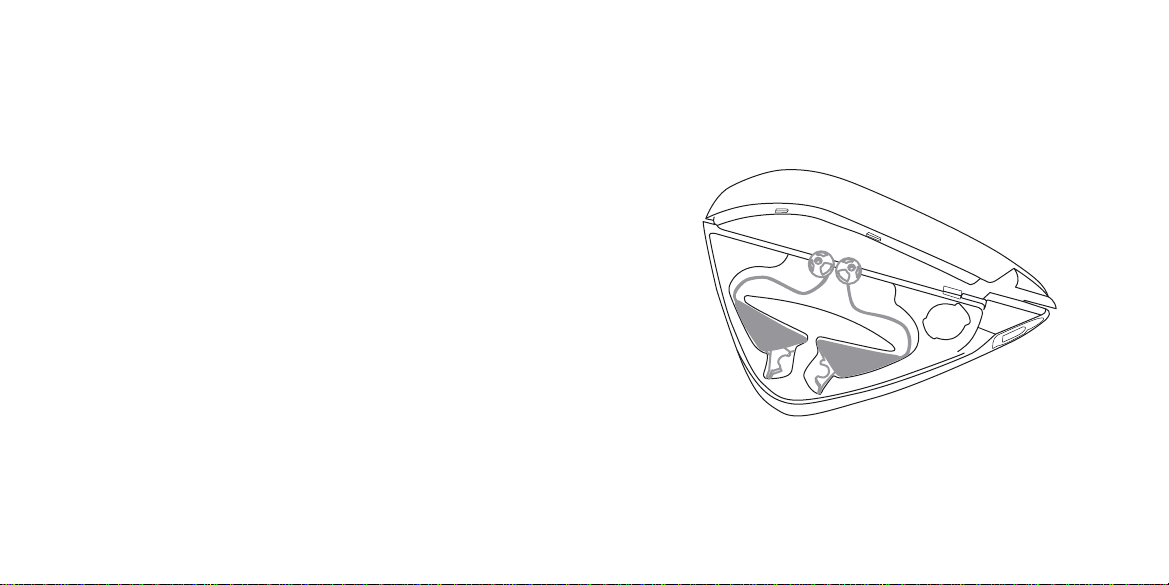

Product case

When you are not using your devices, place them in

the product case. Ensure that the battery doors are

open, when you place the devices in the case.

10 11

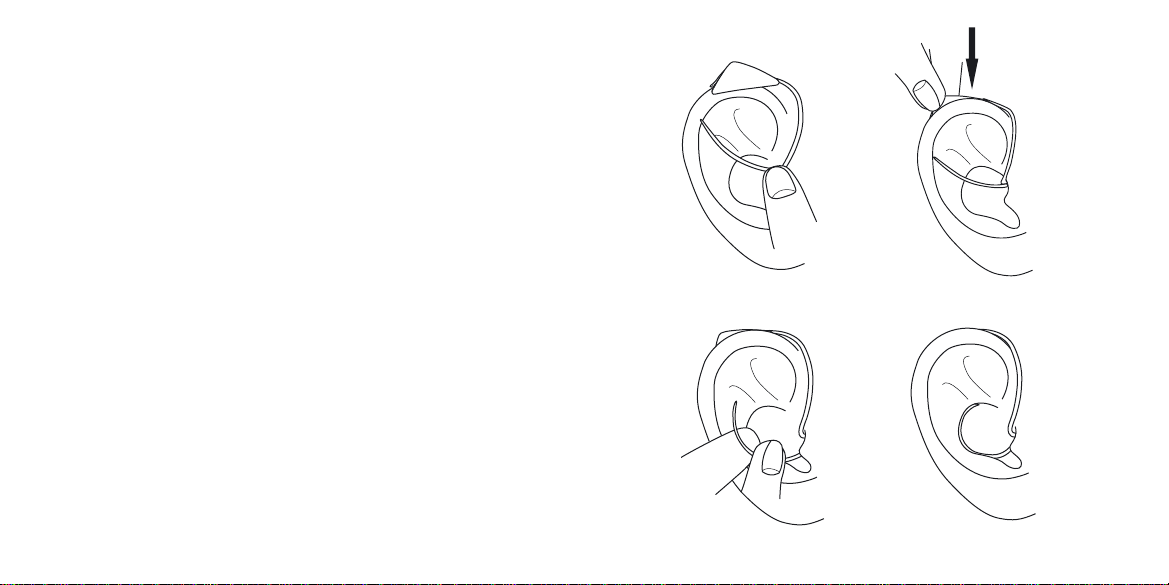

Putting on the devices

Turn the device on. Place the speaker, with the ear

piece attached, into your ear first and then place the

amplifier behind your ear. If the instrument comes

with a Micro Mould, make sure that the coloured

dot (blue or red) on the mould is facing towards the

amplifier unit (upwards) to ensure a correct position

in the ear canal.

Make sure that the ear piece is placed so that the

tube follows the contour of the skin.

If the instrument has an ear grip, place it in the con-

cha as indicated in drawing 4.

Alternatively place the amplifier behind your ear.

Put the speaker into your ear canal.

Left/right indication for hearing devices

Blue colour indicates left device.

Red colour indicates right device.

12 13

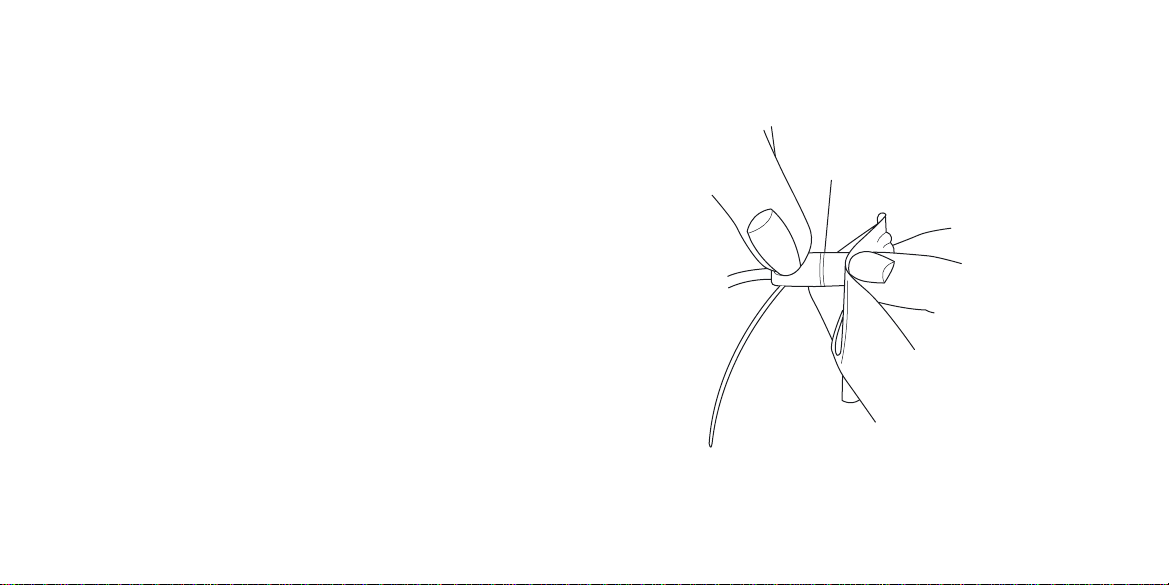

Daily maintenance – Domes

Clean the speaker unit daily. Use a dry cloth and rub

off any earwax.

The dome should not be cleaned. When you require

a fresh, clean dome, remove the existing one and put

on a fresh one.

We recommend the dome to be replaced at least

once a month or as directed by your Hearing Care

Professional.

14 15

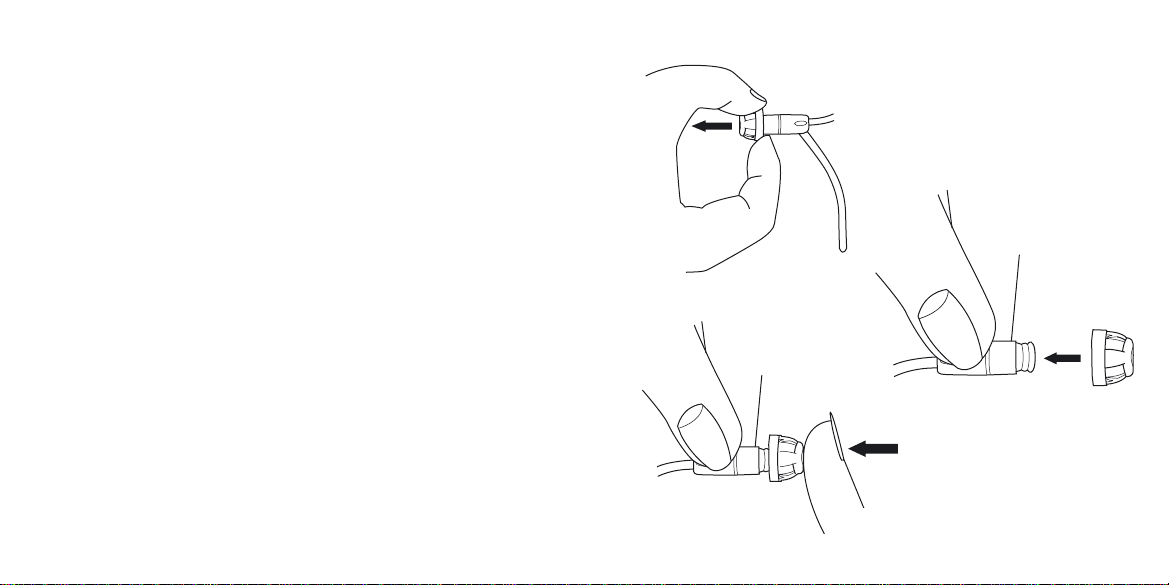

Changing the dome

The dome is easy to replace. Replace it whenever

needed. Use a fingernail and hold the bottom of

the dome. Then pull it off. Place the new dome on

the speaker and ensure that it is fastened securely.

Throw out the old dome.

Under the dome you will notice a white wax filter

attached to the end of the speaker. This is a wax filter

that will keep debris from damaging the speaker. If

this filter becomes clogged, contact your Hearing

Care Professional for service and replacement of the

filter.

Note: The dome is made of a soft, medically approved rubber

material. If the dome comes off in the ear canal, it will not

cause any harm. If you can – carefully take it out. Maybe

let another person help you. Do not push the dome into the

ear canal. If you have any doubts, contact your Hearing Care

Professional.

16 17

Daily maintenance – Micro Moulds

Clean the speaker unit and Micro Moulds daily.

Use a dry cloth and rub off any ear wax.

Note. The hearing devices and the Micro Moulds

must never be washed.

Your ear canal produces ear wax (cerumen) which

may clog up the sound outlet or the ventilation

opening. Therefore your hearing devices contain

filters to prevent wax accumulation.

Clean away any traces of wax from around the

ventilation opening. Use the special cleaning tool

provided by your Hearing Care Professional.

Cleaning tool

18 19

Replace the wax protection system

1. Remove the tool from the shell. The tool has two

ends, one with the new ﬁlter (A) and one with the

removal tool (B).

2. Insert the removal tool into the sound outlet of the

Micro Mould.

3. Pull the used wax ﬁlter out slowly keeping the tool

straight.

4. Turn the tool 1800.

5. Push the new ﬁlter into the sound outlet and

gently remove the tool.

6. Throw out the used tool. Do not reuse.

1 2

3 4

5 6

1800
