Outback Excel 100 Manuale utente

Excel 100 Excel 300

Excel 200

EN (Europe)

Assembly and Operating Instructions for

Excel 100, Excel 200, and Excel 300 Gas Barbecues

Gas Barbecues

Photographs are not to scale.

Specifications subject to change

without prior notice.

WARNING

• For outdoor use only. Not for commercial use.

• Read instructions before using the appliance. Failure to follow instructions

could result in death, serious bodily injury, and/or property loss.

• Warning: accessible parts may be very hot. Keep young children away.

• Do not move the appliance during use.

• Turn off the gas supply at the gas bottle after use.

• Any modification of the appliance, misuse, or failure to follow the instructions

may be dangerous and will invalidate your warranty. This does not affect your

statutory rights.

• Retain these instructions for future reference.

• Leak test your barbecue annually. Check the hose connections are tight and leak

test them each time you reconnect the gas bottle.

• For Flare-up control please refer to the ‘OPERATION’ section of this manual.

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open barbecue lid or hood.

4. If odour continues, discontinue use and

contact your local dealer.

FOR YOUR SAFETY

1. Do not store or use petrol or other flammable

vapours or liquids in the vicinity of this or any

other appliance.

2. A gas bottle not connected for use shall not be

stored in the vicinity of this or any other

appliance.

0359

A. Parts List

Quantities vary according to model purchased. Specifications subject to change without prior notice. For more

details on hardware, please see the corresponding Hardware Reference Diagram for your barbecue model.

OUTBACK® EXCEL RANGE

CODE PART QTY EXCEL 100 EXCEL 200 EXEL 300

Body

Assembly

A1 Lava Rock Rack 1 √√√

A2 Burner 1 √√√

A3 Hood Lower Handle 1 √√√

A4 Hood 1 √* √* √*

A5 Body 1 √* √* √*

A6 Grease Cup Holder 1 √√√

A7 Grease Cup 1 √√√

A8 Cooking Grill 1 √√√

A9 Lava Rock (Shrink Packed) 1 √* √* √*

A10 Hood Upper Handle 1 √* √* √*

A11 Hinge Bracket 2 √* √* √*

A12 Main Electrode 1 √* √* √*

A13 Heat Shield 1 √√√

A14 Warming Rack 1 √√√

Upper

Trolley

B1 Control Panel 1 √√√

B2 Igniter Button 1 √* √* √*

B3 Main Burner Knob 2 √* √* √*

B4 Trolley Handle 1 √

B5 Main Burner Hose (if supplied) ▲

B6 Side Shelf ▲2 1

B7 Side Burner Knob 1 √

B8 Side Burner Grid 1 √

B9 Side Burner Shelf 1 √

B10 Side Burner 1 √

B11 Side Burner Electrode 1 √

B12 Side Burner Valve/Hose Assembly 1 √

Lower

Trolley

C1 Short Leg Front 1 √√√

C3 Gas Cylinder Holder 1 √√√

C4 Wheel 2 √√√

C5 Axle 1

√√√

C6 Leg End Loop 1 √√√

C7 Long Leg Front 1 √√√

C10 Gas Bottle Strap 1 √*√*√*

Hardware

D1 M6x15 Bolt ▲24 28 28

D2 M5x10 Bolt 4 √√√

D3 M4x10 Bolt 1 √

D4 ST4.0x10 Screw 2 √√√

D5 ST4.8x15 Screw 2 √√√

D6 M8 Locknut 2 √√√

D7 M5 Keps Nut 2 √√√

D8 Wheel Spacer 2 √√√

D9 Shelf Spacer ▲8 4

C2 Short Leg Rear 1 √√√

C8 Long Leg Rear 1 √√√

C9 Bottom Shelf 1 √√√

A16 Body Support 2 √√√

A15 Sillcon Bumpers 2 √√√

 Pre-Assembled

 Quantity and specification varies according to model purchased.

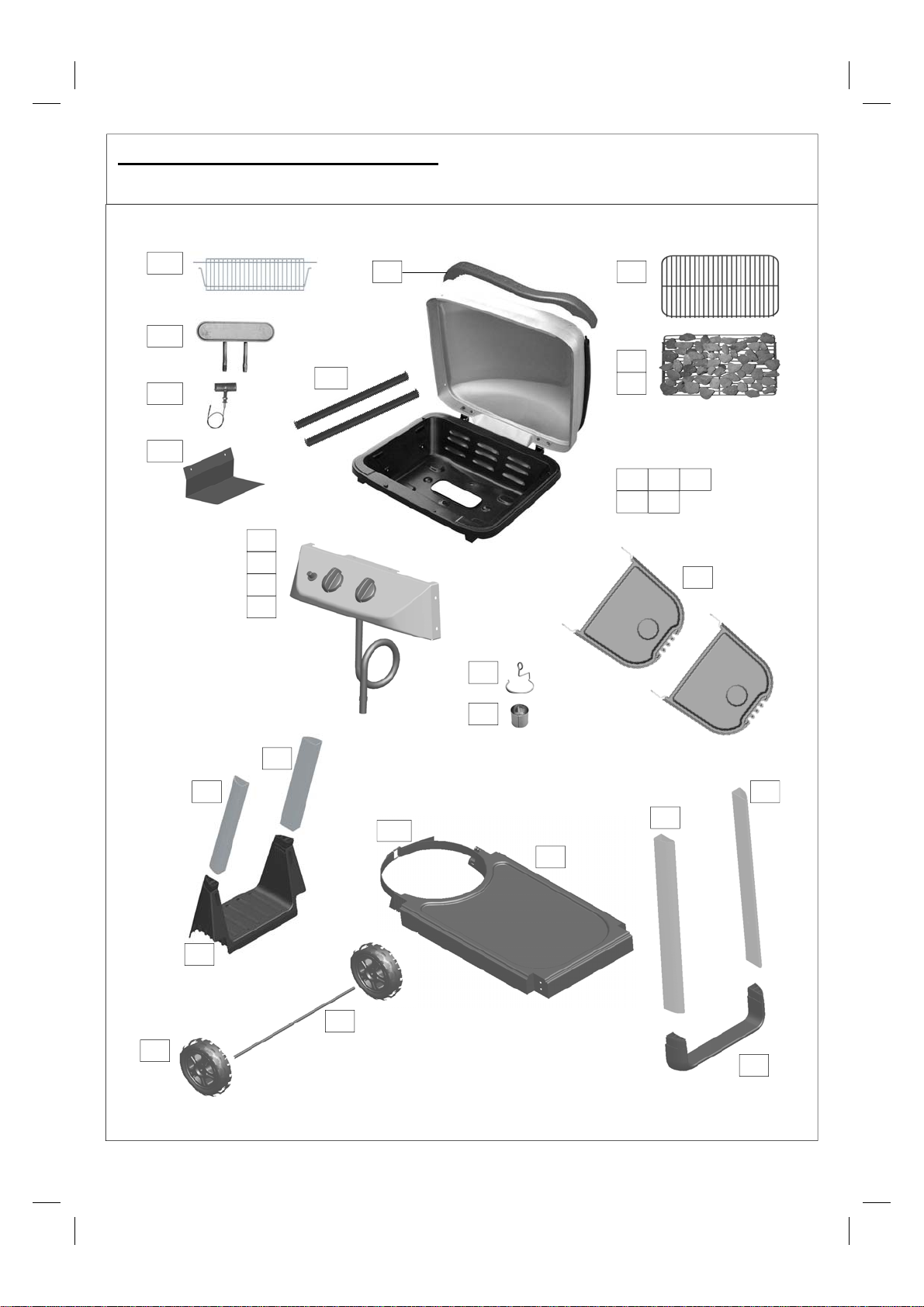

B1. Parts Diagram: Excel 100

Quantities vary according to model purchased. Specifications subject to change without prior notice. For more

details on hardware, please see ‘Hardware Reference Diagram: Excel 100.’

A14

C4 C6

C10

A4 A5 A10

A11 A15

Pre-assembled body unit

includes the following

individual parts:

A13

A12

A16

B2. Hardware Reference Diagram: Excel 100

Specifications subject to change without prior notice.

D1 D4 D2

C1. Parts Diagram: Excel 200

Quantities vary according to model purchased. Specifications subject to change without prior notice. For more

details on hardware, please see ‘Hardware Reference Diagram: Excel 200.’

A14

C4 C6

C10

Pre-assembled body unit

includes the following

individual parts:

A4 A5 A10

A11 A15

A13

A12 A16

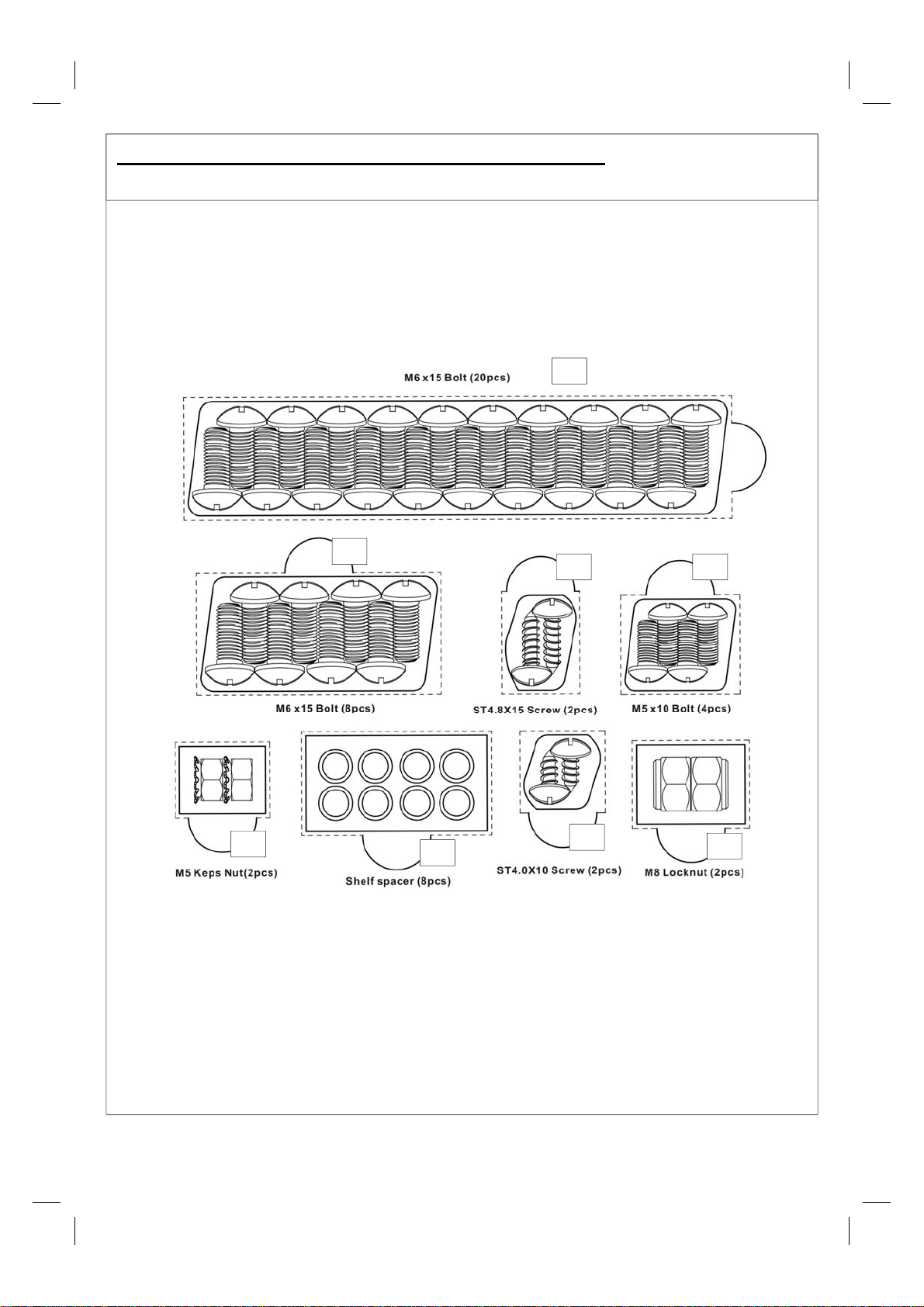

C2. Hardware Reference Diagram: Excel 200

Specifications subject to change without prior notice.

D2D5

D6 D9 D7

D1. Parts Diagram: Excel 300

Quantities vary according to model purchased. Specifications subject to change without prior notice. For more

details on hardware, please see ‘Hardware Reference Diagram: Excel 300.’

A14

B11

B10

C4 C6

C2 C8

C10

Pre-assembled body unit

includes the following

individual parts:

A4 A5 A10

A11 A15

B12

A13

A12

A16

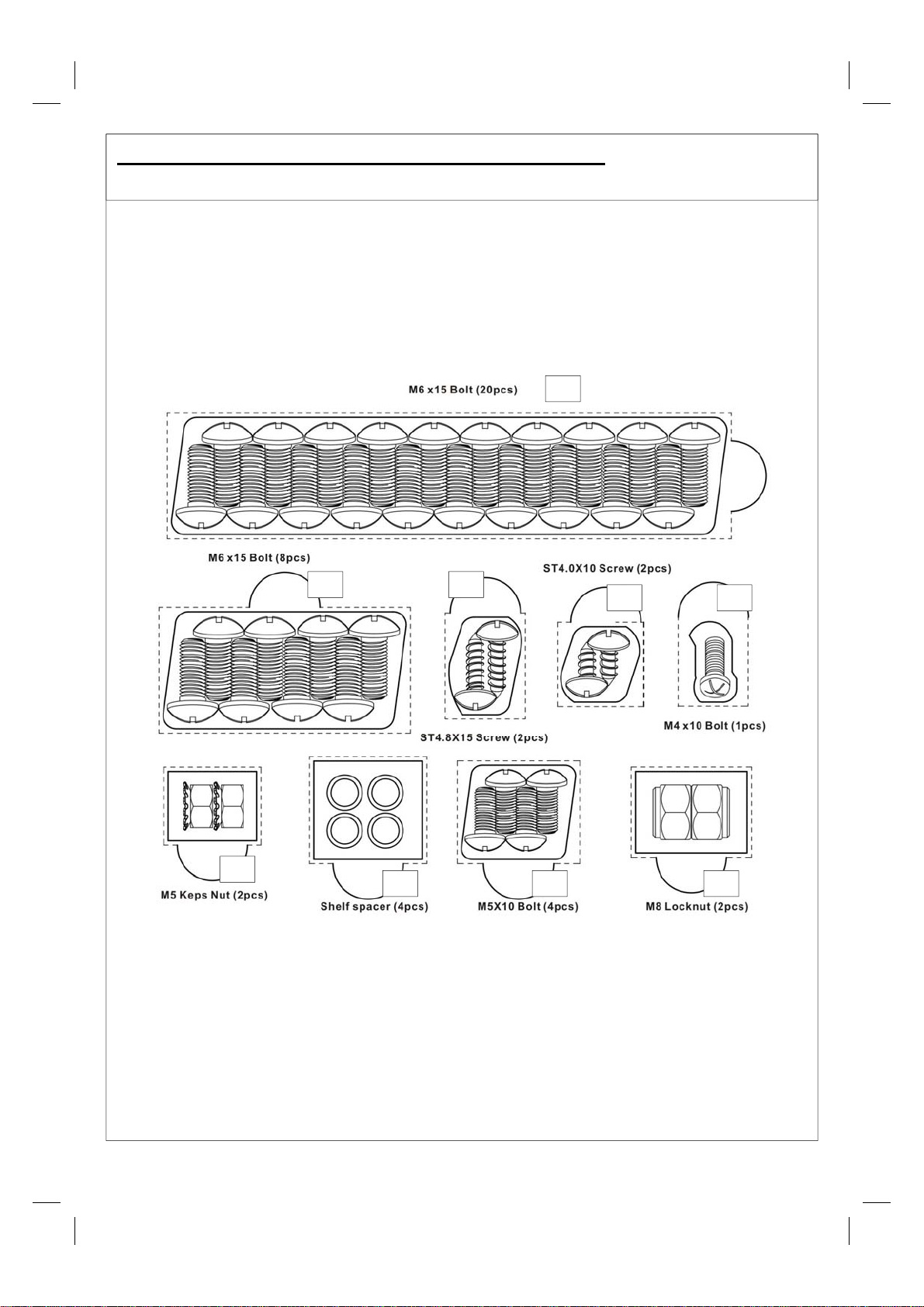

D2. Hardware Reference Diagram: Excel 300

Specifications subject to change without prior notice.

D1 D5 D4 D3

D7 D9 D2 D6

E. Assembly

TOOLS NEEDED FOR ASSEMBLY:

Medium size flat blade or Philips/cross-point screwdriver, adjustable spanner or metric spanner set

This barbecue requires two people for assembly. Please remove all packaging materials from all individual parts

before assembling. Please lay out all nuts and bolts and check lengths before assembling. Whilst every care is

taken during the manufacture of this product, care must be taken during the assembly in case sharp edges are

present.

2  Excel 100  Excel 200  Excel 300

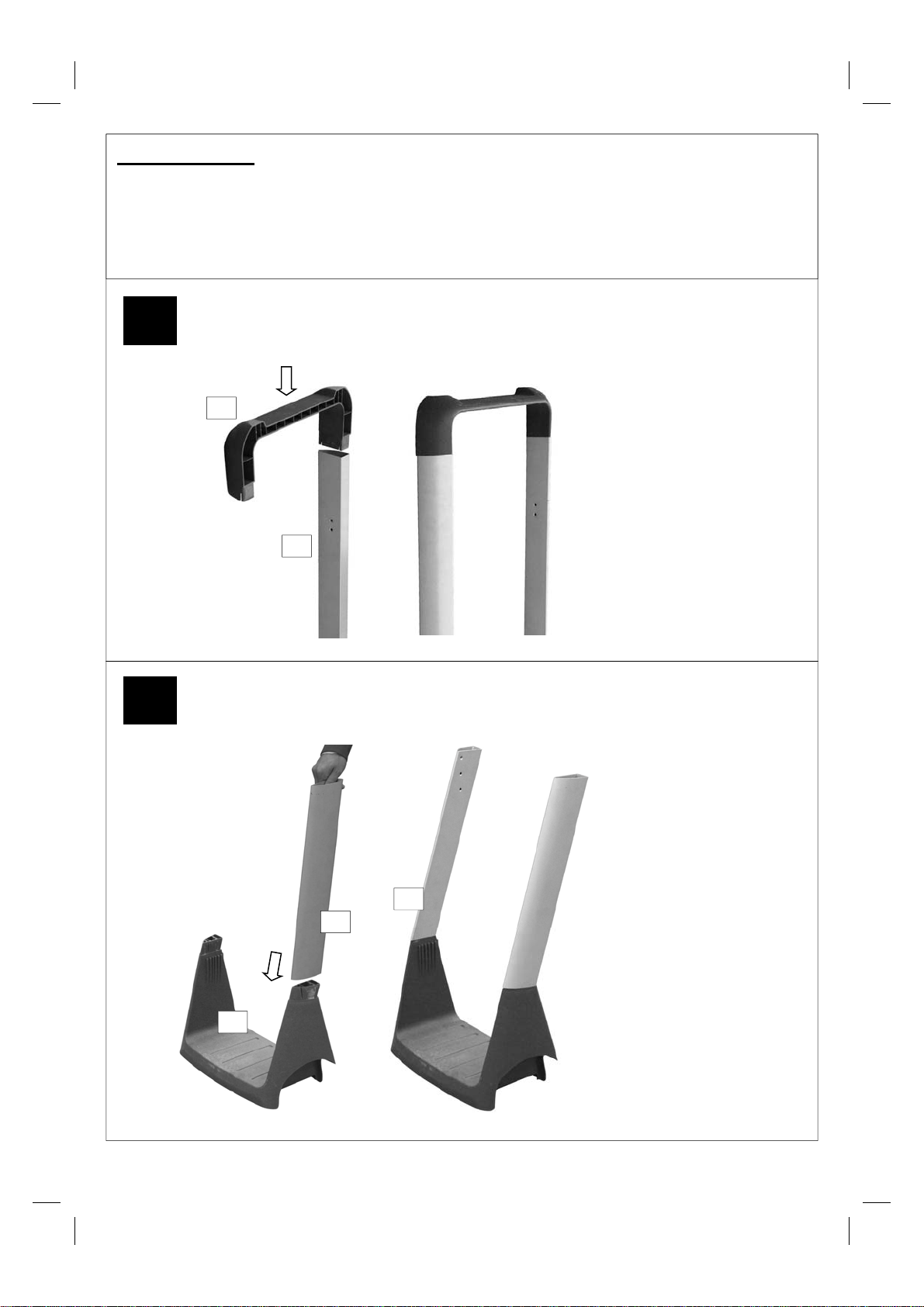

Attach the Long Leg

Front (C7) and Long

Leg Rear (C8) to the

Leg End Loop (C6).

The legs are a push fit

onto the Leg End Loop.

In case of difficulty, they

may need tapping with

a soft faced mallet.

Take care not to dam-

age the parts.

Attach the Short Leg

Front (C1) and Short

Leg Rear (C2) to the

Gas Cylinder Holder

(C3). The legs are a

push fit onto the Gas

Cylinder Holder. In case

of difficulty; they may

need tapping with a soft

faced mallet. Take care

not to damage the

parts.

 Excel 100  Excel 200  Excel 300

Attach the Bottom Shelf (C9) to the Gas Bottle

Holder (C3) using the screws (D5). Taking care

not to over tighten.

Attach the leg assembly to the Bot-

tom Shelf assembly using the

screws (D1).

 Excel 100  Excel 200  Excel 300
