Panametrics DewPro MMY31 Manuale utente
A40251548 Rev. B
April 2022
Panametrics.com
DewPro™ MMY31
Installation & Operation Manual
A40251548 Rev. BPanametrics.com
DewPro™ MMY31
Dew Point Transmitter
Installation & Operation Manual
A40251548. Rev. B
April 2022
ii
[no content intended for this page]
DewPro™ MMY31 Installation & Operation Manual iii
Contents
Chapter 1. General System Information
1.1 Unpacking and Inspection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.2 Model Number Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.3 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.3.1 Unit Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.4 Theory of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.4.1 4–20mA Loop. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.4.2 Planar Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.4.3 Calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Chapter 2. Installation
2.1 Mounting the MMY31 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.2 Wiring Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2.1 Designing the Loop. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2.2 In a Normal Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2.3 In Environments with Severe Electrical Noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2.4 General Wiring Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Chapter 3. Troubleshooting
3.1 The Loop Current is Out of Range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.2 There Is No Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Chapter 4. Optional Display/User Interface
4.1 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
4.1.1 Removing the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
4.2 Programming Matrix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.3 Push Buttons - Special Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.3.1 Reset to “Normal” Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.3.2 Display Only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.3.3 Default Values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.3.4 Changing Values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.4 Matrix Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
4.4.1 Display and Output Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
4.4.2 Special Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.4.3 Mode of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Chapter 5. Specifications
5.1 Technical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
5.2 Optional Onboard Display with User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
5.3 EMC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Warranty
Contents
iv DewPro™ MMY31 Installation & Operation Manual
[no content intended for this page]
DewPro™ MMY31 Installation & Operation Manual 1
Chapter 1. General System Information
Chapter 1. General System Information
1.1 Unpacking and Inspection
Upon receipt of the DewPro MMY31, examine the shipping carton for broken or open packing, distortion, or any other
evidence of mishandling. If inspection indicates damage to the unit or any of its components, notify the carrier
(within 15 days of delivery) and request an inspection.
Move the carton to a clean work area and unpack it. The carton you receive should contain:
•DewPro MMY31
•Installation and Operation Manual
•Calibration Certificate
Compare the last five characters of the model number with the product model number (see below) to ensure you
have received everything you ordered.

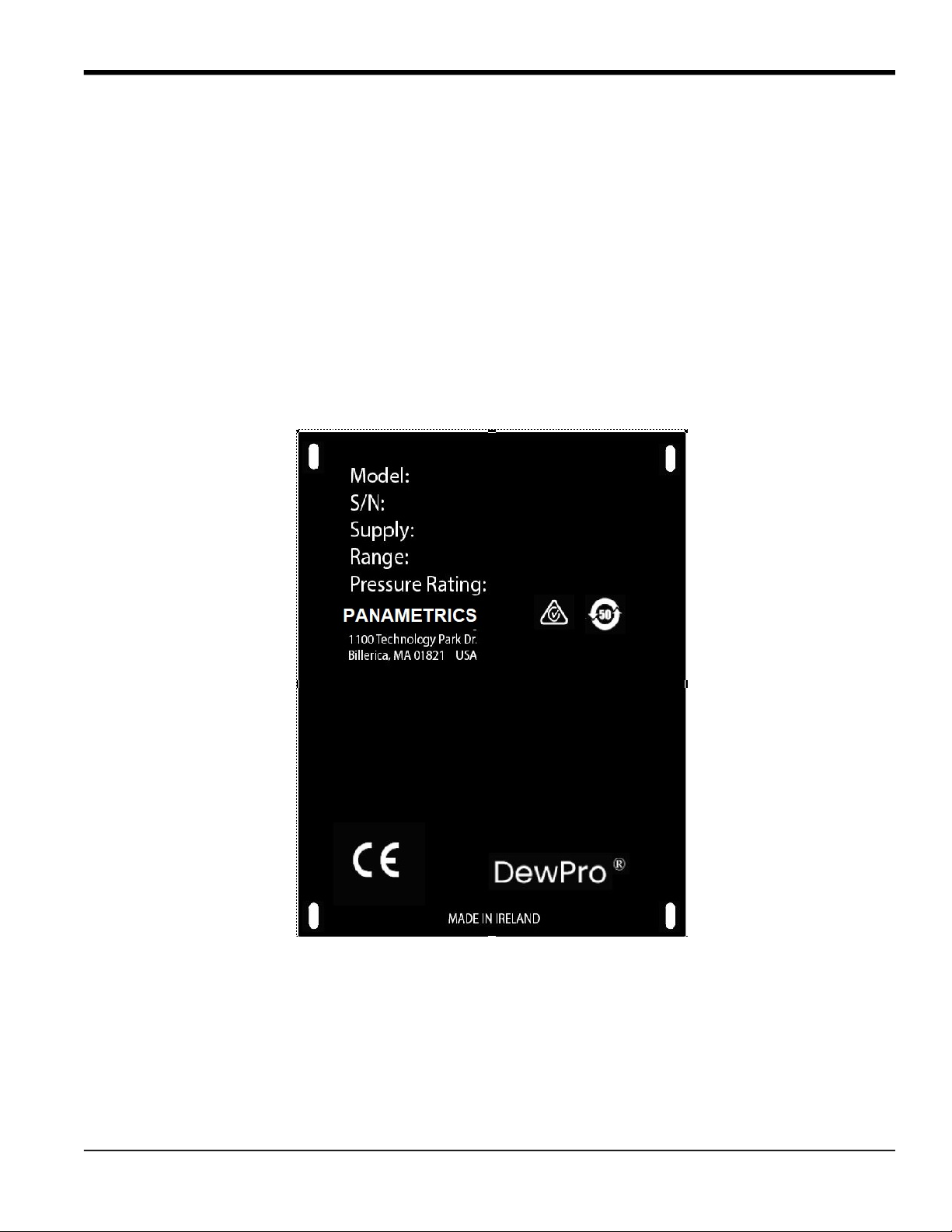

Figure 1: DewPro MMY31 Product Label
Chapter 1. General System Information
2 DewPro™ MMY31 Installation & Operation Manual
1.2 Model Number Configuration
Table 1: Model Number Configuration
Certification/Approvals:
R MMY31 Safe Area Config
A IS Config
B XP Config
C CI.I, Div.2 Config
F Zone 2 Config (self declared)
S Other
Process Connection:
2 ¾” NPT-M compression fitting
3 ½” NPT-M compression fitting
4 ¾” x 16 Oring fitting UNF thread
6 No mounting hardware
8 G½ male compression fitting
S Other
Protective Cap:
A 100 micron sintered filter
B No filter, clean applications
S Other
Enclosure Conduit:
1 M20 x 1.5-F cable gland + plug
2 M20 x 1.5-F ½” FNPT adapter
S Other
Range, Display, Error Status
A –90°C to +10°C blind, error 22 mA
B –90°C to +10°C blind, error Hold
C –90°C to +10°C blind, error 3.6 mA
D 0-100 ppmv blind, error 22 mA
E 0-100 ppmv blind, error Hold
F 0-100 ppmv blind, error 3.6 mA
G integral display, ppmv
S Other
R 8 A 2 A Model Number example
DewPro™ MMY31 Installation & Operation Manual 3
Chapter 1. General System Information
1.3 Introduction
1.3.1 Unit Description
The DewPro MMY31 transmitter is a loop-powered dewpoint measuring device. The transmitter includes a sensor
element, a stainless steel probe, a weather-proof enclosure, microprocessor electronics, and assorted fittings,
all in a compact assembly. It is designed to be installed “in-line.” Various types of mounting hardware, such as flange
and compression fittings, are available for mounting into a process chamber or pipe.
An optional display with user interface feature allows the DewPro to be configured by the user. See Chapter 4 for
more information.
1.4 Theory of Operation
1.4.1 4–20mA Loop
The DewPro MMY31 Transmitter is powered by a voltage supply of 12 to 28 VDC. At the nominal 24 VDC supply, the
maximum loop resistance is 600 ohms. The signal is represented by the 4–20 mA loop current and is directly
proportional to the dewpoint temperature range in °C or °F. In the standard range, 4 mA corresponds to
–90°C (–130°F) and 20 mA to +10°C (+50°F) dewpoint temperature. The optional unit of measure is ppmv in the
standard range 0-100 ppmv, unless ordered differently
1.4.2 Planar Sensor
The heart of the MMY31 is the planar aluminum oxide sensor that provides longer calibration stability, excellent
corrosion resistance, and improved speed of response. The sensor is mounted on a ceramic substrate giving a
reduced temperature coefficient.
1.4.3 Calibration
Each DewPro is factory calibrated against precise NIST certified moisture references and has an accuracy of ±2°C
dewpoint at 25°C temperature.
Chapter 1. General System Information
4 DewPro™ MMY31 Installation & Operation Manual
[no content intended for this page]
