Housings:

Outdoor Dome

POD7C,

POD7CW

PRODUCT FEATURES

• Pendant or wall mount models are available

• Easy camera installation

• Tamper resistant access screws

• 24 Hour fan operation for effective heating and

condensation protection

• Thermostatically control 24VAC heater

• Separate power input for H&B and camera power

• Surge protection for video line and power line

• Ground-loop protection by optional unit PWBT1621

(Isolation Transformer)

• Optically clear dome material

SHIPPING

POD7C/POD7CW: 11 lbs 17” x 14” x 18”

DESCRIPTION

The POD7C and POD7CW are 7” outdoor dome housings for

CS564/CS854A/WV-NS324 unitized dome camera systems.

A heater and blower are standard on all models.

ELECTRICAL SPECIFICATIONS:

Power:

24 VAC 52 watts (excluding camera)

24 VAC 68 watts with camera

Surge Protector (Video):

Clamping differential node voltage between 240 - 300V and common

mode voltage from 27 - 36V

Ground Loop Isolator (Optional)

Model No.: PWBT1621

60Hz hum rejection: 1000V p-p

Bandpass: 10Hz to 25MHz

Insertion Loss: 0.3dB

MECHANICAL SPECIFICATIONS:

Size (hxwxd):

POD7C: 14” x 10” x 10”

POD7CW: 14” x 15” x 10”

Weight: 6.6 lbs. (without camera)

Construction:

Upper Housing: .25” high impact, UV stable white ABS plastic

Lower Dome: 7” Cell-cast acrylic (Distortion free)

Internal Brackets: 14 and 16-gauge powder coated steel

Mounting Brackets: Cast or machined aluminum

ENVIRONMENTAL SPECIFICATIONS:

Operating Temperature: -20° F to +120 F

Heater activates at +40° F (+/- 8°),

deactivates at +60° F (+/- 5° F), 24vac, 50W

Blower : Continuous operation

STANDARD ACCESSORIES:

• 8 pc. Molex male pins

• 2 pc. Molex 4 position connectors

• 1 pc. POD7C/CW Instructions

• 4 pc. 8-32 Phillips head screws for mount camera

• 3 pc. Cable ties for wire management

• 1 pc. Security tool (Toolhead driver)

MODELS:

POD7C - Dome Housing, Outdoor, 7”, Pendant Mount, Clear

Dome for Unitized Cameras

POD7CW - Dome Housing, Outdoor, 7”, Wall Mount, Clear

Dome for Unitized Cameras

OPTIONS/ACCESSORIES:

POD7C:

PPMF12D - Pendant Mount Bracket

PWM20G - Aluminum, Gooseneck Wall Mount Bracket

PWM30G - Aluminum, Parapet Mount Bracket w/o extension

PPRM30G - Aluminum, Parapet Mount Bracket

POD7CW:

PACA2 - Aluminum, Corner Mount Adaptor

PAPM3 - Aluminum, Pole Mount Adaptor

PSRCW2000B - Heavy-Duty Parapet Mount Bracket

DISTRIBUTED BY:

Panasonic Digital Communications & Security Company

Unit of Matsushita Electric Corporation of America

Security Systems

Executive Office: Three Panasonic Way, Secaucus, NJ 07094

Zone Offices:

Eastern: One Panasonic Way, Secaucus, NJ 07094 (201) 392-4546

Central: 1707 North Randall Road, Elgin, IL 60123 (847) 468-5211

Western: 6550 Katella Avenue, Cypress, CA 90630 (714) 373-7840

www.panasonic.com/cctv

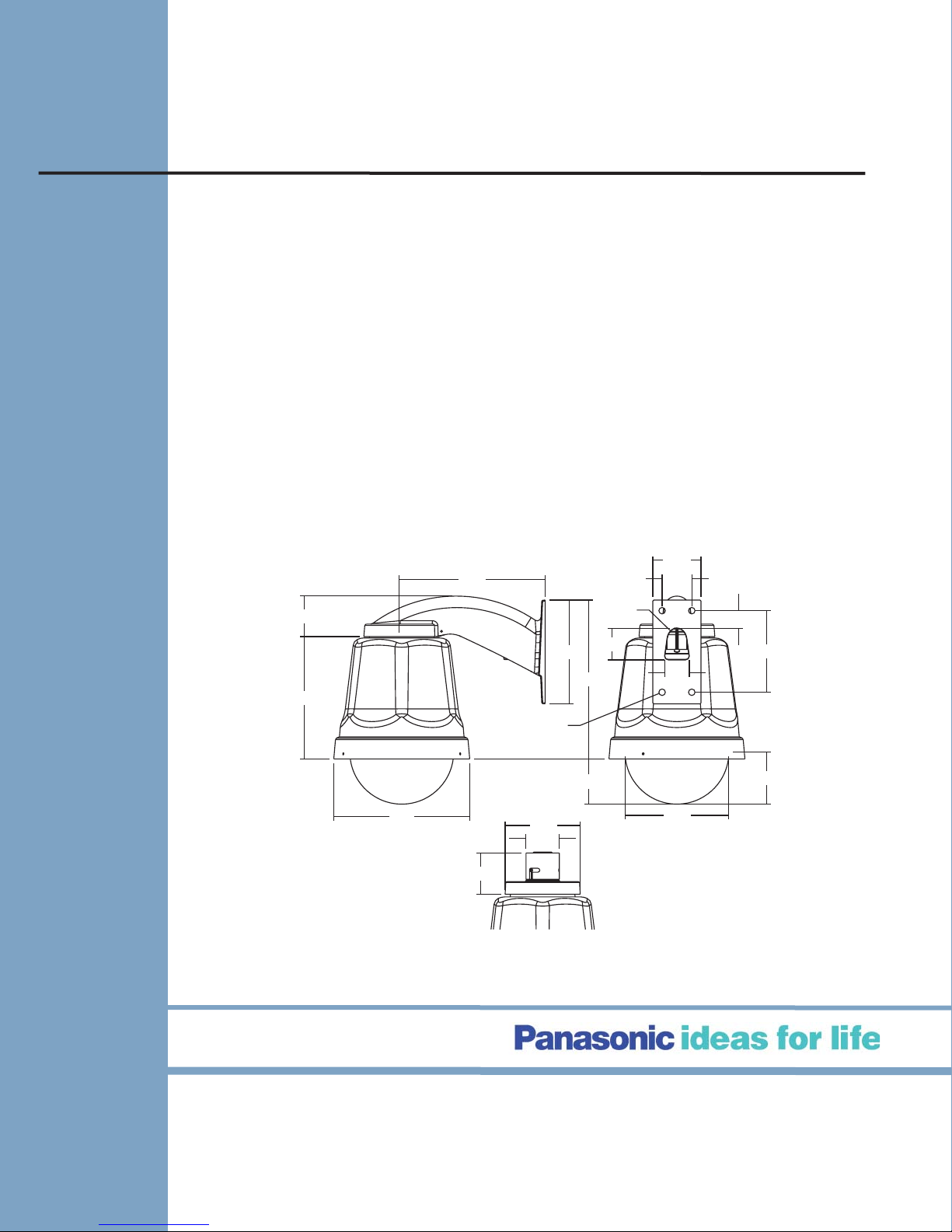

4x .44O

3.25

2.00

.70R

1.67

1.18

2.13 5.50

3.50

3.05

2.73

8.25

10.72

7.00

9.84

5.06

2.25

2.79

9.17 7.00

POD7CW

POD7C

THREADEDS

1 1/2" NPT

POD7C,

POD7CW

BID SPECIFICATIONS

The outdoor dome camera housing shall be a Panasonic Model POD7C, POD7CW or equivalent. The housing

shall be designed for the Unitized Surveillance Device Series WV-CS564/CS854A/WVNS324. The housing shall

be constructed of UV stable white ABS plastic, acrylic, and aluminum & steel brackets. The lower dome portion

shall be constructed of distortion-free acrylic and be 7” in diameter, and shall be held in place with minimum of

(3) security fasteners. The housing shall include a camera mounting bracket that integrates a heater, blower,

video and power surge protector capable of clamping differential node voltage between 240 - 300V and

common mode voltage from 27 - 36V. A ground isolation transformer, Panasonic Model PWBT1621, shall be

available as an option. The housing shall support a temperature range of -20 to 120°F, with the 50W heater

turning on at 40°F and turn off at 60°F. The housing shall be powered with 24VAC (60Hz) and have a power

consumption not to exceed 68W including Unitized Camera. Pendant mount model (POD7C) shall include

an integral ﬁtting compatible with standard 1 1/2” NPT pipe suitable for outdoor pendant mounting. The

POD7CW shall include an integral wall mount with four (4) mounting holes in a 5.5”H x 2”W mounting pattern.
