Panasonic FV-0511VQC1 Manuale utente

Service Manual

PESMX1710002CE

Version:1902

CONTENTS

1.Specification

2.Parts Identification

3.Wiring Diagram

PAGE

2 ~ 4

Ventilating Fan

FV-0511VQC1

4.Parts List 6 ~ 7

(North America Market)

WARNING

This service information is designed for experienced repair technicians only and is not designed for use by

the general public. It does not contain warnings or cautions to advise non-technical individuals of potential

dangers in attempting to service a product. Products powered by electricity should be serviced or repaired

only by experienced professional technicians. Any attempt to service or repair the product or products dealt

with in this service information by anyone else could result in serious injury or death.

IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are

marked by in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential

that these critical parts should be replaced with manufacturer's specified parts to prevent shock, fire

or other hazards. Do not modify the original design without the manufacturer’s approval.

.Please have a static electricity depletion process in place before handling these components.

. Please use gloves when handling PCB parts during the repair process.

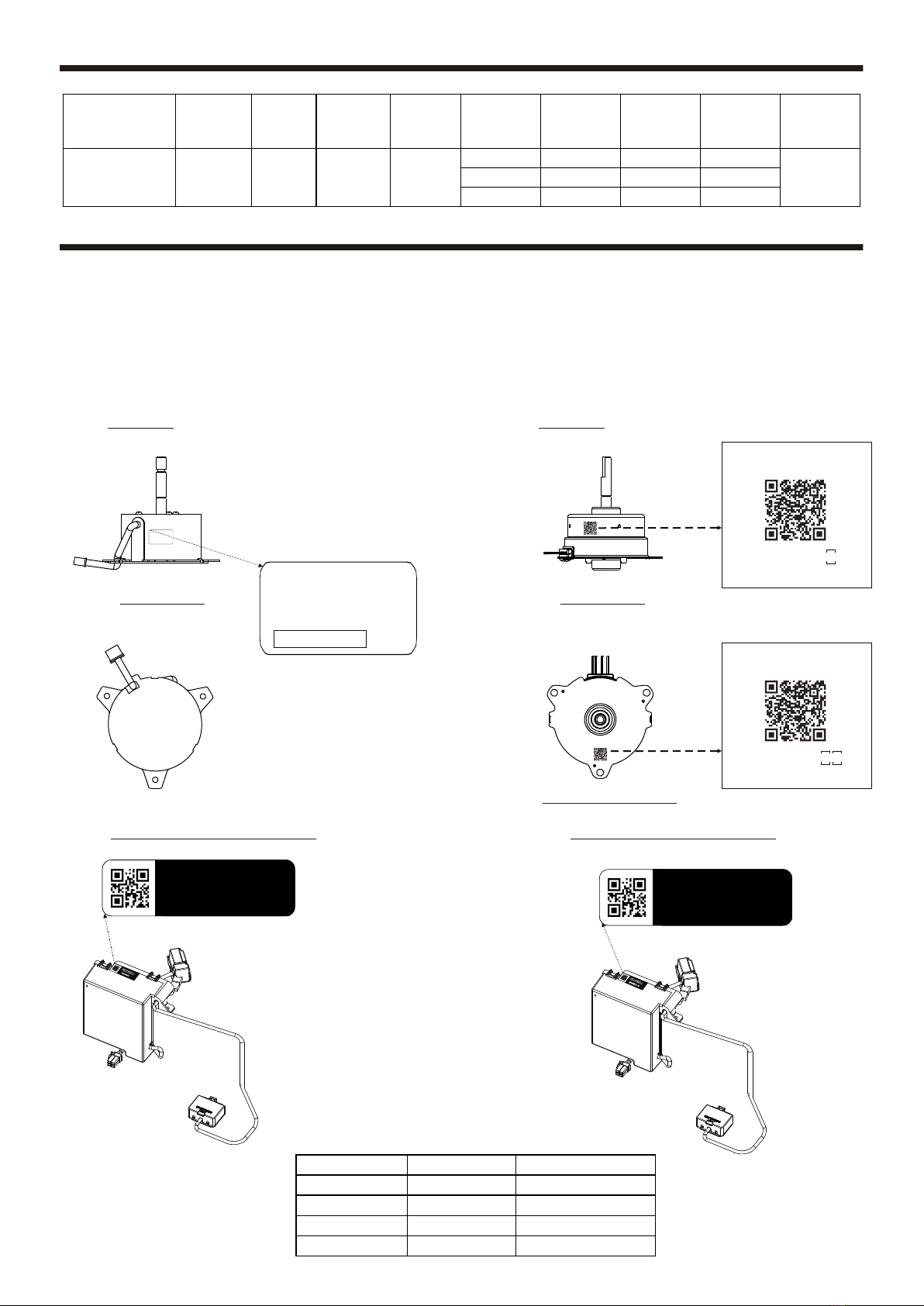

1. Specification

Model No.

Air

direction

Voltage

(V)

Frequency

(Hz)

Duct

diameter

(Inches)

Air volume

at 0.1"WG

(CFM)

Noise

(sones)

Speed

(rpm)

Power

(W)

Weight

lb. (kg)

50 < 0.3 756 4.1

80 < 0.3 821 6.0

110 < 0.3 957 10.8

FV-0511VQC1 9.5 (4.3)Exhaust 120 60 4 or 6

HVI Certified performance based on HVI Procedures 915, 916, and 920.

Parts for Version A Parts for Version B

Motor Motor

Main PCB Section

MINEBEA

11QCL1M20B

DNN12M14L11F

MOTOR ASSEMBLY

DC29V / MADE IN CHINA

Label information

Top Cover view

Side viewSide view

Main PCB Section

0511VQCL1

[ Serial No ] 0511VQCL1

[ Serial No ] M

Motor Main PCB Judgment

Version A Version A ( OK ) Work

Version A Version B ( NG ) Do Not Work

Version B Version B ( OK ) Work

Version B Version A ( NG ) Do Not Work

Remark: We divide this model into Version A & Version B, because of different

motor and Main PCB Section, please put attention with identification

of parts when you request a service parts.

QR code

11QCL1M21 X

[ Serial No ]

11QCL1200 X

QR code

[ Serial No ]

Main Body Section

7 A / 7 B

12 A / 12 B

(3pcs)

(5pcs)

(2pcs)

FV-0511VQC1

2. Parts Identification

Main PCB Section

22 A

Name Plate

22 B

80501 8 050 1M

New Motor

New PCB

Main PCB Section

Main Label

(3pcs)

20 21

22A

FV-0511VQC1

2. Parts Identification

Part for Version A Part for Version B

80501 22B

80501M

8 Means Year: 2018

05 Means Month

01 Means Day

M: In House MOTOR

8 Means Year: 2018

05 Means Month

01 Means Day

Packing Section

FV-0511VQC1

2. Parts Identification

Main control circuit

Humidity sensor

Fan body

Motion sensor

Motor

Junction box

AC120V

60Hz

(Power supply)

Selector

White

Black

Live (Fan)

Neutral

Green

Main control

circuit

TimerHumidity

setting

BLACK

WHITE

GREEN

Wire nuts

Junction

box

120 VAC

LINE IN

Switch box

Conduit

Ground wire

Live

Neutral

(Ground wire)

Ground wire

4. Parts List

FV-0511VQC1

Main Body Section

No. Part No. Part Name Q'ty Remark

1 FFV11QCL1900C Frame Assembly 1

2 FFV11VQC1910 Adapter Assembly 1

3 FFV08VKS3M915 Connector Plate 1

4 FFV11QCL1331 Earth Lead Wire 1

5 FFV11QCL1301A Connector Assy 1

6 FFV11QCL1912A Junction Cover 1

7A FFV11QCL1M20A Motor 1 Version A

7B FFV11QCL1M21AX Motor 1 Version B

8 FFV11QCL1904C Motor Support 1

9 FFV0400114S Blade 1

10 FFV7020021S Nut 1

11 FFV11QCL1906B Casing 1

12A FFV0511VQCL1UPCB Main PCB section 1 Version A

12B FFV11VQCL1PCB Main PCB section Version B

13 FFV0511VQC1A Grill Assembly 1

14 FFV13KML3996C Sensor Cover 1

15 FFV0511VQC1S Grill Section 1

A FFVXYM4-E8FJ Screw (M4-8) 1

B FFVXTT4-8FFJ Screw (ST4-8) 5

C FFV7000089S Screw (ST4-12) 8

D FFVXYM4DC8BN Screw (M4-8)w/washer 1

E FFV7000065S Screw (M4-12) 2

Main PCB Section

No. Part No. Part Name Q'ty Remark

16 FFV11QCL1991D Main PCB Box 1

17 FFV11QCL1560 SW PCB Assy Set 1

18 FFV11QCL1540 Motion Sensor 1

19 FFV11QCL1992C Main PCB Cover 1

F FFVXTN3-8GFJ Screw (M3-8) 3

4. Parts List

FV-0511VQC1

Main Label

No. Part No. Part Name Q'ty Remark

20 FFV11QCL1011A Switch Label 1

21 FFV11QCL1012A CFM Label 1

22A FFV11VQC1050 Name Plate 1 Version A

22B FFV11VQC1050M Name Plate 1 Version B

23 FFV0810011S Caution Label 1 1

24 FFV0810010S Caution Label 1

25 FFV6730045S Warning Label 1

26 FFV2260003S Holograph Label 1

Packing Section

No. Part No. Part Name Q'ty Remark

27 FFV11QCL1920 Hanger Assy 1

28 FFV4710381S Grill Pad Assy 1

29 FFV4650016S Poly Cover 1

30 FFV15VQ10420B Installation Inst 1 English / Spanish For USA Market

31 FFV15VQ10421 Installation Inst 1 English / French For CANADA Market

32 FFV11KSL1M031A Accessory A 1

33 FFV11QCL1891 Left Pad 1

34 FFV11QCL1892 Right Pad 1
