Panasonic KX-TD7580 Manuale utente

DECT Portable Station

Operating Instructions

Model KX-TD7580

– Thank you for purchasing a DECT Handset (= Portable Station PS).

– Charge the battery for about 15 hours before initial use.

– This manual is designed to be used with your Handset and a Panasonic

KX-TD816/KX-TD1232 system.

– In this manual, the last letter of each model number is omitted.

Accessories (included)

Setting Up.................................2

Turning the Power On and

Display......................................3

Operation.................................. 4

Using the Phonebook............... 6

Handset Programming.............13

Important Information...............18

Specifications........................... 20

English...............................21-40

Deutsch..............................41-60

Français..............................61-80

Nederlands.......................81-100

Svensk.............................101-120

Contents

To attach

AC Adaptor

Handset Cover

Belt Clip

Charger

Batteries

Operating Instructions

Français

Nederlands

English Deutsch Svensk

The handset supports the single line telephone (SLT) features.

Please refer to the appropriate section in the User Manual for

the KX-TD816/1232 system to operate the handset.

Some of the features are not available.

INT

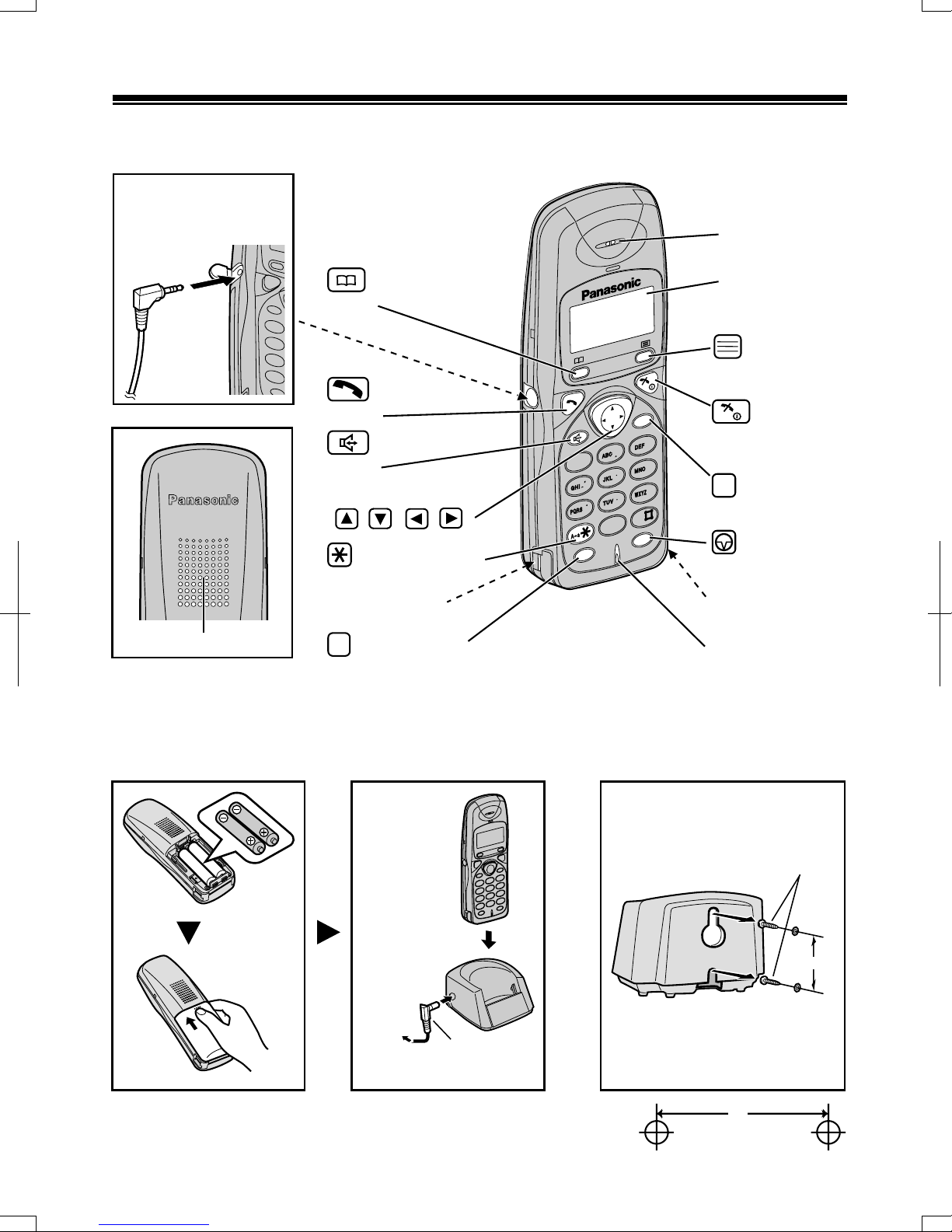

Setting Up

Handset (PS)

Display

Charge Contact

Microphone

(Function/OK)

Button

Charge Contact

Navigator Key

( , , , )

Headset Jack (Please

use only a Panasonic

headset.)

(Talk)

Button

(Speakerphone)

Button

(Phonebook)

Button

(Capital Change)

Button

(OFF/Power)

Button

Receiver

(Clear)

Button

(Recall) Button

Speaker

Insert and charge the batteries for about 15

hours as shown below.

Mount the charger

securely on the wall.

Use the template below for wall

mounting.

To power

outlet AC Adaptor

Back

Screws

30 mm

(Pause)

Button

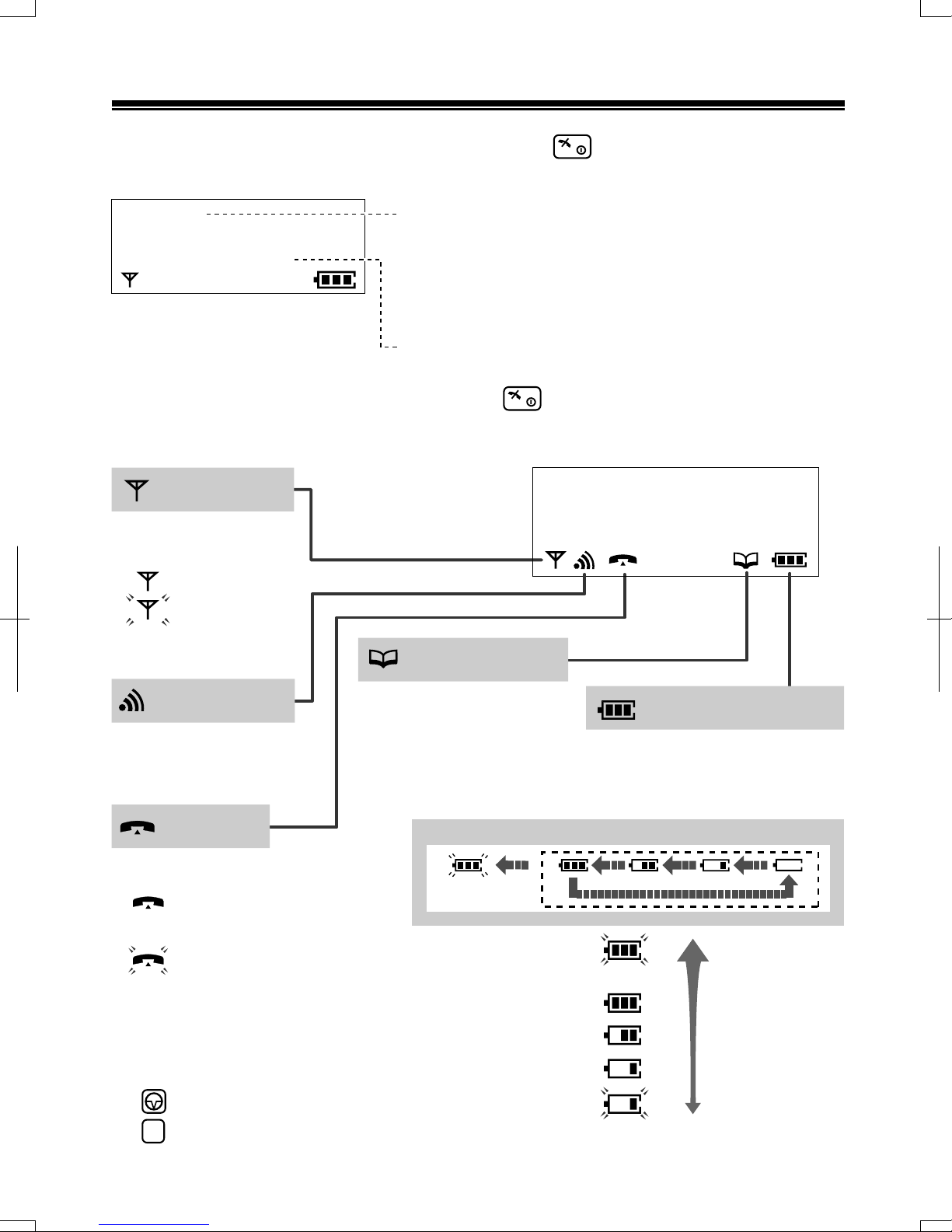

Turning the Power On and Display

Shows the battery strength.

During charging the battery,

battery icon is as shown below.

Displays when storing

or viewing phonebook

items.

Fully charged.

Low

Medium

Needs to be

charged.

High

(Flashing)

ABCDEFGHIabcdefg

1234567890123456

In-range icon

Talk icon

Displays when:

making or

answering a call.

receiving an outside

call.

Displays when the

handset is:

in range.

out of range.

(Flashing)

Full <During charge>

Characters

P is pressed while dialling.

F is pressed while dialling.

Flashes when receiving

the internal call.

To turn the power ON, press and hold .

Before using the handset, turn the power ON.

Base 1

15.05 13:58

The current connected base unit number:

You can choose whether to display the

base unit number, extension number or no

display in the standby mode by

programming (p. 13).

The current date and time

● To turn the power OFF, press and hold until a beep sounds.

● To change the display language, see page 13.

Battery Strength

Phonebook icon

Intercom icon

● While talking, you can switch back and forth between the hands-free phone

conversation (press ) and the receiver (press ).

● Predialling : You can dial first, and then go off-hook.

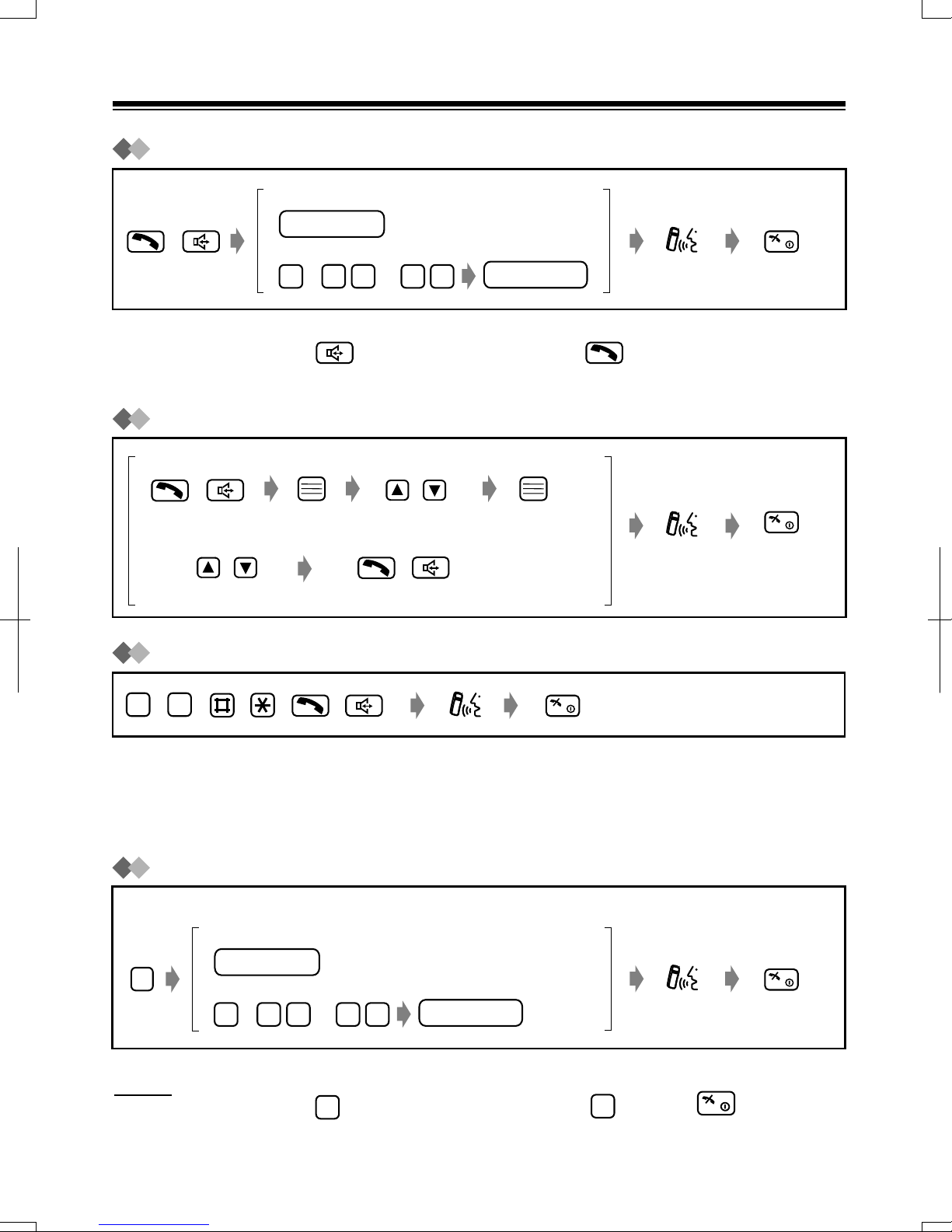

Operations

Basic Calling

● Quick Answer: If you set the quick answer feature ON (p. 13), you can answer

a call by lifting the handset off the charger without pressing a button.

● When receiving a call from a caller registered in the phonebook, the caller's

name and phone number will appear on the display.

Receiving Calls

–/

Transferring Calls

To an extension

To an outside party

—8

While talking

8 1

phone no.

extension no.

To an extension

To an outside party

—8

8 1

phone no.

extension no.

/ /

Select "Redial."

Redialling

Select the redial number

To redial the last number

To redial using the redial list

Notes

● If you misdial, press . To cancel, press and hold or press .

● You can also hang up by placing the handset on the charger.

Clearing the Number in the Redial Memory

Adjusting the Receiver/Speaker Volume

● The ringer will turn back on for the next call.

● This function will not work when the handset is on the charger.

To clear the selected number

To clear all numbers

Select the redial

number.

Select "Clear."

Select "All Clear."

While talking /

(to increase) (to decrease)

Turning the Handset Ringer off Temporarily

While ringing

(press and hold.)

Select "Go to TONE."

While dialling

Tone Signalling

During an outside call, you can transmit tone signals automatically using the

keypad (e.g., to control answering system remotely).

To set

(press and hold.)

Setting the Key Lock

You can lock the handset dialling buttons. Only incoming calls are accepted until

the key lock is cancelled. While locked, "[X]" will be shown on the display.

To cancel

(press and hold.)

Using the Phonebook

You can store up to 100 names and phone numbers in the phonebook. All

phonebook items are sorted by the first word in alphabetical order. Using the

phonebook, you can make a call by selecting a name on the display.

● If the phonebook is locked (p. 6), enter the 4-digit handset PIN to go to the

phonebook list.

●You can exit the phonebook setting mode anytime by pressing .

●When programming is completed, a beep sounds.

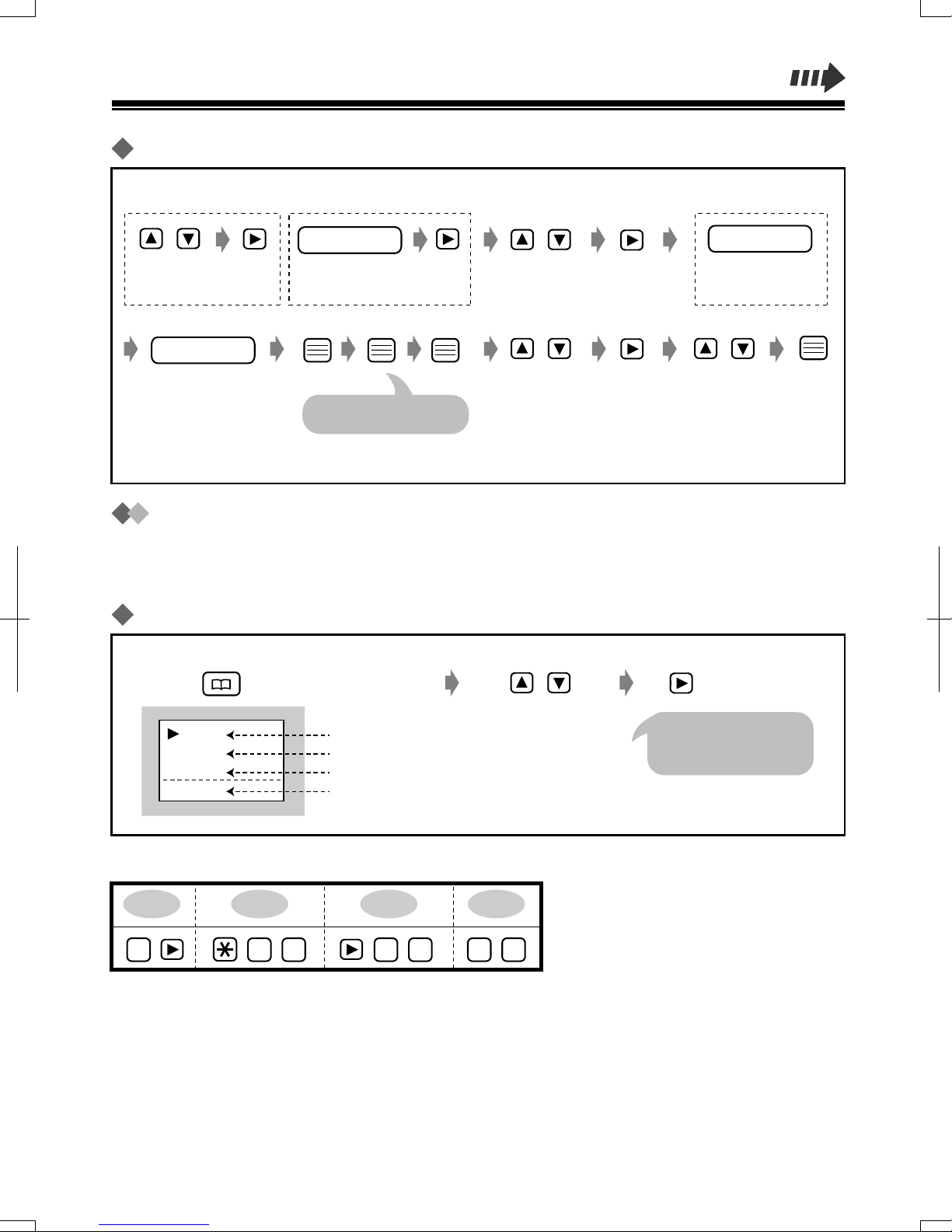

Storing Names and Numbers in the Phonebook

*1If the display shows ''Memory Full,'' the display will return to the standby

mode. Clear other stored items in the phonebook (p. 10).

*2See the steps for entering names and symbols (p. 7).

Enter the 4-digit

handset PIN.

Select "New

Phonebook."

Enter the phone

number

(max. 24 digits).

Select the desired

private category

number or OFF.

Handset PIN name

Enter name

(max. 16

characters).

phone no.

If a pause is required for dialling, press .

A space can be stored in a phone number counting as one digit.

Select "Save."

Using the Private Category Feature

You can select the display backlight colour and ringer type for each private

category (p. 13). When receiving a call, you can easily figure out who has called.

(For example, Category 1 for family, Category 2 for friends and Category 9 for

business.)

If you do not assign an item to any private category number, the handset will ring

in the preset ringer type and light in the preset colour when receiving a call.

/ /

Entering Characters

The dialling buttons can be used to enter letters and character symbols. The

letters are printed on the dialling buttons.

Selecting the Character Mode

For example, to enter "Anne'':

Select the desired

Character Mode. See the "Character

Mode Table" on the

next page.

While entering a name

ABC

0-9

ΑΒΓ

AÄÅ

Alphabet

Numeric

Greek

Extended

A n en

2336666

Storing a Redial or Predial Number

Enter the 4-digit

handset PIN.

Select the desired

redial number. Select "Save

Phonebook."

Select "Save."

Select the desired

private category

number or OFF.

Handset PIN

Enter name

(max. 16

characters).

phone no.

Enter the desired

phone number.

name

Confirm the number.

Character Mode Table

Buttons ABC (Alphabet)

0-9 (Numeric)

ABC (Greek) AÄÅ (Extended)

# & ’ ( ) , – . / # & ’ ( ) , – . / # & ’ ( ) , – . /

# & ’ ( ) , – . /# & ’ ( ) , – . /# & ’ ( ) , – . /

2A B C

a b c

ΑΒΓ

A À Á Â Ã Ä Å Æ B C Ç

a à á â ã ä å æ b c ç

3D E F

d e f

∆ΕΖ

4G H I

g h i

ΗΘΙ

5J K L

j k l

ΚΛΜ

J K L

j k l

6M N O

m n o

ΝΞΟ

M N Ñ O Ò Ó Ô Õ Ø

m n ñ o ò ó ô õ ø

7P Q R S

p q r s

ΠΡΣ

P Q R S S ß

p q r s s ß

8T U V

t u v

ΤΥΦ

T U Ù Ú Û Ü U V

t u ù ú û ü u v

9W X Y Z

w x y z

W X Y Z

w x y z

0blank

blank

To move the cursor to the left.

blank

To erase the character. To erase all characters, press and hold.

To move the cursor to the right. (To enter another character using the

same dialling button, move the cursor to the next space.)

To shift from capital to lower case, press . Each time you press ,

the mode will change.

ΧΨΩ

D E È É Ê Ë E F

d e è é ê ë e f

G G H I Ì Í Î Ï I

g g h i ì í î ï

*1If ''No Numbers Stored'' is displayed, the phonebook is empty. The handset

will return to the standby mode.

*2All phonebook items are sorted in the following order:

Character Symbol Number

Press the dialling

button for the first

letter of the

desired name.

Enter the

Handset PIN.

Handset PIN

01 –

Finding Items in the Phonebook

Ex.To find "Felix," press repeatedly

until the first item under "F" is displayed.

Select the desired

name.*2

●To dial, go to Option 1.

●To edit an item, go to Option 2.

●To clear an item, go to Option 3.

Option 1: Dialling from the Phonebook

Option 2: Editing an Item in the Phonebook

Select "Edit."

Select the desired

category number

or OFF.

Enter the name*

(max. 16 characters).

namename

Enter the phone

number

(max. 24 digits).

phone no.

* See the steps for entering names and symbols (p. 7).

Option 3: Clearing an Item from the Phonebook

Select "YES."

Select "Clear."

Select "Save."

After a few seconds, the display will show

the next item.

/ /

Altri manuali per KX-TD7580

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Panasonic Cornetta

Panasonic

Panasonic KXTGA935 - DIGITAL CORDLESS HANDSET INSTALL Manuale di istruzioni

Panasonic

Panasonic KX-TGA510M - 5.8GHz Accessory Handset Manuale utente

Panasonic

Panasonic KX-TGA551EX Manuale utente

Panasonic

Panasonic KX-PD503UD Manuale utente

Panasonic

Panasonic KX-UDT131 Manuale utente

Panasonic

Panasonic KX-TGEA40S Manuale utente

Panasonic

Panasonic KX-TGA651B Manuale di istruzioni

Panasonic

Panasonic KX-HNH100FX Manuale utente

Panasonic

Panasonic KX-TGA950B Manuale utente

Panasonic

Panasonic KX-TGA661EXB Manuale utente

Panasonic

Panasonic KX-TGFA30C Manuale utente

Panasonic

Panasonic KX-TGA641 Manuale utente

Panasonic

Panasonic KX-HNH100 Manuale utente

Panasonic

Panasonic KX-TGA410 Manuale utente

Panasonic

Panasonic KX-TGA648EX Manuale utente

Panasonic

Panasonic KX-TGDA99 Manuale utente

Panasonic

Panasonic KX-TGDA83 Manuale utente

Panasonic

Panasonic KX-TGA560B - Cordless Extension Handset Manuale utente

Panasonic

Panasonic KX-TGA807EX Manuale utente

Panasonic

Panasonic KX-TGA106M - Cordless Extension Handset Manuale utente

Panasonic

Panasonic VL-WD613 Manuale utente

Panasonic

Panasonic KX-TGFA30N Manuale utente

Panasonic

Panasonic KX-TGEA60 Manuale utente

Panasonic

Panasonic KX-TGMA44C Manuale utente

Manuali Cornetta popolari di altre marche

Swissvoice

Swissvoice ePure HD Manuale utente

Philips

Philips TD6736/BH051P Manuale utente

ASCOM

ASCOM I62 - Manuale utente

LG-Ericsson

LG-Ericsson LIP-9010 Manuale utente

GE 1583 Manuale utente

iiNet

iiNet Handset Manuale utente

ASCOM

ASCOM 9p23 Manuale utente

AT&T

AT&T DLP70110 Manuale utente

AirCell

AirCell ST 3100 Manuale utente

Eaton

Eaton HHIR-LCD-PROG Istruzioni per il montaggio

Mitel

Mitel 112 Manuale utente

SBC

SBC SBC-381H Manuale utente

Mitel

Mitel 5602 Manuale utente

ASCOM

ASCOM d81 Messenger Istruzioni per l'installazione

SpectraLink

SpectraLink 7522 Manuale utente

Avaya

Avaya L100 Series Come usare

ooma

ooma HD2 Handset Manuale utente

Yealink

Yealink IPW56 Manuale utente
