Panasonic KX-TD7696 Manuale utente

Home and Business Communications

DECT Wireless Handsets

KX-TD7600 Series

KX-WT120 Series

•An Ideal Mobility Solution for Your Communications System

• Feature-rich Models with Easy, Intuitive Operation

•Ruggedized Model Available for Challenging Environments

Home and Business Communications

Panasonic System Networks Company of America

The features & beneﬁts of your desk phone—anywhere in the building

Panasonic DECT mobile wireless handsets coupled with your Panasonic KX-TDE or KX-NCP Communications

Systems offer the ideal mobile communications solution. Depending on your system, you can have up to a

maximum of 128 cell stations.

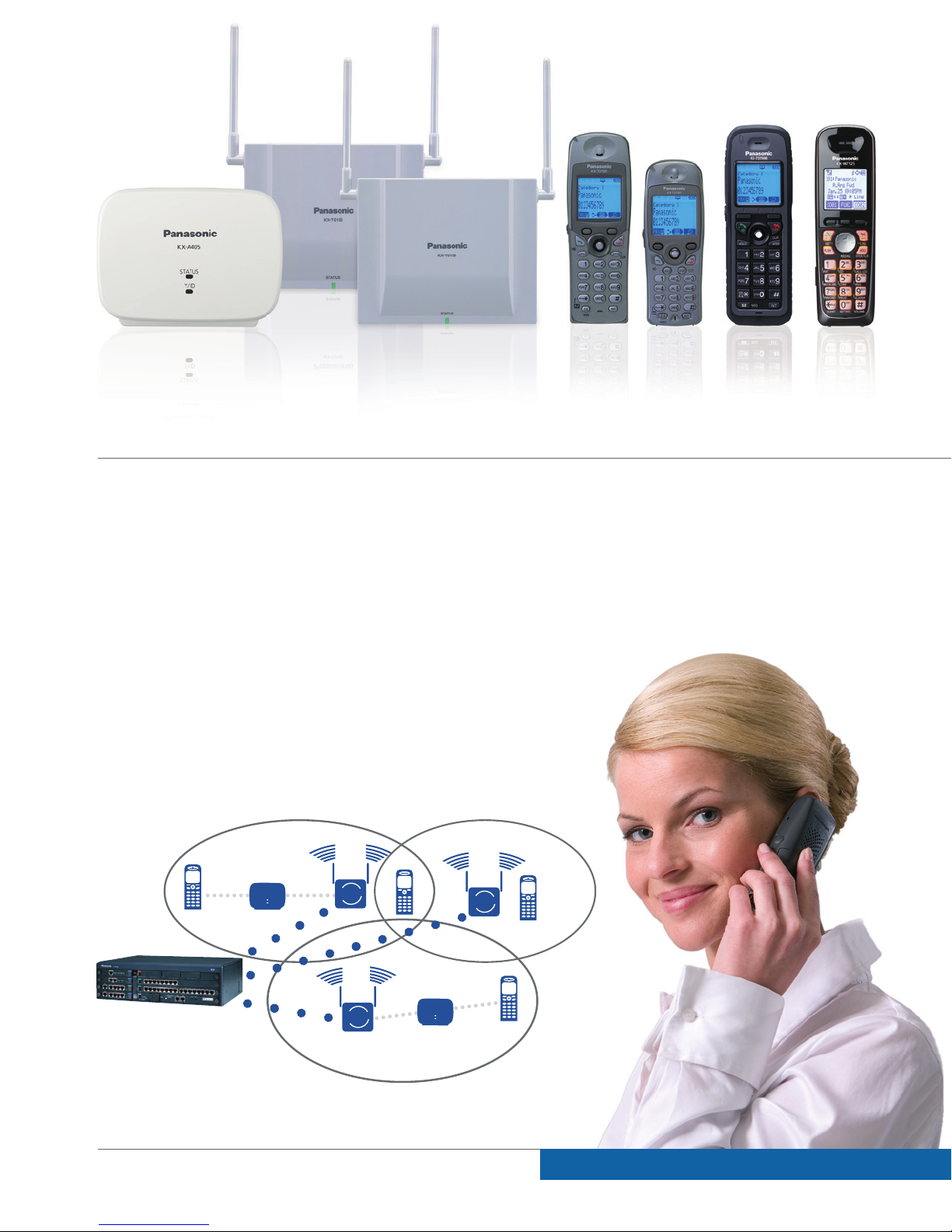

Big buildings are no longer a big problem. The system supports greater range with

the use of multiple cell antennas, which automatically hand off calls from

one station to the next as you move throughout your warehouse, plant,

showroom or any large facility without the need for any special interface.

Want to extend the range even further? Our A405 repeaters let you

nearly triple normal cell station range.

With Panasonic DECT, multi-system registration allows you to roam

across up to 4 different phone systems with one wireless handset for

maximum ﬂexibility.

Home and Business Communications

Panasonic System Networks Company of America

For more information visit panasonic.com/bts

Always Stay Connected.

New for Spring 2011

A405 Repeater

New for 2011

KX-WT125/126

KX-NCP500

Base

Station

Enhanced Communications Solutions

Stay in touch with the features you need

All Panasonic DECT handsets feature easy and intuitive operation. The large, clear display and

graphical icon menu show a quick overview of all system features. Whenever you get a call or touch

a key, an LED indicator alerts you that a call’s coming in. Flexible keys let you quickly and conve-

niently access phone system features and handset functions. A graphical Feature Menu and a navi-

gation button or joystick allows simple, easy access to the phone system’s functions and features.

Customize your DECT handset with individual ringtones so you’ll instantly know who’s calling or

to differentiate internal versus external calls or even an internal phone group. In mute mode, the

3-color LED will show you who’s on the line. Just set up a different color for each incoming ca

ll.*

Enjoy superb mobility no matter where you work

Whether it’s in an ofﬁce, factory, warehouse, supermarket, or other large facility, the Panasonic

Multi-Cell DECT System keeps you in constant touch with colleagues and key customers even

when you have to leave your work area. Elegant, compact and convenient, these high-perfor-

mance telephones put a host of advanced communication technology at your ﬁngertips.

The Panasonic DECT handsets are the wireless connection

to your customers, colleagues as well as to your Panasonic Communication System. The

KX-TD7600 and KX-WT120 series phones will give you the opportunity to use all features of

your telecommunication system, no matter where you are.

Always Available—Wherever You Go.

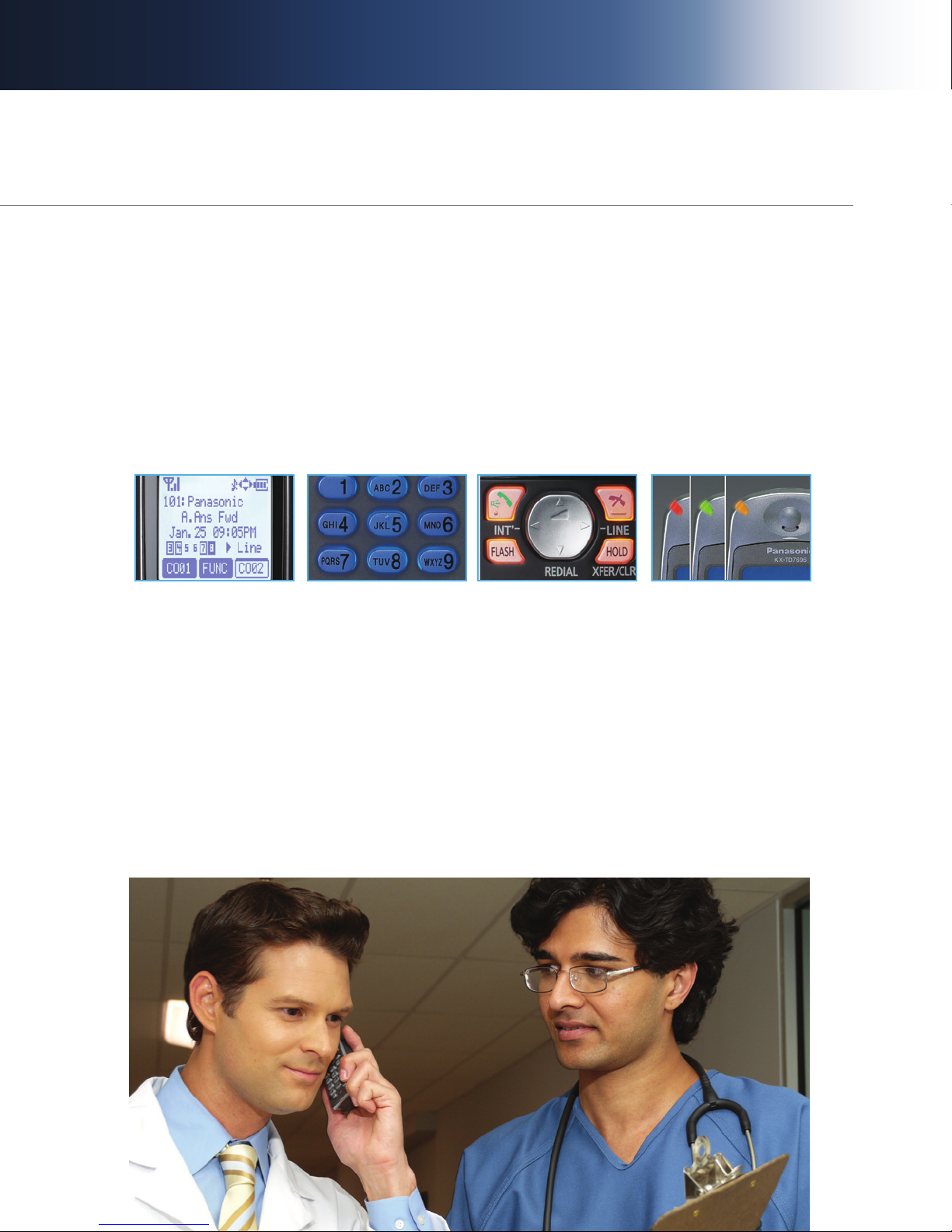

Backlit Displays Illuminated Keypads Easy Menu Operation LED Call Indicators

* TD7600 series only

A rugged phone for tough environments

The KX-TD7696 with its IP54 dust and splash resistance is the perfect communications com-

panion when work takes you to the factory ﬂoor, warehouse or any challenging environment.

Need a tough phone that lets you take along all the features of your desk phone? The KX-

TD7696 just might be the perfect solution. Ideal for industrial, manufacturing, healthcare, retail

and warehouse settings.

A tough exterior doesn’t mean sacriﬁcing features

The KX-TD7696 boasts a large, 6-line, blue backlit LCD and includes all the features you’d

expect such as Caller ID, personal and system speed dials and a built-in, 100-entry phone

book and distinct ring/LED options. The handset includes an intuitive Graphical Icon Menu

and dynamic Operation Guidance with Soft Keys and a Built-in Joystick.

Tough Outside. Tech Inside.

Dust & Splash ResistantShock-Resistant, Ruggedized Design

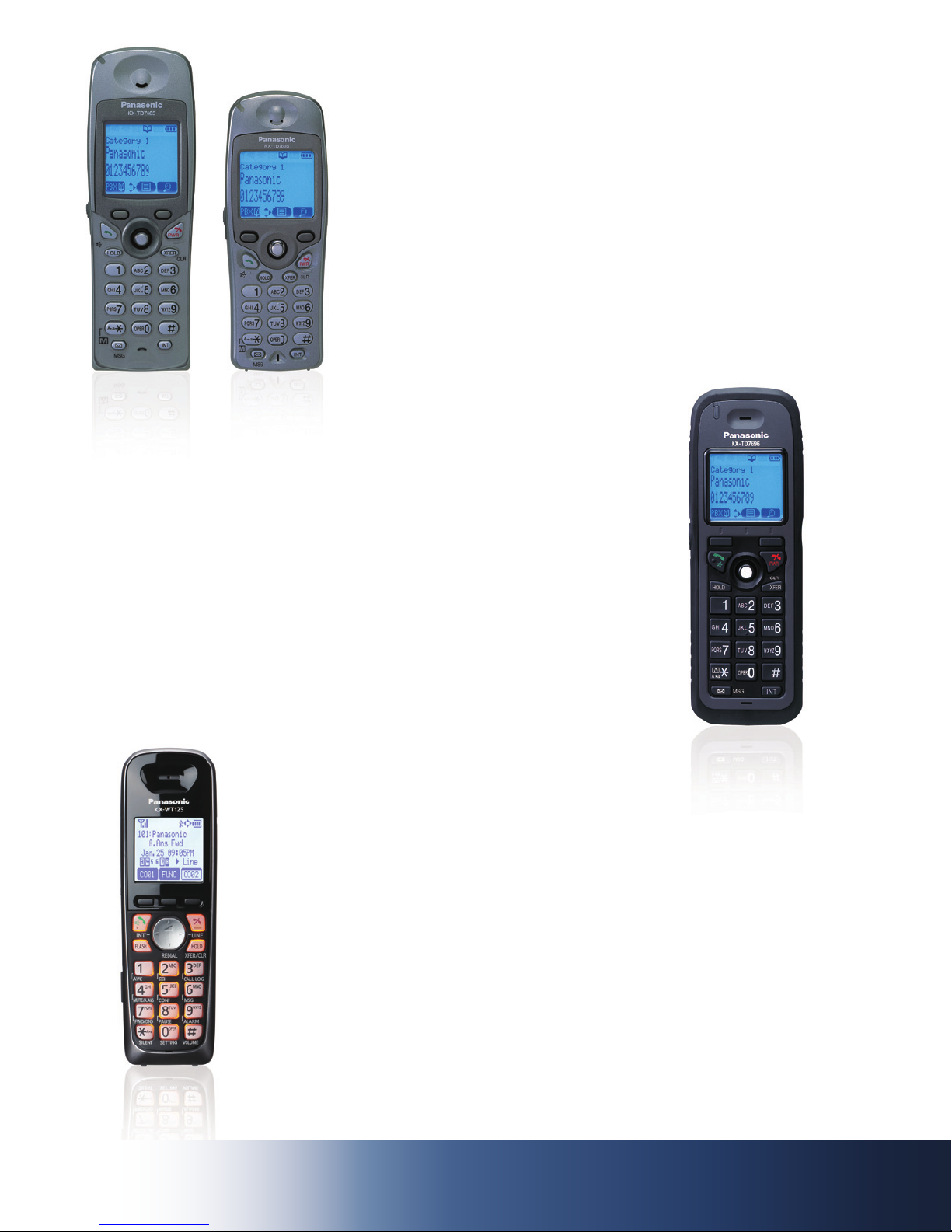

KX-TD7695

Compact Model

KX-WT125/126

Entry Model

KX-TD7685

Standard Model

For more information visit panasonic.com/bts

Features that keep you connected

• Blue Backlit Display –

Readable even in sunlight

• Illuminated Keypad – Easy op-

eration in all lighting conditions

• Easy Menu Navigation Joystick

and large icons make single-

handed operation a breeze

• Programmable Keys

• Personal Phonebook with

up to 100 entries

• Access Company Directory

with up to 1000 Entries on your

Panasonic Communication

System

• Built-in Speakerphone

• 3 Reminder Calls / Alarm Clock

• Background Noise Reduction Technology

• 8 CO Line Status Display

in Standby Mode

• Direct Access to CO Lines

from Standby Mode

• Vibrate Mode†

• 1.8 inch, White-Backlit

LCD Display

• Illuminated Keypad – Easy operation

in all lighting conditions

• Easy Menu Navigation Button

• Reception Level Display

• Programmable Keys

• Personal Phonebook with

up to 100 Entries

• Built-in Speakerphone

• Uses standard rechargeable AAA Battery

Rugged exterior—smart interior

Full-featured—premium value

• Dust and Splash Resistant

• Shock Resistant

• IP54 Compliant

• Blue Backlit Display –

Readable even in sunlight

• Illuminated Keypad – Easy operation

in all lighting conditions

• Programmable Keys

• Easy Menu Navigation Joystick and

large icons make single-handed

operation a breeze

• Personal Phonebook with

up to 100 entries

• Built-in Speakerphone

• Access Company Directory with up

to 1000 Entries on your Panasonic

Communication System

KX-TD7696

Ruggedized Model

† KX-WT126 only

Home and Business Communications

DECT Handset Speciﬁcations

1 - Maximum number of units possible. May be less depending on power supply. 2 - When optional AC adaptor is used. 3 - Requires the following cell station

interface: KX-TDA0143 (4 port); KX-TDA0144 (8 port). 4 - With optional, additional AC power supply.

* The number of default settings. When connected to the KX-TDE and KX-NCP, the number of call logs is changeable using PBX PC software.

BTS080686BROr2

Model Number KX-TD7685

Standard

KX-TD7695

Compact

KX-TD7696

Ruggedized

KX-WT125/126

Entry

Liquid Crystal Display (LCD) 16 x 6 Lines, Back Light (Blue) 4-Line Display 1.8 inch

Monochrome

Multiple Languages Display English, French, Spanish

Illuminated Keypad Yes (Blue) Yes (Amber)

Headset Compatible Yes

Phonebook 100

Redial Last 5 Numbers Yes

Call Log* Incoming Call

Outgoing Call

Soft Keys 3 Yes

Speakerphone Yes

Ringer LED (Incoming Call/Charge Indicator) Red/Green Amber

Ringer Volume 6 levels and Off

Ringer Melodies 9 3

Ringer Bell 6 5

Vibrate Ring 7 7 Patterns (WT126 only)

Message Waiting Notiﬁcation Yes

Frequency 1.9 GHz

Mute Yes

Caller ID Compatibility Yes

Private Ringing Yes

Hot-Key Dialing 10 Yes

Memo Alarm Yes

Conference Calling Yes

Key Lock Yes

Any-key Answering Yes

Dimensions (L x W x D)(inches) 5.6 x 1.9 x 1.2 4.8 x 1.8 x 0.9 5.9 x 2.0 x1.1 6.3 x 1.9 x 1.3

Weight (oz.) 5.3 4.2 5.6 4.6

Battery Type Ni-MH 3.6V 650mAh Ni-MH 2.4V 630mAh

Battery Talk Time 10 hours up to 8 hours

Battery Standby Time 168 hours up to 168 hours

Battery Charge Time 7 hours 5.5 hours 7 hours

Belt Clip Yes

Splash & Dust Resistant (IP54 Standard) — — Yes —

Ruggedized, Shock Resistant Design — — Yes —

DECT Cell Station System Capacity

TDA50G TDA6001TDE100/

TDE2001TDE6001 NCP500 NCP1000

KX-T015522-channel DECT cell station 4/84128 32 128 7 11

KX-TDA015634-channel DECT cell station — 12833231283— —

KX-T0158 8-channel DECT cell station 2/4464 16 64 3 5

KX-NCP0158 PoE compatible IP-based cell station — — 16 16 16 16

KX-TD7600 Series

KX-WT120 Series

Design and speciﬁcations subject

to change without notice.

Three Panasonic Way,

Secaucus, NJ 07094

(201) 348 - 7000

www.panasonic.com/bts

Home and Business Communications

Panasonic System Networks Company of America

•An Ideal Mobility Solution for Your Communications System

• Feature-rich Models with Easy, Intuitive Operation

•Ruggedized Model Available for Challenging Environments

KX-TD7600 series KX-WT120 series

KX-TDA50/50G v3.0 and up v6.0*

KX-NCP500/1000 v1.0 and up v4.2*

KX-TDE100/200/600 v1.0 and up v4.2*

PBX Version - DECT Compatibility

*Future versions. Release to coincide with WT120 series launch.
