Panasonic KX-TGA572S Manuale utente

Please read these Operating Instructions before using the unit and save for

future reference.

For assistance, visit our website:

http://www.panasonic.com/phonehelp for customers in the U.S.A. or Puerto

Rico.

This handset is an accessory handset for use with Panasonic base units

KX-TG5761/KX-TG5766/KX-TG5767/KX-TG5771/KX-TG5776/

KX-TG5777/KX-TGP60. You must register this handset with your base

unit before it can be used.

Charge the handset battery for 7 hours before initial use.

Operating Instructions

5.8 GHz Expandable Digital Cordless Handset

Model No. KX-TGA572

TGA572.book Page 1 Thursday, June 8, 2006 7:03 PM

Table of Contents

2For assistance, please visit http://www.panasonic.com/phonehelp

Introduction

Introduction. . . . . . . . . . . . . . . . . . . . . . . 3

Feature highlights. . . . . . . . . . . . . . . . . . 4

Accessory information . . . . . . . . . . . . . . 5

Preparation

Setting up the handset . . . . . . . . . . . . . . 7

Controls . . . . . . . . . . . . . . . . . . . . . . . . . 9

Displays . . . . . . . . . . . . . . . . . . . . . . . . 10

Symbols used in these operating

instructions . . . . . . . . . . . . . . . . . . . . . . 12

Registration . . . . . . . . . . . . . . . . . . . . . 13

Setting the unit before use . . . . . . . . . . 13

Accessibility Features

Accessibility features . . . . . . . . . . . . . . 14

Making/Answering Calls

Making calls . . . . . . . . . . . . . . . . . . . . . 16

Answering calls . . . . . . . . . . . . . . . . . . 17

Useful features during a call. . . . . . . . . 17

Phonebook

Handset phonebook . . . . . . . . . . . . . . . 20

Caller ID Service

Using Caller ID service. . . . . . . . . . . . . 25

Caller list. . . . . . . . . . . . . . . . . . . . . . . . 26

Programming

Programmable settings . . . . . . . . . . . . 28

Useful Information

Belt clip. . . . . . . . . . . . . . . . . . . . . . . . . 36

Shoulder rest attachment . . . . . . . . . . . 36

Wall mounting. . . . . . . . . . . . . . . . . . . . 37

Headset (optional) . . . . . . . . . . . . . . . . 37

Troubleshooting for accessibility

features . . . . . . . . . . . . . . . . . . . . . . . . 38

FCC and other information . . . . . . . . . . 39

Specifications . . . . . . . . . . . . . . . . . . . . 42

Warranty . . . . . . . . . . . . . . . . . . . . . . . . 43

Customer services . . . . . . . . . . . . . . . . 45

Index

Index. . . . . . . . . . . . . . . . . . . . . . . . . . . 46

TGA572.book Page 2 Thursday, June 8, 2006 7:03 PM

Introduction

For assistance, please visit http://www.panasonic.com/phonehelp 3

Introduction

Thank you for purchasing a Panasonic cordless telephone.

We recommend keeping a record of the following information for future reference.

Attach your purchase receipt here.

Serial No. Date of purchase

(found in the battery compartment)

Name and address of dealer

Please refer to the base unit operating instructions for the following:

– Answering system (KX-TG5771/KX-TG5776/KX-TG5777 only)

– Voice Mail service

– Intercom

– Transferring calls/conference calls

– Error messages/troubleshooting (excluding accessibility feature information)

For KX-TGP60 users:

Please refer to these operating instructions for the following:

– Registration

– Accessibility features (such as name announce, key announce, and Slow

Talk ®)

– One-touch dial

– Chain dial

For other operations, refer to the KX-TGP60 operating instructions.

TGA572.book Page 3 Thursday, June 8, 2006 7:03 PM

Introduction

4For assistance, please visit http://www.panasonic.com/phonehelp

Feature highlights

NName announce

This feature allows audible confirmation of displayed names or phone numbers while

searching the caller list, phonebook, etc. (page 14)

NKey announce

This feature allows the handset to announce the certain function keys you have pressed

(page 15).

NTalking Caller ID

This feature allows the handset to announce the displayed caller name or phone

number when a call is received (page 25).

NSlow Talk

You can slow down the voice of the person you are talking to, making it easier to hear

and understand (page 15).

TGA572.book Page 4 Thursday, June 8, 2006 7:03 PM

Introduction

For assistance, please visit http://www.panasonic.com/phonehelp 5

Accessory information

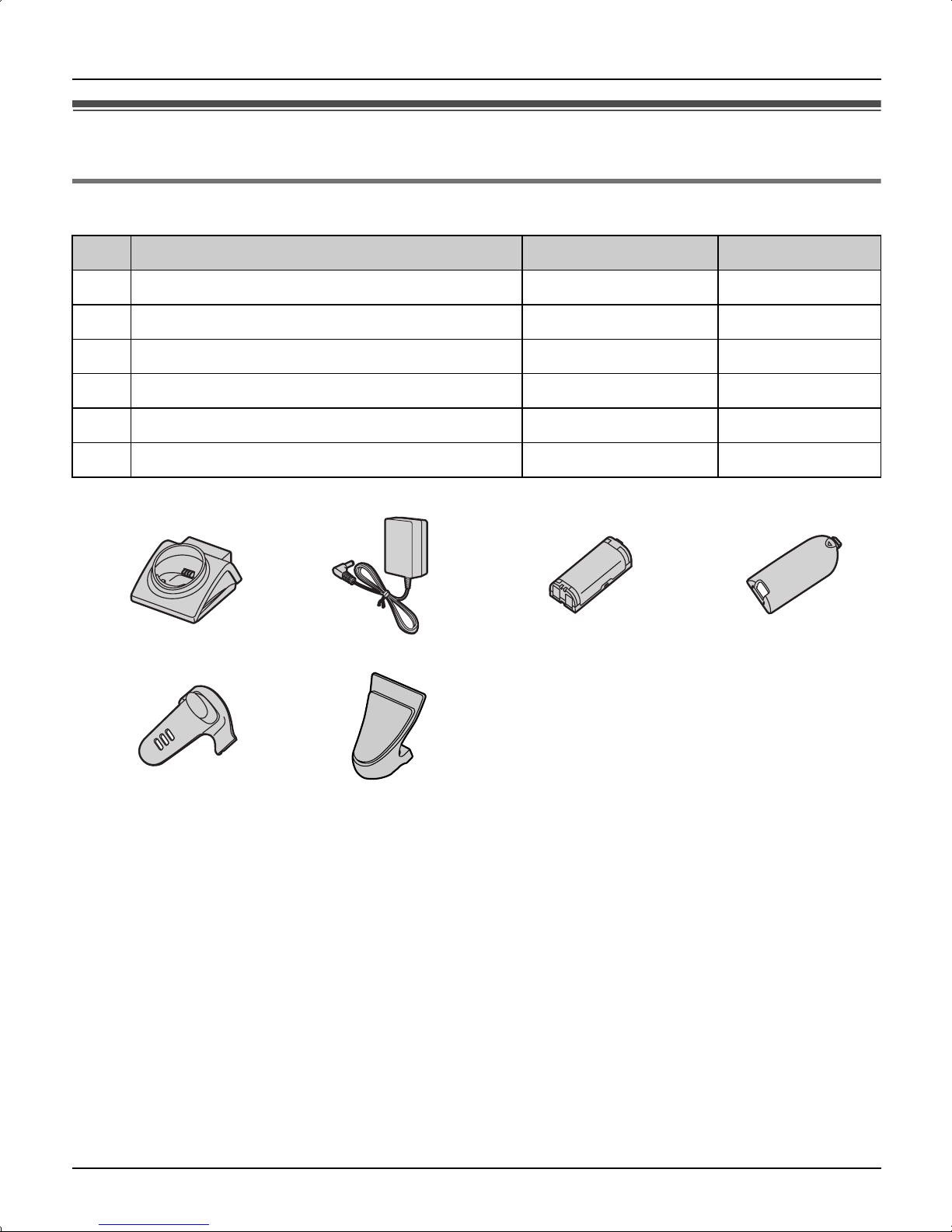

Included accessories

*1 The handset cover comes attached to the handset.

No. Accessory item Order number Quantity

1Charger PQLV30043ZS 1

2AC adaptor for charger PQLV207Z 1

3Battery HHR-P105 1

4Handset cover*1 PQYNTG5771SR 1

5Belt clip PQKE10463Z1 1

6Shoulder rest attachment PQKE10364Z1 1

1234

TGA572.book Page 5 Thursday, June 8, 2006 7:03 PM

Introduction

6For assistance, please visit http://www.panasonic.com/phonehelp

Additional/replacement accessories

Sales and support information

LTo order these accessories, call 1-800-332-5368.

LTTY users (hearing or speech impaired users) can call 1-866-605-1277.

Accessory item Order number

Rechargeable nickel metal

hydride (Ni-MH) battery

HHR-P105

Headset KX-TCA60, KX-TCA86, KX-TCA88HA, KX-TCA91,

KX-TCA92, or KX-TCA98

TGA572.book Page 6 Thursday, June 8, 2006 7:03 PM

Preparation

For assistance, please visit http://www.panasonic.com/phonehelp 7

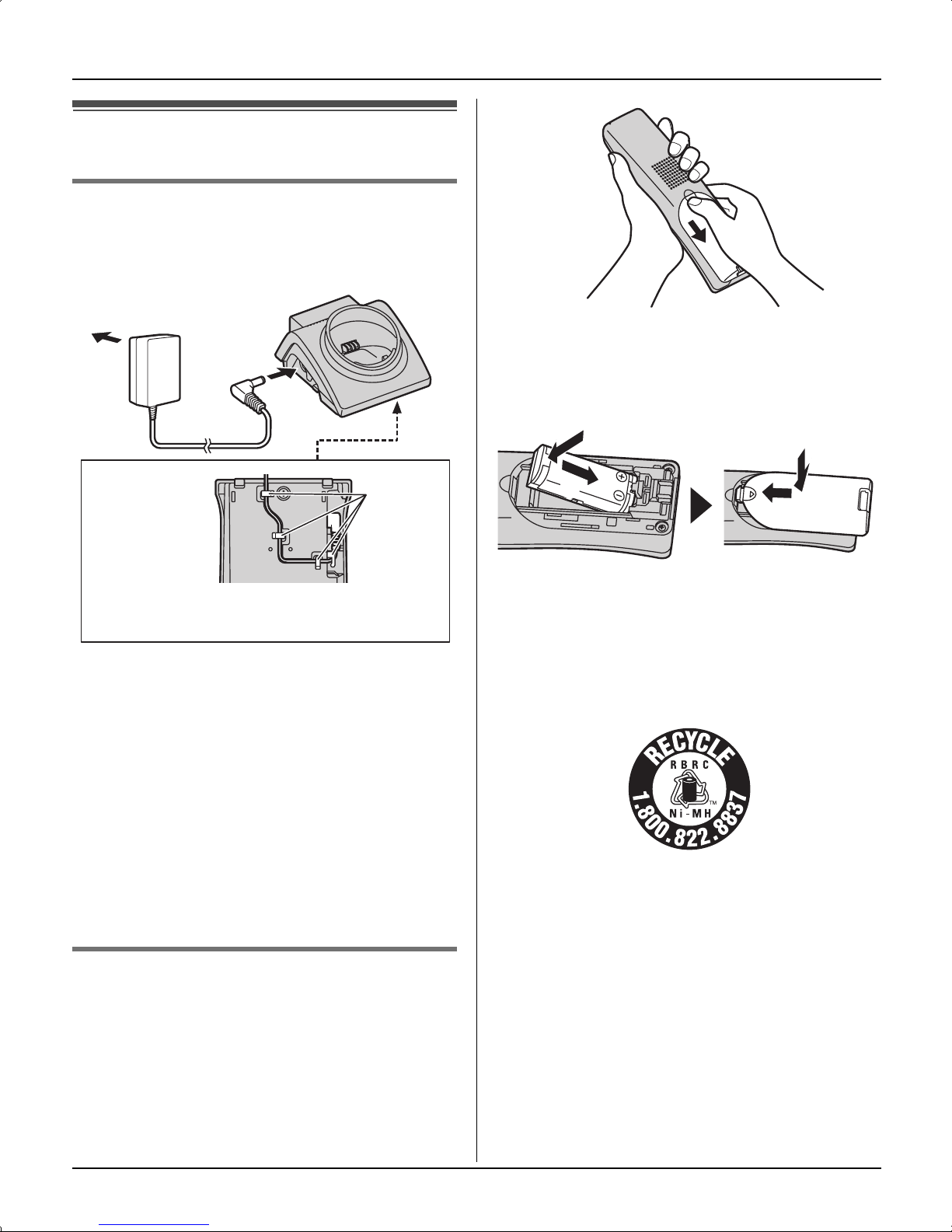

Setting up the handset

Connecting the charger

LUse only the included Panasonic AC

adaptor PQLV207.

Note:

LThe AC adaptor must remain connected

at all times. (It is normal for the adaptor

to feel warm during use.)

LThe AC adaptor should be connected to

a vertically oriented or floor-mounted AC

outlet. Do not connect the AC adaptor to

a ceiling-mounted AC outlet, as the

weight of the adaptor may cause it to

become disconnected.

Battery installation/replacement

1Press the notch of the handset cover

firmly, and slide it in the direction of the

arrow.

LIf necessary, remove the old battery.

2Insert the battery (A), and press it

down until it snaps into position (B).

Then close the handset cover (C, D).

Important:

LUse only the rechargeable Panasonic

battery noted on page 6.

Attention:

A nickel metal hydride battery that is

recyclable powers the product you have

purchased.

Please call 1-800-8-BATTERY (1-800-

822-8837) for information on how to

recycle this battery.

Fasten the AC adaptor cord to prevent

it from being disconnected.

(120 V AC, 60 Hz)

Bottom of

the charger Hooks

TGA572.book Page 7 Thursday, June 8, 2006 7:03 PM

Preparation

8For assistance, please visit http://www.panasonic.com/phonehelp

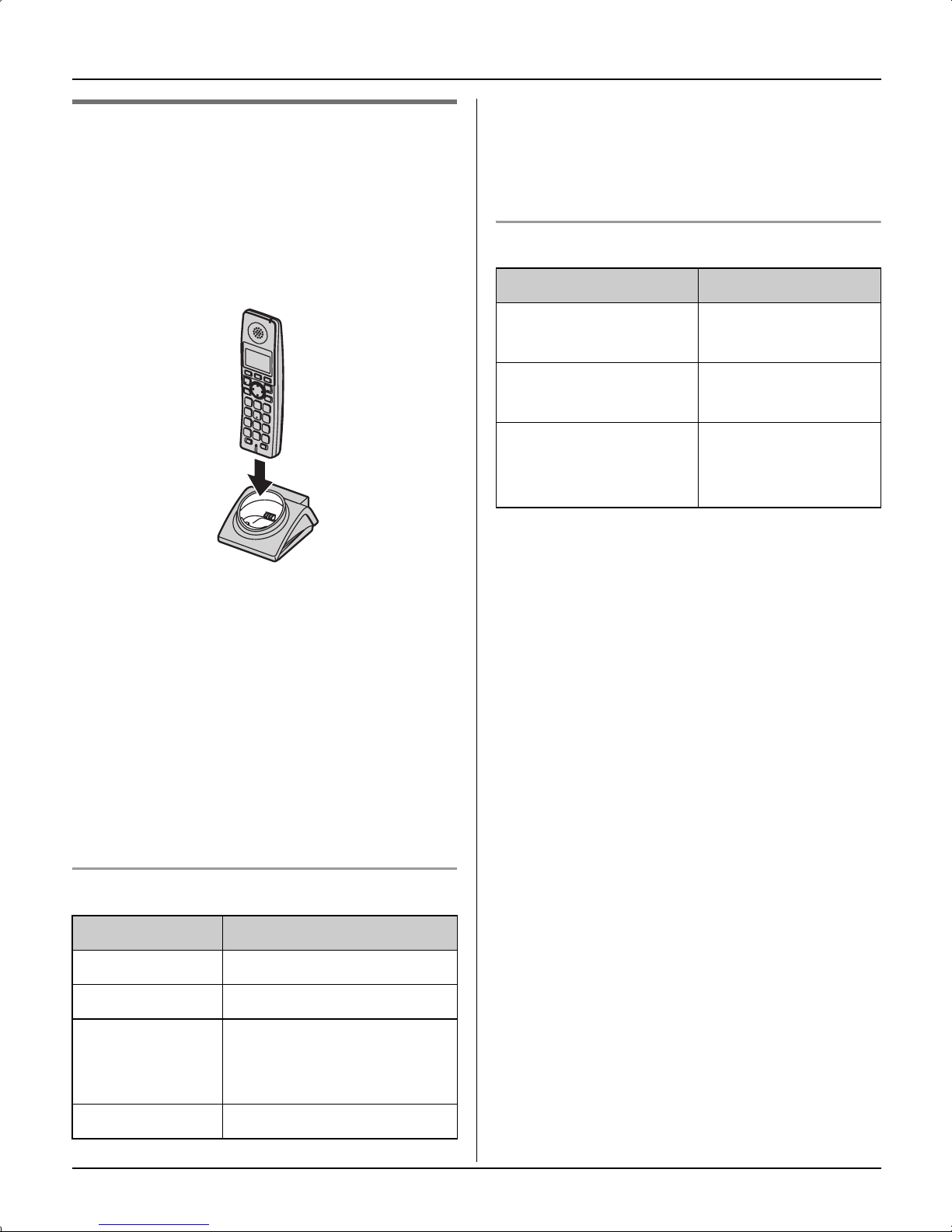

Battery charge

Place the handset on the charger for 7

hours before initial use.

While charging, the charge indicator on the

handset lights in amber. When the battery

is fully charged, the indicator lights in

green.

Note:

LIf you want to use the handset

immediately, charge the battery for at

least 15 minutes.

LTo ensure that the battery charges

properly, clean the charge contacts of

the handset and charger with a soft, dry

cloth once a month. Clean more often if

the unit is subject to the exposure of

grease, dust, or high humidity.

Battery level

Note:

LWhen the battery needs to be charged,

the handset beeps intermittently during

use.

Panasonic battery performance

Note:

LBattery operating time may be

shortened over time depending on

usage conditions and surrounding

temperature.

LBattery power is consumed whenever

the handset is off the charger, even

when the handset is not in use. Hence

the longer you leave the handset off the

charger, the less time you may actually

talk using the handset.

LAfter the handset is fully charged,

displaying “Charge completed”, it

may be left on the charger without any ill

effect on the battery.

LThe battery level may not be displayed

correctly after you replace the battery. In

this case, place the handset on the

charger and let charge for 7 hours.

Battery icon Battery level

1Fully charged

2Medium

3Low

When flashing: needs

to be recharged.

4Empty

Operation Operating time

While in use

(talking)

Up to 4.5 hours

While not in use

(standby)

Up to 7 days

While using the

clarity booster

feature (page 18)

Up to 2.5 hours

TGA572.book Page 8 Thursday, June 8, 2006 7:03 PM

Preparation

For assistance, please visit http://www.panasonic.com/phonehelp 9

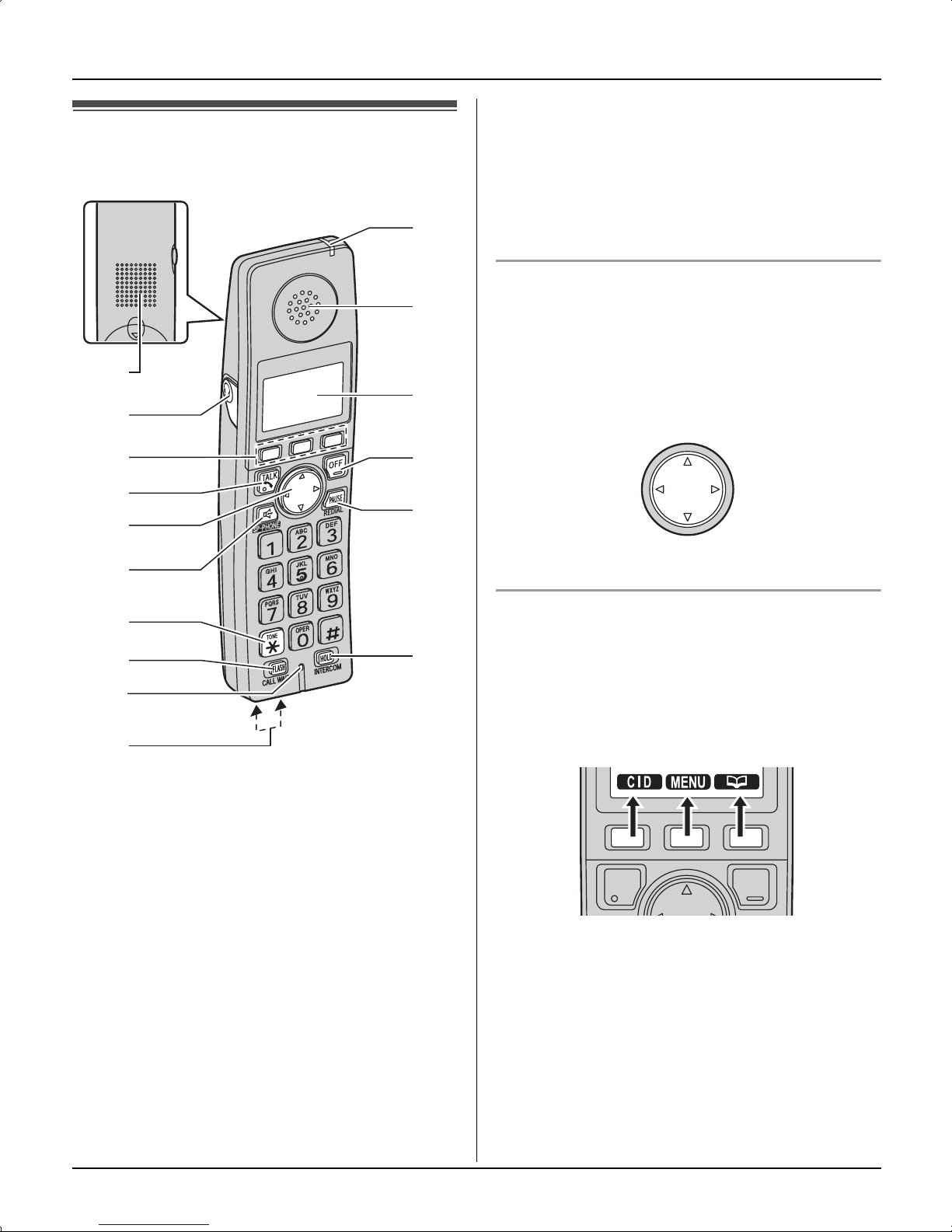

Controls

ASpeaker

BHeadset jack

CSoft keys

D{C} (TALK)

ENavigator key ({^} {V} {<}{>})

F{s} (SP-PHONE)

G{*} (TONE)

H{FLASH}{CALL WAIT}

IMicrophone

JCharge contacts

KCharge indicator

Ringer indicator

Message indicator

LReceiver

MDisplay

N{OFF}

O{PAUSE}{REDIAL}

P{HOLD}{INTERCOM}

Using the navigator key

The handset navigator key can be used to

navigate through menus and to select

items shown on the display, by pressing

{^}, {V}, {<}, or {>}.

Handset soft keys

The handset features 3 soft keys. By

pressing a soft key, you can select the

feature shown directly above it on the

display.

Example:

{V}

{^}

{<}{>}

TGA572.book Page 9 Thursday, June 8, 2006 7:03 PM

Preparation

10 For assistance, please visit http://www.panasonic.com/phonehelp

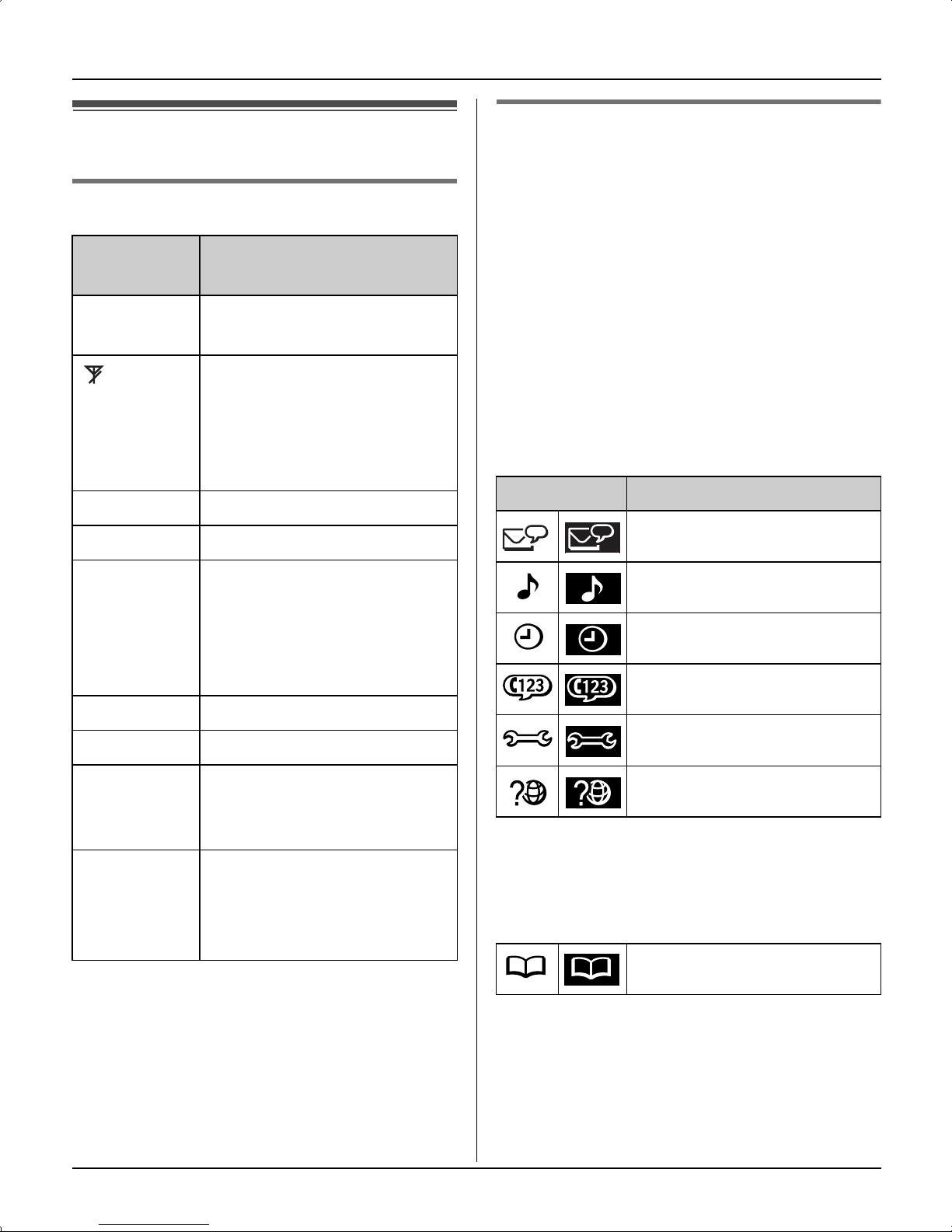

Displays

Handset display items

Handset menu icons

When in standby mode, pressing {MENU}

(middle soft key) on the handset reveals

the main menu. From here you can access

various features and settings.

Note:

LThe menu icons shown in these

operating instructions vary slightly from

the actual icons shown on the display.

KX-TG5761/KX-TG5766/KX-TG5767

Each menu icon on the left changes to the

one on the right when selected.

*1 KX-TG5767/USB adaptor KX-TGA575

users only

E(Set date & time) is replaced

with C(Phonebook).

Displayed

item

Meaning

wWithin range of the base

unit

Handset has no link to

base unit (out of range of

base unit, handset is not

registered to base unit, or

no power on base unit).

WVoice enhancer is on.

1Battery level

SLine is in use.

When flashing: a call is on

hold.

When flashing rapidly: a

call is being received.

SP Speaker is on.

PRIV. Call Privacy mode is on.

Example:

The handset’s extension

number (example shown

here: handset 1)

(displayed

in the top

center)

Handset ringer is off.

Menu icon Menu/feature

Voice Mail

Ringer setting

Set date & time*1

Accessibility

Initial setting

Customer support

Phonebook

TGA572.book Page 10 Thursday, June 8, 2006 7:03 PM

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Panasonic Cornetta

Panasonic

Panasonic KX-TGFA30EX Manuale utente

Panasonic

Panasonic TGP 550 Manuale utente

Panasonic

Panasonic KX-TGEA60M Manuale utente

Panasonic

Panasonic KXTGA850E Manuale utente

Panasonic

Panasonic KX-TGDA30E Manuale utente

Panasonic

Panasonic KX-TGA731EX Manuale utente

Panasonic

Panasonic KX-TGA671EXB Manuale utente

Panasonic

Panasonic KX-TGA930C Manuale utente

Panasonic

Panasonic KX-TGA711EX Manuale utente

Panasonic

Panasonic KX-TGEA60 Manuale utente

Panasonic

Panasonic KX-TGA661E Manuale utente

Panasonic

Panasonic KX-TGLA40 Manuale utente

Panasonic

Panasonic Telenium EB-P55S Manuale utente

Panasonic

Panasonic KX-TG1000N - 2.4GHz Cordless Phone Manuale utente

Panasonic

Panasonic KX-TGA810E Manuale utente

Panasonic

Panasonic KX-PRXA10 Manuale utente

Panasonic

Panasonic KX-TGA520C Manuale utente

Panasonic

Panasonic KX-TGDA50 Manuale utente

Panasonic

Panasonic KX-TPA70 Manuale utente

Panasonic

Panasonic KX-TGA101C Manuale utente

Panasonic

Panasonic KX-TGA400B - Cordless Extension Handset Manuale utente

Panasonic

Panasonic KX-TGA681HK Manuale utente

Panasonic

Panasonic KXTGA272S - H/S FOR KXTG2700 Manuale utente

Panasonic

Panasonic KX-TGLA40 Manuale utente

Manuali Cornetta popolari di altre marche

Swissvoice

Swissvoice ePure HD Manuale utente

Philips

Philips TD6736/BH051P Manuale utente

ASCOM

ASCOM I62 - Manuale utente

LG-Ericsson

LG-Ericsson LIP-9010 Manuale utente

GE 1583 Manuale utente

iiNet

iiNet Handset Manuale utente

ASCOM

ASCOM 9p23 Manuale utente

AT&T

AT&T DLP70110 Manuale utente

AirCell

AirCell ST 3100 Manuale utente

Eaton

Eaton HHIR-LCD-PROG Istruzioni per il montaggio

Mitel

Mitel 112 Manuale utente

SBC

SBC SBC-381H Manuale utente

Mitel

Mitel 5602 Manuale utente

ASCOM

ASCOM d81 Messenger Istruzioni per l'installazione

SpectraLink

SpectraLink 7522 Manuale utente

Avaya

Avaya L100 Series Come usare

ooma

ooma HD2 Handset Manuale utente

Yealink

Yealink IPW56 Manuale utente
