Panasonic KX-TGA659 Manuale utente
Thank you for purchasing a Panasonic product.
Please read this installation manual before using the unit and
save it for future reference.
For assistance, visit our Web site:
http://www.panasonic.com/help
for customers in the U.S.A. or
Puerto Rico.
This unit is an additional handset compatible with the following
series of Panasonic Digital Cordless Phone:
KX-TG4131/KX-TG6591/KX-TG6631/KX-TG6641
You must register this handset with your base unit before it can
be used. This installation manual describes only the steps
needed to register and begin using the handset. Please read
the base unit’s operating instructions for further details.
Charge the batteries for about 7 hours before initial use.
Additional Digital Cordless Handset
Model No. KX-TGA659
Installation Manual
PNQX3177ZA TT1110KA0 (A)
Printed in China
TGA659(e).fm Page 1 Monday, November 22, 2010 3:12 PM
2For assistance, please visit http://www.panasonic.com/help
Accessory information
Supplied accessories
*1 The handset cover comes attached to the handset.
Note:
LPlease read the base unit’s operating instructions for additional/
replacement accessories.
– Optional headsets: KX-TCA60, KX-TCA93, KX-TCA94,
KX-TCA400, KX-TCA430
Accessory item/Order number Quantity
Charger/PNLC1015ZT 1
AC adaptor/PQLV219Y 1
Rechargeable batteries/HHR-4DPA 2
Handset cover*1/PNYNTGA659TR 1
Belt clip/PNKE1076Z1 1
TGA659(e).fm Page 2 Monday, November 22, 2010 3:12 PM
For assistance, please visit http://www.panasonic.com/help 3
Setting up
Connections/Wall mounting
Note:
LUse only the supplied Panasonic AC adaptor PQLV219.
LThe AC adaptor must remain connected at all times. (It is normal for
the adaptor to feel warm during use.)
LMake sure that the wall and the fixing method are strong enough to
support the weight of the unit.

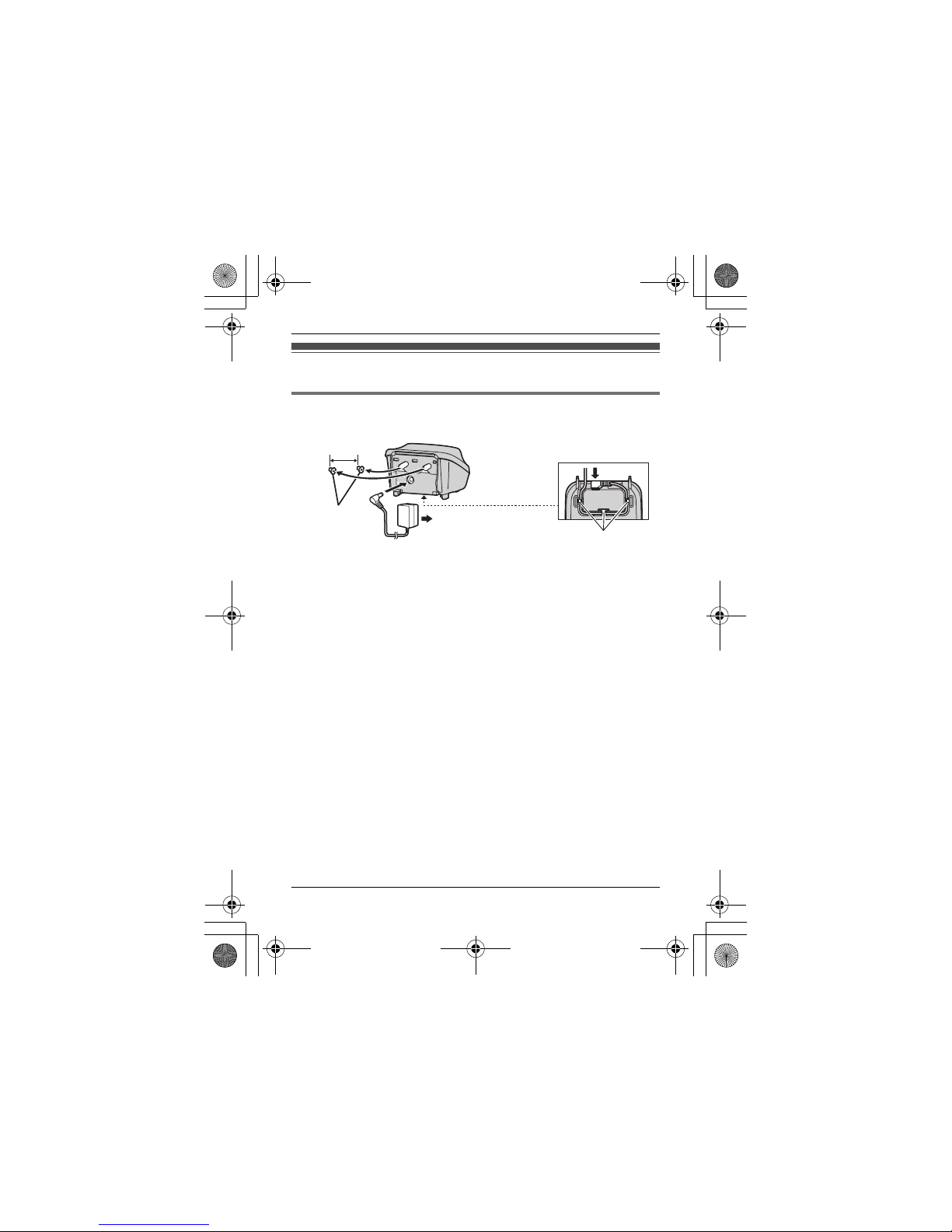

Hooks
25.4 mm
(1 inch)
(120 V AC, 60 Hz)
Screws
(Not supplied)
TGA659(e).fm Page 3 Monday, November 22, 2010 3:12 PM
4For assistance, please visit http://www.panasonic.com/help
Battery installation/Battery charging
Important:
LUse the supplied rechargeable batteries. For replacement, we
recommend using the Panasonic rechargeable batteries noted on
page 2.
LWipe the battery ends (S, T) with a dry cloth.
LAvoid touching the battery ends (S, T) or the unit contacts.
LConfirm correct polarities (S, T).
LUSE ONLY Ni-MH batteries AAA (R03) size.
LDo NOT use Alkaline/Manganese/Ni-Cd batteries.
Charge for about 7 hours.
LWhen the batteries are fully charged, the charge indicator goes off and
“Fully charged”is displayed.
Note:
LIf the batteries are fully charged, but the operating time seems to be
shorter, clean the battery ends (S, T) and the charge contacts with a
dry cloth and charge again.
Charge indicator
Confirm
“Charging”
is displayed.
Rechargeable
Ni-MH ONLY
TGA659(e).fm Page 4 Monday, November 22, 2010 3:12 PM
For assistance, please visit http://www.panasonic.com/help 5
Registering a handset to a base unit
1Base unit:
Press and hold {LOCATOR}for about 5 seconds until the registration
tone sounds.
LIf all registered handsets start ringing, press {LOCATOR}again to
stop, then repeat this step.
2Handset:
Place the handset on the base unit or charger, then wait until a long
beep sounds and wis displayed.
Note:
LIf an error tone sounds, or if _is displayed, register the handset
according to the base unit’s operating instructions.
Display language
1{MENU}(11)
2{r}: Select the desired setting. s{SAVE}
3{OFF}
Belt clip
NTo attach NTo remove
B
A
TGA659(e).fm Page 5 Monday, November 22, 2010 3:12 PM
6For assistance, please visit http://www.panasonic.com/help
For KX-TG4131/KX-TG6631/KX-TG6641
series users
There are some differences in the specification of your original handset
and the KX-TGA659. The feature differences are described in the chart
below.
Main feature differences
*1 You can make a call using a speed dial key on the handset as well as
the base unit. (KX-TG6591/KX-TG6631 series)
Speed dial
NViewing the speed dial key assignments
You can see the speed dial key assignments on the handset display.
Press {OFF}. s{^}
NMaking a call using a handset speed dial key
Press and hold the speed dial key ({A}to {C}).
Feature KX-TGA659
KX-TG4131
series
handset
KX-TG6631/
KX-TG6641
series
handset
Page
Display size 1.9 inches 1.8 inches 1.8 inches —
Button size Extra large Large Large —
Speed dial*1 r——6
Side key
- Volume
- Equalizer
r——7
TGA659(e).fm Page 6 Monday, November 22, 2010 3:12 PM
For assistance, please visit http://www.panasonic.com/help 7
Adjusting the handset receiver, speaker, or ringer volume
Press {+} or {-} repeatedly to select the desired volume while talking
or while the handset is ringing for an incoming call.
Handset equalizer
This feature clarifies the voice of the person you are talking to, producing
a more natural-sounding voice that is easier to hear and understand.
Press {d}repeatedly to select “Off”, “High tone”, or “Low tone”
while talking.
Note:
LWhen this feature is activated, <is displayed while talking.
TGA659(e).fm Page 7 Monday, November 22, 2010 3:12 PM
8For assistance, please visit http://www.panasonic.com/help
For your safety
To prevent severe injury and loss of life/property, read this section carefully before
using the product to ensure proper and safe operation of your product.
WARNING
Power connection
LCompletely insert the AC adaptor/power plug into the power outlet. Failure to do
so may cause electric shock and/or excessive heat resulting in a fire.
LRegularly remove any dust, etc. from the AC adaptor/power plug by pulling it
from the power outlet, then wiping with a dry cloth. Accumulated dust may cause
an insulation defect from moisture, etc. resulting in a fire.
LUnplug the product from power outlets if it emits smoke, an abnormal smell, or
makes an unusual noise. These conditions can cause fire or electric shock.
Confirm that smoke has stopped emitting and contact the Panasonic Call Center
at 1-800-211- PANA (1-800-211-7262).
Installation
LTo prevent the risk of fire or electrical shock, do not expose the product to rain or
any type of moisture.
LDo not place or use this product near automatically controlled devices such as
automatic doors and fire alarms. Radio waves emitted from this product may
cause such devices to malfunction resulting in an accident.
CAUTION
Installation and location
LThe AC adaptor is used as the main disconnect device. Ensure that the AC outlet
is installed near the product and is easily accessible.
Battery
LWe recommend using the supplied batteries or additional/replacement batteries
noted on page 2 for replacement battery information. USE ONLY rechargeable
Ni-MH batteries AAA (R03) size.
LDo not mix old and new batteries.
LDo not open or mutilate the batteries. Released electrolyte from the batteries is
corrosive and may cause burns or injury to the eyes or skin. The electrolyte is
toxic and may be harmful if swallowed.
TGA659(e).fm Page 8 Monday, November 22, 2010 3:12 PM
For assistance, please visit http://www.panasonic.com/help 9
LExercise care when handling the batteries. Do not allow conductive materials
such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit
may cause the batteries and/or the conductive material to overheat and cause
burns.
LCharge the batteries provided with or identified for use with this product only, in
accordance with the instructions and limitations specified in this manual.
LOnly use a compatible base unit (or charger) to charge the batteries. Do not
tamper with the base unit (or charger). Failure to follow these instructions may
cause the batteries to swell or explode.
Attention:
Important safety instructions
When using your product, basic safety precautions should always be followed to
reduce the risk of fire, electric shock, and injury to persons, including the following:
1. Do not use this product near water for example, near a bathtub, washbowl,
kitchen sink, or laundry tub, in a wet basement or near a swimming pool.
2. Do not use the telephone to report a gas leak in the vicinity of the leak.
3. Use only the power cord and batteries indicated in this manual. Do not dispose
of batteries in a fire. They may explode. Check with local codes for possible
special disposal instructions.
SAVE THESE INSTRUCTIONS
A nickel metal hydride battery that is
recyclable powers the product you have
purchased.
Please call 1-800-8-BATTERY (1-800-822-
8837) for information on how to recycle this
battery.
TGA659(e).fm Page 9 Monday, November 22, 2010 3:12 PM
10 For assistance, please visit http://www.panasonic.com/help
Other information
LOperating the product near electrical appliances may cause interference. Move
away from the electrical appliances.
CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of
used batteries according to the instructions.
Routine care
LWipe the outer surface of the product with a soft moist cloth.
LDo not use benzine, thinner, or any abrasive powder.
Notice for product disposal, transfer, or return
LThis product can store your private/confidential information. To protect your
privacy/confidentiality, we recommend that you erase information such as
phonebook or caller list entries from the memory before you dispose of, transfer,
or return the product.
