Panasonic H-RS100400PP Manuale utente
© Panasonic Corporation 2016 Unauthorized copy-
ing and distribution is a violation of law.
ORDER NO. DSC1603005CE
B26
Interchangeable Lens for Digital Camera
Model No. H-RS100400PP
H-RS100400E
H-RS100400GK
Coulor
(K)..........Black Type
TABLE OF CONTENTS
PAGE PAGE
1 Safety Precautions----------------------------------------------- 2
1.1. Information for Your Safety------------------------------ 2
1.2. Cautions for use ------------------------------------------- 3
2 Service Navigation ----------------------------------------------- 4
2.1. Introduction-------------------------------------------------- 4
2.2. Important Notice ------------------------------------------- 4
3 Specifications ----------------------------------------------------- 5
3.1. Specifications (Rated) ------------------------------------ 5
3.2. Accessories ------------------------------------------------- 5
4 Location of Controls and Components ------------------- 6
5 Service Fixture & Tools----------------------------------------- 7
5.1. Service Fixture and Tools-------------------------------- 7
5.2. Clean Box --------------------------------------------------- 7
6 Disassembly and Assembly Instructions ---------------- 8
6.1. Outline-------------------------------------------------------- 8
6.2. Disassembly Flow Chart --------------------------------- 9
6.3. Disassembly procedure ---------------------------------- 9
6.4. Assembly Flow Chart ------------------------------------10
6.5. Assembly procedure -------------------------------------10
7 Maintenance-------------------------------------------------------11
7.1. ABOUT THE LENS -------------------------------------- 11
8 Exploded View and Replacement Parts List ----------- 12
2
1 Safety Precautions
1.1. Information for Your Safety
3
1.2. Cautions for use
4
2 Service Navigation
2.1. Introduction
This service manual contains technical information, which allow service personnel’s to understand and service this model
Please place orders using the parts list and not the drawing reference numbers.
If the circuit is changed or modified, the information will be followed by supplement service manual.
2.2. Important Notice
2.2.1. About LENS MAIN UNIT (Ref. 213)
1. LENS MAIN UNIT (Ref. 213) is not supplied due to difficulty of the transportation issue (Fragile, Dust-free packing), and
requires critical lens adjustments.
Therefore, any needs of the "LENS MAIN UNIT" (Ref. 213), carefully confirm its performance in advance.
2. Once "LENS MAIN UNIT" (Ref. 213) is confirmed as defective, place order "LENS Unit" (Ref. 200) and replace SHADING
FRAME (Ref. 203), to maintain Serial number of owner's original lens.
Fig. 1-1
3. No adjustment is required when replacing the part mentioned on Fig.1-1. But, when tighten the concerned screws,apply
proper torque mentioned on "4. Disassembly and Assembly Instruction" section.
5
3 Specifications
3.1. Specifications (Rated)
3.2. Accessories
6
4 Location of Controls and Components
7
5 Service Fixture & Tools
5.1. Service Fixture and Tools
The following Service Fixture and Tools are used for Checking & Servicing for this unit.
5.2. Clean Box
• The repair quality is considered, and it is recommended working in the environment of satisfied clean level less than class
10,000 (Federal Standard 209D).
[NOTE]
• Work in the environment of satisfied clean level less than class 10,000 (Federal Standard 209D) for cleaning the inside of the
lens.
8
6 Disassembly and Assembly Instructions
6.1. Outline
Please be disassembly and assembly with reference to the flow chart and illustrations drawings.
Important:
1. It is recommended dealing with Clean Box, to keep maintaining the dustproof environment.
(Refef to " 5.2. Clean Box " section of this Service Manual for details.)
2. To minimize the possibilities/risk of getting the dust/dirt on the lens surface, keep covering the lens unit with lens caps (front &
rear), other than necessary cases.
3. Do not touch the surface of the lens glasses with your fingers.
4. Blow off the dust on the surface of the lens with a blower brush.
5. Use lens cleaning KIT (BK)(VFK1900BK).
6. When installing the screws, be sure to use the torque driver (RFKZ0456) and tighten the screws with specified torque, men-
tioned on the following.
7. Please do not reuse the screw that has been used to the metal part.
(Please must be used new screw when assembly.)
9
6.2. Disassembly Flow Chart
6.3. Disassembly procedure
6.3.1. Removal of the FILTER RING UNIT
and the SLIDE HOOD UNIT
1. Remove 1 screw (A), and turn the FILTER RING UNIT
arrow direction then remove it.
(In this case, LENS CAP comes off together with it.)
2. Slide the SLIDE HOOD UNIT arrow direction and remove
it.
6.3.2. Removal of the SHADING FRAME
1. Remove 2 screws (B) and the SHADING FRAME.
10

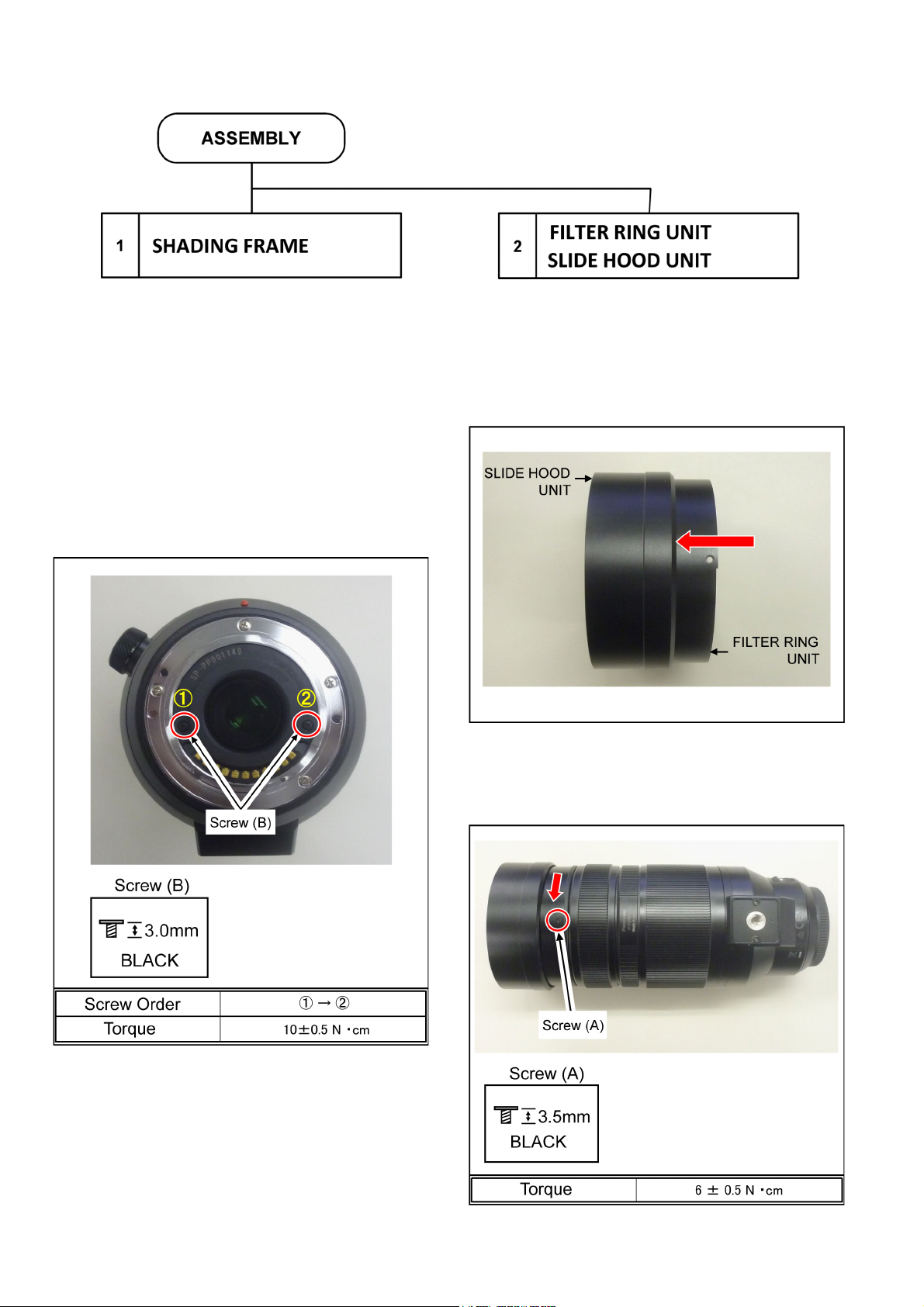

6.4. Assembly Flow Chart
6.5. Assembly procedure
Important:
1. When tightening the screw, use a torque driver
(RFKZ0456) by ordering the screwing order with specified
torque described in each step.
2. Due to prevent loosen screw, the screw has been used to
the metal part must be used new screw.
(Non-reusable screw)
6.5.1. Installation of the SHADING FRAME
1. Install the SHADING FRAME.
2. Tighten 2 screws (B) in numerical order by using the
torque driver with specified torque.
6.5.2. Installation of the the FILTER RING
UNIT and the SLIDE HOOD UNIT
1. Slide the SLIDE HOOD UNIT arrow direction and install
to the FILTER RING UNIT.
2. Turn the FILTER RING UNIT arrow direction and install to
the LENS MAIN UNIT.
Fully turn to the end, drive a screw (A) with specified
torque.
