Thank you for purchasing this Panasonic product.
■To ensure correct use of this lens, please read the operating instructions supplied
with the lens and the projector carefully.
■Before using this product, be sure to read “Read this rst!” (Page 3).
■Please save this manual for future use.
Commercial Use
Model No. ET-D3LEW300
DPQX1664ZA/X1
Zoom Lens
Operating Instructions
ENGLISH
FRANÇAIS
日本語
2-ENGLISH
Read this rst! ......................................................................................3
Before Use.............................................................................................4
Preparation............................................................................................5
Before replacing the projection lens........................................................ 5
Attaching and Detaching the Lens .......................................................... 5
Peripheral focus adjustment function ...................................................... 5
Lens calibration ....................................................................................... 5
Projection relationships.......................................................................6
Lens shift ranges..................................................................................9
Specications .....................................................................................11
Dimensions .........................................................................................11
Projected image size and Projection distance.......Appendix / Annexe / 付録 1
The "Appendix" can be found after the Japanese language section ( 日本語 ).
█ Contents
ENGLISH-3
Read this rst! Always follow these precautions
WARNING:
Do not look at or place your skin into the light emitted from the lens while the
projector is being used.
Doing so can cause burns or loss of sight.
zStrong light is emitted from the projector’s lens. Do not look at or place your hands
directly into this light.
zTurn off the power when moving away from the projection lens or projector.
Do not project an image with the lens cover attached.
zDoing so can cause re.
CAUTION:
Before replacing the projection lens, be sure to turn off the power and
disconnect the power plug from the wall outlet.
zUnexpected projection of light may cause injury to eyes.
zReplacing the projection lens without removing the power plug may result in electric
shock.
Do not stand in front of the lens while the projector is being used.
Doing so can cause damage and burns to clothing.
zStrong light is emitted from the projector’s lens.
Do not place objects in front of the lens while the projector is being used.
Doing so can cause re, damage to the object, or malfunction of the lens and
projector.
zStrong light is emitted from the projector’s lens.
Do not open the desiccant bag. Do not eat the contents.
Inadvertently ingesting desiccant could be harmful.
zIf the desiccant gets into your eyes or mouth, immediately rinse with plenty of water
and seek medical attention.
zKeep desiccant out of the reach of children.
4-ENGLISH
■Supported projectors
PT-RQ35K / PT-RZ34K / PT-RQ32K / PT-RZ31K / PT-RS30K / PT-RQ25K / PT-RZ24K /
PT-RQ22K / PT-RZ21K / PT-RS20K / PT-RQ18K / PT-RZ17K / PT-RZ16K / PT-RZ14K
Note
zSome of the alphabet letters at the end of projector model numbers may be omitted in this
manual.
zModels other than the above may also be supported. Refer to the operating instructions for
your projector or the following website.
https://panasonic.net/cns/projector/
z
If the projector you are using is PT-RQ32K / PT-RZ31K / PT-RS30K / PT-RZ21K / PT-RS20K,
you may not be able to use the projection lens depending on main version of the firmware.
If main version of the firmware is the version number shown below, update to the latest
firmware before use.
- PT-RQ32K / PT-RZ31K / PT-RS30K: Earlier than 3.00
- PT-RZ21K / PT-RS20K: Earlier than 2.00
For details on the update procedure, refer to the latest firmware information on the
following website.
https://panasonic.net/cns/projector/pass/
zThe main version of the firmware version can be checked in the [STATUS] screen.
■Supplied Accessories
Make sure that the following has been provided.
Part name Appearance
Lens cover
1 each for front and rear
zThe product is delivered
with a lens cover attached.
Before Use
ENGLISH-5
Preparation
Before replacing the projection lens
Return the projection lens to the home position before replacing or removing it.
For details on how to return the lens to the home position, refer to the operating instructions
of the projector.
Attention
zMake sure that the projector power supply is switched off before attaching or detaching the
projection lens.
zAfter removing the projection lens, store it safely away from vibration or impacts.
zDo not touch the electrical contacts of the projection lens with your fingers. Dust and dirt on
the contacts may cause contact malfunctions, while static electricity may damage the unit.
zDo not touch the surface of the lens with bare hands. Finger prints and dirt on the surface
of the lens will be magnified by the lens and lower the quality of the projected image. Place
the supplied lens cover on the zoom lens when the projector is not in use.
zThe lens could be damaged if brought into contact with or rubbed against hard objects.
Handle the lens carefully.
zUse a clean, soft and dry cloth to wipe away dust and dirt from the projection lens.
Do not use fluffy cloths containing oil, water or dust for cleaning. The lens is easily
damaged, so do not apply excessive pressure when wiping it.
Attaching and Detaching the Lens
For details on attaching and detaching the projection lens, refer to the operating instructions
of the projector.
Peripheral focus adjustment function
When yo
u change the size of the projected image, the focal balance between the center
and peripheral areas of the screen may shift. This shift in balance tends to increase
proportionally with smaller throw ratios.
The ET-D3LEW300 is equipped with a peripheral focus adjustment function to correct
the shift
in focal balance between the center and peripheral areas of the screen.
For instructions on adjusting the peripheral focus, refer to “Projecting” in the operating
instructions for the projector.
Lens calibration
Perform lens calibration after attaching the lens.
For instructions on the lens calibration, refer to “Projecting” in the operating instructions
for the projector.
6-ENGLISH
Projection relationships
The dimensional relationship between the screen and the projector is shown below.
■Dimensional relationship diagram
SD
L (LW/LT)
L1
L (LW/LT)
SW SH
SH
SW
L1
Projected image
Screen
Screen
Note
zThis diagram assumes that the size and position of the projected image will be adjusted so
that the image fills the entire screen.
zThis illustration is not drawn to scale.
L Projection distance
LW Minimum distance
LT Maximum distance
L1 Lens protrusion dimension
SH Projected image height
SW Projected image width
SD Projected image size
zDimension for L1 (approximate values) (Unit: m)
Projector model Dimension for L1
(approximate value)
PT-RQ35K / PT-RZ34K 0.273
PT-RQ32K / PT-RZ31K / PT-RS30K 0.242
PT-RQ25K / PT-RQ18K / PT-RZ24K / PT-RZ17K / PT-RZ14K 0.272
PT-RQ22K / PT-RZ21K / PT-RS20K / PT-RZ16K 0.270
Note
zThe illustrations of projectors in this manual are for informational purposes only and do not
represent a specific projector model. Configurations may vary with the model.
Attention
zTo prevent obstruction of the intake and exhaust vents, install the projector with a
clearance from walls and objects. For details about the required distance from surrounding
walls and objects, refer to the operating instructions for your projector.
If you are installing the projector in a sealed space, be sure to provide additional air
conditioning equipment and ventilation equipment. Insufficient ventilation will result in an
accumulation of heat and may activate the projector's protection circuit.
zAvoid setting up in places which are subject to sudden temperature changes, such as near
an air conditioner or lighting equipment (studio lamps, etc.).
ENGLISH-7
Projection relationships (continued)
■Dimensional relationship
For details on the projection distance (L), refer to “Projected image size and Projection
distance” and “Projection distance formulas” in the Appendix.

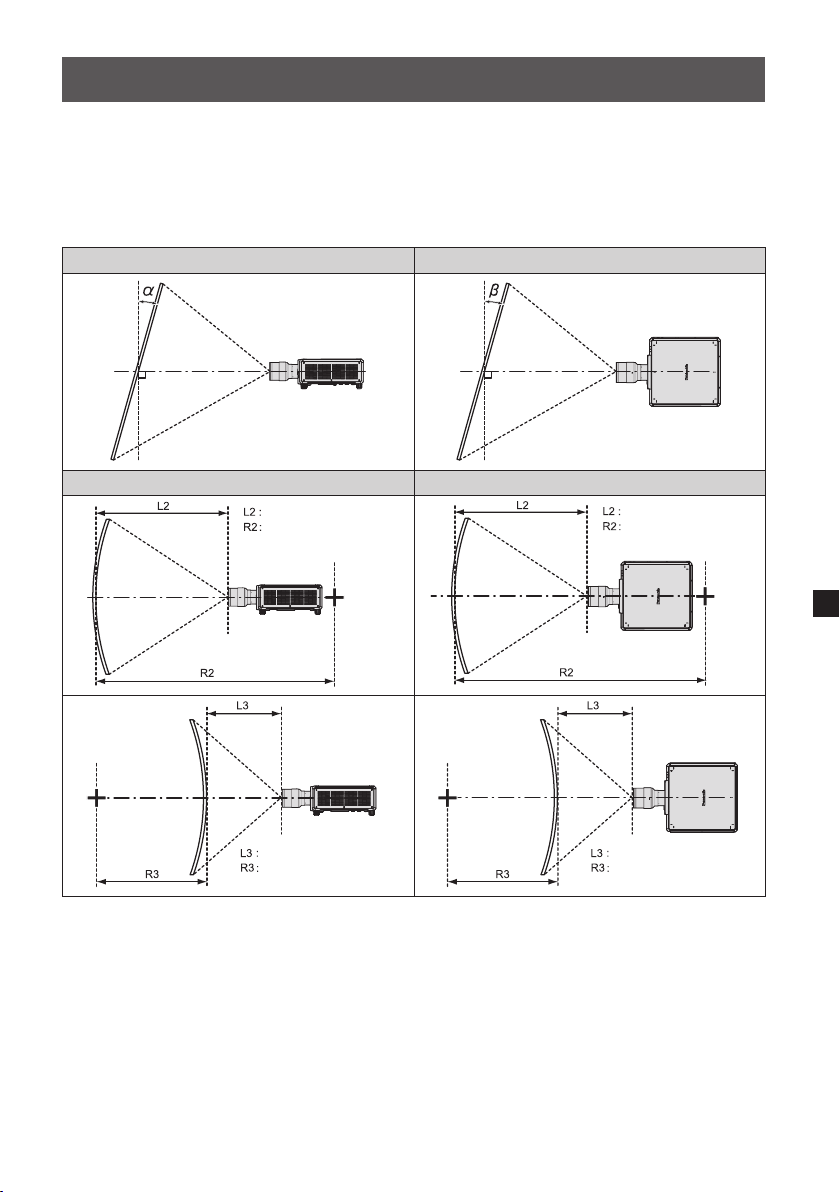

■[GEOMETRY] projection range
[VERTICAL KEYSTONE] (viewed from the side) [HORIZONTAL KEYSTONE] (viewed from above)
Screen Screen
Vertical arc correction (viewed from the side) Horizontal arc correction (viewed from above)
Screen
Projection distance
Arc radius
Screen
Projection distance
Arc radius
Arc center
Screen
Projection distance
Arc radius
Arc center
Screen
Projection distance
Arc radius
8-ENGLISH
Projection relationships (continued)
Projector
Model No.
Only [KEYSTONE]
used
[KEYSTONE] and [CURVED CORRECTION]
used together
Only [CURVED
CORRECTION] used
Vertical
keystone
correction
angle α (°)
Horizontal
keystone
correction
angle β (°)
Vertical
keystone
correction
angle α (°)
Horizontal
keystone
correction
angle β (°)
Min. value
of R2/L2
Min. value
of R3/L3
Min. value
of R2/L2
Min. value
of R3/L3
PT-RQ35K /
PT-RZ34K /
PT-RQ32K /
PT-RZ31K /
PT-RS30K /
PT-RQ22K /
PT-RZ21K /
PT-RS20K /
PT-RZ16K
±15 ±5 ― ― ― ― ― ―
PT-RQ25K /
PT-RZ24K /
PT-RQ18K /
PT-RZ17K /
PT-RZ14K
±28 ±15 ±10 ±10 1.2 3.0 0.7 1.7
Note
zWhen [GEOMETRY] is used, the focus of the entire screen may be lost as correction
increases.
ENGLISH-9
Perform the lens position shift within the adjustment range.
Perform lens shift adjustment within the ranges shown in the following illustrations.
The focus may change when the lens position is shifted out of the adjustment range.
This is because the movement of the lens is restricted to protect the optical parts.
Projection position can be adjusted with the optical axis shift based on the home position
in the respective range.
PT-RQ35K /
PT-RZ34K /
PT-RZ31K /
PT-RZ21K /
PT-RZ16K
0.12 V
0.44 V0.44 V
0.15 H 0.15 H
0.12 V
Projected image width H
Projected image height V
Standard projection position
Optical axis center
PT-RQ25K /
PT-RZ24K /
PT-RQ18K /
PT-RZ17K /
PT-RZ14K
0.18 H
0.14 V
0.14 V
0.52 V 0.52 V
0.18 H
Projected image width H
Projected image height V
Standard projection position Optical axis center
Lens shift ranges
10-ENGLISH
Lens shift ranges (continued)
PT-RQ32K /
PT-RQ22K
0.19 H 0.19 H
0.24 V
0.56 V 0.56 V
0.24 V
Projected image width H
Projected image height V
Optical axis center
Standard projection position
PT-RS30K /
PT-RS20K
0.2 H 0.2 H
0.12 V
0.4 V 0.4 V
0.12 V
Projected image width H
Projected image height V
Standard projection position
Optical axis center
Note
zThe home position of the projector is a point of origin position for the lens shift (i.e., vertical
and horizontal positions of the lens) based on the results of lens calibration. It is not
theoptical center position of the screen.
Altri manuali per ET-D3QW300
2
Indice
Altri manuali Panasonic Lente
Panasonic
Panasonic ET-ELW21 Manuale utente
Panasonic
Panasonic ET-DLE085C Manuale utente
Panasonic
Panasonic Lumix H-ES200 Manuale utente
Panasonic
Panasonic ET-ELT30C Manuale utente
Panasonic
Panasonic H-HSA35100PP Manuale utente
Panasonic
Panasonic ET-D3LEF70 Manuale utente
Panasonic
Panasonic ET-D75LE95C Manuale utente
Panasonic
Panasonic VW-W4907 Manuale utente
Panasonic
Panasonic ET-DLE020C Manuale utente
Panasonic
Panasonic ET-DLE035 Manuale utente
Panasonic
Panasonic H-RS100400PP Manuale utente
Panasonic
Panasonic AW-S14XBRM Manuale utente
Panasonic
Panasonic VW-CLT1P Manuale utente
Panasonic
Panasonic ET-D3LEU100C Manuale utente
Panasonic
Panasonic Lumix H-FS14140 Manuale utente
Panasonic
Panasonic AW-LZ16MD73P Manuale utente
Panasonic
Panasonic H-PS14042PP Manuale utente
Panasonic
Panasonic Lumix H-F007014 Manuale utente
Panasonic
Panasonic Lumix H-ES12060 Guida all'installazione
Panasonic
Panasonic ET-DLE035C Manuale utente
