ORDERNO. KMS0107583C1

ADVANCEDHYBRIDSYSTEM

KX-TA1232

KX-TA123260

KX-TA123270

KX-TA123280

KX-TA123291

KX-TA123293

(forU.S.A.)

1. INTRODUCTION

1.1. CAUTION

Whenyou mention theserial number, writedownthe11 digits. Theserial numbermay befound

on thelabel affixedtotheback oftheunit.

1.2. SAFETYPRECAUTIONS

1. Beforeservicing, unplug thepowercordtopreventanelectric

shock.

2. Whenreplacing parts, use onlythemanufacturer'srecommended

components ofsafety.

3. Check thecondition ofthepowercord. Replace ifwearordamage

isevident.

4. Afterservicing, besuretorestoretheleaddress, insulation

barriers, insulation papers, shields, etc.

5. Beforereturning theservicedequipmenttothecustomer, besure

toperform thefollowing insulation resistance test topreventthe

customerfrombeing exposedtoshock hazard.

1.3. INSULATIONRESISTANCETEST

1. Unplug thepowercordand shortthetwoprongsoftheplug witha

jumperwire.

2. Turnon thepowerswitch.

3. Measuretheresistance valuewithanohmmeterbetweenthe

jumperedACplug and eachexposedmetal cabinet part, suchas

screwheads, antenna, control shafts, handlebrackets, etc.

Note:

Someexposedpartsmay beisolatedfrom thechassisbydesign. These will readinfinity.

4. Ifthemeasurementisoutsidethespecifiedlimits, thereisa

possibilityofashock hazard. Theequipmentshouldberepaired

and recheckedbeforeitisreturnedtothecustomer.

1.4. FORSERVICETECHNICIANS

ICsand LSIsarevulnerabletostaticelectricity.

Whenrepairing, thefollowing precautionswill helppreventrecurring malfunctions.

1. Coverplasticparts boxes withaluminumfoil.

2. Ground thesoldering irons.

3. Use aconductivemat on worktable.

4. DonottouchICorLSI pinswithbarefingers.

1.5. WARNING

Staticsensitivedevices used. To protect printedcircuitboardsfrom

staticelectricity, do nottouchconnectorsindicatedbelow without

first discharging bodystaticbytouching aground terminal or

wearing aproperlyinstalledgrounding strap.

1.6. BATTERYCAUTION

Dangerofexplosion ifbatteryisincorrectlyreplaced. Replace onlywiththesameor equivalent

typerecommendedbythemanufacturer. Discard usedbatteries according tofollowing caution:

Disposal oflithium batteries shouldbeperformedbypermitted, professional disposal firms

knowledgeableinstategovernmentfederal and local hazardousmaterialsand hazardouswaste

transportation and disposal requirements. Batterycontinues tohave no transportation

limitationsas long as they areseparatedtopreventshortcircuitsand packedinstrong

packaging.

Commercial firmsthatdispose ofanyquantityoflithium cellsshouldhave amechanism inplace

toaccountfor theirultimatedisposition. Thisisagood practice for all types ofcommercial or

industrial waste.

Recommend TypeNumber:CR2354(BATT)

1.7. NOTE

For detailsofinstallation, refertotheInstallation Manual.

2. SPECIFICATIONS

2.1. GENERALDESCRIPTION

1. Capacity COlines

Stations 12 max.

32 max.

2. Control Method StoredProgram CPU: 16 bitsCPU

3. Switching Non Blocking PCMTimeSharing Switch

4. PowerSupplies Primary

Secondary 120 V AC, 60 Hz

Station SupplyVolt: 30 V,

Circuit

5V, 15 V

PowerFailure

-3COlines max. assignedtostations(PowerFailureTransfer)

5. Dialling

Outward

Internal

ModeConversion

Dial Pulse 10PPS, 20PPS

Tone(DTMF)Dialling

Dial Pulse (DP)10PPS, 20PPS

Tone(DTMF)Dialling

DP-DTMF, DTMF-DP

6. Intercom paths 4

7. Connector COlines

Station

Paging Output

External MusicInput

ModularJack

Amphenol Connector

PinJack (RCAJACK)

Two-conductorsJack (MINI

JACK

/9/64 inchdiameter)

8. EXTConnection

Cable

1pairwire(T,R) (Standard

Telephone)

2pairwire(T,R,D1,D2)(KX-

T7135,

T7130, KX-T7020, KX-T7030,

KX-T7055)

1pairwire(D1,D2)(KX-

T7040)

9. SMDR Interface

OutputEquipment

Detail Recording

EIA(RS-232C)

Printer

Date, Time, Ext. Number, CO

Line

Number, DialedNumber, Call

Duration,

AccountCode

10. Dimensions 325(W)×640(H)×115(D) mm (12 13/16"×25 3/16"×41/2" inches)

11. Weight 7.8kg(17.2lb)

2.2. CHARACTERISTICS

1. Station Loop Limit KX-T7135, KX-T7130, KX-T7020, KX-

T7030, KX-T7050, KX-T7055

SingleLineTelephone

Doorphone

40 ohms

600 ohmsincluding set

20 ohms

2. Minimum Leak

Resistance 15,000 ohms

3. Maximum Numberof

Station Instrumentsper

Line

1(KX-T7135, KX-T7130, KX-T7020, KX-T7030, KX-T7050, KX-T7055 or

standard

telephone)

2(Parallel connector ofaproprietarytelephoneand astandard

telephone.)

4. Ring Voltage 70 Vrmsat25 Hzdependson Ringing Load

5. PrimaryPower 120 V AC, 60 Hz

6. Central Office Loop Limit 1600 ohmsmaximum

7. Environmental

Requirements 0-40°C, 32-104°F, 10%-90%

8. HookswichFlashTiming

Range 204-1000 milliseconds

Design and specificationsaresubjecttochangewithoutnotice.

3. NAMEAND LOCATION

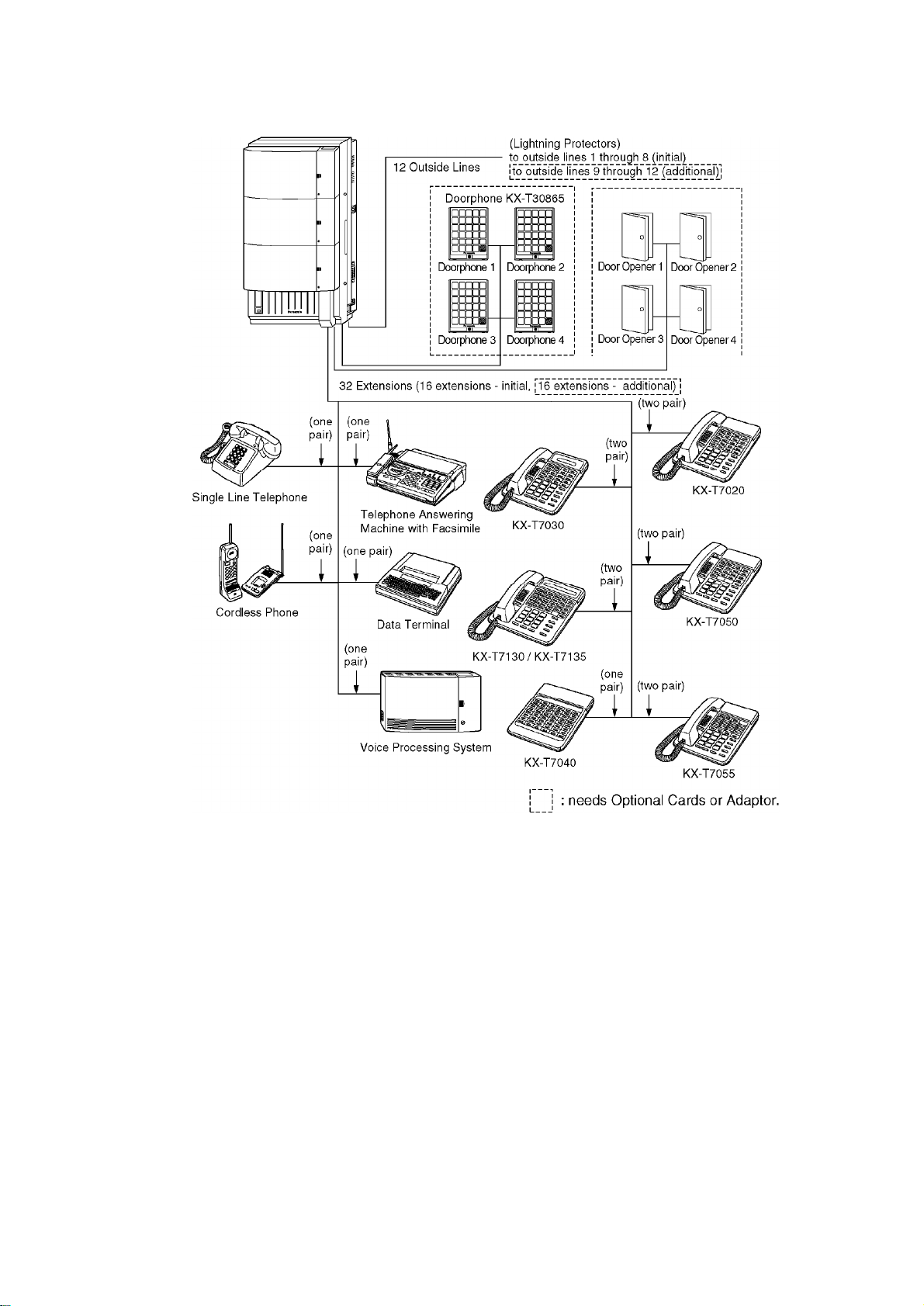

4. CONNECTION

5. DISASSEMBLYINSTRUCTIONS (KX-TA1232)

5.1. HOWTO REMOVE THETOPCOVER

Procedure5.1.

1. LoosenthetwoScrews(A).

2. OpentheTop Cover.

3. SlidetheTop Coverinthedirection ofthearrow whenremoving it.
