Order Number PTD0908X52AE

Sealing Gun

Model No. EY3640

EY3641

Europe

Oceanina

TABLE OF CONTENTS

PAGE PAGE

1 Warning -------------------------------------------------------------- 2

2 Specifications ----------------------------------------------------- 2

3 Exploded View and Replacement Parts List ------------ 3

Please file and use this manual together with the service manual for Model No. EY3653,Order No. MEW/

PTD 9702-36532.

1Warning

Caution:

• Pb free solder has a higher melting point that standard solder; Typicall the melting point is 50 - 70°F (30 - 40°C) higher. Please

use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder-

ing iron, please be careful not to heat too long.

• Pb free solder will tend to splash when heated too high (about 1100°F / 600°C).

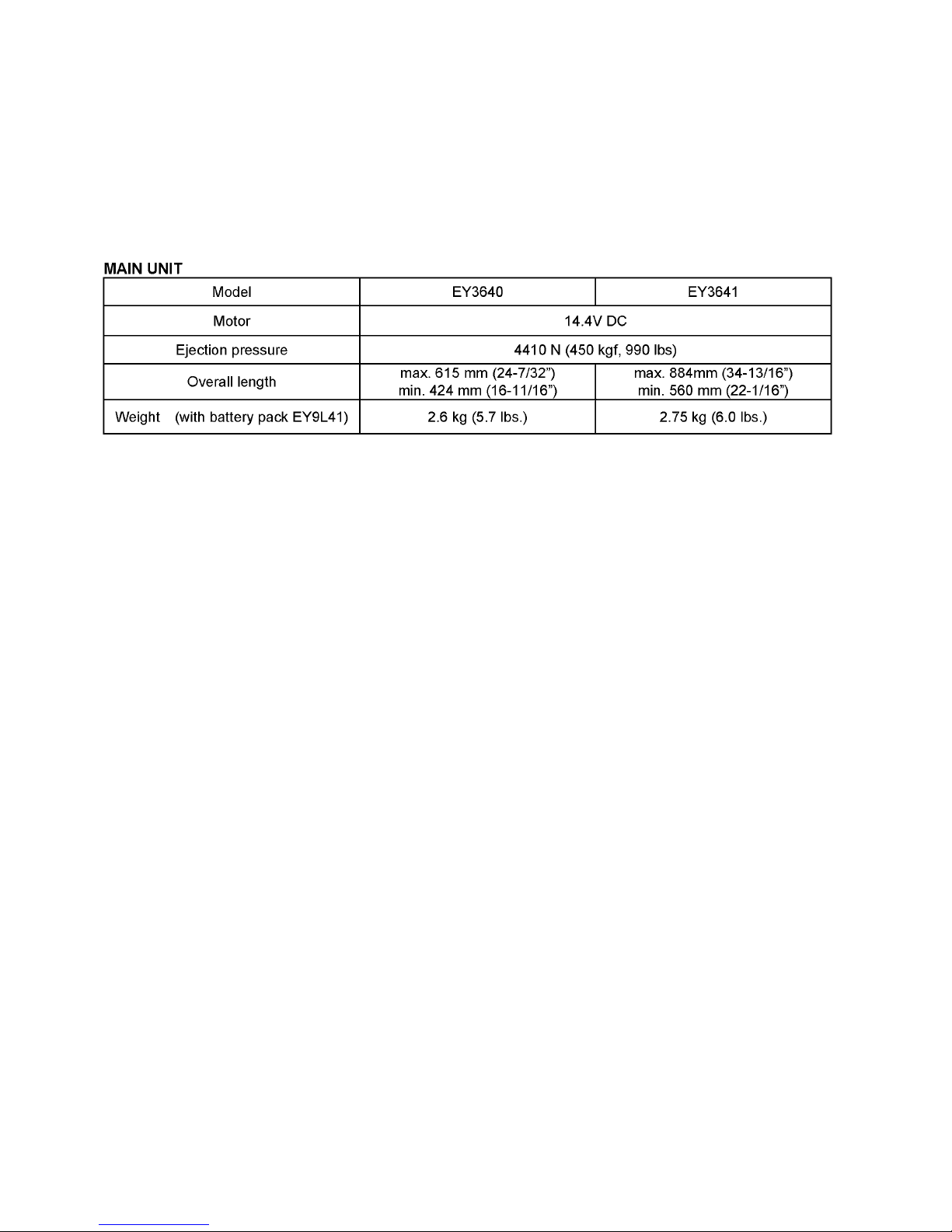

2 Specifications

Model No. : EY3640 Exploded View for EY3640

3 Exploded View and Replacement Parts List

Model No. : EY3640 Parts List

Safety

Ref.

No. Part No. Part Name & Description Q'ty Remarks

EY3640

1 WEY3641S3228 FRONT CAP 1

2 WEY3640S3718 TUBE HOLDER 1 (300ml)

3 WEY3641K6808 SCREW 3 (M3.5*10)

4 WEY3641K3188 PROTECTION COVER 1

5 WEY3641S3238 HOLDER CAP 1

6 WEY3641K9088 TAPPING SCREW 7 (4*14)

7 WEY3641S0808 CONNECTING RING 1

8 WEY3641L1458 GEAR BOX BLOCK 1

9 WEY3640K3078 HOUSING AB SET 1 (for EUROPE)

9 WEY3640K3079 HOUSING AB SET 1 (for OCEANIA)

10 WEY3641H3288 SPEED CONTROL APPLICATION 1

11 WEY3641K0488 PISTON JOINT 1

12 WEY3640K1348 RACK 1 (353mm / 300ml, 9.5*9.5）

13 WEY3641K3538 RACK KNOB 1

14 WEY3641K3148 RUBBER 1

15 WEY3641L2128 MODULE 1

16 WEY3641K9078 TAPPING SCREW 9 (3*14)

- WEY3640K7018 TOOL CASE 1

- WEY3640K8008 INDIVIDUAL BOX 1 [SH]

- WEY3641K8108 OPERATING INSTRUCTIONS 1 [SH]

Model No. : EY3641 Exploded View for EY3641

Model No. : EY3641 Parts List

Safety

Ref.

No. Part No. Part Name & Description Q'ty Remarks

EY3641

1 WEY3641S3228 FRONT CAP 1

2 WEY3641S3718 TUBE HOLDER 1 (600ml)

3 WEY3641K6808 SCREW 1 (M3.5*10)

4 WEY3641K3188 PROTECTION COVER 1

5 WEY3641S3238 HOLDER CAP 1

6 WEY3641K9088 TAPPING SCREW 1 (4*14)

7 WEY3641S0808 CONNECTING RING 1

8 WEY3641L1458 GEAR BOX BLOCK 1

9 WEY3641K3078 HOUSING AB SET 1 (for EUROPE)

9 WEY3641K3079 HOUSING AB SET 1 (for OCEANIA)

10 WEY3641H3288 SPEED CONTROL APPLICATION 1

11 WEY3641K0488 PISTON JOINT 1

12 WEY3641K1348 RACK 1 (485mm / 600ml, 9.5*9.5）

13 WEY3641K3538 RACK KNOB 1

14 WEY3641K3148 RUBBER 1

15 WEY3641L2128 MODULE 1

16 WEY3641K9078 TAPPING SCREW 9 (3*14)

- WEY3641K7018 TOOL CASE 1

- WEY3641K8008 INDIVIDUAL BOX 1 [SH]

- WEY3641K8108 OPERATING INSTRUCTIONS 1 [SH]
