Settings and Printing Maintenance Specifications

Power source

Refer to the nameplate on the rear of the unit.

Temperature

Operating: 10°C to 32.5°C (50°F to 90.5°F)

Best Print Quality: 15°C to 25°C (59°F to 77°F)

Storage: 0°C to 40°C (32°F to 104°F)

Humidity

Operating: 20% to 80% RH

Best Print Quality: 30% to 70% RH

Storage: 10% to 80% RH

Warm-up time

Less than 300 seconds (at 20°C)

Power consumption

850 W Max. (printing with fuser on)

35 W (standby with fuser off)

25 W (Energy Star mode)

Meets Energy Star power conservation requirements.

Mass {Weight} of standard unit with all consumables

(without optional 2nd Cassette Feeder)

49.2 kg{108.4 lbs.}

Dimensions of standard unit (Without 2nd Cassette Feeder)

Height: 463 mm (18.2″)

Depth: 498 mm (19.6″)

Width: 510 mm (20.1″) [784 mm (30.9″) with the output tray]

Noise level

53 dB(A) [Printing mode]

47 dB(A) [Standby mode]

Printing method

Semiconductor Laser

Printer

Settings and Printing Maintenance Specifications

Paper output

Up to 500 sheets [75 g/m2(20 lbs.)]

Resolution

600 x 600 dpi (Standard)

1200 x 1200 dpi*1(Premium)

*1It is possible to print a single-sided document at 1200 x 1200 dpi with the standard 32 MB of

memory. However, you may experience a “Memory Overflow” error when printing complex

documents.

Should this be the case, you will have to use either a lower resolution or increase the printer's

memory (see RAM buffer below).

Maximum printing speed

The print speeds listed in the following table represent the time the printer produces multiple prints on

various media and resolution (Continuous throughput rate).

Continuous Print Speed (ppm)

(*2only when using plain paper)

RAM buffer

Standard 32 MB (expandable to a maximum of 288 MB with optional DIMMs)

Transparency

600 x 600 dpi

1200 x 1200 dpi

Plain Paper

45.3 16 2 2 8

2 2.6 8 1

Legal

mono

color

4 color

(CMYK)

mono

color

3 color

(CMY)*2

4 color

(CMYK)

mono

color

3 color

(CMY)*2

4 color

(CMYK) 2.6

1.3

Printer

Additional memory

Single-sided printing

A4/Letter

Duplex printing

Recommended memory to be added ( ):

Standard (600 dpi)

Premium (1200 dpi)

Standard (600 dpi)

Premium (1200 dpi)

Legal A4/Letter Legal A4/Letter Legal A4/Letter Legal

64 MB

128 MB

256 MB

Settings and Printing Maintenance Specifications

Interface

Standard: Bidirectional Parallel

Option: Ethernet (10/100 baseT)

Altitude

Operating: 0 to 2,500 m (8,000 ft.)

Storage: 0 to 4,000 m (13,125 ft.)

Printer / Media

Media

Dimensions

Envelope 104.9 mm x 241.3 mm (4.13″x 9.5″)

216 mm x 279 mm (8.5″x 11″)

Media

Transparency

Paper 216 mm x 279 mm (8.5″x 11″)

210 mm x 297 mm (8.3″x 11.7″)

216 mm x 356 mm (8.5″x 14″)

Size

Letter

Legal

Letter

#10

210 mm x 297 mm (8.3″x 11.7″)

Media Sizes

NOTE

BPlease store your paper according to the recommendations of the manufacturer.

When the image is printed on the media, the image (print area) is a bit smaller than the media size.

You may need to adjust the page margins in the application software to match the print area.

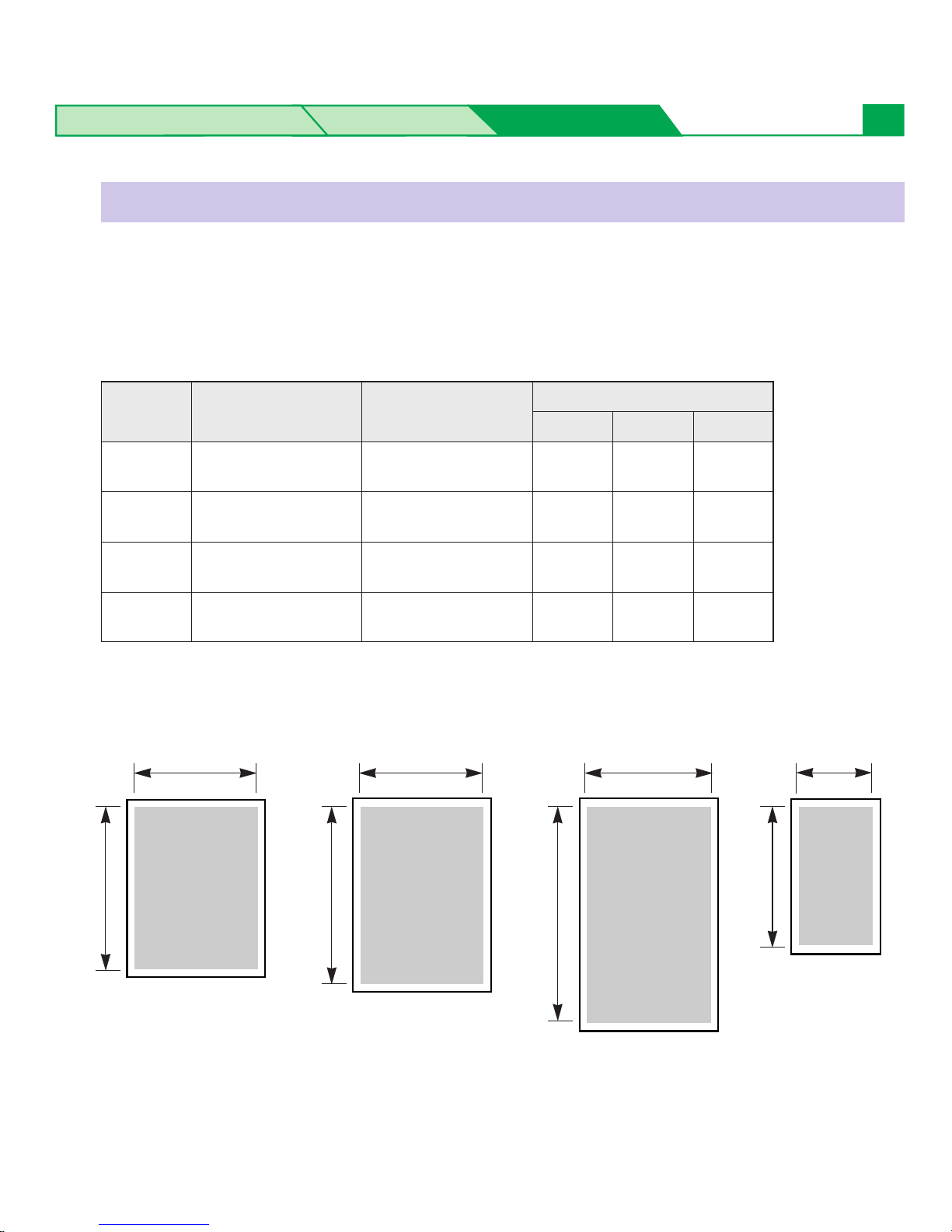

The following table and illustrations show the page sizes, the largest print areas, and the margins for

the media sizes supported on this printer.

Settings and Printing Maintenance Specifications

Media Print area

5.8 mm

(0.23″)

Margins

Page size Top Bottom Sides

Letter 216 mm x 279 mm

(8.5″x 11″)209 mm x 268 mm

(8.2″x 10.6″)5.6 mm

(0.22″)5.6 mm

(0.22″)3.6 mm

(0.14″)

A4 210 mm x 297 mm

(8.3″x 11.7″)200 mm x 287 mm

(7.9″x 11.3″)5.1 mm

(0.2″)4.7 mm

(0.18″)4.9 mm

(0.19″)

Legal 216 mm x 356 mm

(8.5″x 14″)209 mm x 344 mm

(8.2″x 13.5″)5.8 mm

(0.23″)3.6 mm

(0.14″)

Margins and Print Area

Media

Envelope 4.2 mm

(0.16″)

104.9 mm x 241.3 mm

(4.13″x 9.5″)97 mm x 233 mm

(3.8″x 9.2″)4.2 mm

(0.16″)3.6 mm

(0.14″)

209 mm (8.2″) 200 mm (7.9″)

268 mm (10.6″)

287 mm (11.3″)

209 mm (8.2″)

344 mm (13.5″)

Letter A4 Legal Envelope

98 mm (3.9″)

233 mm (9.2″)

Settings and Printing Maintenance Specifications

The printer is designed to work well with most types of paper. However, differences in paper may

have significant effects on the quality of the print or the reliability of paper handling.

It is strongly recommended that you always test paper before purchasing it to make sure it provides

desirable performance.

BRecommended paper (for optimum performance):

LETTER/LEGAL : Hammermill LASERPRINT 90 g/m2(24 lbs.)

A4 : 4CC 80 g/m2

*1Optional 2nd cassette feeder with ADU must be installed in your printer.

BExtremely smooth or shiny paper or paper that is highly textured

BLetterhead imprinted with low temperature or thermography. These materials may transfer onto the

fuser unit’s roller and cause damage. Any pre-printed paper should use inks compatible with 200°C

(392°F) for 0.1 second.

BDamaged or wrinkled paper, or paper with irregularities such as tabs, staples, etc.

BMultipart forms or carbonless paper

BPaper with a 25% or more cotton and/or fiber content

BInk jet media (paper, transparency, etc.)

(It may transfer onto the fuser unit’s roller and cause damage.)

Paper Weight

Multi-purpose tray

Media tray Single-sided printing

Single-sided printing

B&W

Color

60 to 105 g/m2(16 to 28 lbs.)

75 to 105 g/m2(20 to 28 lbs.)

75 to 165 g/m2(20 to 44 lbs.)

Media

Types of Paper to Avoid

Auto duplex printing*175 to 90 g/m2(20 to 24 lbs.)

Manual duplex printing

Manual duplex printing is possible by using the multi-purpose tray. Automatic duplex printing is

possible by installing the optional 2nd cassette feeder with ADU. However, you should not expect the

same print quality and reliability that you get with single-sided printing. We strongly recommend that

you follow the guidelines below.

Notes for manual duplex printing:

BDo not load more than 50 sheets in the multi-purpose tray.

BBefore loading paper in the multi-purpose tray, adjust it so that the edges of the media are lightly

touching the media guides of the multi-purpose tray.

BUse the multi-purpose tray for second side printing.

Notes for manual / automatic duplex printing:

BIt is strongly suggested to use color laser bond paper.

BBefore printing on the first side, set the unprintable area [at least 15 mm (0.59″) in length] on the top

of paper (see below).

BWhen printing on the first side, avoid printing photograph or graphic in solid color to prevent

paper jamming. It may cause a damage to the printer.

Settings and Printing Maintenance Specifications

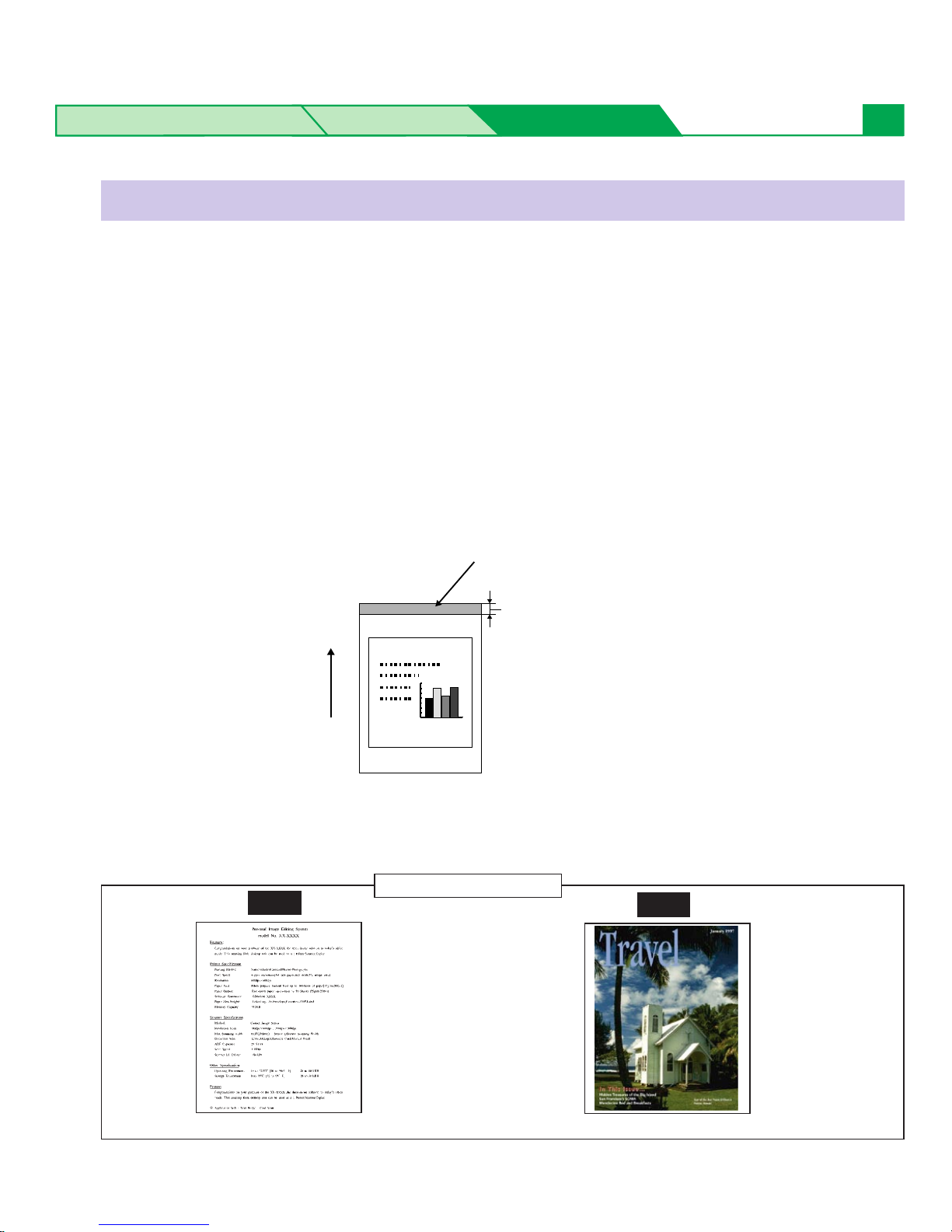

Duplex Printing (Two-sided printing)

Unprintable area

[a : at least 15 mm (0.59")]

Paper feed

direction

Pollution of World

It is strongly recommended that

the sizes of photograph and

graphic printed on the page are

as small as possible.

Media

The first side printing

OK N.G.

Ex. Characters

Ex. Photograph in solid color

Settings and Printing Maintenance Specifications

You may also print on transparencies and labels that are made for the printer. Panasonic has tested

and found that the following work satisfactorily.

BRe-using transparencies that have been fed through the printer once (for example, after jams or

if the transparency is ejected without being printed) can reduce the life of the consumables and

paper path components.

BWith any label stock, the labels must completely cover the backing material.

Labels cover the entire backing material.

YES

The backing material is exposed.

Transparencies and Labels

OHP transparency 3M CG3710

Labels AVERY 5163, AVERY 5164, AVERY 5165

Avery L7163, Avery L7165, Avery L7166, Avery L7167

Avery L7168, Avery L7169

Media

Settings and Printing Maintenance Specifications

It is recommended that you print in black text only and purchase high quality #10 or larger laser

envelopes with diagonal seams, as shown in the diagram below:

High quality envelopes have the following characteristics:

BA thin, sharply creased leading edge

BPaper weight of 90 g/m2(24 lbs.)

BFlat, free of curls, wrinkles, nicks, etc.

NOTES

BWrinkle may occur in some case, even if high quality envelopes are used.

BWhen a wrinkle occurs, try printing with the flap inserted inside the envelope as shown in figure.

It is not recommended that you use envelopes with any of the following characteristics (using these

may result in paper jams):

BIrregularly shaped envelopes

BEnvelopes with curls, wrinkles, nicks, twists, dog-ears or other damage

BEnvelopes with side seam construction

BHighly textured envelopes, or with extremely shiny surfaces

BEnvelopes that seal by removing a peel-off strip

BEnvelopes with more than one flap to be sealed

BSelf-adhesive envelopes

BEnvelopes that are baggy or not sharply creased

BEmbossed envelopes

BEnvelopes that have previously been printed on

Envelopes

Media

(Continued)

Settings and Printing Maintenance Specifications 10

Side seam construction Peel-off strip Multiple flaps

Twist Curl Bent-edge

Wave Dog-ears Self adhesive

Do not attempt to print on any of the following types of envelopes. These may cause damage to your

printer.

BEnvelopes with clasps, snaps or tie strings (see Figure 1)

BEnvelopes with transparent windows (see Figure 2)

BEnvelopes that will melt, discolor, scorch offset or release hazardous emissions when exposed to

200°C (392°F) for 0.1 second

BEnvelopes that use encapsulated types of adhesive that do not require moistening but rely on

pressure to seal them

Figure 1 Figure 2

Media

Altri manuali per KX-P8415

Indice

Altri manuali Panasonic Stampante

Panasonic

Panasonic KX-MC6000 Series Istruzioni per il montaggio

Panasonic

Panasonic KX-PX20M - Photo Printer - 20 Sheets Manuale utente

Panasonic

Panasonic PV-PD2000 Manuale utente

Panasonic

Panasonic Workio DP-CL18 Manuale utente

Panasonic

Panasonic JT-H340PR Series Manuale utente

Panasonic

Panasonic KX-MC6040 - Color Laser Multi-Function... Manuale utente

Panasonic

Panasonic SP22P Manuale utente

Panasonic

Panasonic KX-P7100 Manuale utente

Panasonic

Panasonic KX-P1131E Manuale utente

Panasonic

Panasonic KXF-1E4C Manuale utente

Panasonic

Panasonic KX-CL400 Manuale utente

Panasonic

Panasonic KX-P1131 - KX-P 1131 B/W Dot-matrix Printer Manuale utente

Panasonic

Panasonic JT-H340PR-E1 Manuale utente

Panasonic

Panasonic KX-P1150 - KX-P 1150 B/W Dot-matrix Printer Manuale utente

Panasonic

Panasonic KX-P1150 - KX-P 1150 B/W Dot-matrix Printer Manuale utente

Panasonic

Panasonic KX-P 8410 Series Manuale utente

Panasonic

Panasonic KX-P1180 Manuale utente

Panasonic

Panasonic KX-P8415 Manuale utente

Panasonic

Panasonic NV-MP20E Manuale utente

Panasonic

Panasonic KX-P7100 Manuale utente

Panasonic

Panasonic KX-MB2030SA Manuale utente

Panasonic

Panasonic WORKIO DP-CL21 Istruzioni di installazione e manutenzione

Panasonic

Panasonic KX-P3124 Manuale utente

Panasonic

Panasonic DP-C406 Manuale utente

Manuali Stampante popolari di altre marche

Lexmark

Lexmark 1400 Series Manuale

Canon

Canon i70 Series Manuale utente

Evolis

Evolis Elypso Manuale utente

Kyocera

Kyocera FS-9530DN Manuale utente

Canon

Canon LASER SHOT LBP-1210 Manuale utente

Samsung

Samsung BIXOLON SRP-350plusF Manuale utente

Canon

Canon PIXMA PRO-1 Series Manuale utente

Canon

Canon PIXMA G3560 Guida all'installazione

Dell

Dell Color Laser Printer 2130cn Manuale utente

Tektronix

Tektronix Phaser 840 Manuale utente

Epson

Epson ET-7750 Istruzioni operative

Canon

Canon CLBR 460ps Manuale utente

Eltron

Eltron P210 Guide Manuale utente

Ricoh

Ricoh MD-P1 Manuale utente

Epson

Epson SC-F7100 series Manuale utente

Epson

Epson Stylus C40UX Manuale utente

Canon

Canon imagePASS-A2 Manuale utente

Canon

Canon S820D Manuale utente
