Operating Instructions

Wireless Remote Controller

Model No. CZ-RWSU3U

CZ-RWST2U

CZ-RWSD2U

CZ-RWSC3

CZ-RWSK1U

Be sure to read the “Safety Precautions” before using. Keep them for future reference.

270573_EN.indb 1 2015-1-22 9:08:58

1(EN)

REMOTE CONTROLLER

Receiver

1543

CZ-RWSD2UCZ-RWSU3U

1543

CZ-RWST2U

Front side Rear side

CZ-RWSC3

ADDRESS 1

ADDRESS 2

ADDRESS 3

REM SUB/MAIN

1234

270573_EN.indb 2 2015-1-22 9:08:59

(EN)

Note:

zThis device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) This

device may not cause harmful interference, and (2) this

device must accept any interference received, including

interference that may cause undesired operation.

zThis equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses

and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause

harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more

of the following measures:

•Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

•Consult the distributor or an experienced radio/TV

technician for help.

zFCC Caution: To assure continued compliance, follow

the attached installation instructions. Any changes

ormodicationsnotexpresslyapprovedbytheparty

responsible for compliance could void the user’s authority

to operate this equipment.

Safety Precautions

270573_EN.indb 2 2015-1-22 9:09:00

(EN)

Safety Precautions

CAUTIONS

This appliance is intended to be used by expert or

trained users in shops, in light industry and on farms, or

for commercial use by lay persons.

This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe

way and understand the hazards involved.

WARNING

Do not use this appliance in a potentially explosive

atmosphere.

•Do not operate with wet hands.

•Do not wash with water.

In case of malfunction of this appliance, do not repair

by yourself. Contact the sales or service distributor for

repair.

In case of emergency, remove the power plug

from the socket or switch off the circuit breaker

or the means by which the system is isolated

from the mains power.

WARNING CAUTION

This symbol refers to a hazard or unsafe

practice which can result in severe personal

injury or death.

This symbol refers to a hazard or unsafe

practice which can result in personal injury or

product or property damage.

Matters to be observed Prohibited matters

270573_EN.indb 3 2015-1-22 9:09:00

(EN)

Contents

1. Important Safety Instructions ................................................5

2. Names and Operations .........................................................6

3. Installing Batteries.................................................................8

4. Setting the Current Time.......................................................9

5. Operation ............................................................................10

6. Timer Operation ..................................................................12

7. Adjusting the Wind Direction...............................................14

8. Operating Multiple In/Outdoor Units Simultaneously ..........15

9. Using the Remote Controller...............................................16

10. For Best Results .................................................................16

11. Addresses ...........................................................................17

12. Emergency Operation .........................................................19

13. Miscellaneous Settings .......................................................20

14. Before Requesting Service .................................................21

15.Specications......................................................................22

270573_EN.indb 4 2015-1-22 9:09:00

1. Important Safety Instructions

(EN)

Before using the system, be sure to

read these “Important Safety

Instructions”.

After reading this manual, save it in a

convenient place.

WARNING

Installation Precautions

•Donotinstallthisequipment

yourself.

Installation should always be

performed by your distributor or a

professional service provider.

 Electricshockorremayresultif

an inexperienced person performs

any installation or wiring

procedures incorrectly.

•Useonlyspeciedairconditioners.

Always use only air conditions

speciedbythedistributor.

Precautions for Use

•Donottouchswitcheswithwet

hands.

Electric shock and damage to the

system can result.

•Protecttheremotecontrollerfrom

water because it may cause

damage to the system.

•Stopthesystemandturnthe

power off if you notice unusual

smells or other irregularities.

Continuing operation when the

system is out of order can result in

electricshock,re,anddamageto

the system. Contact your

distributor.

•Donotswallowthebattery.

Moving and Repair

Precautions

•Donotrepair.

Never repair the system yourself.

•Contactyourdistributorbefore

moving the system.

Contact your distributor or a

professional service provider about

moving and reinstalling the system.

 Electricshockorremayresultif

an inexperienced person performs

any installation procedures

incorrectly.

270573_EN.indb 5 2015-1-22 9:09:01

2. Names and Operations

(EN)

REMOTE CONTROLLER

One remote controller can control a group of

up to eight indoor units. (See page 15)

1. Operation Display

Displays the operation status.

(Thegureshowsallthepossible

segments that may appear on the

display.)

•Theauto-apdisplaymaybe

different depending on the

installed unit. (See page 14.)

2. Start/Stop button

Pressing this button once starts

and pressing again stops the

operation.

3. Fan speed button

4. Swing/Wind Direction button

5. Timer setting button

Use for operating with a timer.

6. RESET button

Use this button after changing the

batteries.

7. Cover

Press at the top center and then

slide down.

8. Transmitter

9. Remote control sensor

Detects the temperature at the

remote controller when detection

has been switched to the remote

controller by the SENSOR button.

10.Temperature setting buttons

raises the temperature

setting.

lowers the temperature

setting.

11.Filter button

CZ-RWSC3

Presstoturnoffthelterlampon

the receiver.

12.Mode Select button

Press to switch the operation

mode.

13.Ventilation button

Use this when connected to an

aftermarket fan. Pressing this

button starts and stops the fan.

When the air conditioner is started

or stopped, the fan starts or stops

at the same time. ( appears on

the display of the remote

controller when the fan is

operating.)

14.Address button

15.SENSOR button

Used this to activate the

temperature sensor on the remote

controller instead of the one on

the indoor unit.

The temperature sensor on the

indoor unit is selected at

shipment. At this time is shown

on the display.

16.Clock button

Use this to set the clock.

From this page, the names of

remote controller’s buttons will be

indicated with the above

illustrations.

E.g.: Start/Stop button 

270573_EN.indb 6 2015-1-22 9:09:01

(EN)

1. Receiver

Receives the signal sent from the

remote controller.

2. Emergency operation button

Indicator lamps

When an error occurs, one of the lamps

ashes.Whenanindicatorlampis

ashing,referto“14.BeforeRequesting

Service”.

3. OPERATION lamp

Lights up when the unit is

operating.

4. TIMER lamp

Lights up when the timer is set.

5. STANDBY lamp

•ThelampintheHEATmode

lights up at the following times:

during the startup, during the

thermostat operation, and during

the defrosting.

•Thelampasheswhenanerror

occurs.

6. FILTER lamp

This lamp is for notifying you

whenthelterneedstobe

cleaned.

7. Address switch

See “11. Addresses”.

Note

• IfHEATPUMP(2WAY)typeisbeing

used, it will beep twice and the

operating lamp will light up on the

display; if the timer and standby lamps

blinkalternately,aconictbetweenthe

heating and cooling exists, so the unit

cannot operate in the desired mode.

(On models that do not have an Auto

function, even if Auto is selected, it

works in the same way.)

• Whenthelocaloperationisdisabled

by centralized control or similar cause,

and if the Start/Stop , Mode or

Temperature setting button

ispressed,theunitwillbeepvetimes

and the change will not be made.

2. Names and Operations (Cont.)

Receiver

270573_EN.indb 7 2015-1-22 9:09:02

3. Installing Batteries

(EN)

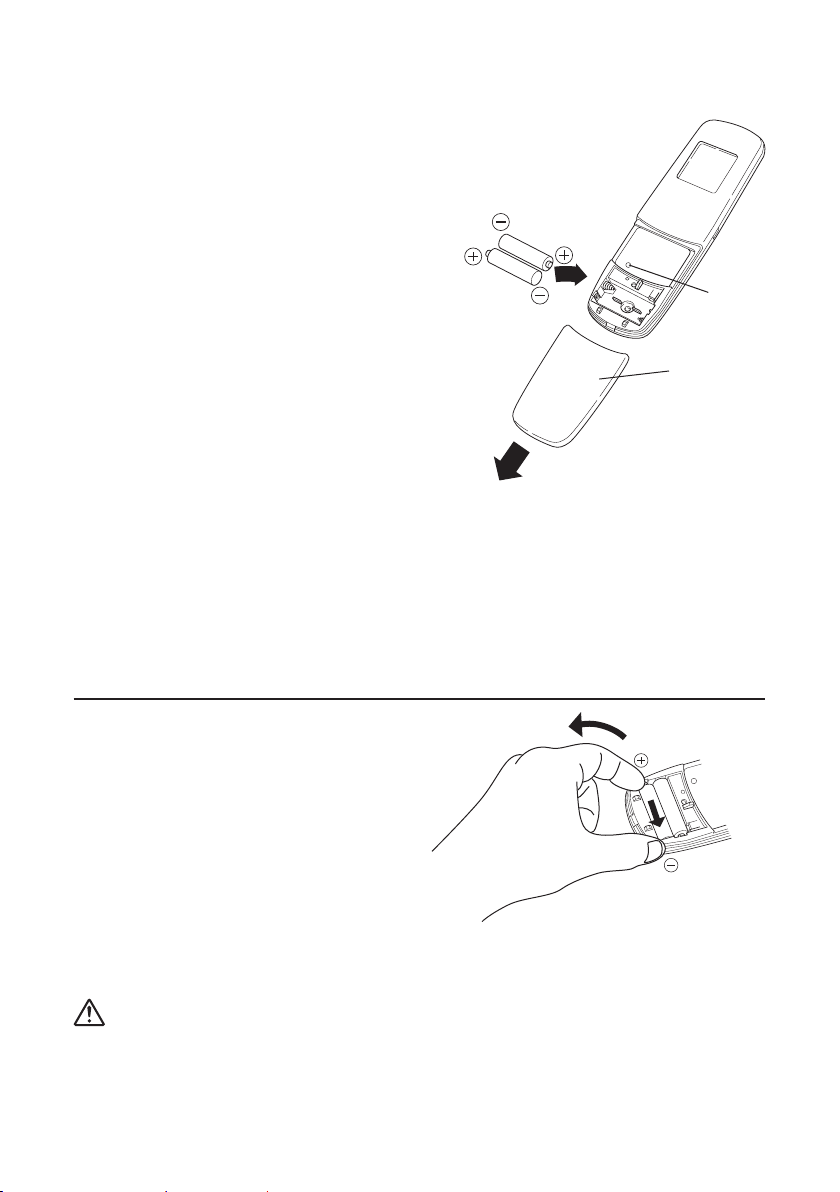

1. Remove the cover.

2. Insert two AAA alkaline batteries.

Put the batteries in with the polarity [+/–]

asshowninthegure.

3. Gently insert one end of an

unfolded paper clip (or a similar

object that can t) into the Reset

hole and press the RESET button

inside the hole, then put the cover

back on.

Notes

• Change the batteries when the display of the

remote controller gets weak, or if it will not work

unless close to the receiver.

(Alkaline batteries generally last about one year.)

• Whenchangingbatteries,alwaysusetwofreshbatteriesofthesamemake.

• Iftheremotecontrollerwillnotbeusedforalongperiodoftime,removethebatteries.

• Pleasedisposeofusedbatteriesproperly,followinganylocalregulations.

• After changing the batteries, follow the procedures on the next page to reset the

current time.

How to Remove Batteries

1. Remove the cover.

2. Press the battery toward the

negative end and lift it out by

its positive end. (See the

gure on the right.)

3. Remove the other battery in

the same way.

Note

• Disposeoftheusedbatteriesatthedesignatedlocationincompliancewiththe

applicable local ordinances.

WARNING

• Donotswallowthebattery.

•

After removing the battery from the remote controller, keep it out of the reach of children.

The battery can cause death by suffocation if swallowed.

• Wheninsertingthebatteries,makesurethepolarities(+and-)arecorrect.

Reset hole

Cover

270573_EN.indb 8 2015-1-22 9:09:02

4. Setting the Current Time

(EN)

After changing the batteries and pressing the RESET

button, be sure to reset the current time.

(When the RESET button is pressed, the current

time reverts to [ ].)

1. Press for two seconds or more.

Once the clock displays starts blinking, the clock

can be set.

2. Set the hour with / of the .

If you press and hold the button, the time changes

quickly.

3. Set the minutes with / of the .

If you press and hold the button, the time changes

quickly.

4. Pressing completes the time setting.

• Whileyouaresettingthecurrenttime,thetime

displayashesandthecolonlightsup.

• Ifthebuttonsarenotpressedforthreeminutes

while setting the current time, it is set to the

displayed time.

Note

• When the RESET button is pressed, the timer settings are canceled.

2 1, 4

270573_EN.indb 9 2015-1-22 9:09:02

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Panasonic Telecomando

Panasonic

Panasonic AK-HRP200G Manuale utente

Panasonic

Panasonic WV-CB700A Manuale utente

Panasonic

Panasonic WV-RC700A Manuale utente

Panasonic

Panasonic TY-RM09SL Manuale utente

Panasonic

Panasonic DMW-RSL1 Manuale utente

Panasonic

Panasonic EUR511170B Manuale utente

Panasonic

Panasonic AK-HRP200G Manuale utente

Panasonic

Panasonic CZ-RL511D Manuale di installazione e funzionamento

Panasonic

Panasonic KX-HNK102 Manuale utente

Panasonic

Panasonic AJ-RC905P Manuale utente

Panasonic

Panasonic CZ-01RT11P Manuale utente

Panasonic

Panasonic EUR7603Z10 Manuale utente

Panasonic

Panasonic WV-CB550 Manuale utente

Panasonic

Panasonic R3PA23 Manuale utente

Panasonic

Panasonic AJRC10G - REMOTE CONTROL UNIT Manuale utente

Panasonic

Panasonic aw-he40 series Manuale utente

Panasonic

Panasonic CZ-RTC3 Manuale utente

Panasonic

Panasonic CZ-RTC6 Manuale utente

Panasonic

Panasonic EUR643809 Istruzioni operative

Panasonic

Panasonic CZ-RTC4A Manuale utente

Panasonic

Panasonic Diga DMR-ES35V Manuale utente

Panasonic

Panasonic EUR7722X80 Manuale utente

Panasonic

Panasonic EUR511112 Manuale utente

Panasonic

Panasonic CZ-RD52CP Manuale utente

Manuali Telecomando popolari di altre marche

Bang & Olufsen

Bang & Olufsen Beo4 Manuale utente

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuale utente

Multiplex

Multiplex PROFI TX 9 Manuale utente

One Remote

One Remote RMB4 Manuale utente

FUTABA

FUTABA 9ZAP - PART2 Manuale utente

HR Matic

HR Matic HR MULTI 3 Manuale utente

Yamaha

Yamaha ACC-GNRST-30-20 Manuale utente

EisSound

EisSound KBSOUND Manuale utente

Marantz

Marantz RC101 Manuale utente

Conrad

Conrad FS20 TC6 Manuale utente

Anritsu

Anritsu MP1777A Manuale utente

Niles

Niles WVC100 Guida alla risoluzione dei problemi

RCA

RCA RCU1300 Manuale utente

Bang & Olufsen

Bang & Olufsen BEO6 Manuale utente

GE 94901 Manuale utente

Onbon

Onbon YQ1-75 Manuale utente

FUTABA

FUTABA R7108SB Istruzioni per l'installazione

Invacare

Invacare G91S Manuale utente
