Panasonic BL-C10 Camera Installation & Configuration Guide 2

Contents

1PREREQUISITES....................................................................................................................................................................................... 3

2CAMERA CONFIGURATION ................................................................................................................................................................. 4

3ADVANCED CONFIGURATION ............................................................................................................................................................ 8

4APPENDICES............................................................................................................................................................................................ 11

Version 3.0 Series

Panasonic BL-C10 Camera Installation & Configuration Guide 3

This guide explains how to install and configure Panasonic BL-C10 camera in the local

network.

It is strongly recommended that you add only one camera at a time to the network for

configuration.

1 Prerequisites

Before the configuration check the following:

 The camera is unpacked and correctly connected to the power source and network.

 The LED indicator on the camera front side should glow green and not flashing.

The first boot cycle of a Panasonic BL-C10 camera takes about 1 minute. During the

booting process the LED indicator will be flashing. Wait until it stops flashing and

begins to glow green. If the LED color is orange, recheck the network cable

connection. (see Appendix A p.8)

 WebCCTV NVR is installed, activated, running and properly connected to the network

(see Installation manual).

 You have an exact list of IP addresses and passwords for WebCCTV NVR and network

cameras.

 The IP address of WebCCTV NVR is properly configured (see Installation manual).

 Panasonic Network Camera installation CD is available.

 Monitor, keyboard and mouse are connected to WebCCTV NVR (see Installation

manual).

You can use another PC or laptop providing they are in the same local network. Make

sure that it has an IP address in the same range as the WebCCTV NVR and the

camera.

Version 3.0 Series

Panasonic BL-C10 Camera Installation & Configuration Guide 4

2 Camera configuration

To begin the camera installation, follow the steps below:

1. Insert the Panasonic Network Camera installation CD in the WebCCTV NVR CD-RW

drive.

Camera Setup Main Screen

2. In the screen that appears click the Camera Setup button. After a short while, a list of

BL-C10 cameras, which are connected to your network, will appear.

Version 3.0 Series

Panasonic BL-C10 Camera Installation & Configuration Guide 5

Camera Easy Setup Screen

3. Select the camera that you want to configure and click the Execute button.

You are able to configure a camera during the first 20 minutes after the camera restart.

Camera Setup Choice Screen

Version 3.0 Series

Panasonic BL-C10 Camera Installation & Configuration Guide 6

4. In the window that appears choose Automatic Setup (Local Access Only).

5. Wait until the automatic setup dialog window appears. Specify the correct IP address

and subnet mask and click OK.

6. Wait until the web page appears. Specify User Name and Password and click the Save

button.

7. Next, the logon window appears. Log into the camera under the credentials you have

just specified. As a result you’ll get to the camera web page.

8. A window will appear, that informs you about setup completion. Click Next to enter

the advanced setup.

Automatic Setup Completion Screen

9. In the Camera Setup Choice screen choose Manual Setup by clicking corresponding

the button.

Manual Setup is necessary to assign a static IP address to the camera. Quadrox

strongly recommends such a configuration.

10. In the Manual Setup screen check settings and click the Save button.

Version 3.0 Series

Panasonic BL-C10 Camera Installation & Configuration Guide 7

Manual Setup Screen

11. When notified of setup completion click the Close button.

12. Close all windows and open WebCCTV NVR Web client. Log in as the administrator.

13. Go to the System menu and add your camera to WebCCTV (see WebCCTV User

manual).

14. After completing the addition and configuration process - restart WebCCTV Server as

prompted.

Version 3.0 Series

Panasonic BL-C10 Camera Installation & Configuration Guide 8

3 Advanced configuration

You are able to configure the camera using the camera’s setup page while logged onto

WebCCTV NVR. Use the Go to link from WebCCTV NVR System menu or simply specify

the camera IP address in the Internet Explorer Address field.

Quadrox recommends implementing the following settings:

 When your camera is configured as described above you are able to increase your

network security. Follow the steps below:

1. Go to the camera Setup page. Choose Network menu item.

2. Click on the link Static.

3. Disable the network configuration from the setup program by deselecting the

Enable checkbox.

This locks your network configuration, making sure that nobody can use Camera Setup

to change the camera IP address.

Cameras Setup Screen

Version 3.0 Series

Panasonic BL-C10 Camera Installation & Configuration Guide 9

 If your camera image flickers, this may be caused by interference from the indoor

lighting where the camera is located. To solve this problem adjust the AC Power

Source Frequency setting on the camera Setup page to match the frequency of your

power network as follows:

1. Go to the camera Setup page. Choose Camera menu item.

2. Choose 50 Hz for Europe or 60 Hz for USA.

Camera Setup Screen

Version 3.0 Series

Panasonic BL-C10 Camera Installation & Configuration Guide 10

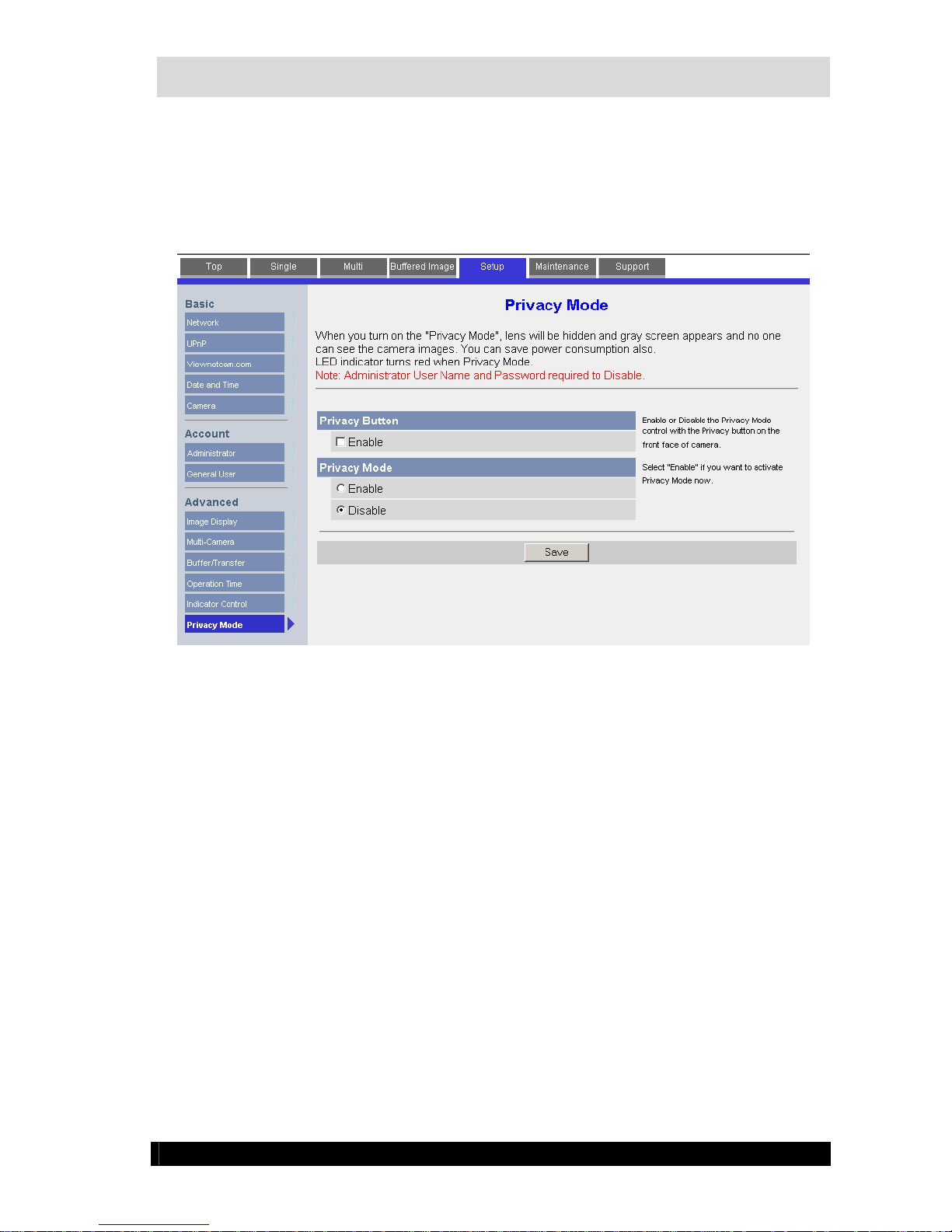

 To insure uninterrupted recordings from the camera you are configuring you may

disable the privacy button that is located on the camera front panel. Follow the steps

below:

1. Go to the camera Setup page. Choose Privacy Mode menu item.

2. Deselect the Enable checkbox.

Camera Setup Screen

Version 3.0 Series
