Panasonic SB-AFC800E Manuale utente

SB-PC800

Type 2wa

, 3 speaker s

stem (Bass-

reflex type)

Speaker (s)

Woofer 8 cm cone t

Tweete

2.5 cm semi-dome t

Impedance 6Ω

Input power (IEC) 200 W (M

), 100 W (R

TED)

Sound pressure level 81 dB

W(1.0m)

Crossover frequency 2.5 kHz

Frequenc

range 55 Hz - 50 kHz (-16 dB)

1 Disassembly Process (SB-PC800) 3

1.1. Disassembly of Woofer Speakers 3

1.2. Disassembly of Tweeter Speaker 3

1.3. Disassembly of Network 4

2 Connection of the Speaker Cables 5

3 Connection of the Wiring Diagram 6

rights reserved. Unauthorized copying and

distribution is a violation of law.

SB-AFC800E

Colour

(M)... Wood Grain Type

60 Hz - 45 kHz (-10 dB)

Dimensions (W

(with stand) 380

174.5

230.5 mm

(without stand) 380

146

205 mm

Mass 4.8 kg

Notes :

1. Specifications are subject to change without notice.

2. Mass and dimensions are approximate.

SB-

FC800E-M consists of : SB-PS800AE-M (x2) and SB-PC800E-

M (x1)

3.1. SB-PC800 6

4 Cabinet Parts Location 7

4.1. SB-PC800E 7

5 Replacement Parts List 8

6 Packaging 9

6.1. SB-AFC800E 9

Speaker System

Please file and use this service manual together with the service manual for Model No. [SB-PS800AE-M,

Order No. MD0410493C2].

Specification

CONTENTS

Page Page

ORDER NO. MD0410494C2

SB-AFC800E

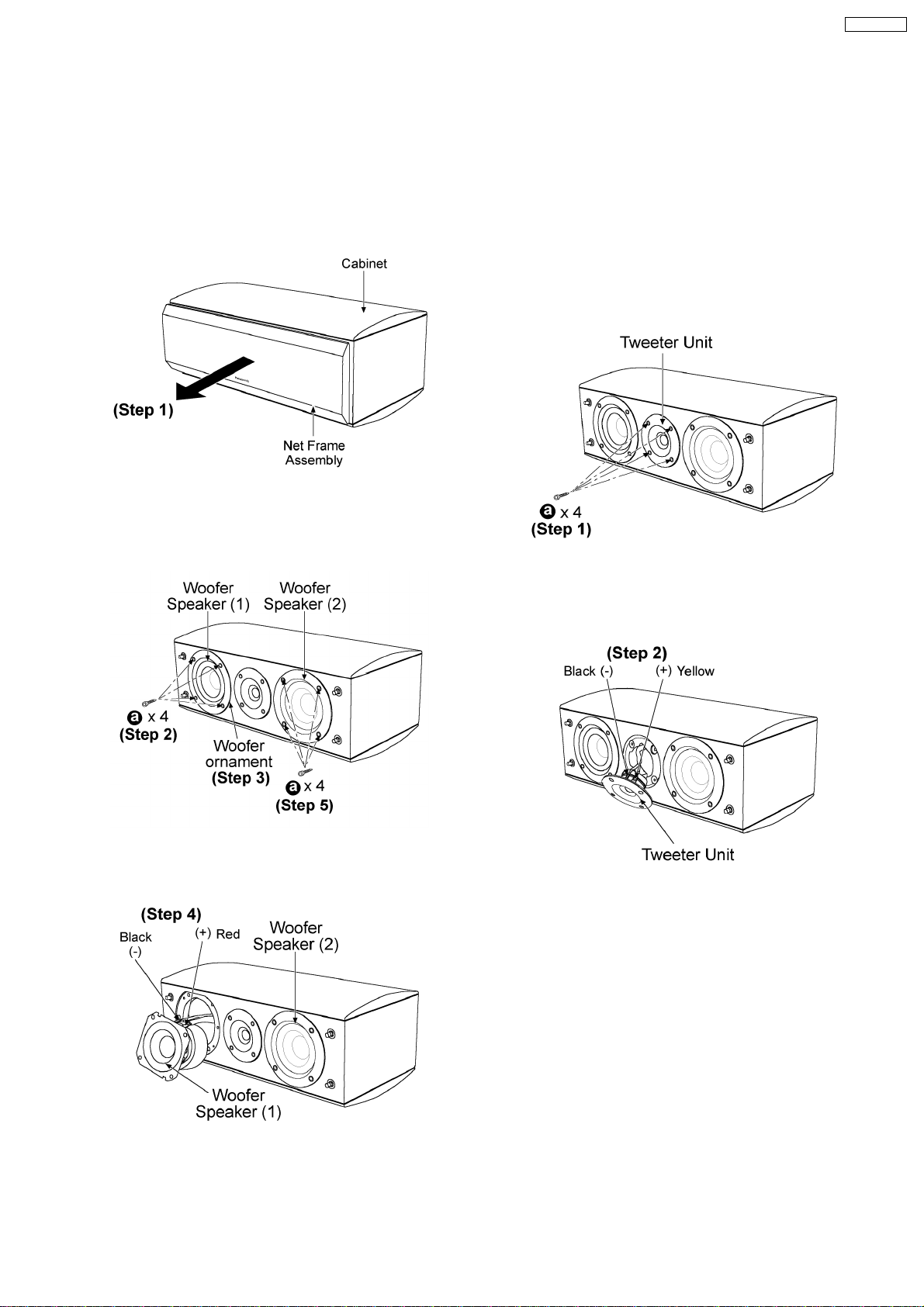

Disassembly of Woofer Speaker (1)

Step 1: Remove the net frame assembly out from the cabinet

as shown by the arrow.

Step 2: Remove 4 screws using an allen key.

Step 3: Remove the woofer ornament.

Step 4: Detach the indicated (+) and (-) wires from the woofer.

Disassembly of Woofer Speaker (2)

Step 5: Follow step (2) to step (4) of item 1.1.

1.2. Disassembly of Tweeter

Speaker

Follow step (1) of item 1.1

Step 1: Remove 4 screws using an allen key.

Step 2: Detach the indicated (+) and (-) wires from the tweeter.

Step 3: Remove 2 screws as shown.

1 Disassembly Process (SB-PC800)

1.1. Disassembly of Woofer Speakers

SB-AFC800E

1.3. Disassembly of Network

Step 1: Remove 4 screws as shown.

Step 2: Remove 3 screws as shown.

Step 3: Release the indicated nuts.

Step 4: Remove the network assembly.

SB-AFC800E

2 Connection of the Speaker Cables

Be sure to connect speaker cables before connecting the AC power supply cord.

The load impedance of any speaker used with this unit must be 6Ω.

Be sure to connect the cable from the right speaker to the right terminal and the cable from the left speaker to the left terminal.

1.Strip off the outer covering, and twist the center conductor. Make sure the bare ends of the wires are not unravelled. (If they are,

twist them tight again.)

2.Insert the wire to the rear panel of the unit and close the lever.

Notes :

To prevent damage to circuitry, never short-circuit positive (+) and negative (-) speaker wires.

Be sure to connect only positive (red) wires to positive (+) terminals and negative (black) wires to negative (-) terminals.

SB-AFC800E

3 Connection of the Wiring Diagram

3.1. SB-PC800

SB-AFC800E

4 Cabinet Parts Location

4.1. SB-PC800E

SB-AFC800E

5 Replacement Parts List

Notes :

Important safety notice :

When replacing any of these components, be sure to use

only manufacturer’s specified parts shown in the parts list.

[M] indicates in the Remarks columns indicates parts

supplied by PAVCSG.

Ref.

No. Part No. Part Name & Description Remarks

CABINET AND CHASSIS

1RYB0326 NET FRAME ASS’Y [M]

1-1 RMG0513-K NET HOLDER [M]

2RFKKBPS800-M SPK CABINET ASS’Y [M]

3RGK1495-K WOOFER ORNAMENT [M]

4RGN2748-K SPEC SHEET [M]

5RMQ0832B TWEETER SHEET [M]

6RMQ0832A WOOFER SHEET [M]

7REZ1681 WIRE ASS’Y [M]

8RHD40011-K SCREW [M]

9XMS31+D20FZ SCREW (TERMINAL) [M]

10 REP3861A NETWORK ASS’Y [M]

10-1 RJH4206A TERMINAL W/EVA [M]

10-2 XTB3+10JFJ SCREW (PWB) [M]

11 XTN3+20AFZ SCREW (PORT) [M]

SWITCHES

PSW1 RRSSPK070 SW POLY [M]

PSW2 SSBSRXE185 SW POLY [M]

COILS & TRANSFORMERS

Ref.

No. Part No. Part Name & Description Remarks

L1 SLCSA471KE CHOKE COIL [M]

L2 SLCSA821KE CHOKE COIL [M]

PACKING MATERIALS

P1 RPG7381 CARTON BOX (SB-AFC800) [M]

P2 RPN1757 POLYFOAM [M]

P3 RPH0254 PROTECTION CLOTH [M]

ACCESSORIES

A1 RQT7806-E O/I BOOK [M]

A2 RYQ0115-Y METAL SET [M]

A3 RFA1388A LEG SET [M]

A4 RKA0175-K STAND ASS’Y [M]

RESISTORS

R1 ERX5SJ5R6P 5.6 5W [M]

R2 ERX5SJ6R8P 6.8 5W [M]

R3 ERX5SJ6R8P 6.8 5W [M]

CAPACITORS

C1 ECEA1HAY2R2 2.2uf 50V [M]

C2 ECA1HAY6R8S 6.8uf 50V [M]

C3 ECA1HAY100S 10uf 50V [M]

SPEAKER

SP1 EAS8PL174A WOOFER [M]

SP2 EAS16KH03A TWEETER [M]

SB-AFC800E

6 Packaging

6.1. SB-AFC800E

SB-AFC800E

FLE0410M/S
