Panasonic SB-MAX700PH Manuale utente

Unauthorized copying and distribution is a violation of

law.

PSG1301011CE

Speaker System

Model No. SB-MAX700PH

SB-MAX700GS

Product Color : (K)... Black Type

TABLE OF CONTENTS PAGE PAGE

1 Service Navigation----------------------------------------------- 2

1.1. Speaker System Information (SB-

MAX700PHK)----------------------------------------------- 2

1.2. Speakers Setup-------------------------------------------- 2

2 Specifications ----------------------------------------------------- 3

3 Disassembly and Assembly Instructions ---------------- 4

3.1. Disassembly of Upper Front Panel Assembly------ 5

3.2. Disassembly of Tweeter Speaker (SP1)------------- 7

3.3. Disassembly of Full Range Speaker (SP4) --------- 7

3.4. Disassembly of Full Range Speaker (SP3) --------- 8

3.5. Disassembly of Lower Front Panel Assembly------ 9

3.6. Disassembly of Woofer Speaker (SP2)-------------11

3.7. Disassembly of Lighting Wire P.C.B.

Assembly ---------------------------------------------------12

3.8. Replacement of Speaker Connector Housing

(For SB-MAX700PHK) ---------------------------------14

3.9. Replacement of Speaker Connector Housing

(For SB-MAX700PHK) ---------------------------------15

4 Wiring Connection Diagram ---------------------------------16

4.1. Front Speakers (SB-MAX700PHK) ------------------16

5 Exploded View and Replacement Parts List -----------17

5.1. Front Speakers (SB-MAX700PHK) Cabinet

Parts Location -------------------------------------------- 17

5.2. Packaging-------------------------------------------------- 18

5.3. Replacement Parts List--------------------------------- 19

1 Service Navigation

1.1. Speaker System Information (SB-MAX700PHK)

SB-MAX700PHK is use for the following models:

SC-MAX700PHK

SB-MAX700GSK is use for the following models:

SC-MAX700GSK

1.2. Speakers Setup

2 Specifications

Front Speakers

Type 4 way, 4 speaker system (Bass reflex)

Speaker(s)

Super Woofer (Low) 38 cm cone type

Super Woofer (Medium Low) 20 cm cone type

Woofer 10 cm cone type

Tweeter 6 cm cone type

Impedance 3 Ω(High), 3 Ω(Medium Low),

2 Ω(Low)

Output sound pressure 88 dB/W (1 m)

Frequency range 38 Hz to 23 kHz (-16 dB)

44 Hz to 18 kHz (-10 dB)

Dimensions (W x H x D) 558 mm x 796 mm x 525 mm

Mass (Weight) 31.0 kg

Notes:

1. Specifications are subject to change without notice.

Mass and dimensions are approximate.

2. Total harmonic distortion is measured by the digital spectrum ana-

lyzer.

3 Disassembly and Assembly Instructions

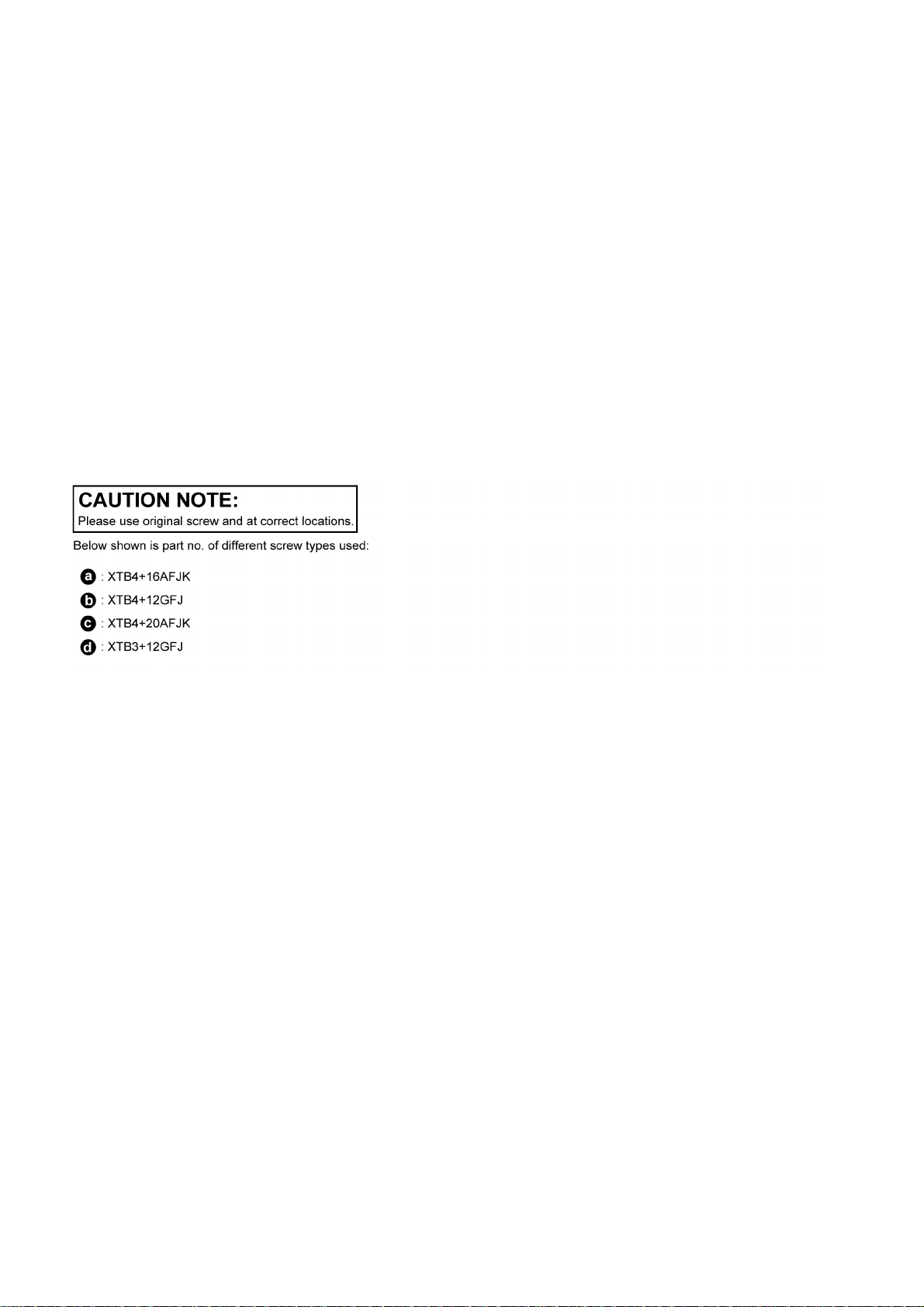

Caution Note:

• This section describes procedures for checking the operation and replacing the main components.

• For reassembly after operation checks or replacement, reverse the respective procedures.

• Special reassembly procedures are described only when required.

• Before carrying out the disassembly process, please ensure all the safety precautions & procedures are followed.

• During the disassembly and/or assembly process, please handle with care as there may be chassis components with sharp

edges.

• During replacement of component parts, please refer to the section of “Replacement Parts List” as described in the service man-

ual.

• Select items from the following indexes when disassembly or replacement are required.

Front Speakers (SB-MAX700PHK)

• Disassembly of Upper Front Panel Assembly

• Disassembly of Tweeter Speaker (SP1)

• Disassembly of Full Range Speaker (SP4)

• Disassembly of Full Range Speaker (SP3)

• Disassembly of Lower Front Panel Assembly

• Disassembly of Woofer Speaker (SP2)

• Disassembly of Lighting Wire P.C.B. Assembly

3.1. Disassembly of Upper Front

Panel Assembly

Step 1 : Remove 2 screws.

Step 2 : Remove Corner Guard.

Step 3 : Remove 2 screws.

Step 4 : Remove Corner Guard.

Step 5 : Remove 2 screws.

Step 6 : Insert two flathead screwdriver at the sides of the boss

and apply light force to push out the Upper Front Panel Assem-

bly by sequence (1-6) shown.

Caution : Do not exert too much force as it may damage

the Upper Front Panel Assembly.

Step 7 : Detach the (+) and (-) speaker wires.

Step 8 : Remove the Upper Front Panel Assembly.

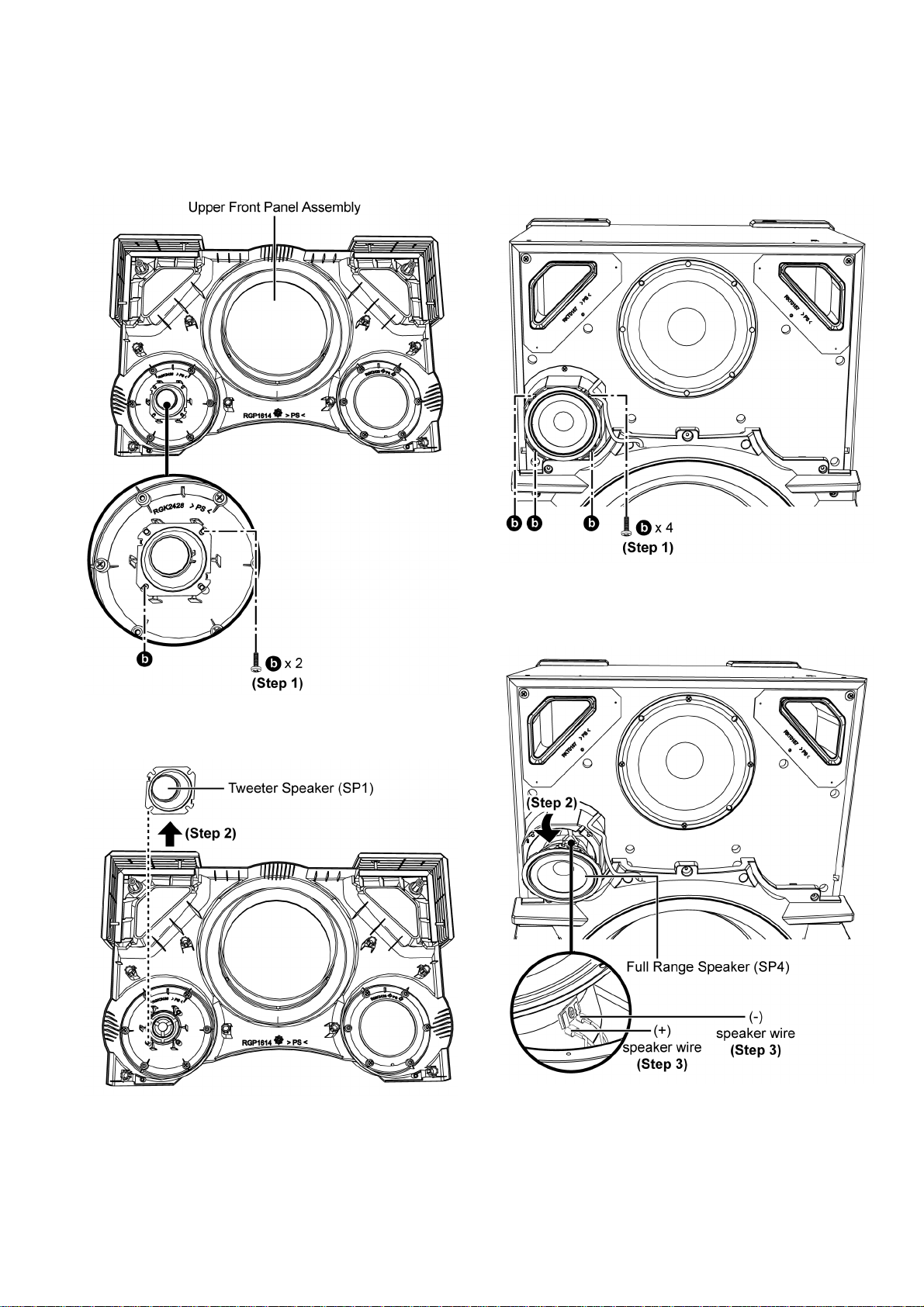

3.2. Disassembly of Tweeter

Speaker (SP1)

• Refer to “Disassembly of Upper Front Panel Assembly”.

Step 1 : Remove 2 screws.

Step 2 : Remove the Tweeter Speaker (SP1).

3.3. Disassembly of Full Range

Speaker (SP4)

• Refer to “Disassembly of Upper Front Panel Assembly”.

Step 1 : Remove 4 screws.

Step 2 : Slightly lift up Full Range Speaker (SP4) as shown.

Step 3 : Detach the (+) and (-) speaker wires.

Step 4 : Remove the Full Range Speaker (SP4). 3.4. Disassembly of Full Range

Speaker (SP3)

• Refer to “Disassembly of Upper Front Panel Assembly”.

Step 1 : Remove 4 screws.

Step 2 : Slightly lift up Full Range Speaker (SP3) as shown.

Step 3 : Detach the (+) and (-) speaker wires.

Step 4 : Remove the Full Range Speaker (SP3). 3.5. Disassembly of Lower Front

Panel Assembly

• Refer to “Disassembly of Upper Front Panel Assembly”.

Step 1 : Remove 2 screws.

Step 2 : Remove Corner Guard.

Step 3 : Remove 2 screws.

Step 4 : Remove Corner Guard.

Step 5 : Remove 2 screws.

Step 6 : Remove 2 screws.

Step 7 : Detach the Lower Front Panel Assembly slightly as

arrow shown.

Caution : Do not exert strong force as it may damage the

wiring within.

Step 8 : Lift up the Himelon.

Caution : Replace the Himelon if they are torn during dis-

assembling.
