Advanced Hybrid System

KX-TA624

Installation Manual Addendum

for

KX-T77 and KX-T73 Series

This Installation Manual Addendum provides the additional information for the KX-T77 and KX-

T73 Series Telephones and the Panasonic Advanced Hybrid System, KX-TA624.

Panasonic Telephone Systems

www.voicesonic.com

Phone: 877-289-2829

Panasonic KX-TA624

Panasonic KX-TA624, KXTA624, TA624, KX-TA62460, KX-TA62470, KX-TA62477, KX-TA62491, KX-TA62493

Table of Contents

System Component

System Components Table .................................................................................3

Features

Buttons on Proprietary Telephones ..................................................................3

Call Log, Incoming .............................................................................................4

Caller ID ..........................................................................................................3, 4

Caller ID Call Waiting .......................................................................................4

DSS Console ........................................................................................................4

Handset/Headset Selection .................................................................................4

Hands-free Answerback .....................................................................................4

Hands-free Operation ........................................................................................4

Room Monitor .....................................................................................................4

Station Programming .........................................................................................4

System Programming with a Proprietary Telephone ......................................4

System Programming

Using the Overlay ...............................................................................................5

Viewing the display .............................................................................................7

[002] System Password .....................................................................................10

[011] System Speed Dialing Name Setting ........................................................8

[309] Emergency Dial Number ........................................................................10

[968] KX-T77xx Incoming Lamp Control ........................................................9

Programming Tables

[002] System Password .....................................................................................10

[011] System Speed Dial Name Setting ...........................................................11

[309] Emergency Dial Number ........................................................................10

[968] KX-T77xx Incoming Lamp Control ......................................................10

Table of Contents

System Components

The following Panasonic Proprietary Telephones (PTs) and a DSS console are available for KX-TA624.

System Components Table (Additional)

Features

Additional Information for Features

The additional information for Features

Model Description

Telephone KX-T7735 Proprietary Telephone with 16-character/3-line and back-lit display

and Message/Ringer Lamp

KX-T7730 Proprietary Telephone with 16-character/1-line and back-lit display

and Message/Ringer Lamp

KX-T7720 Proprietary Telephone with Message/Ringer Lamp

KX-T7750 Proprietary Telephone with Message/Ringer Lamp and MONITOR

button

KX-T7335 Proprietary Telephone with 16-character/1-line and back-lit display

KX-T7320 Proprietary Telephone

KX-T7350 Proprietary Telephone with MONITOR button

Optional

Equipment

KX-T7740 DSS Console

Features Additional Information

Buttons on Proprietary

Telep hone

As for Buttons on the KX-T7735, KX-T7730, KX-T7720, KX-T7750, KX-

T7335, KX-T7320 and KX-T7350, please refer to the User Manual

Addendum for KX-T77 and KX-T73 Series.

Caller ID

The conditions are added.

• An assigned name in program [011] “System Speed Dialing Name

Setting” will be displayed when the caller’s telephone number matches

one of System Speed Dialing numbers assigned in program [001]

“System Speed Dialing Entry” and a Telephone Company does not

provide the caller’s name.

• If a Telephone Company provides a caller’s name, the name from the

Telephone Company will be displayed even when a name assigned in

program [011] is effective.

System Componets & Features

The following features are available with PTs depending on the type of the KX-T77 or KX-T73

series.

Note

*1The KX-T7740 is available for the KX-TA624. For details about DSS Console, please refer to the

Installation Manual.

*2The MONITOR button on the KX-T7750 or KX-T7350 can be used for hands-free dialing operation, etc.,

but cannot be used for a hands-free conversation.

As for other features, please refer to the Installation Manual.

Features T7735

T7335

T7730 T7720

T7320

T7750

T7350

T7740

Call Log, Incoming

Caller ID/

Caller ID Call Waiting

DSS Console

Handset/Headset Selection

(for T7720) (for T7750)

Hands-free Answerback

Hands-free Operation

Room Monitor

Station Programming

The following programming items are available.

Call Waiting Tone Type

Assignment

Flexible Button Assignment

Intercom Alert Assignment

Outside (CO) Line Ringing

Selection

Preferred Line Assignment

— Incoming/Outgoing

Station Programming Data

Default Set

Self-Extension Number

Confirmation

System Programming with a

Proprietary Telephone

Features

System Programming

A display PT (KX-T7735, KX-T7730 or KX-T7335) is required for system programming.

Using the Overly

A programming overlay is packed with the telephone at the factory.

This overlay should be used at all times during programming. The features of the telephone

keys change during programming as follows. (The original features are in parentheses.)

During Normal Operation During Programming

(PAUSE) PAUSE

(AUTO ANSWER/MUTE) SELECT

(AUTO DIAL/STORE) STORE

(FLASH/RECALL) FLASH

(INTERCOM) SECRET (T7735 or T7730)

(T7335)

(CONF or ) , – (T7735 or T7730)

(FWD/DND or ) (T7735 or T7730)

(MESSAGE) – , (T7335)

(TRANSFER) CLEAR

(REDIAL or ) PREV (PREVIOUS)

(HOLD) END

(SP-PHONE or ) NEXT

(PROGRAM) PROGRAM

System Programming

Location of Controls with Overlay (Additional)

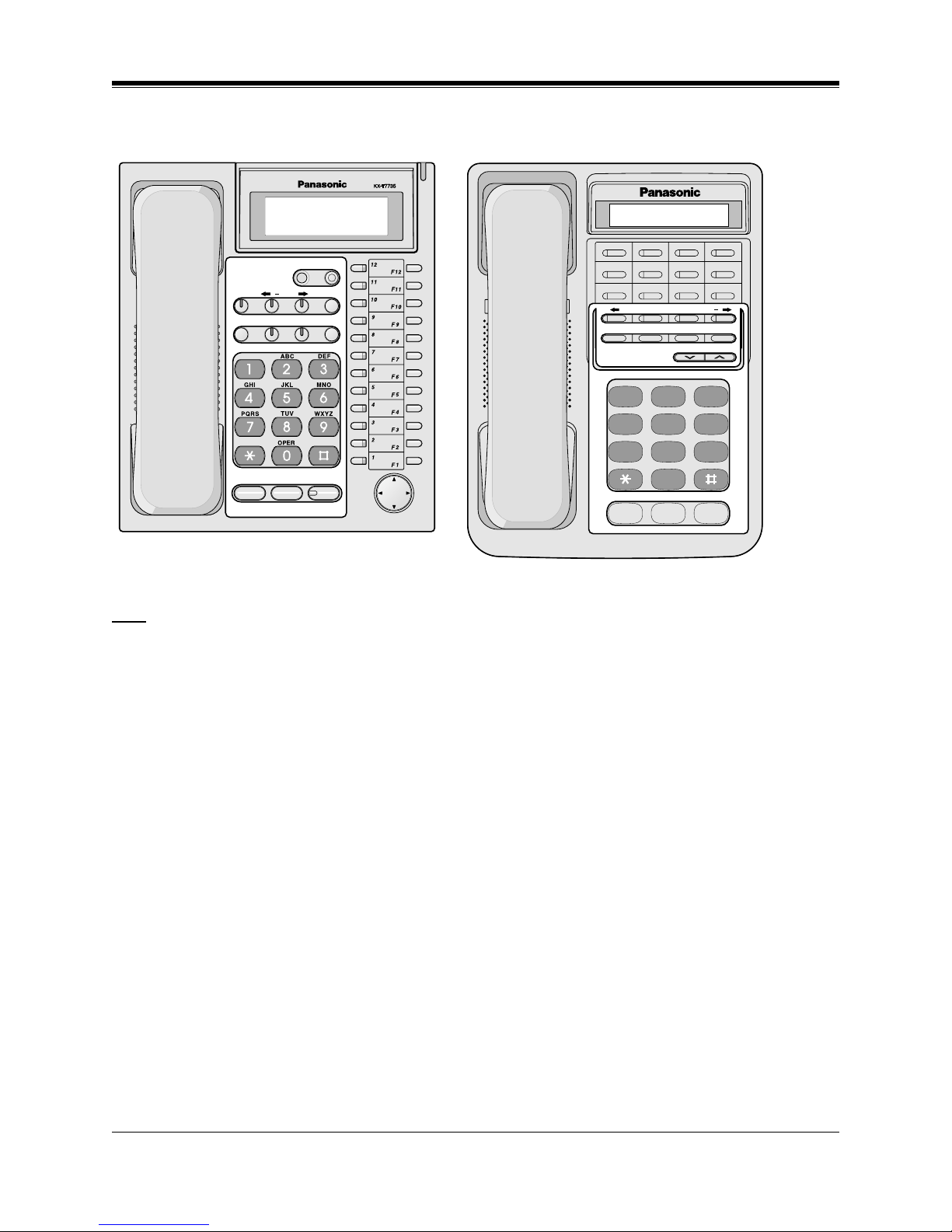

The picture below shows the features of the buttons of the KX-T7735 or KX-T7335 during programming.

Note

The KX-T7730 has the same overlay as the KX-T7735.

PROGRAM

SECRET ,

FLASH

CLEAR END NEXT

SELECT STORE PREV

PAUSE

HOLD

ADVANCED HYBRID SYSTEM

WXYZTUVPQRS

MNOJKL

GHI

DEFABC

KX-T7330

REDIAL SP-PHONE

123

456

FLASH

INTERCOM

TRANSFERPAUSE

121110

876

432

MESSAGE

AUTO/STORE

AUTO ANS/MUTE

VOLUME-

PROGRAM

SELECT

PROGRAM FLASH

OPER

END NEXT

PAUSE CLEAR

STORE

<KX-T7735>

<KX-T7335>

System Programming

Viewing the Display

The display gives you helpful information, such as the next step, previous entries, etc.

The KX-T7735 utilizes three information lines for programming.

The KX-T7730 utilizes one information line for programming.

The display capacity is 16 digits. If your entry is longer than 16 digits, the user can scroll the

display by pressing the Navigator Key ( ), or the or button.

Button for Operation

(Navigator Key

CONF button)

NEXT (SP-PHONE)

(Navigator Key)

PREV (REDIAL)

(Navigator Key)

Display Move to:

001

Speed Dialing

00:9123456789012

001

Speed Dialing

99:81924857986

001

Speed Dialing

00:1234567890123

001

Speed Dialing

01:Not Stored

131

VM2(APT)Port

201

Transfer Recall

200

Hold Recall Time

Time:30 sec

200

Hold Recall Time

NEXT (SP-PHONE)

(Navigator Key)

(Navigator Key

FWD/DND button)

(Navigator Key

FWD/DND button)

System Programming

[011] System Speed Dialing Name Setting (Additional)

Description

Assigns a name to each System Speed Dialing number. The name will be displayed when

making a call by using the System Speed Dialing feature. It will also be used for the Caller

ID feature.

Selection

• Speed Dial Number: 00-99

• Name: 16 characters (max.)

Default

All speed dial numbers — Not stored

Programming

1. Enter 011.

Display: Speed Dial Name

2. Press NEXT.

Display: Speed NO?

3. Enter a speed dial number.

To enter speed dial number 00, you can also press NEXT.

Display example: 00:Not Stored

4. Enter a name.

For entering characters, please refer to “4.1.3 Entering Characters” in the Installation Manual.

To delete the current entry, press CLEAR.

To change the current entry, press CLEAR and enter the new name.

5. Press STORE.

6. To program another speed dial number, press NEXT or PREV, or SELECT and enter

the desired speed dial number.

7. Repeat steps 4 through 6.

8. Press END.

Conditions

• Speed dial numbers are programmed in program [001] System Speed Dialing Entry.

• Each name has a maximum of 16 characters.

Feature References — in the Installtation Manual

System Speed Dialing

System Programming

[968] KX-T77xx Incoming Lamp Control (Additional)

Description

Enable or disable to flash the Message/Ringer Lamp when an extension is in the following

status:

– A call is waiting when Call Waiting Tone 1 is assigned.

– A call is incoming to Doorphone 4.

– A call with Caller ID information is waiting during a conversation

– No ringing when a call is incoming to a doorphone, but chiming a doorbell/door chime.

This programming is available for the KX-T77 series only.

Selection

•Disable (Message/Ringer Lamp — Off)/Enable (Message/Ringer Lamp — Flashing)

Default

Disable

Programming

1. Enter 968.

Display: T77xx Incom.Lamp

2. Press NEXT.

Display example: Disable

3. Keep pressing SELECT until the desired selection is displayed.

4. Press STORE.

5. Press END.

Conditions

None

Feature References

— in the Installtation Manual

Call Waiting

Caller ID Call Waiting

Doorphone Call

— in the Additional Instructions for the Doorbell/Door Chime Users

Doorbell/Door Chime

System Programming

Additional and Changed Information for System Programming

Programming Tables

[002] System Password

[309] Emergency Dial Number

[968] KX-T77xx Incoming Lamp Control

System Programming Additional and/or changed Information

[002] System Password Selection

•

Password:

4 through 7 digits

(Note: The range of the password has changed from

0000-9999

0000-9999999

[309] Emergency Dial Number Selection

•

Code number:

1-5

•

Emergency number:

24 digits (max.)

(Note: The maximum size of the emergency number has changed

from

24 digits

Default

2341

Parameter: 4 – 7 digits, consisting of 0 – 9

Code No.

Default

Parameter : 24 digits (max.),

consisting of 0 –9

Code 01=911

Other codes=Not Stored

Enable Disable

Default

Change

System Programming & Programming Tables

Altri manuali per KX-TA624

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Panasonic Sistema telefonico

Panasonic

Panasonic KX-TCA151AZV Manuale utente

Panasonic

Panasonic KX-TD816JT Istruzioni operative

Panasonic

Panasonic KX-TD1232E Manuale utente

Panasonic

Panasonic KX-TA1232 Istruzioni per l'installazione e il funzionamento

Panasonic

Panasonic KX-TD816RU Manuale utente

Panasonic

Panasonic KX-TSC14W - KX TSC14 Corded Phone Manuale utente

Panasonic

Panasonic KXTSC55B - PHONE/ANSWER MACHINE Manuale utente

Panasonic

Panasonic KX-T2322A Manuale utente

Panasonic

Panasonic KX-TD208 Manuale utente

Panasonic

Panasonic KX-TG5110M - 5.8 GHz DSS Expandable Cordless... Manuale utente

Panasonic

Panasonic KX -T61630 Manuale utente

Panasonic

Panasonic KX-T2378JXW Manuale utente

Panasonic

Panasonic EASA-PHONE KX-T30850 Manuale utente

Panasonic

Panasonic KX-FPG381 Manuale utente

Panasonic

Panasonic KXTG5243 - KXTG5240M TOT 3 H/S Manuale utente

Panasonic

Panasonic KX-TSC10FXW Manuale utente

Panasonic

Panasonic KX-TVP50E Manuale utente

Panasonic

Panasonic KX-TD816NZ Manuale utente

Panasonic

Panasonic KX-TS3282B Manuale utente

Panasonic

Panasonic KX-TS2350CAB Manuale utente

Panasonic

Panasonic DBS 576 Section 300 Manuale utente

Panasonic

Panasonic KX-TD816AL Manuale utente

Panasonic

Panasonic KX-TDA100D Manuale utente

Panasonic

Panasonic S-ICX Manuale utente

Manuali Sistema telefonico popolari di altre marche

Teleco

Teleco Perfect Voice Tis 16 Manuale utente

AT&T

AT&T Network Adapter 25 Manuale utente

AVE

AVE AF902R-CE Manuale utente

Tynetec

Tynetec Advent xt Manuale utente

Ericsson

Ericsson DCT1800-S Manuale utente

NEC

NEC Electra Elite 192 Manuale utente

Alcatel

Alcatel EASY REFLEXES 4200 Manuale utente

Bticino

Bticino PABX 28D Manuale utente

NEC

NEC SL 2100 Manuale utente

Sonifex

Sonifex Phone In 6 Manuale di istruzioni

TransTel Communications

TransTel Communications TD-824i Istruzioni per il montaggio

Nortel

Nortel BCM50 Manuale del prodotto

ASCOM

ASCOM TD 92375GB Manuale del proprietario

Karel

Karel MS26S Scheda informativa del prodotto

EnGenius

EnGenius DuraFon PRO Manuale utente

Teledat

Teledat X130 DSL Manuale utente

SpectraLink

SpectraLink MOG400 Manuale utente

LG-Nortel

LG-Nortel 300 Series Istruzioni operative e di sicurezza
