Panasonic KX TS208W Manuale utente

Integrated Telephone System

Model No. KX-TS208W

Pulse-or-tone dialing capability

Operating Instructions

Preparation Basic Operation Advanced Operation Useful Information

2 LINE

PLEASE READ BEFORE USE AND SAVE.

For assistance, visit our Web site: http://shop.panasonic.com/support for

customers in the U.S.A.

Please register your product: http://shop.panasonic.com/support

Before Initial Use

For your future reference

Serial No. Date of purchase

(found on the bottom of the unit)

Name and address of dealer

Please read IMPORTANT SAFETY

INSTRUCTIONS on page 39 before use.

Read and understand all instructions.

Thank you for purchasing your new Panasonic integrated

telephone.

Attach your purchase receipt here.

PQQX13324ZB-0105.3.291:34PMページ2

For assistance, please visit http://shop.panasonic.com/support

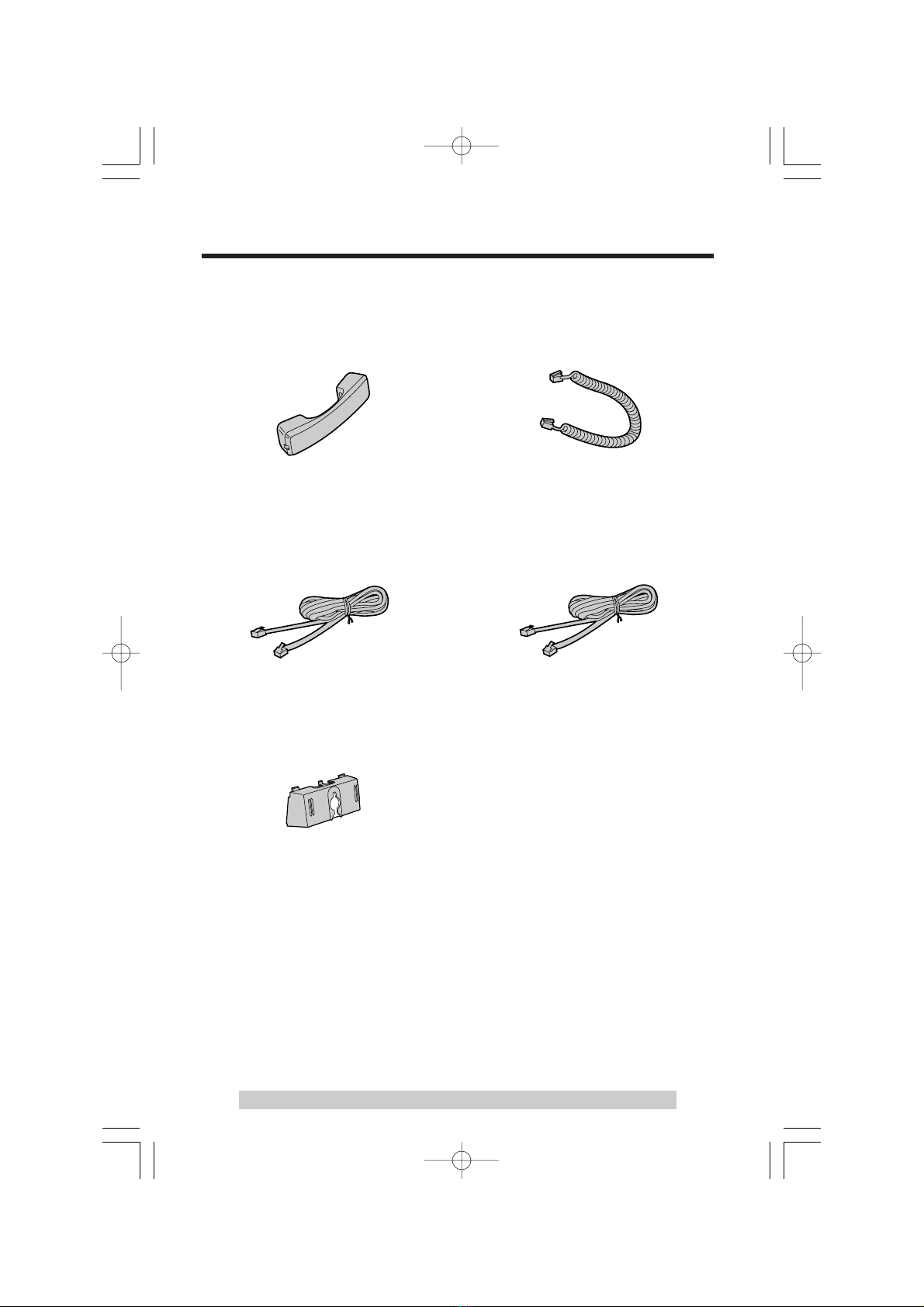

Accessories (included)

For extra orders, call 1-800-332-5368.

∑Handset (p. 10)

Order No. PQJXC0102Z

one

∑4-Wire Telephone Line Cord

with Green Plugs (p. 10, 11, 12)

one

∑Wall Mounting Adaptor (p. 17)

Order No. PQKL10035Z2

one

∑Handset Cord (p. 10)

Order No. PQJA212M

one

∑2-Wire Telephone Line Cord

with Transparent Plugs (p. 11, 12)

one

PQQX13324VA-01.qxd14.7.113:25ページ3

Location of Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Installing the Batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Connecting the Handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Connecting the Telephone Line Cord . . . . . . . . . . . . . . . . . . . . 10

Connecting a Communication Device . . . . . . . . . . . . . . . . . . . . 12

Programming Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Dialing Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Time Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

LCD Contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Ringer Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Wall Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Making Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Answering Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Using the Other Line During a Conversation . . . . . . . . . . . . . . 21

Conference call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Speed Dialer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Storing Phone Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Dialing a Stored Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

One-Touch Dialer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Storing Phone Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Dialing a Stored Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Contents

Preparation

Basic Operation

Advanced Operation

PQQX13324ZB-0105.3.291:34PMページ4

Special Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

For Call Waiting Service Users . . . . . . . . . . . . . . . . . . . . . . . . . 28

Temporary Tone Dialing

(For Rotary or Pulse Service Users) . . . . . . . . . . . . . . . . . . . 28

How to Use the PAUSE Button

(For Analog PBX Line/Long Distance Service Users) . . . . . . . 29

Muting Your Conversation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

FLASH Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

PIN Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Dial Lock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Call Restriction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Optional Headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Battery Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Preparation Basic Operation Advanced Operation Useful Information

For assistance, please visit http://shop.panasonic.com/support

Useful Information

PQQX13324VA-01.qxd14.7.113:25ページ5

Important Safety Instructions ...........................39

FCC and Other Information .............................41

Index................................................44

Customer services ....................................45

Limited Warranty (ONLY FOR U.S.A.) .....................46

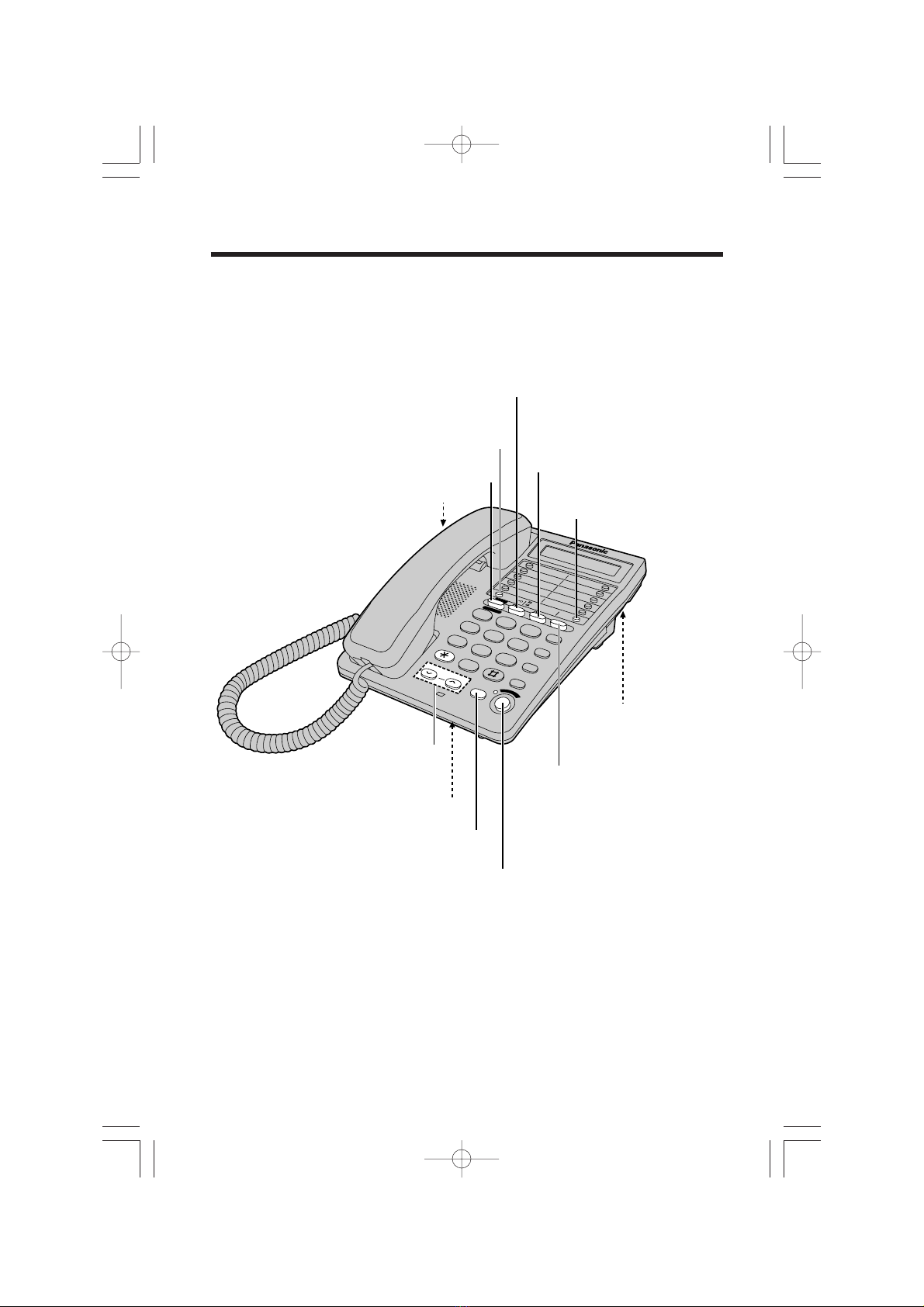

Location of Controls

123

456

789

ABC DEF

GHI JKL MNO

PQRS TUV

PROGRAM

LINE

HOLD

EMERGENCY

LOWER MUTE TIMEPROG.DIAL LOCK

AUTO /

LOWER

DIAL

LOCK

LINE

/DATA

PAUSE

REDIAL

FLASH

TONE

VOLUME

MUTE

HEADSET

MIC

2LINE

CONF

RINGER Selectors

(p. 16)

(DIAL\LOCK) Button (p. 32)

(SP-PHONE/HEADSET) Button and

Indicator (p. 18, 20, 35)

Headset Jack (p. 34)

(CONF) (Conference) Button (p. 22)

VOLUME (_) (^)

Buttons (p. 19)

MIC (Microphone) (p. 18, 20)

(MUTE) Button (p. 13, 29)

(LINE2/DATA) Button and

Indicator (p. 18, 20, 21)

(LINE1) Button and Indicator (p. 18, 20, 21)

(HOLD) Button (p. 19)

(AUTO/LOWER) Button

(p. 23, 26)

WXYZ

OPER

Advanced

ITS

PQQX13324ZB-0205.3.291:35PMページ6

Preparation

For assistance, please visit http://shop.panasonic.com/support

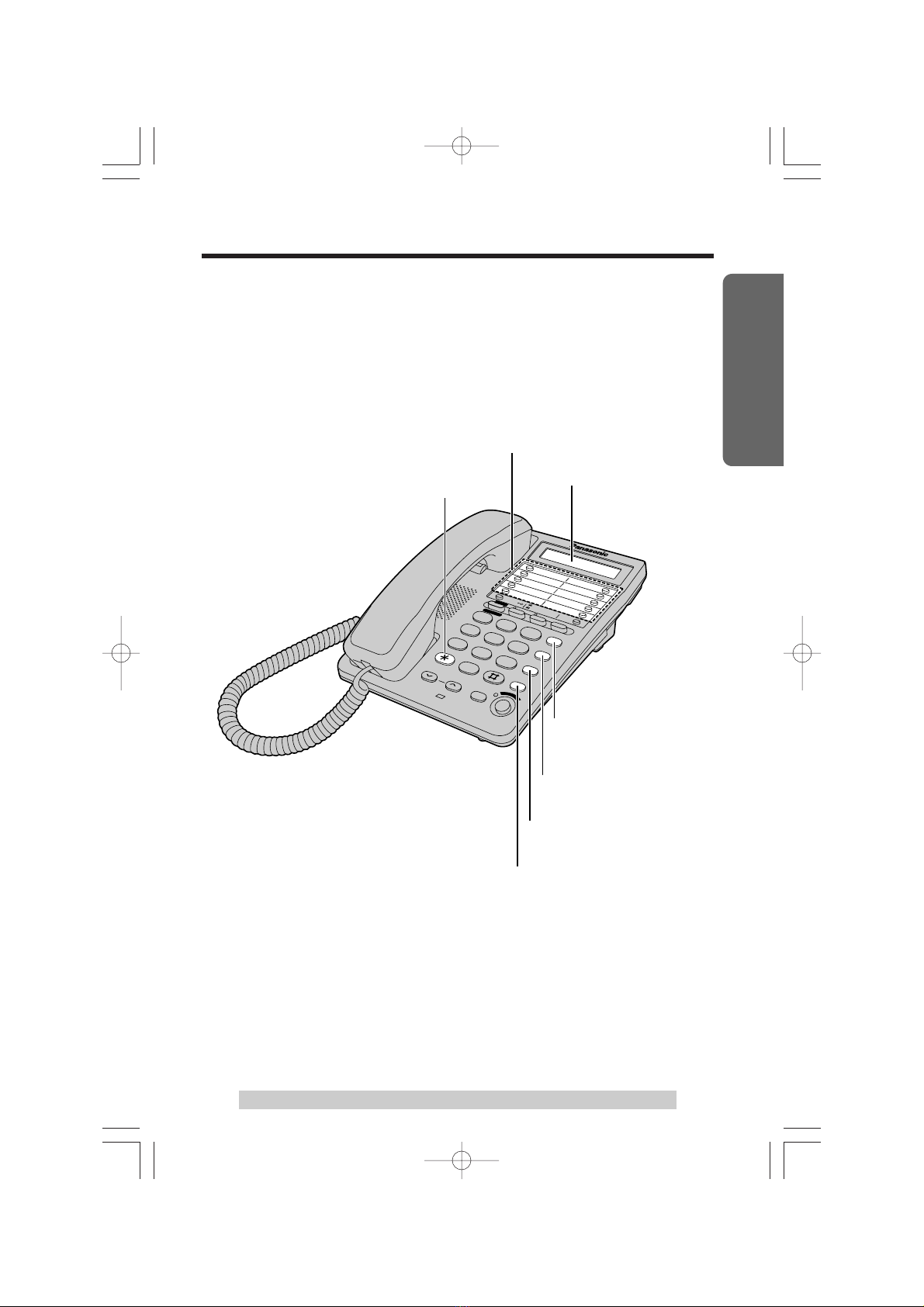

1 2 3

456

789

ABC DEF

GHI JKL MNO

PQRS TUV

PROGRAM

LINE

HOLD

EMERGENCY

LOWER MUTE TIME PROG. DIAL LOCK

AUTO/

LOWER

DIAL

LOCK

LINE

/ DATA

PAUSE

REDIAL

FLASH

TONE

VOLUME

MUTE

HEADSET

MIC

2LINE

CONF

(FLASH) Button (p. 28, 30)

(PAUSE) Button (p. 29)

(REDIAL) Button (p. 19)

Display (p. 8)

One-Touch Auto Dial Buttons (p. 25)

(PROGRAM)

Button (p. 13, 23)

(TONE) Button (p. 28)

WXYZ

OPER

Advanced

ITS

PQQX13324VA-02.qxd14.7.114:09ページ7

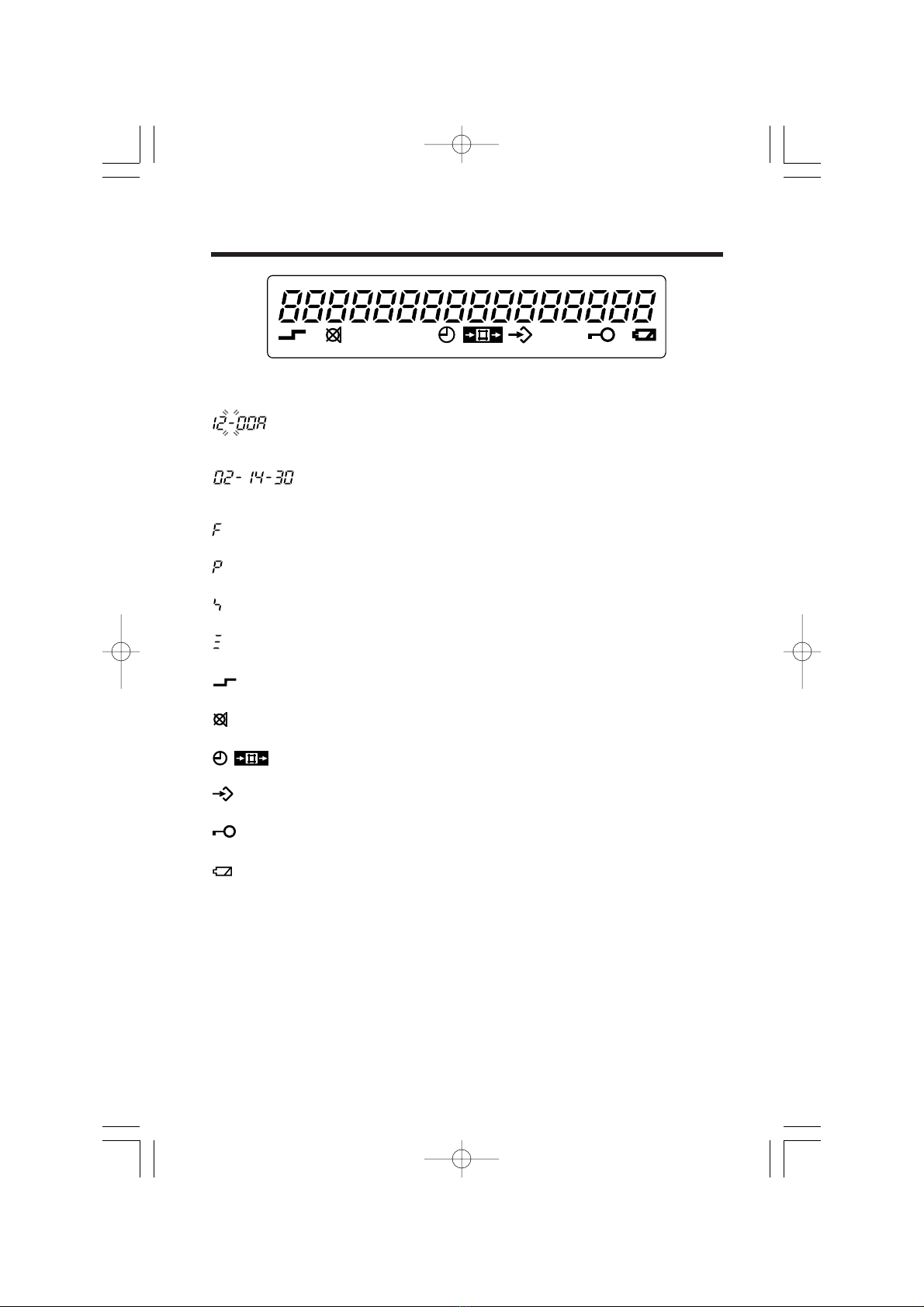

Display

: In the standby mode, the display shows the current time.

(Ex. 12:00AM)

: During a conversation, the call duration is displayed.

(Ex. 2 hours, 14 minutes, 30 seconds)

: (FLASH) was pressed.

:(PAUSE) was pressed while storing phone numbers.

:($) was pressed while dialing.

:(#) was pressed while dialing.

:(AUTO/LOWER) was pressed (p. 23, 26).

:(MUTE) was pressed during a conversation (p. 29).

: The unit is in the clock setting mode (p. 15).

: The unit is in the programming mode (p. 13).

: The dial lock mode is set. To cancel the mode, see page 32.

: This display ﬂashes, when the battery power is low. To replace

the batteries, see page 36.

(This display shows all of the possible conﬁgurations.)

PQQX13324ZB-0205.3.291:35PMページ8

For assistance, please visit http://shop.panasonic.com/support

Preparation

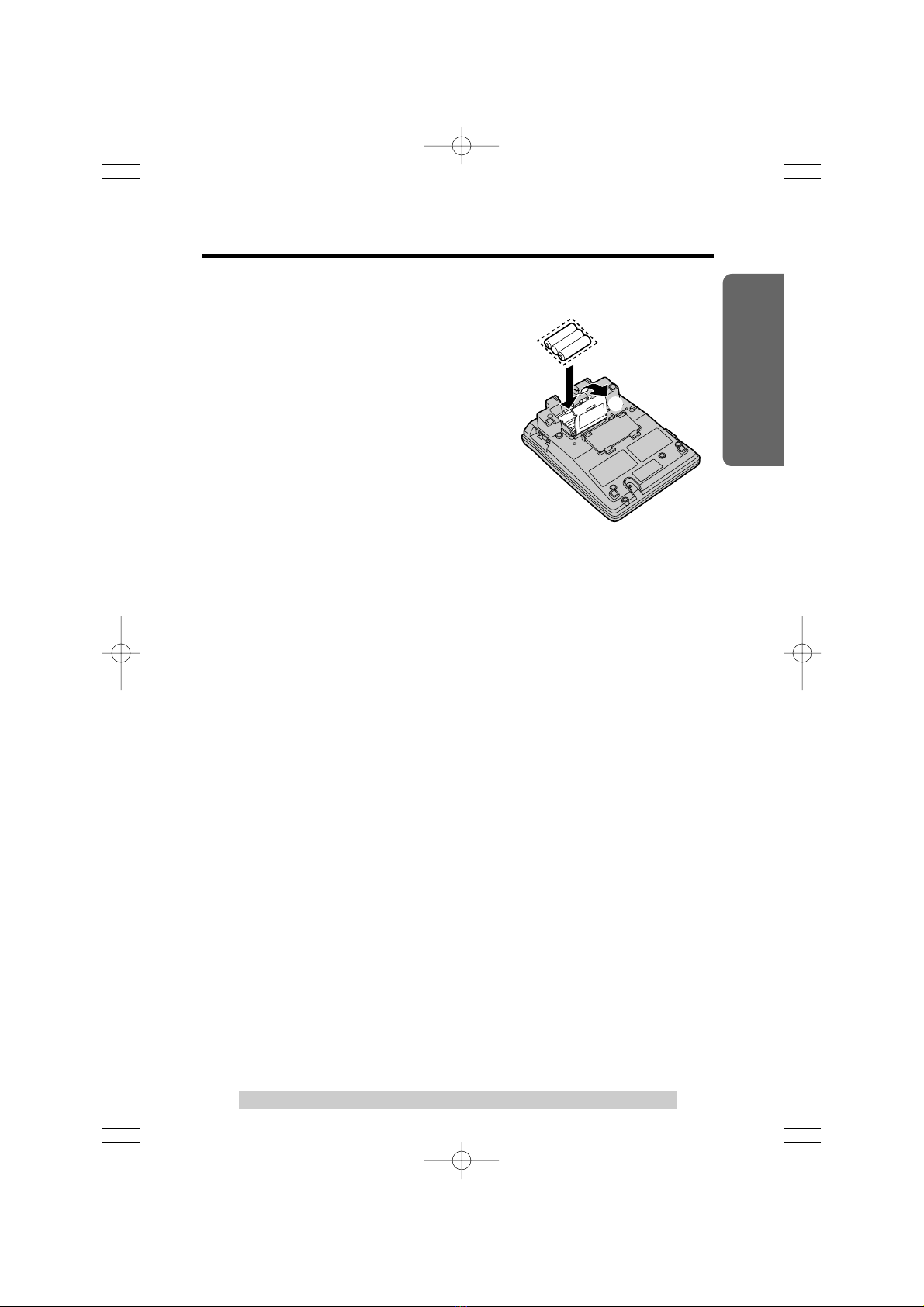

1Press down in the direction of the

arrow and open the cover.

2Install the batteries in the proper

order as shown, matching the

correct polarity.

3Close the battery cover.

Settings

“

≥Batteries are not included in the unit.

≥Install three high quality “AA” Alkaline or Manganese batteries. We recommend

to use Alkaline batteries.

Battery life is: —about six months in use of Alkaline batteries.

—about three months in use of Manganese batteries.

≥Battery life may depend on usage conditions and ambient temperature.

≥Make sure to install the batteries for the following features to operate properly:

—Display (p. 8)

≥—Buttons’ function when the handset is on the cradle

≥—Speakerphone (p. 18, 20)

≥—Programming (p. 13)

Installing the Batteries

PQQX13324VA-02.qxd14.7.113:27ページ9

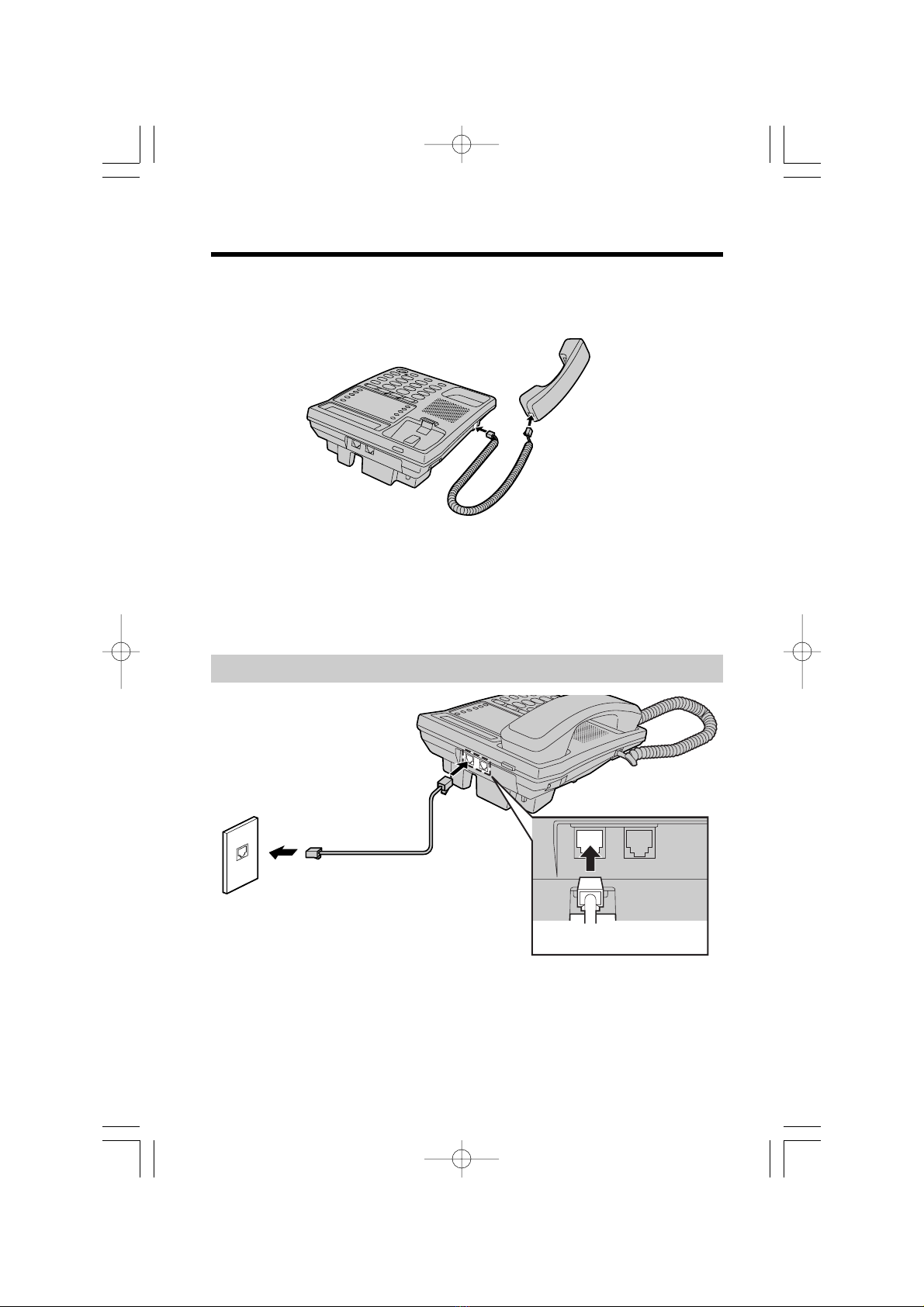

To connect a two-line telephone jack

Connecting the Telephone Line Cord

Connect the telephone line cord(s) to the unit as follows.

LINE1/2 LINE2/DATA

4-Wire Telephone

Line Cord with

GREEN Plugs

GREEN Plug

Two-Line Telephone

Jack (RJ14C)

“

Settings

Connecting the Handset

Connect the handset as shown below.

Handset Cord

Handset

≥Use only a Panasonic Handset for the KX-TS208W.

PQQX13324ZB-0205.3.291:35PMページ10
