– 1 –
Integrated Telephone System
Model No.
KX-TSC11EX
Operating Instructions
Thank you for purchasing your new Panasonic Integrated
Telephone.
• Keep this manual for future reference.

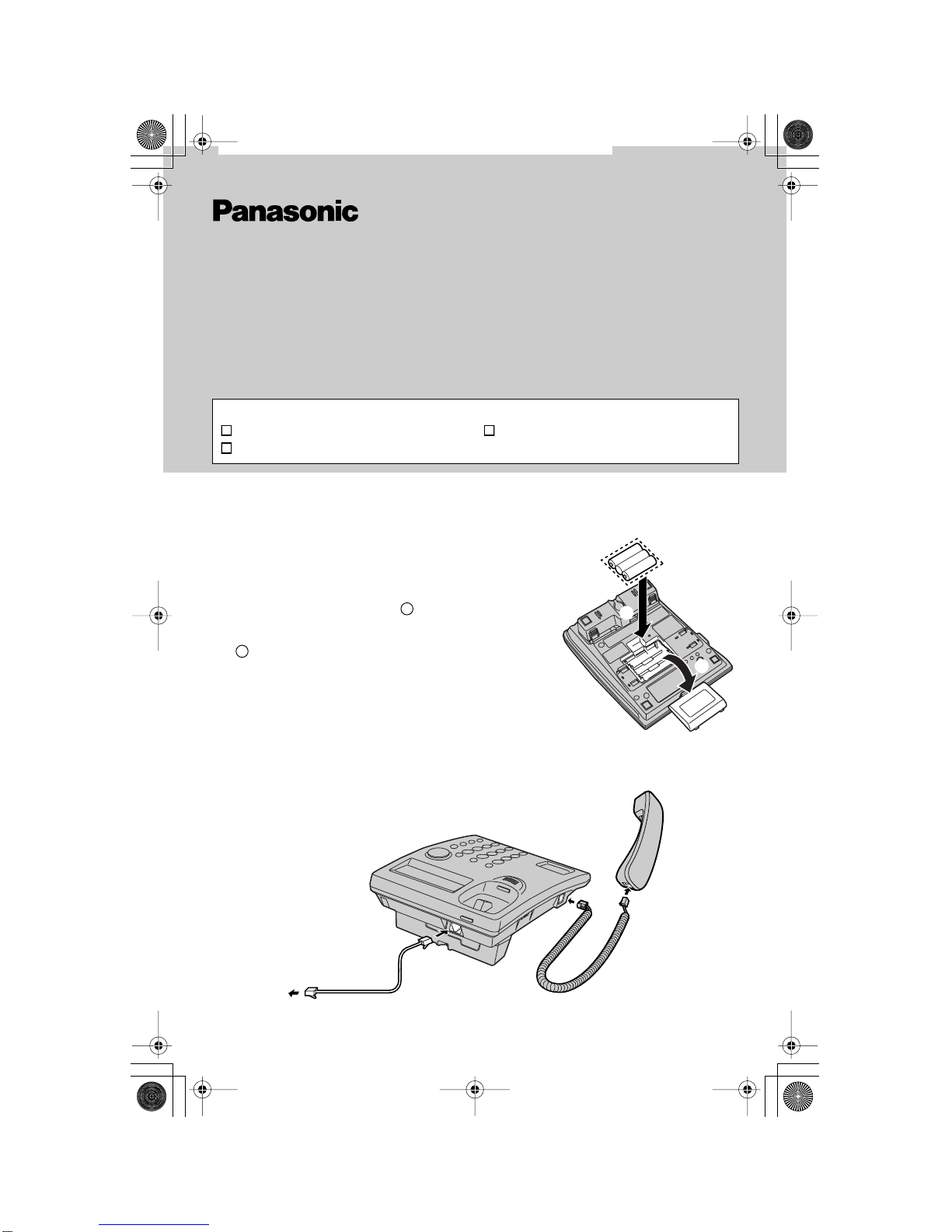

How to Set Up the Unit
Installing the Batteries
• Batteries are not included in the unit.
1. Press down in the direction of the arrow and
remove the battery cover ( ).
2. Install the batteries in the proper order as shown
( ), matching the correct polarity.
3. Close the battery cover.
Connecting the Handset/Telephone Line Cord
Check the accessories:
Handset. . . . . . . . . . . . . . . . . . . . .1
Telephone Line Cord . . . . . . . . . . .1
Handset cord . . . . . . . . . . . . . . . . 1
1
+
-
-
+
+
-
2
1
2
To Single-Line
Telephone Jack Handset Cord
Handset
Telephone line
Cord
E-PQQW13524ZA.fm 1ページ ２００４年１０月６日 水曜日 午後１２時５３分
– 2 –

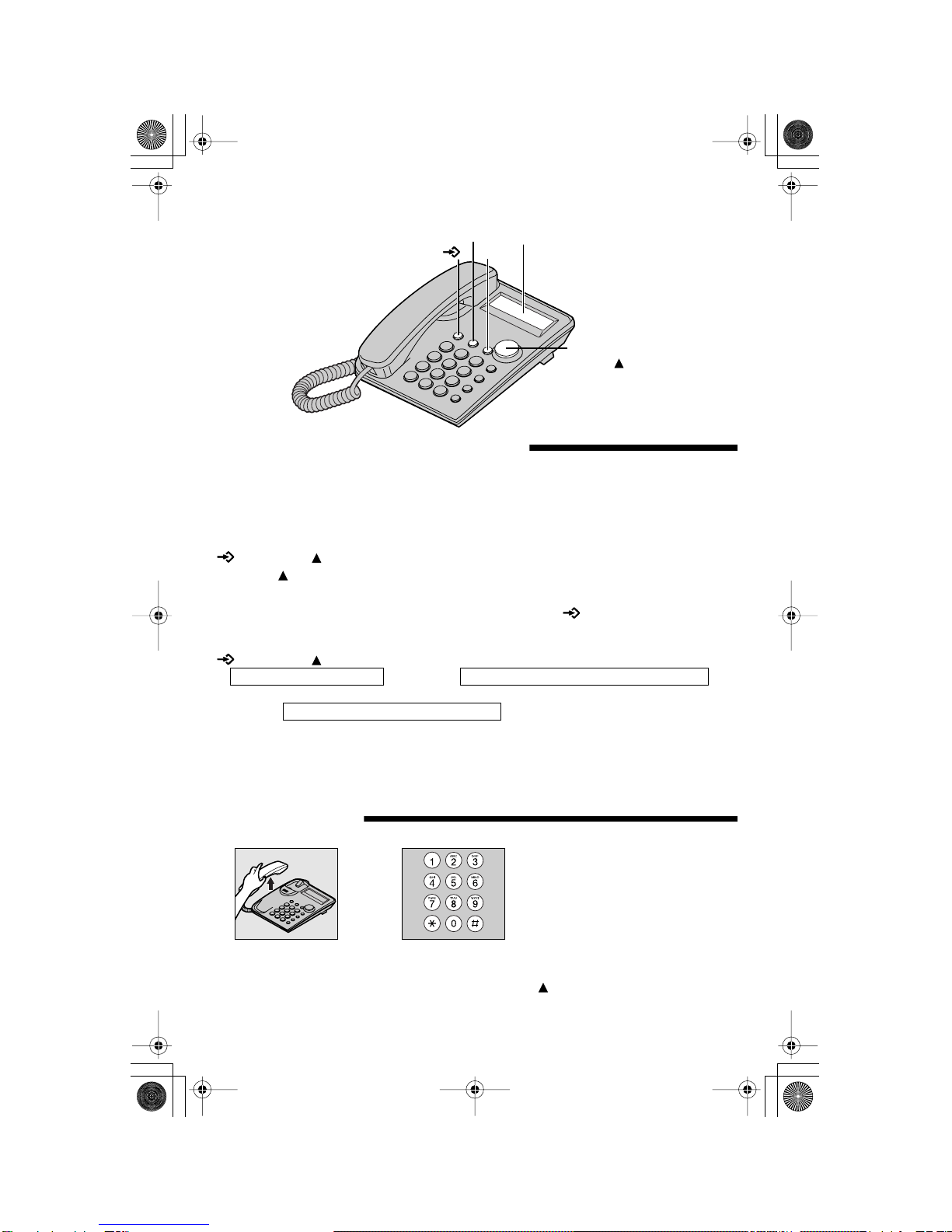

How to Operate the Unit
Programmable Preparations
Make sure that the handset is on the cradle.
To select the display language
You can select either “English”, “French”, “Spanish”, “Italian”, “Greek” or “Dutch” as
the display language.Your phone comes from the factory set to “English”.
[]
¤¤
¤¤
[]
or
[]
to select “
CHANGE LANGUAGE?
”
¤¤
¤¤
[]
¤¤
¤¤
¤¤
¤¤
[]
or
[]
to select “
ENGLISH
”, “
FRANCAIS
”, “
ESPANOL
”, “
ITALIANO
”,
“
E
ΛΛ
HNIKA
” or “
NEDERLANDS
”
¤¤
¤¤
[]
• You can exit the programming mode any time by pressing
[]
.
To adjust the time and date
[]
¤¤
¤¤
[]
or
[]
to select “
SET CLOCK ?
”
¤¤
¤¤
[]
¤¤
¤¤
¤¤
¤¤ ¤¤
¤¤ []¤¤
¤¤
¤¤
¤¤
¤¤
¤¤
[]¤¤
¤¤
[#] to select “AM”, “PM” or 24-hour clock (Blank display) ¤¤
¤¤
¤¤
¤¤
[]¤¤
¤¤
¤¤
¤¤
[]
*** To set 2004, enter “04”.
*** If the numbers between 0000 and 0059, or 1300 and 2359 are entered, the time will
automatically be set using the 24-hour clock.You need not select 24-hour clock.
*** To set Dec. 27, enter “2712”.
Making Calls
• You can also dial the number, then lift the handset.
• To adjust the handset volume (4 levels), press []or []during a conversation.
123
To hang up, place the
handset on the cradle.
Lift the handset. Dial a phone number.
Navigator Key
([], [], [], [])
▼
▼
▼
[]
OK
[]
[]
C
Display
▼OK
▼
OK
▼OK
*Enter the current year OK **Enter the current time (hour and minute)
OK
OK ***Enter the current day and month OK
▼
E-PQQW13524ZA.fm 2ページ ２００４年１０月６日 水曜日 午後１２時５３分
– 3 –

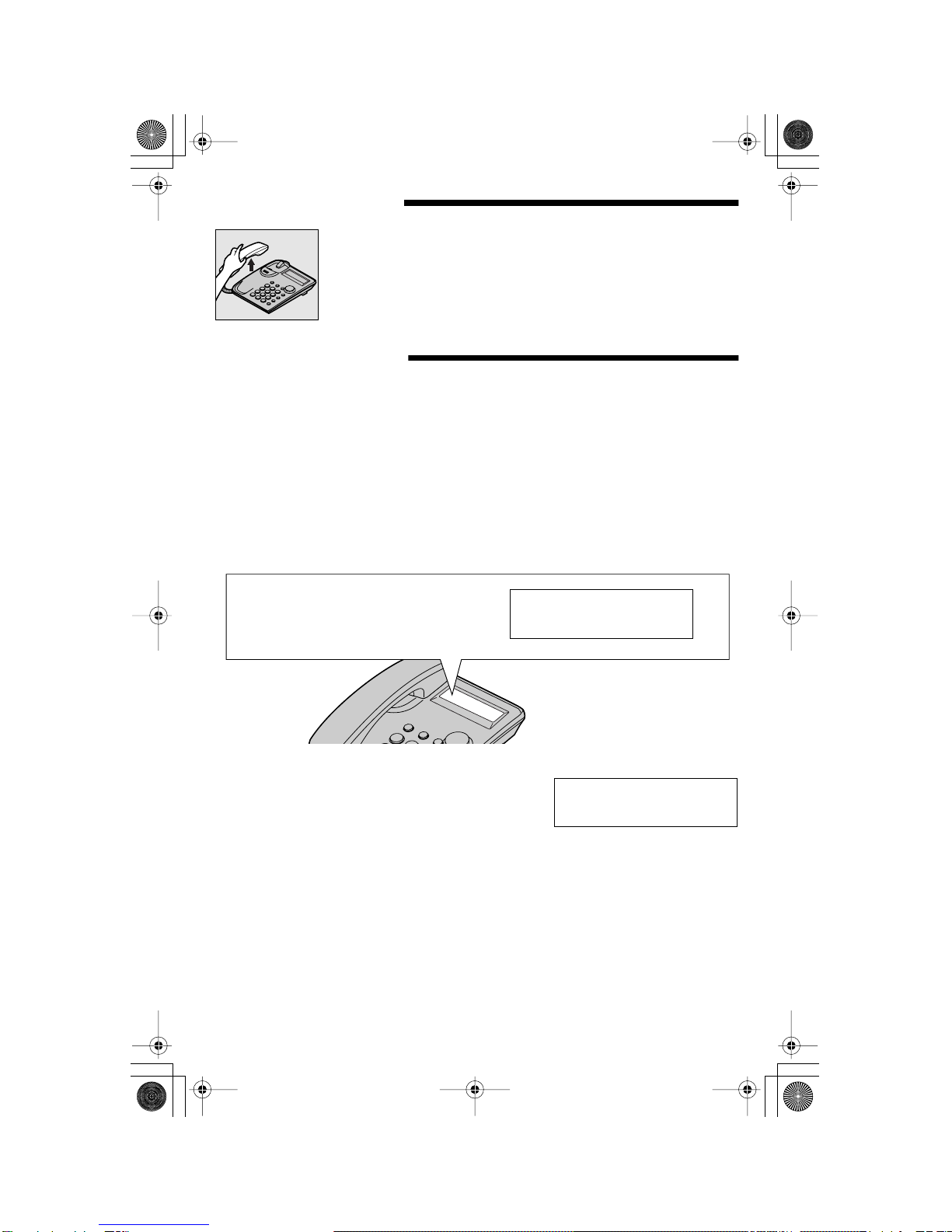

Answering Calls
Caller ID Service
This unit is compatible with a Caller ID service offered by your telephone
company. If you subscribe to a Caller ID service, the calling party’s information will
be displayed when the unit is ringing.
The unit can record information of up to 50 different callers, including the time and
date received and the number of times called, in the Caller List. The Caller List
information is sorted from the most recent to the oldest call. When the 51st call is
received, the oldest call is deleted.
Using the list, you can automatically call back a caller. You can store the callers’
numbers from the Caller List in the Phone Book memory.
How caller information is displayed when a call is received
*
Private name display
If you receive a call from one of the same phone
numbers stored in the Phone Book List, the caller’s
name will be displayed.
• To use this function, names and phone numbers must
be stored in the Phone Book List (p. 5).
• Caller information will not be displayed in the following cases:
—If the caller dialed from an area which does not provide a Caller ID service, the display
will show “
OUT OF AREA
”.
—If the caller has requested not to display his/her information, the display will show
“
PRIVATE CALLER
”.
—If a long distance call is identified and caller’s name and/or number cannot be received,
the display will show “
LONG DISTANCE
”.
• If your unit is connected to a PBX which does not support Caller ID services, you cannot
access those services.
When the unit rings, lift the handset.
The display shows the caller’s phone number
when the unit is ringing.*
After you answer the call, the display will show
the length of the call.
1114447777
11:50
AM
24/11
TINA ROBINSON
11:50
AM
24/11
E-PQQW13524ZA.fm 3ページ ２００４年１０月６日 水曜日 午後１２時５３分
– 4 –
If you have received 10 new calls, the number of
new calls will be displayed as shown, while the unit
is not in use.

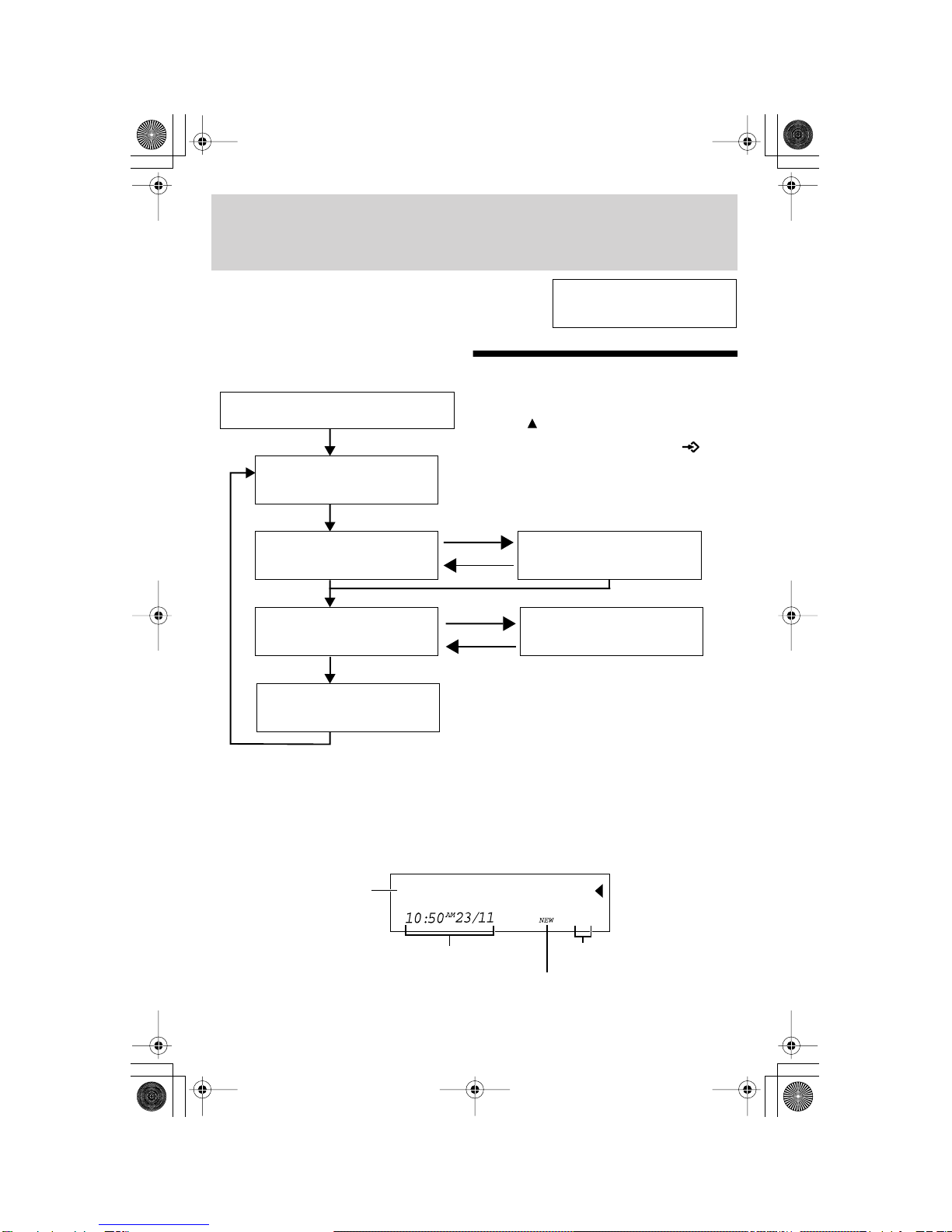

Viewing the Caller List
You can check who has called as follows.
Display meaning:
• If the batteries installed in the unit have expired, Caller ID services will not be available.
• If the name and the time/date display service is available in your area, the display will
show caller’s names and the time/date the calls were received. For further information,
please contact your telephone company.
**
If you receive a call from one of the same phone numbers stored in the Phone Book List,
the caller’s name will be displayed
(Private name display)
. To see the phone number,
press
[]
. Each time you press
[]
, the display will change alternately.
**
If an arrow ( ) is displayed after the number, the whole phone number has not been
shown. Press
[]
to see the remaining numbers or to return to the previous display.
Each time you press
[]
, the display will change alternately.
10 MISSED CALLS
12:34
PM
24/11
JACK SMITH
10:50
AM
23/11
▼
Press [].
▼
Press [].
▼
Press [].
▼
Press [].
▼
Press []to enter the list.
▼
** 456789012345678
10:00
AM
22/11
▼
0123
10:00
AM
22/11
▼
1114447777
11:50
AM
24/11
NEW x4
12:34
PM
24/11
1234567890
10:50
AM
23/11
▼
Press [].
▼
Press [].
▼
To return to the previous caller,
press [].
To exit the Caller List, press [].
▼
▼
▼
▼
▼
JACK SMITH
x
4
Caller’s phone number
or name
The time and date the call has been
received.
(ex. November 23, 10:50 AM)
The number of times the
same caller called (up to 9).
The indication of the call which you
have not checked.
*
E-PQQW13524ZA.fm 4ページ ２００４年１０月６日 水曜日 午後１２時５３分
– 5 –

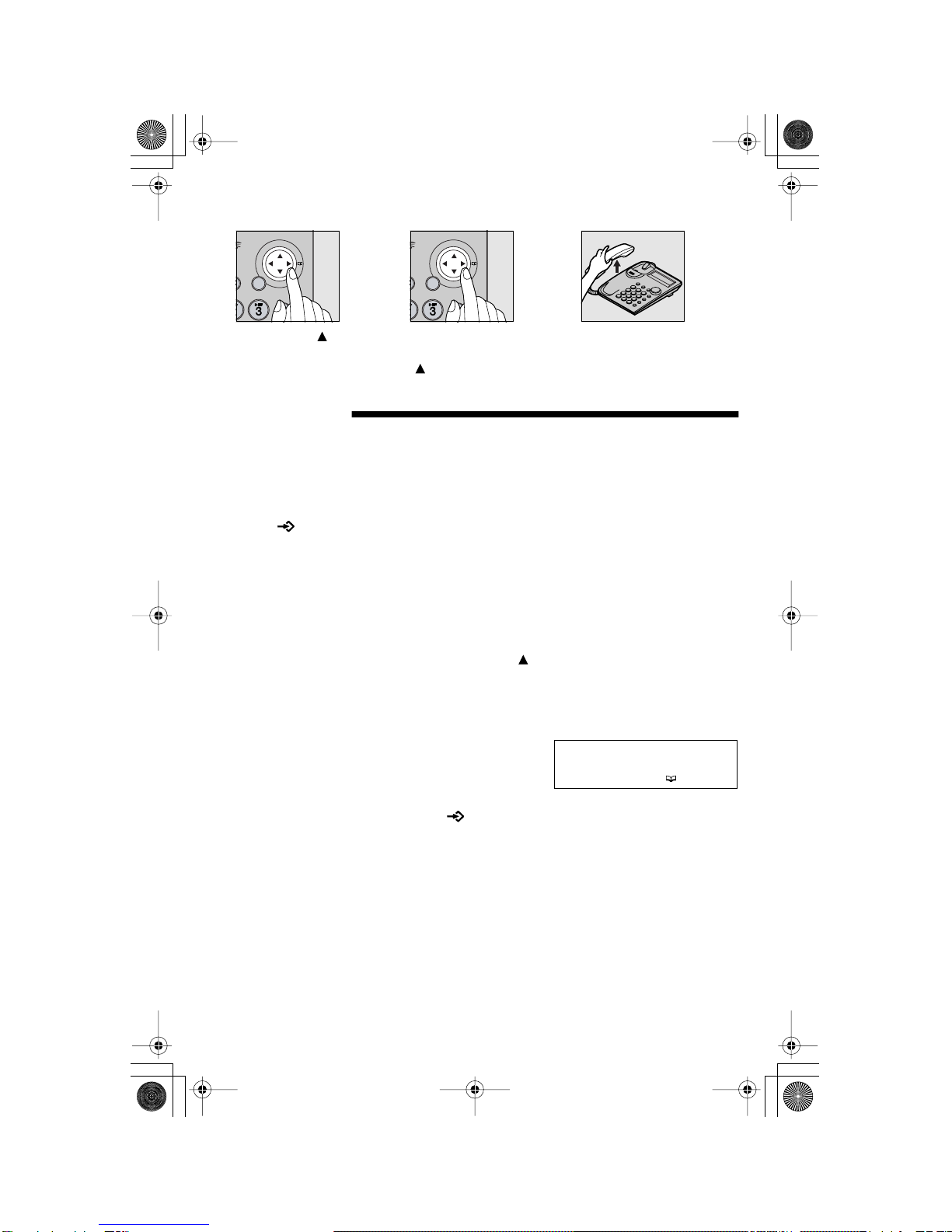

To call back from the Caller List
Phone Book
You can store up to 50 names and phone numbers in the Phone Book.
To store names and phone numbers in the Phone Book List
Make sure that the handset is on the cradle.
1. Press
[]
.
2. Press
[]
.
3. Enter a name, up to 15 characters with the dialing buttons (p. 6).
• To move the cursor while entering name, press
[]
or
[]
.
• If a name is not required, press
[]
and go to step 5.
4. Press
[]
.
• If you want to return to step 3 for editing, press
[]
.
5. Enter a phone number up to 22 digits.
• If you entered a wrong number, press
[]
and enter the correct number.
• To move the cursor while entering number, press
[]
or
[]
.
6. Press
[]
.
• To continue storing other items, repeat step 2.
• To exit the programming mode, press
[]
or wait for 60 seconds.
123
Press
[]
or
[]
to enter
the Caller List.
Scroll to the desired
caller by pressing
[]
or
[]
.
Lift the handset.
C
OK
C
OK
▼
▼
OK
▼
▼
OK
OK
C
▼
▼
SAVED
OK
E-PQQW13524ZA.fm 5ページ ２００４年１０月６日 水曜日 午後１２時５３分
– 6 –
To enter names and symbols
The dialing buttons (
[0]
to
[9]
) can be used to enter letters and symbols. Pressing
each button selects a character as shown below.
•To enter another character using the same dialing button, press
[]
to move the cursor to
the next space.
•If you make a mistake while entering a name, use
[]
or
[]
to move the cursor to the
incorrect character, press
[]
to delete and enter the correct character. Each time you
press
[]
, a character is erased.
Dialing from the Phone Book
1. Press
[]
or
[]
to enter the Phone Book List.
2. Press
[]
or
[]
.
3. Scroll to the desired item by pressing
[]
or
[]
.
To search for a name by initial;
1: Press the dialing button for the first letter of the desired name until any name with the
same initial is displayed.
2: Press
[]
repeatedly until the name is displayed.
4. Lift the handset.
5. To hang up, place the handset on the cradle.
• If “
NO ITEMS STORED
” is displayed in step 1, the Phone Book is empty.
• You can exit the Phone Book List any time by pressing
[]
.
• You can also dial the stored number as follows:
1 Lift the handset.
2 Find the desired item (above steps 1 and 2).
3 Press
[]
.
PQQW13524ZA
F1004-0
Keys
Index
Keys
Index
Keys
Index
[1]
& ’ ( ) , – . / 1
[7]
P Q R S 7
[]
To move the cursor
to the left
[2]
A B C 2
[8]
T U V 8
[3]
D E F 3
[9]
W X Y Z 9
[4]
G H I 4
[0]
0 Space
[]
To move the cursor
to the right
[5]
J K L 5
[]
[6]
M N O 6
[#]
#
▼
▼
C
C
▼
▼
▼
▼
▼
OK
D
E-PQQW13524ZA.fm 6ページ ２００４年１０月６日 水曜日 午後１２時５３分
